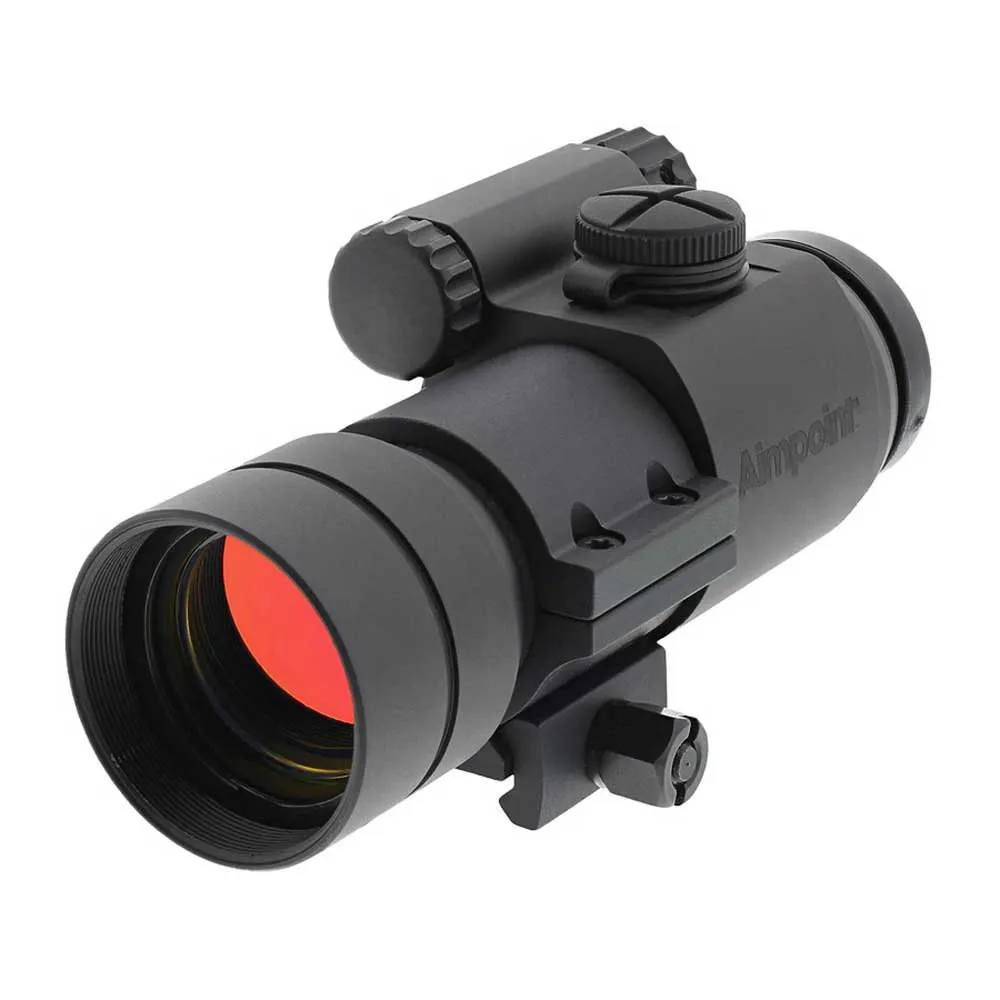

Aimpoint Compc3 2MOA Red Dot Optical Viewer

Specifically designed to use whenever you need a compact sight with a 30 mm tube, Aimpoint® CompC3 is the lightest sight in its class.

The Aimpoint CompC3 is designed to be used whenever you need a compact sight with a 30 mm tube diameter. This sight belongs to the Comp series sights which is a very popular series for the professional market. The CompC3 is a civilian version mostly used on scout rifles, bows, carbines and competition pistols.

Please note that the appearance of some components of this product such as the rubber strap, the covers for the adjustment screws and the battery lid have recently been changed.


Features:

- Ideal for scout rifles, bows, carbines, and competition pistols
- Easy to mount, equipped with 30mm ring that fits all Weaver/Picatinny bases
- New ACET technology allows 50,000 hours of operation on one battery
- Available in 2 MOA dot size
- Fully waterproof


Specifications:

Optical:
- Operating principle: Reflex collimator sight with LED
- Optical magnification: 1x
- Aiming dot size: 2 MOA
- Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx
- NVD compatible: No
- Optical coating: Anti-reflex, all surfaces and multi-layer
- Clear aperture: 23 mm (.9 in)
- Eye relief: Unlimited

Power Source:
- Battery type: 3V lithium battery, type 2L76 or DL1/3N
- Battery life - Day time use: 50 000h (over 5 years of continuous use)
- Power intensity: 10 pos. 1 Off, 9 daylight of which 1 Extra Bright

Environmental:
- Temperature range operation: -30°C to +60°C (-20°F to +140°F)
- Temperature range storage: -51°C to +71°C (-60°F to +160°F)
- Temperature shock: Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F)
- Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
- Submersible: To a depth of 5 m (15 ft.)
- Shock: Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction)
- Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction
- Chemical resistance: Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents

Physical:
- Length sight only: 125 mm (4.9 in)
- Length conf: 125 mm (4.9 in)
- Width sight only: 49 mm (1.9 in)
- Height sight only: 49 mm (1.9 in)
- Weight sight only (incl battery): 200 g (7 oz)
- Housing material: High strength aluminum
- Housing finish and color: Semi-matte black
- Housing anodized: Yes
- Material mount and spacer std conf: High strength aluminum
- Surface treatment: Hard anodized, semi-matte
- Adjustment: 1 click =13 mm at 80 m = 16 mm at 100 m = .6 in at 100 yds

Mechanical Interface:
- Keyed surface mount: 25
- Mounting: 1 ring (30 mm wide). Ring included.
