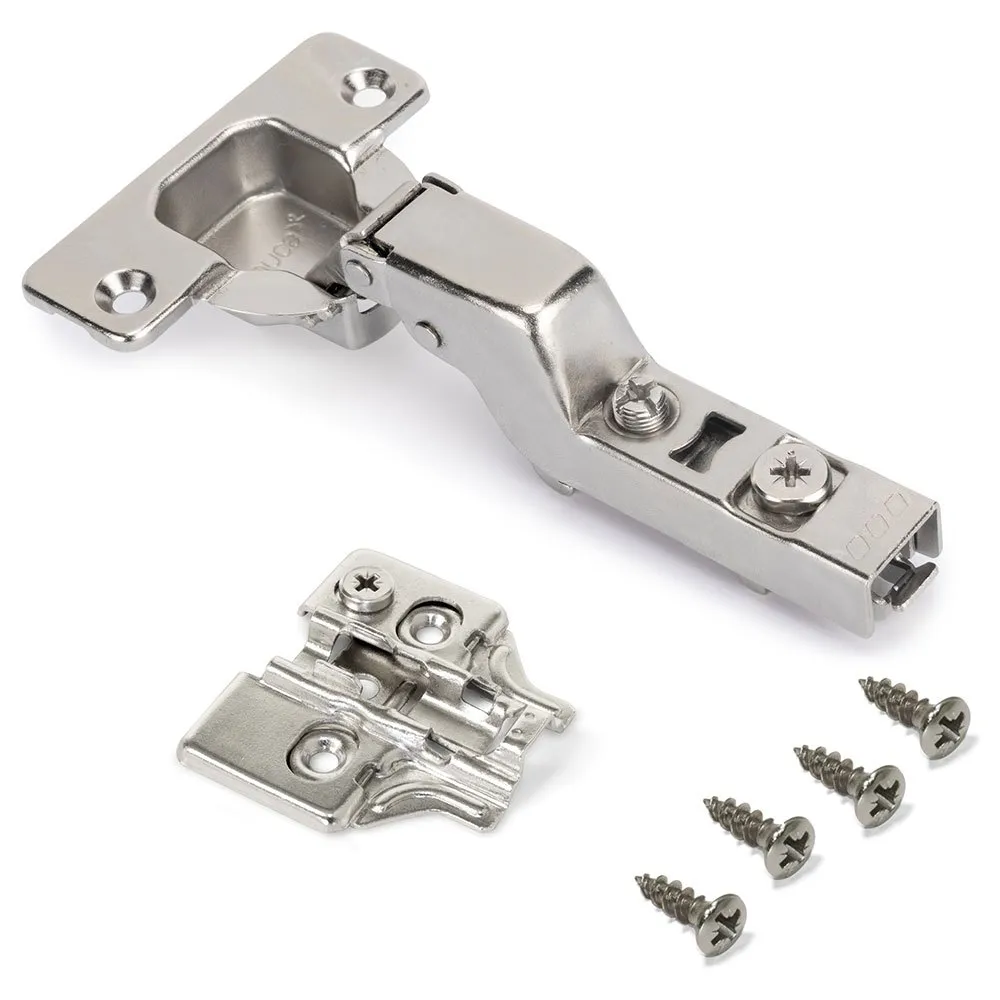

Emuca X92 Supercode Hinge Kit With Soft Closure And Supplement

Hinges for doors designed to fit out your kitchen, wardrobe, home, bathroom and office furniture with the highest quality at the best price. They stand out for their cushioning piston which provides soft closing of the door.
With 105º opening of the door. In order to install them you need to drill a 35mm hole beforehand for the concealed hinge. Fastening to the board is carried out using the screws included. Likewise, they stand out for their easy installation thanks to the automatic clip assembly system of the hinge to the plate. Also, both have eccentric screwing for quick and convenient adjustment.


Features:

- Inset hinge hinge, soft closing hinge with Ø35 cup and opening angle of 105º; suitable for doors 14 to 24 mm thick.
- Clip or automatic assembly of hinge on accessory.
- Adjustable in three dimensions, with depth regulation with eccentric bolt.
- The door overlays the unit side completely.
- Screw on accessory.
- Damper in closing.
- Drill bit size for the cup D = 3 ~ 7 mm
- 20 straight hinges, 20 accessories with eccentric height regulation 0 and 80 screws for assembly.


Specifications:

- Dimensions: 15 x 10 x 27
- Weight: 2,60 Kg
- Material: Steel
- Components: 20 hinges, 20 plates and assembly screws
