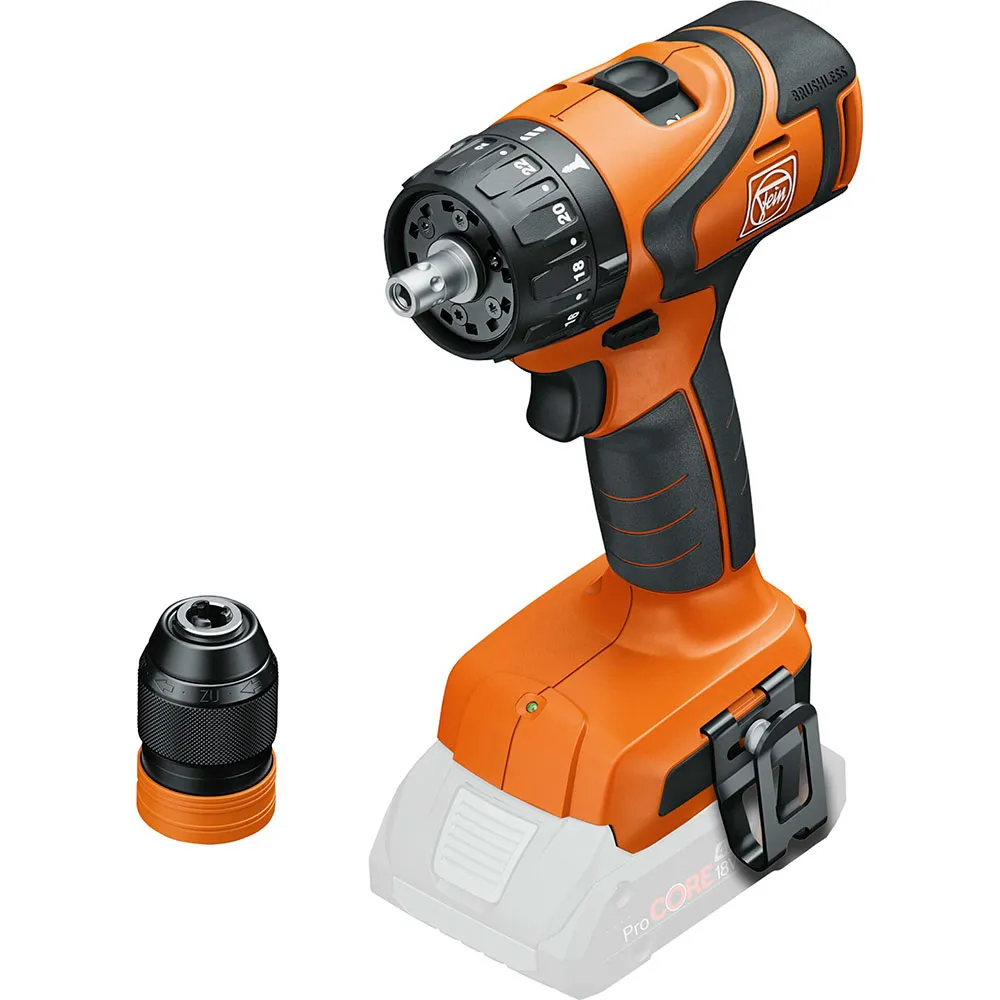

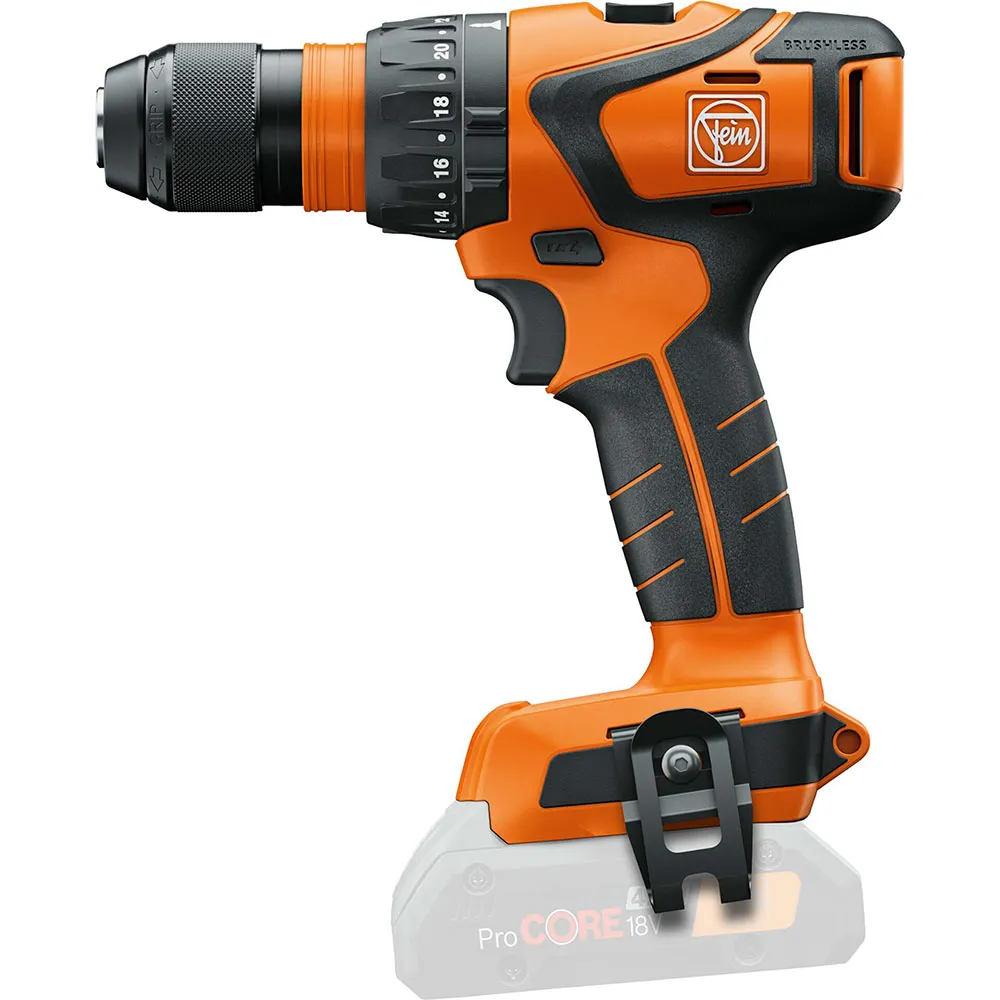

Fein ABS 18 Q drill

Fine ABS 18 Q AS N00, 2-speed cordless drill driver, L-BOXX 136 (without battery, without charger).

The 2-speed cordless drill screwdriver offers power and precision with brushless motor and QuickIN interface.

Ideal for holes up to 13 mm and threads up to M10, this tool offers maximum efficiency and durability for demanding applications.

Features:All-metal gearbox with 2 gears ideal for drilling up to 13 mm and tapping up to M10 in metal.

The widest range of applications with the FEIN QuickIN system:faster working in metal and wood with just one machine.

QuickIN All-metal chuck (120 Nm) with carbide-tipped jaws and high clamping forces.

Brushless FEIN PowerDrive motor with high efficiency and long service life.

Mechanical torque setting.

Compact design.

Powerful battery technology AMPShare:up to approx.

1300 screw connections Ø 5 x 40 mm in wood with a battery charge when using a ProCore 4 Ah battery (not included, optionally available).

Ergonomic and flexible handling thanks to the side-mounted bit and belt holders.

Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.

Well-equipped for every application Mobile working with the L-BOXX system.

Technical data:Battery voltage:18 V.

Battery compatibility:Li-Ion / ProCORE Li-Ion.

Battery interface:18 V AMPShare.

Motor:Brushless.

Transmission:2-speed.

Accessory interface:QuickIN.

Idle speed:450 / 2,000 rev/min.

Max torque (hard/soft):60 / 38 Nm.

Torque levels:22 + 1.

Drill chuck span:1.5 - 13 mm.

Screws:8 x 300 mm.

Drilling diameter of steel:13 mm.

Drilling Ø wood:50 mm.

Tapping:M 10.

Weight without battery:1.40 kg.

Sound pressure level LpA:74.3 dB.

Measurement uncertainty of the measured value KpA:5 dB.

Sound power level LWA:82.3 dB.

Measurement uncertainty of the measured value KWA:5 dB.

Noise level LpCpeak:88.1 dB.

Measurement uncertainty of the measured value KpCpeak:5 dB.

Vibration value 1 α hv 3-way:ah,D 1.1 m/s 2.

Vibration value 2 α hv 3-way:ah 1.2 m/s 2.

Measurement uncertainty of the measured value Kα:1,5 m/s 2.

Scope of delivery:Fine ABS 18 Q AS N00 2-speed cordless drill driver.

1x QuickIN Drill chuck (120 Nm).

1x belt clip.

1x Bitgarage.

1x plastic tool case (L-BOXX 136).

Note:Battery and charger not included.

-Max.

No-Load Speed 1st Gear (min-1):0 - 450.

-Max.

No-Load Speed 2nd Gear (min-1):2000.

-Torque soft (Nm):38.

-Torque hard (Nm):60.

-Max.

Torque (Nm):60.

-Torque Settings:22 + 1.

-Max.

Drilling Capacity in Wood (mm):50.

-Max.

Drilling Capacity in Steel (mm):13.

-Battery Voltage (V):18.

-Type of Battery / Rechargeable Battery:Lithium-Ion.

-Rechargeable Batteries Included in Delivery:No.

-Electronic Speed Stabilisation:Yes.

-Sound Pressure (dB):74,3.

-Type:Drill.

-Operating Mode:Rechargeable Battery.

-Tool Mounting System:Keyless Drill Chuck.

-Drill Chuck Clamping Range min./max.

(mm):1,5 / 13.

-Colour:orange / schwarz.

-Width (cm):21,1.

-Height (cm):23,8.

-Depth (cm):7,9.

-Weight (kg):1.4.
