JBM 40942 digital multimeter

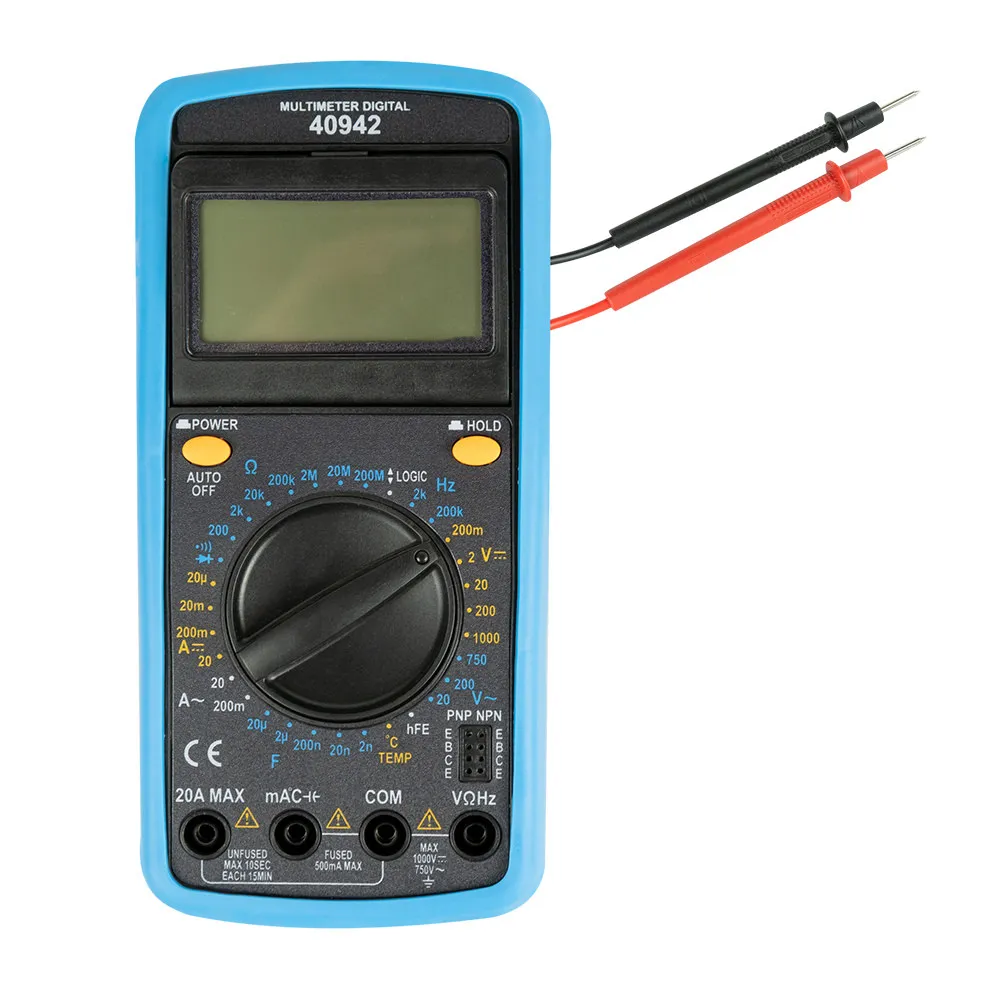

JBM 40942 Digital Multimeter - Professional Precision Measurement Tool

Experience unparalleled precision and reliability in all your electrical diagnostics with the JBM 40942 Digital Multimeter. Designed for the demanding needs of professional technicians, electricians, automotive experts, and serious DIY enthusiasts, this instrument is the cornerstone of any modern hardware toolkit. It combines robust functionality with user-centric design to deliver accurate readings and simplify complex measurement tasks. Whether you´re troubleshooting a faulty circuit, verifying power supply outputs, or performing routine maintenance on electronic equipment, the JBM 40942 provides the confidence and data you need to get the job done right.

Achieve confident diagnostics with a tool engineered for accuracy. The JBM 40942 excels in providing consistent and trustworthy results, allowing you to quickly identify issues and make informed decisions. Its intuitive interface and clear display ensure that readings are easy to interpret, even in low-light conditions, minimizing guesswork and improving workflow efficiency.

Key Benefits
* Effortless Operation: Navigate complex tasks with ease thanks to intelligent features like automatic range selection, which eliminates the need for manual adjustments and prevents potential measurement errors.
* Enhanced Visibility: The large, high-contrast LCD screen features a powerful backlight, ensuring crystal-clear readability in dimly lit engine bays, under dashboards, or inside electrical panels.
* Data-Driven Analysis: Freeze critical measurements on-screen with the convenient Data Hold function. This allows you to capture a reading and reference it later, which is invaluable when working in tight spaces where you can´t view the screen and probes simultaneously.
* Enhanced Safety: Work with peace of mind knowing the multimeter is equipped with integrated overload protection, safeguarding both the user and the device against accidental voltage spikes and incorrect connections.

Main Features
* Large Backlit LCD Display
* Automatic Range Selection (Auto-Ranging)
* Data Hold Function
* Auto Power-Off for Battery Conservation
* Low Battery Indicator
* Integrated Overload Protection
* Continuity Test with Audible Buzzer
* Diode Test Function

Measurers

The JBM 40942 is a comprehensive measurement instrument capable of testing:

* DC Voltage (VDC)
* AC Voltage (VAC)
* DC Current (DCA)
* AC Current (ACA)
* Resistance
* Capacitance
* Frequency
* Temperature
* Diode Forward Voltage
* Circuit Continuity

Technical Specifications
* Display: Digital LCD, 3 5/6 digits, 6000 counts
* Safety Rating: CAT III 1000V, CAT IV 600V
* DC Voltage Ranges: 600mV / 6V / 60V / 600V / 1000V
* AC Voltage Ranges: 6V / 60V / 600V / 750V
* DC Current Ranges: 60µA / 6mA / 60mA / 600mA / 6A / 10A
* AC Current Ranges: 6mA / 60mA / 600mA / 6A / 10A
* Resistance Ranges: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
* Capacitance Ranges: 6nF / 60nF / 600nF / 6µF / 60µF / 600µF / 6mF
* Frequency Ranges: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz
* Temperature Range: -20°C to 1000°C (-4°F to 1832°F)
* Operating Principle: Dual-slope A/D conversion
