JBM Insulation meter

JBM Insulation Meter | Professional Digital Megohmmeter & Multimeter

Ensure the safety, integrity, and reliability of electrical systems with the JBM Insulation Meter, a professional-grade diagnostic tool designed for electricians, maintenance technicians, and engineers. As one of the most critical measurers in any professional´s toolkit, this device provides precise and dependable readings to help you identify potential insulation failures before they lead to critical downtime or hazardous situations. Built for the demanding environments of industrial, commercial, and residential electrical work, the JBM Insulation Meter combines robust functionality with user-friendly operation.

Diagnose insulation resistance in motors, generators, transformers, cables, and switchgear with confidence. This versatile instrument is not just an insulation tester; it also functions as a comprehensive multimeter, capable of measuring both AC and DC voltage, as well as checking for continuity. This all-in-one capability streamlines your workflow, reduces the number of tools you need to carry, and delivers exceptional value and efficiency on every job.

Key Benefits:

* Enhanced Safety & Prevention: Proactively identify insulation degradation to prevent short circuits, electrical shocks, and equipment failure. With its high safety rating, you can work on high-energy circuits with maximum protection and peace of mind.
* Diagnostic Accuracy: Obtain highly accurate insulation resistance measurements up to 2000 MΩ, allowing you to detect even subtle weaknesses in electrical insulation and make informed maintenance decisions.
* Unmatched Versatility: With selectable test voltages of 250V, 500V, and 1000V, this meter is adaptable to a wide range of applications, from low-voltage control circuits to high-power distribution systems.
* Superior Usability: The large, backlit LCD screen ensures clear visibility of readings in any lighting condition, from dark electrical closets to bright outdoor settings. The Data Hold function freezes the measurement on screen for easy recording.
* Efficient Operation: Features like the lock button for continuous testing and an audible buzzer for continuity checks save you time and effort during repetitive tasks. The auto power-off function helps conserve battery life, ensuring the meter is ready when you are.

Main Features:

* Multi-functionality: Insulation Resistance, AC/DC Voltage, and Continuity testing.
* Selectable Test Voltages for broad application coverage.
* Large, high-contrast LCD display with a bright backlight.
* Data Hold function to lock readings on the display.
* Lock button for hands-free, continuous insulation testing.
* Audible buzzer for quick and easy continuity verification.
* Automatic power-off feature to extend battery life.
* Low battery indicator to prevent unexpected power loss.
* Overload protection and robust double-insulation design for user safety.

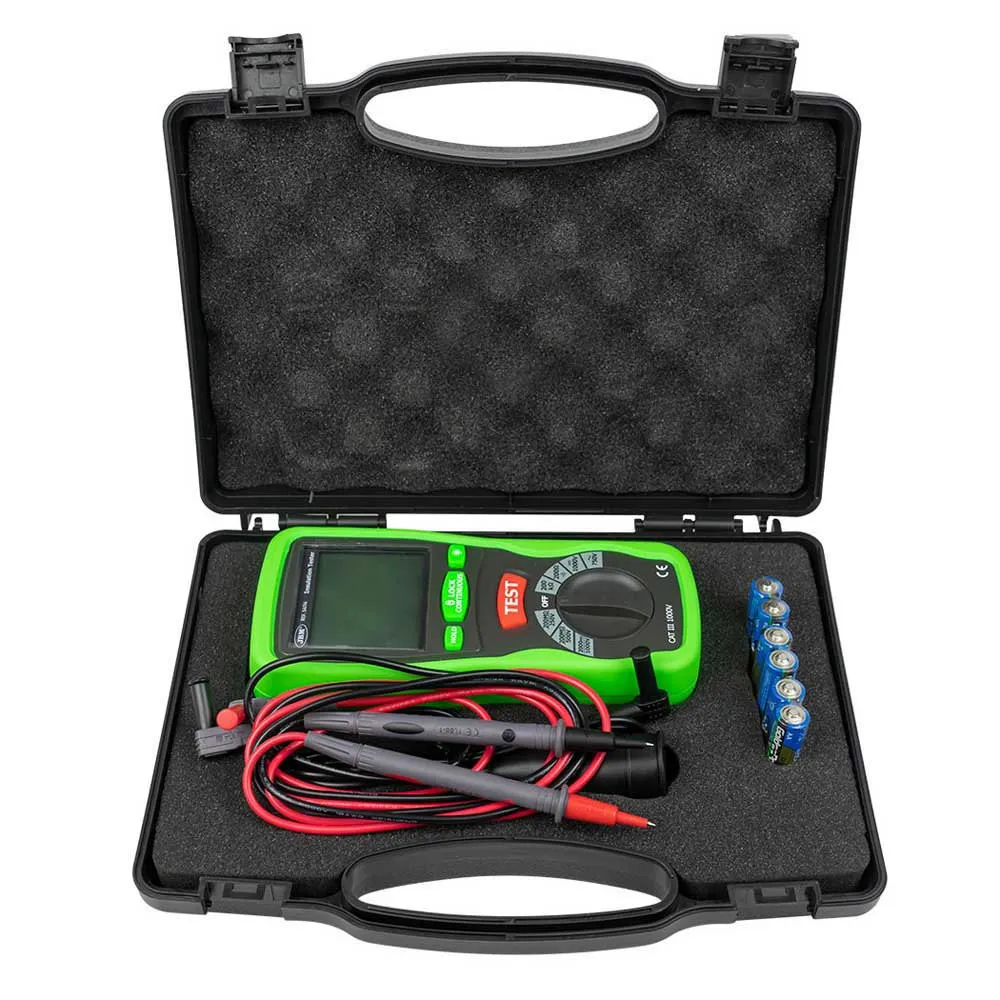

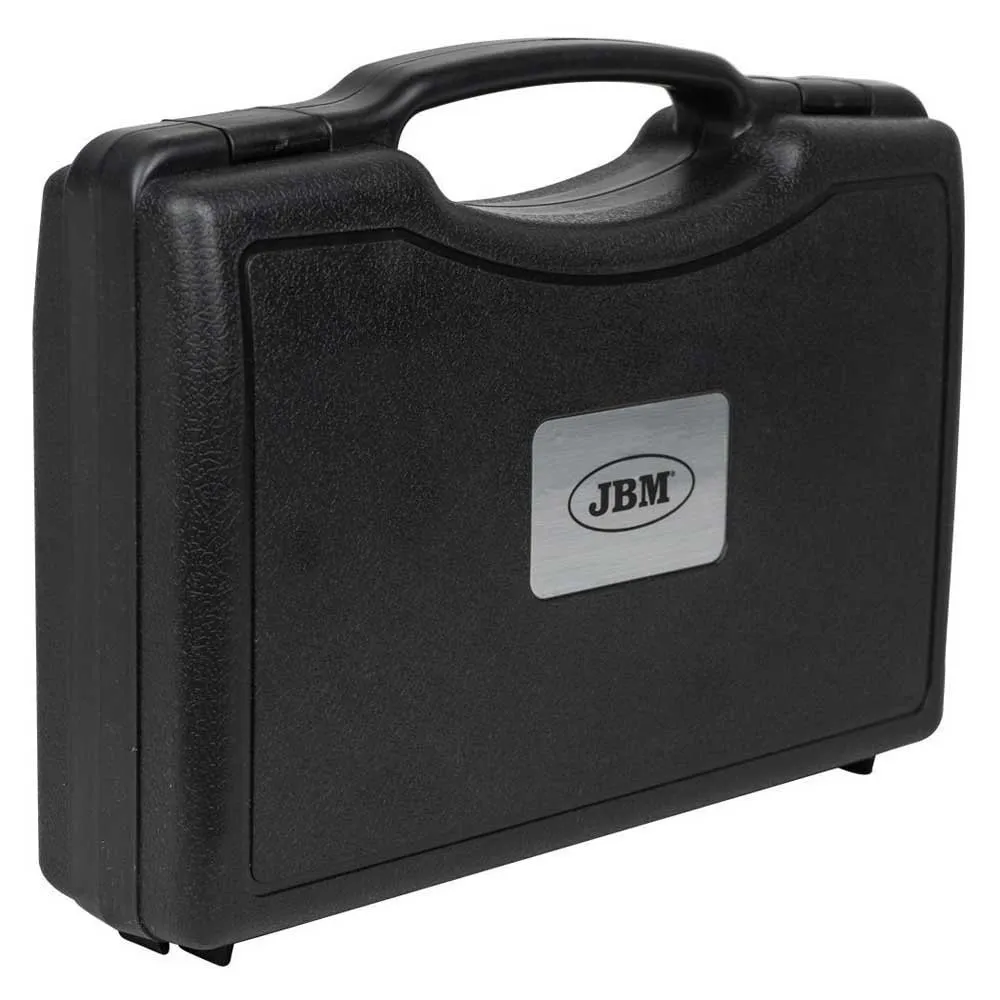

* Comes complete with high-quality test leads, alligator clips, and a durable carrying case.

Technical Specifications:

* Attribute: Measurers

* Test Voltages: 250V / 500V / 1000V
* Measurement Range: 0.1 MΩ to 2000 MΩ (2 GΩ)

* AC Voltage Range: Up to 750V
* DC Voltage Range: Up to 1000V

* Audible Signal: Yes (for resistance < 50 Ω)

* Display: 3 ½ digit LCD, 1999 counts
* Safety Standard: Conforms to IEC61010-1, CAT III 1000V, CAT IV 600V
* Power Supply: Requires AA batteries
* Operating Environment: 0°C to 40°C, < 80% RH

Insulation tester.

Insulation meter.

Hardware.

Measurement tools.

J.B.M Range section for professionals in tools and accessories.



Equip your toolkit with the JBM Insulation Meter and perform every diagnostic and maintenance task with unparalleled precision and safety. This essential device from the JBM professional range is engineered to deliver reliable performance, helping you uphold the highest standards of electrical integrity
