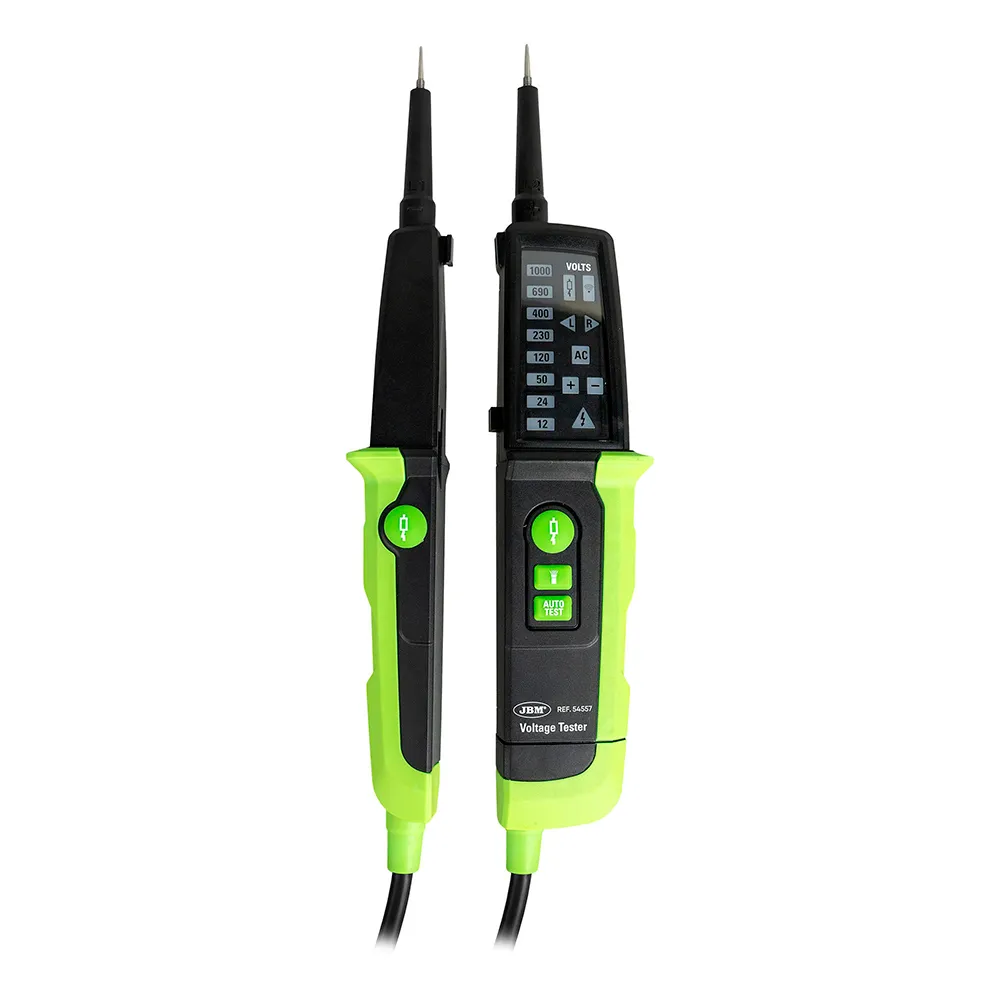

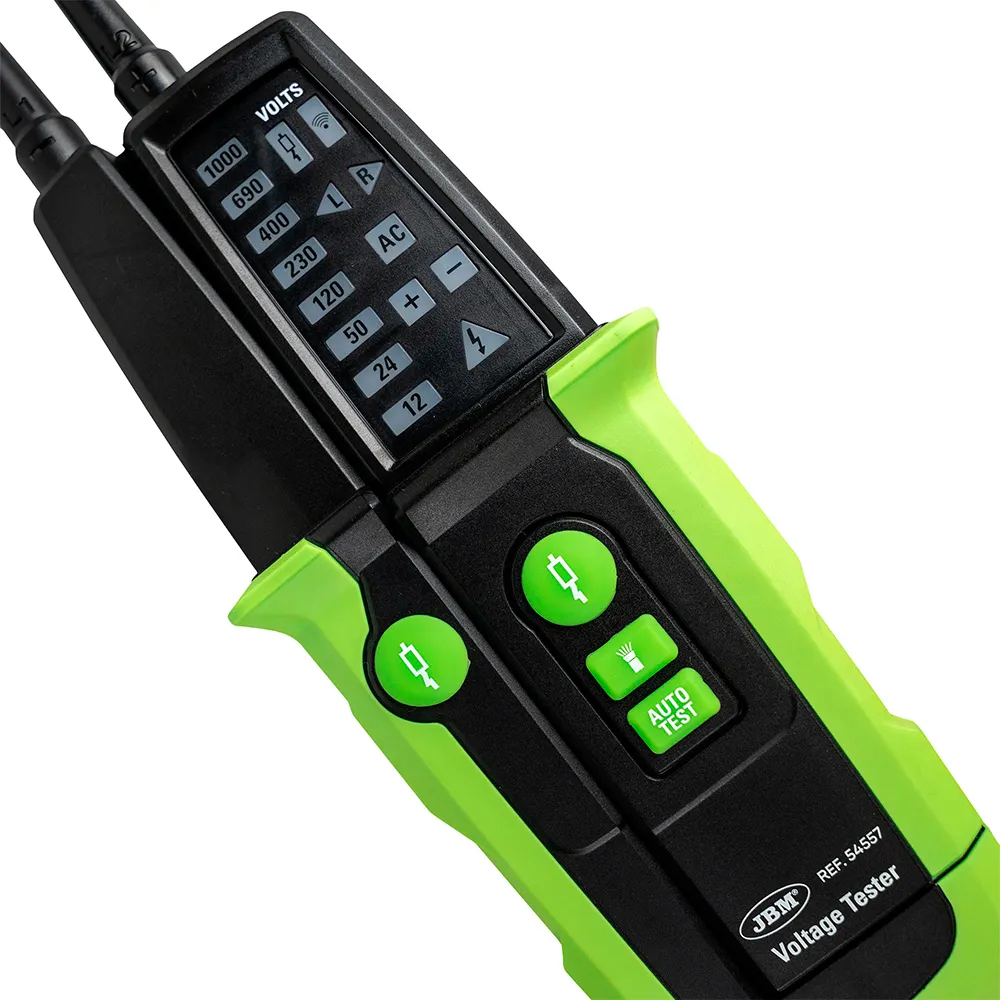

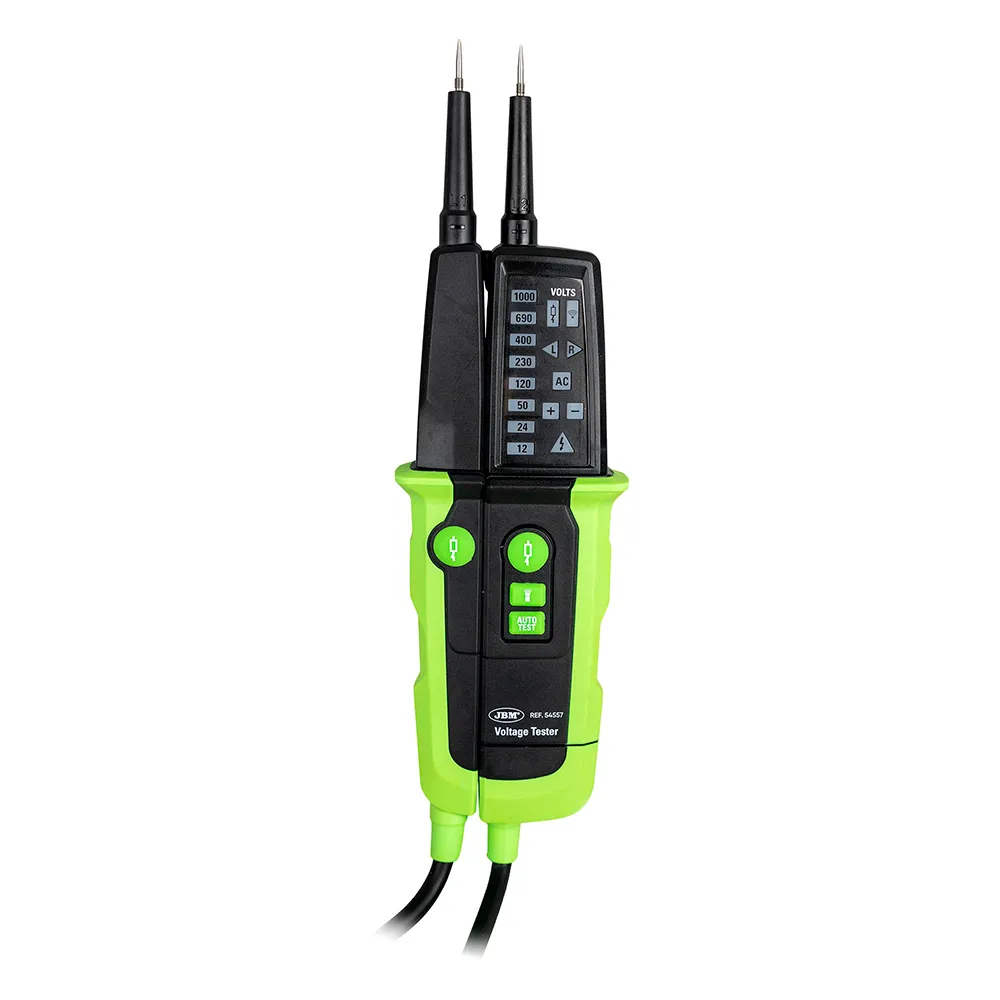

JBM Voltage Tester

This portable device is designed to measure electrical voltage in circuits, outlets, cables, and other electrical devices.

With its digital display and measuring probes, the voltage tester provides accurate voltage readings.

LED voltage range 12V to 1000V AC/DC.
LED resolution ±12.24,50.120,230.400,690.1000V AC/DC.
Tolerances Complies with EN 61243-3:2014.
Frequency range 0/40Hz to 400Hz.
Response time ≤1 second.
Automatic power on Automatic power on ≥12V AC/DC.
Voltage detection Automatic.
Polarity detection Full range.
Range detection Automatic.
Internal basic load impedance Maximum 3.5 mA at 1000 V.
Maximum instantaneous current 350 KΩ / Is <3.5 mA (without RCD tripping).
Operating time 30 seconds.
Recovery time 240 seconds.
Continuity test 0 to 400 KΩ.
Accuracy Nominal resistance +50%.
Test current ≤5 µA.
Switchable load ~ 7 KΩ.
Maximum instantaneous current Is (load)= 150mA.
RCD tripping ~ 30mA@230V.
Single pole phase 100V to 1000V AC.

FREQUENCY RANGE:
Rotating field indication Rotating field indication.
Voltage range (LED) 100-1000V.
Frequency range 50/60Hz.
Measurement principle Double pole electrode and contact
