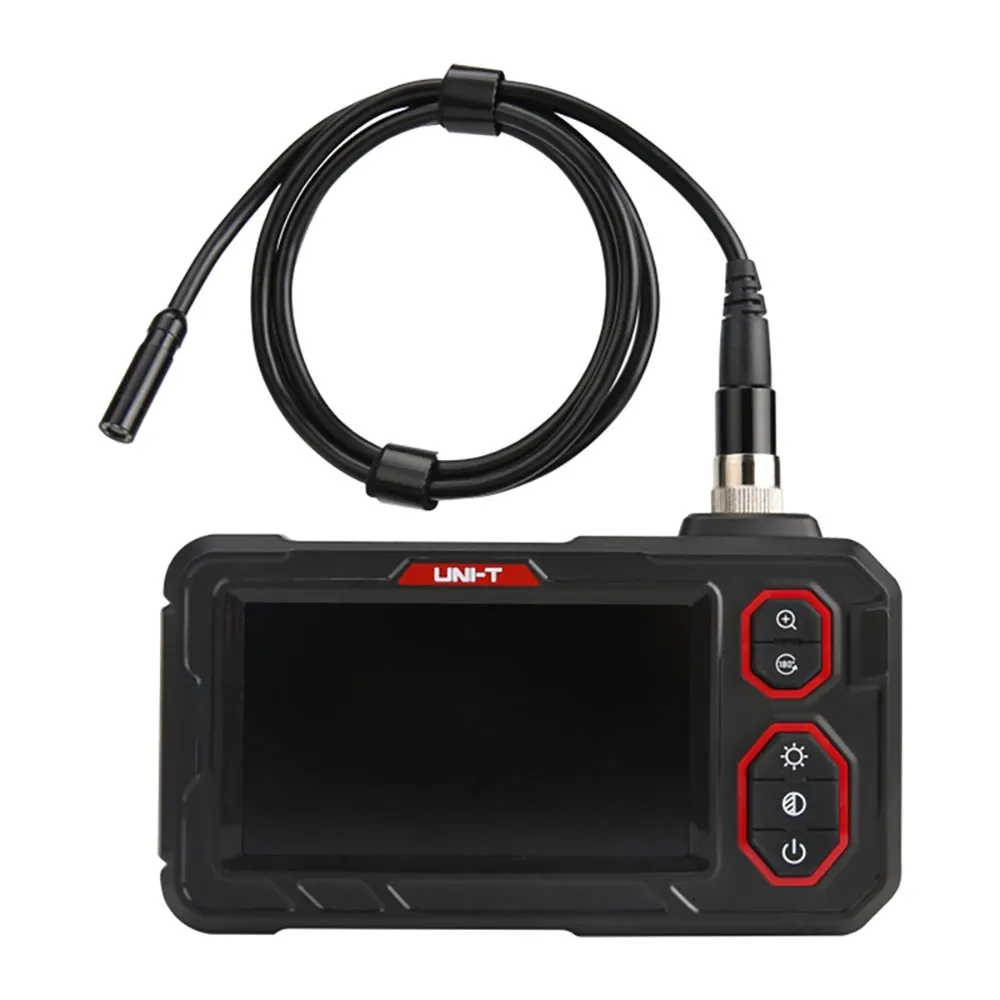

Uni-t UT667 Borescope

Uni-T UT667 borescope.

The Uni-T UT667 borescope, featuring a 1-meter cable, is a device designed for inspecting hard-to-reach areas without the need to disassemble components.

It is ideal for industrial, automotive, and installation service applications where a quick view of the interior of machines or pipes is essential.

Equipped with a 4.3´´ screen, it provides a clear image, and features such as image rotation and zoom facilitate the analysis of details during operation.

Image Quality and Ease of Use.

The 8 mm diameter camera with LED lighting allows for work in dimly lit spaces, and brightness adjustment lets you tailor visibility to the conditions.

The 1 m cable provides a good balance between reach and control over the camera, which works well for standard inspections.

The IP67 waterproof probe and rugged construction increase the device´s durability during daily use.

Included.

UT667 borescope.

USB-C cable.

Hook, side mirror, magnet.

Mounting clamps.

User manual.

Specifications.

Manufacturer:Uni-T.

Model:UT667.

Product type:Industrial borescope.

Display type:4.3´´ IPS LCD display.

Display resolution:1280 × 720 px.

System language:English.

Functions:Screen rotation, black-and-white images, color conversion, zoom in, zoom out.

Cable type:Replaceable cable with aviation connector.

Cable length:1 m.

Lens diameter:8 mm.

Image sensor:CMOS.

Field of view:70°.

Focus range (Depth of field):20.100 mm.

LED brightness adjustment:4 levels.

Number of LEDs:8.

Camera resolution:300K px.

Probe protection rating:IP67.

Power supply:3.7 V / 2000 mAh rechargeable battery.

Operating time:5 h.

Camera head temperature range:0.80°C.

Ambient operating temperature range:0.45°C.

Ambient operating humidity range:<90% RH (non-condensing).

Certifications:CE, RoHS.
