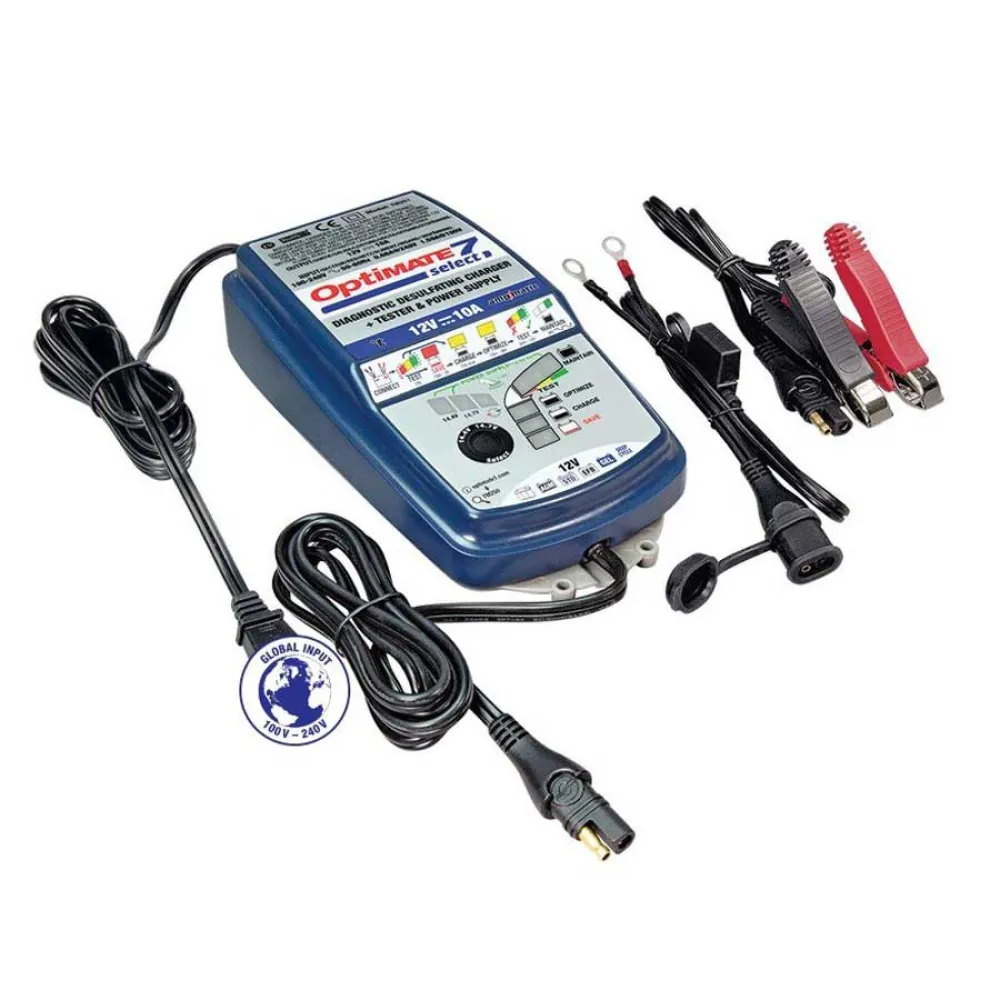

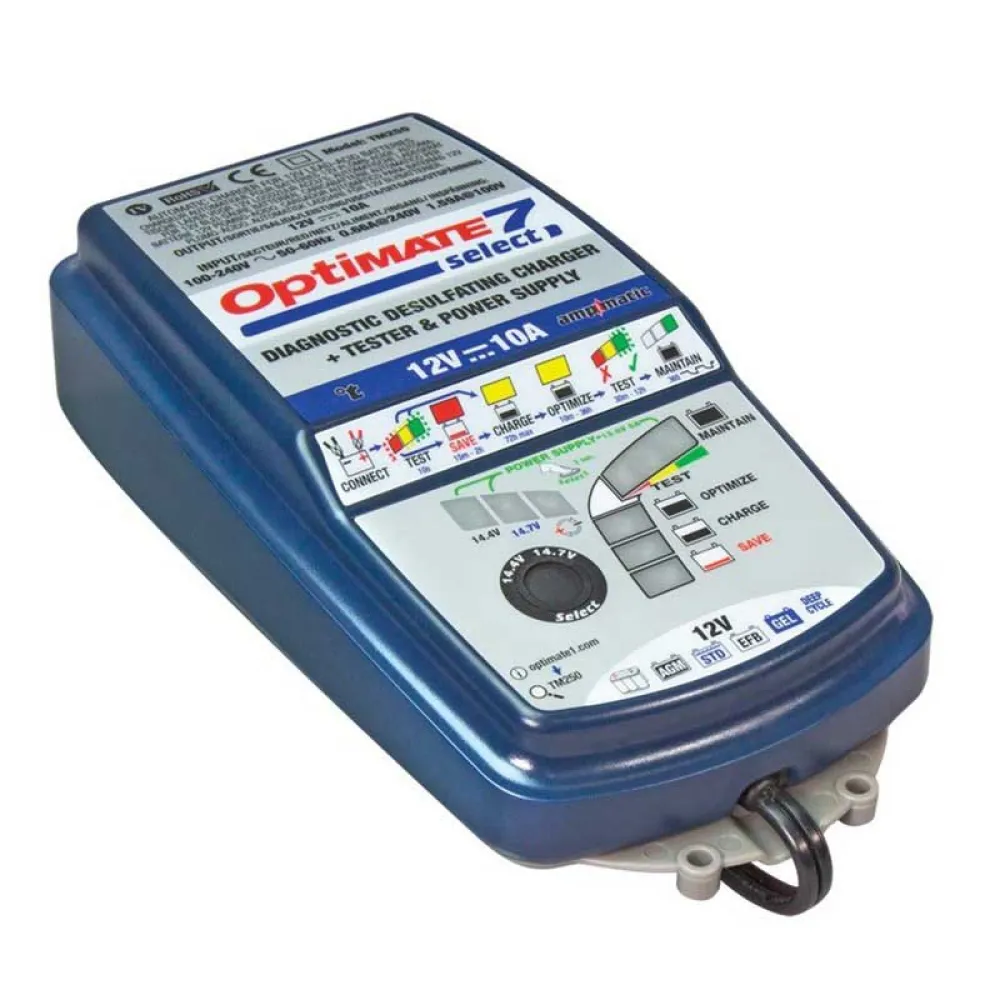

Optimate TM-250 charger

General characteristics.

Charger/Maintainer with recovery mode for sealed 12V and 10A batteries in 9 phases.

OptiMate 7 Select is the ideal choice for 12V starting and deep cycle batteries requiring temperature-controlled charging and safe, unattended long-term maintenance.

Voltage selection (14.4 V / 14.7 V) ensures that the battery is charged at the appropriate voltage.

Special functions.

Voltage selection (14.4V or 14.7V) that guarantees that the 12V battery is charged with the appropriate voltage.

POWER SUPPLY:

Supply mode provides a stable supply for reprogramming the vehicle, displaying the vehicle in showrooms or maintaining memory settings when the battery cables are disconnected, whether for mounting accessories or replacing the battery .

For the Supply function (Software update) it is necessary to disconnect the battery terminals.

Automatically charges and maintains any size 12V AGM, GEL, EFB or STD starting or deep cycle battery with temperature control (higher voltage at low temperatures and lower at higher temperatures).

Technical characteristics.

CHARGING AMPERAGE:

10A (Ampmatic) @ 14.

4V / 14.

7V / 8A @ 13.

6V.

CHARGING VOLTS:

nominal:

12V range:

0.5V - 14.4V.

USE:

indoors or outdoors (minimum temperature:

40?C / 40?F).

RECOVERY:

0.5 V low voltage start and 2-phase desulfation recovery.

IDEAL FOR:

12V STD, AGM, GEL and Deep Cycle batteries, from 3 to 400 Ah.

POWER:

Global power (100.

240 V at 50.

60 Hz), high performance (CEC rated), fully sealed.

STYLE:

Splash-proof housing with wall hangers, 180cm (6ft) AC power cord and 180cm (6ft) charging cable terminated in SAE connector.

INCLUDED:

Splash-proof battery cable and battery clamp set.

SAFETY:

no risk of overload.

Completely safe for the vehicle´s electronic system.

Spark suppression.

Safe for long-term battery maintenance.

Automatic disconnection when the battery is short circuited or disconnected.

Three-year limited replacement warranty.
