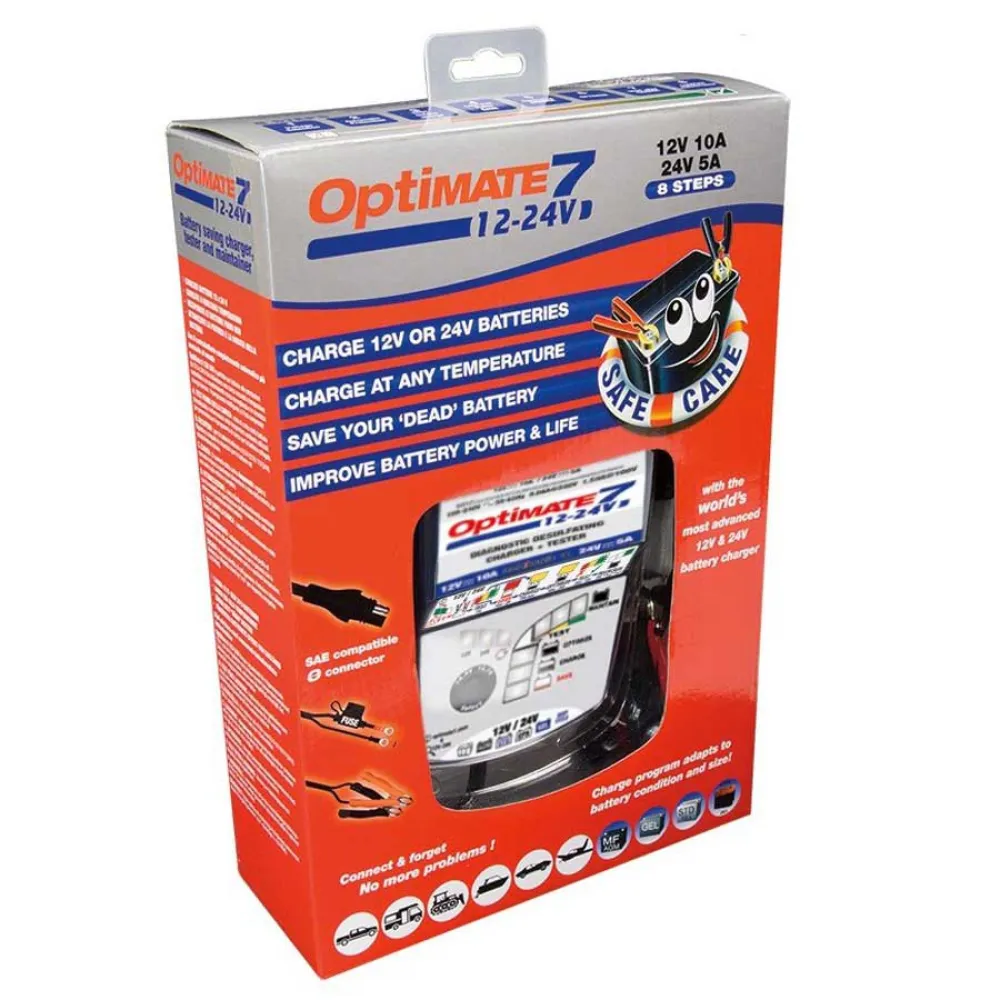

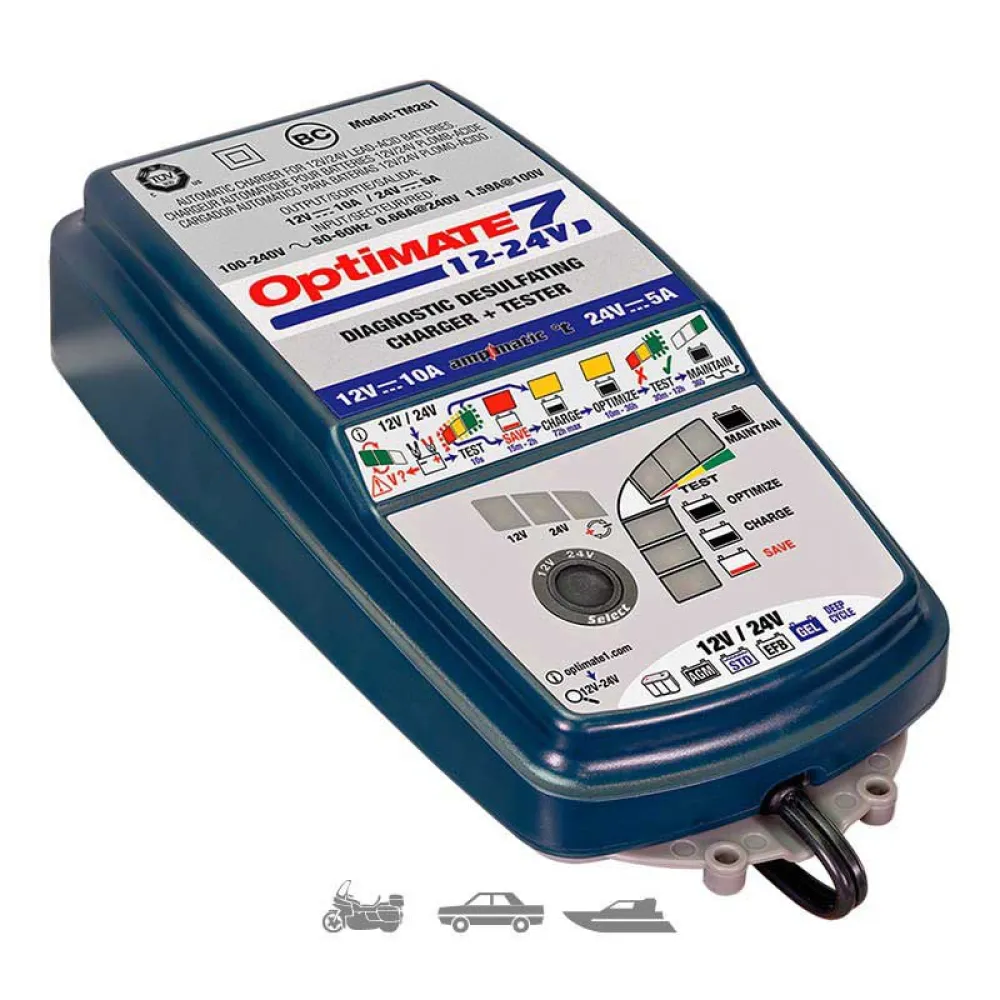

Optimate TM-260 charger

General characteristics:

Charger/Maintainer with recovery mode for sealed 12V 10A / 24V and 5A batteries in 8 phases.

It is the fastest charger for starting and deep cycle batteries.

Special functions:

Safe selection for 12V or 24V batteries, it will not charge if the selected voltage does not match that of the battery.

Automatically charges and maintains any size 12V or 24V AGM, GEL, EFB or STD starting or deep cycle lead-acid battery with temperature control (voltage is higher with colder temperatures and lower with higher ones).

Ideal for ecological vehicles with Start/Stop technology.

Recovers completely discharged batteries with electronic device recovery mode, user can override voltage protection for 24V battery.

Technical characteristics:

CHARGING AMPERAGE:

10A @ 12V / 5A @ 24V (Ampmatic).

USE:

indoors or outdoors (minimum temperature:

40 ?C /.

40 ?F).

CHARGING VOLTS:

nominal:

12V range:

0.5V - 14.4V / nominal:

24V range:

0.5 - 28.8V.

RECOVERY:

0.5V (12V) low voltage start and 1-phase desulfation recovery.

IDEAL FOR:

12 V STD, AGM, EFB and GEL batteries, from 3 to 400 Ah / 24 V from 1 to 200 Ah.

POWER:

Global power (100.

240 V at 50.

60 Hz), high performance (CEC rated), fully sealed.

STYLE:

Splash-proof housing with wall hangers, 180cm (6ft) AC power cord and 180cm (6ft) charging cable terminated in SAE connector.

INCLUDED:

Splash-proof battery cable and standard battery clamp set.

SAFETY:

No risk of overload.

Completely safe for the vehicle´s electronic system.

Spark suppression.

Automatic disconnection when the battery is short circuited or disconnected.
