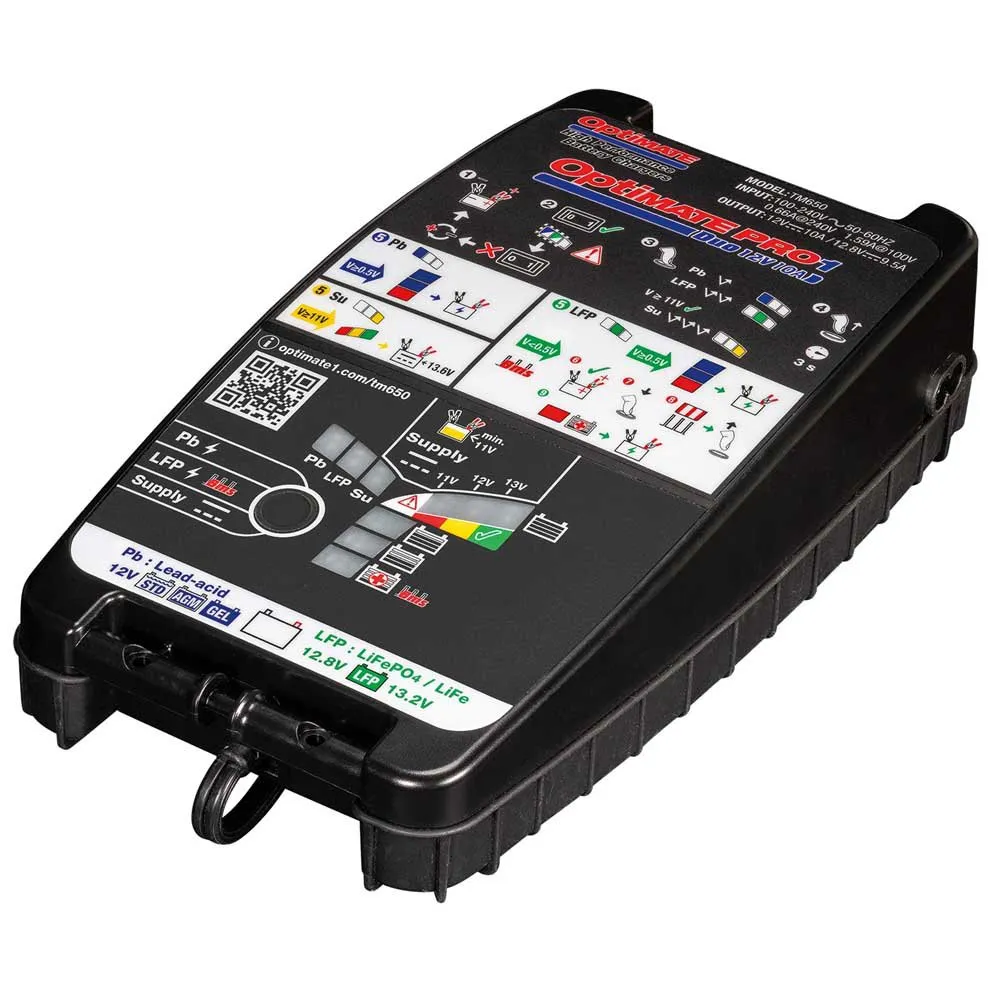

Optimate TM-650EU charger

General characteristics.

Optimate PRO-1 DUO is the professional battery tester charger and power supply combination for motorsports professionals and small teams, as well as battery repair shops and distributors.

Special functions.

Professional use:

new or used 12V (3-50 Ah) lead-acid and 12.8V/13.2V (2-20 Ah) LiFeP04 batteries.

Normal use:

12V (3-240 Ah) lead-acid batteries and 12.8V/13.2V (2-120 Ah) LiFeP04 batteries.

Ability to select between a charging mode for 12V lead-acid battery, 12.8V LiFeP04 or PowerSupply mode for battery assistance during vehicle diagnosis, tune-up or troubleshooting.

Supply mode provides a stable supply for reprogramming the vehicle, displaying the vehicle in showrooms, or maintaining memory settings when the battery cables are disconnected, whether for mounting accessories or replacing the battery.

For the Supply function (Software update) it is necessary to disconnect the battery terminals.

Quick and automatic battery activation:

Flashing green check light indicates that the battery is healthy and sufficiently charged.

Intelligent recovery mode for deeply discharged batteries.

A bad battery is identified immediately, a good one receives the charge and is checked again later.

Technical characteristics:Ideal for:

professional use 12V STD and AGM lead acid batteries from 3-50.

Ah, 12.8V/13.2V LFP (LiFePO4) lithium batteries from 2-20Ah.

Load amperage:

Variable from 0.4A to 10A (Ampmatic).

Charging voltage:

12V lead acid:

0.5V to 22V.

12.8V/13.2 LFP Lithium (LiFePO4).

V:

0.5V to 14.4V.

Power supply:

11V to 13.6V.

Use:

Indoor class IP40.

Input:

Global (100-240V, 50-60.

Hz), high performance.

Style:

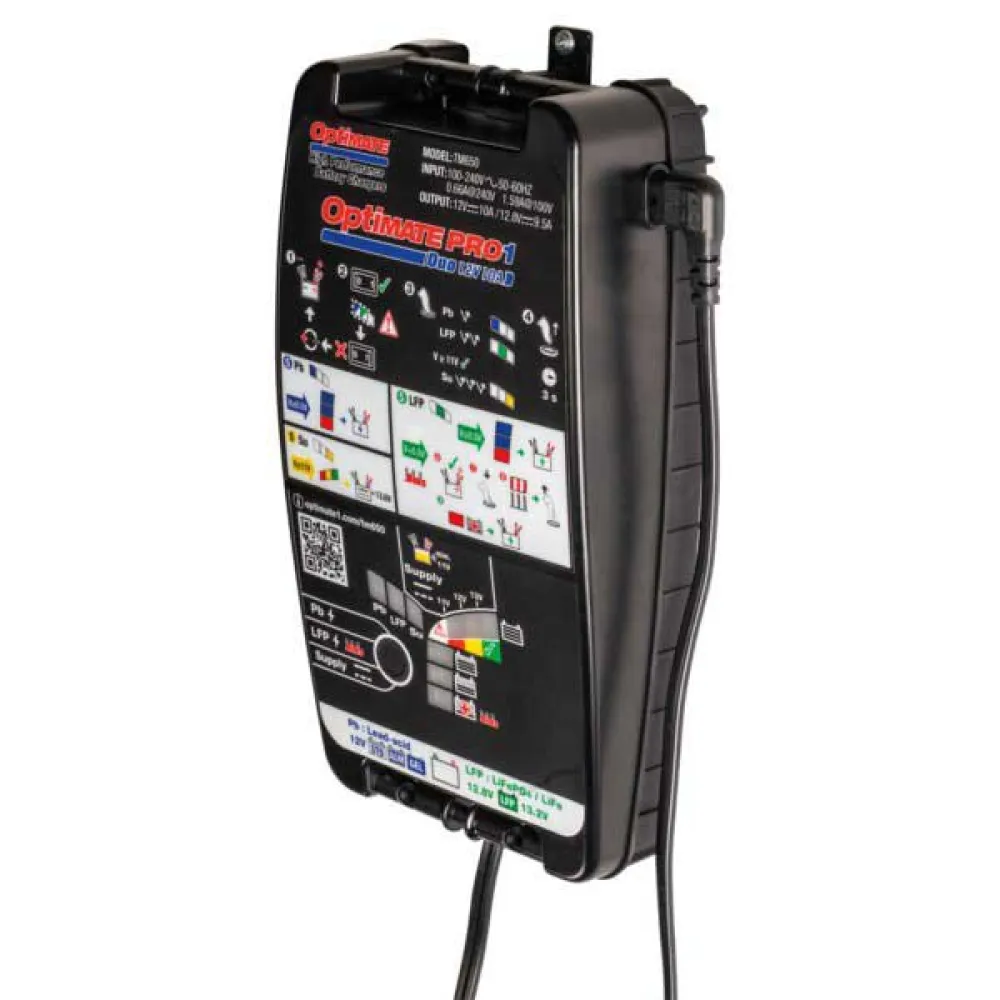

Box with rubber bumpers, with wall mounting or suspension bars.

Class 2 AC input socket, with on/off switch, 15.

cm / 6 output cable.

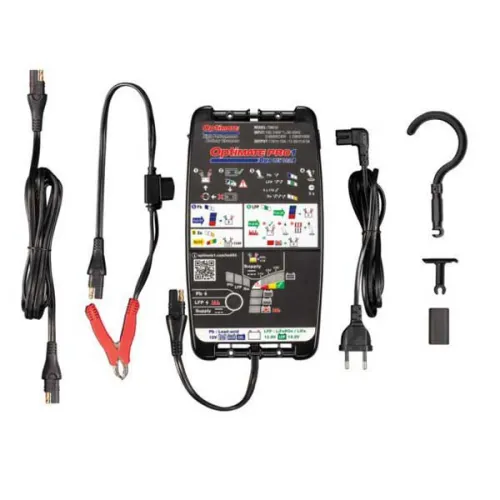

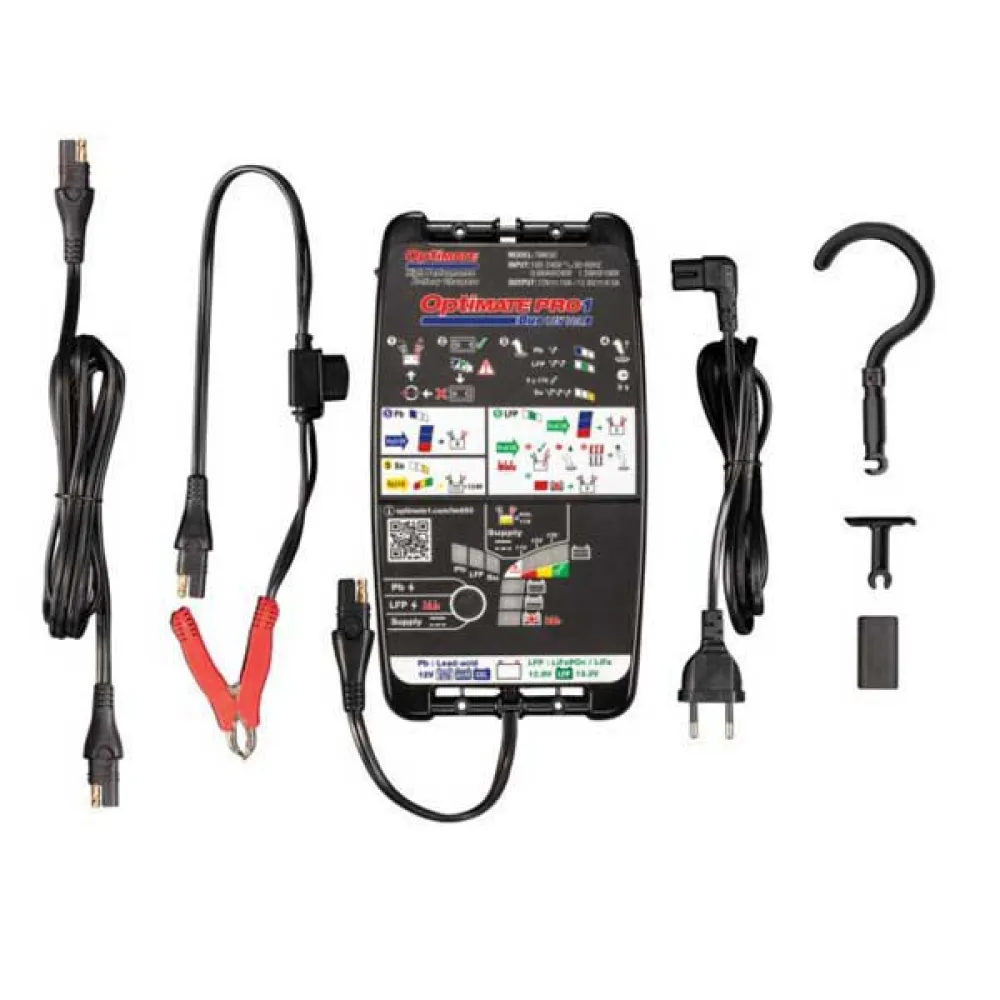

Cables included:

Region-appropriate Class II AC cable, 180 O-43 charging cable extension .cm/72.

and battery clamps with O-14 fuse.

Hardware included:

Wall bracket and hook to suspend from the bar.
