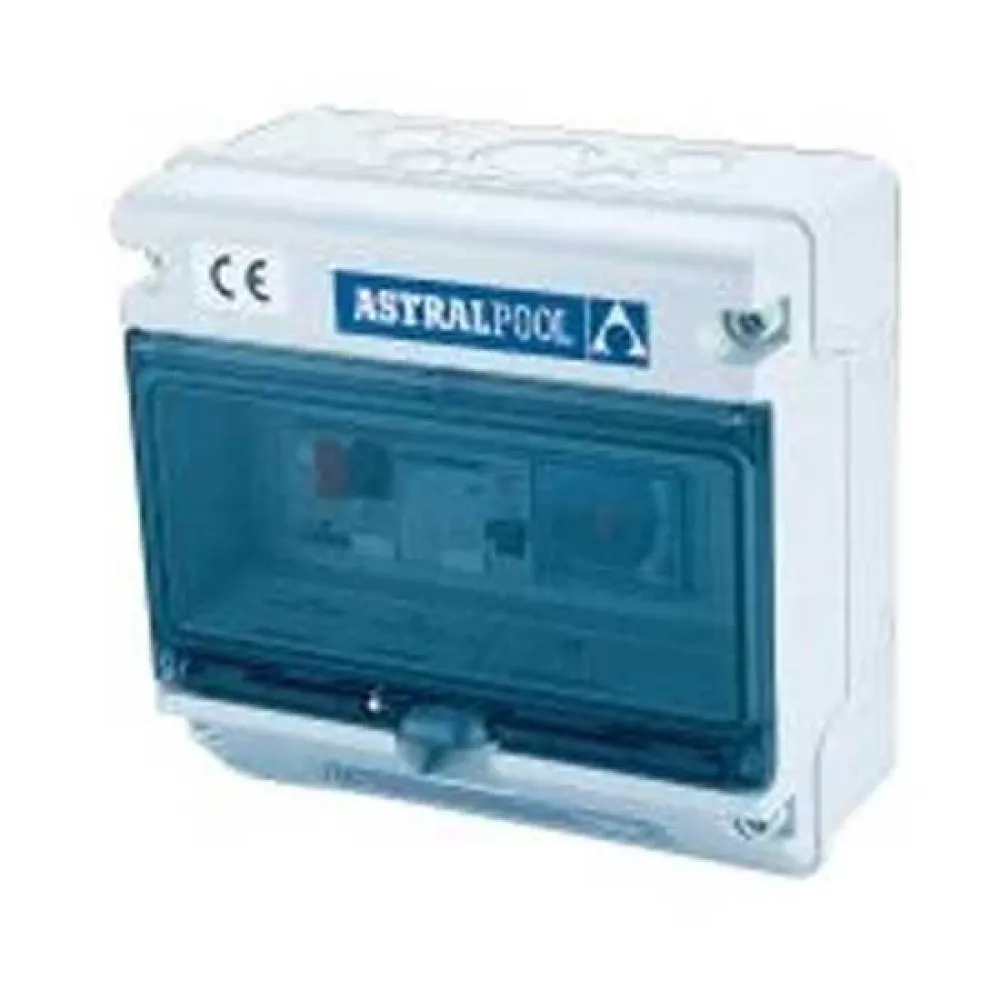

Astralpool 25717 Type A control box for pump control

ASTRALPOOL 25717 Type A Control Box for Pump Control

Take command of your pool´s health and clarity with the ASTRALPOOL 25717 Type A Control Box, the definitive solution for single-pump filtration systems. Engineered for reliability, safety, and effortless operation, this control cabinet serves as the central nervous system for your pool´s circulation, ensuring crystal-clear water with optimal energy efficiency. Designed by the leaders in pool equipment, this unit provides the peace of mind that comes from a fully automated and protected system.

Robust Protection for Unmatched Durability

Built to withstand the demanding environment of a pool area, the ASTRALPOOL 25717 features a high-resistance control cabinet with superior IP-65 protection. This rating guarantees that the internal components are completely shielded from dust ingress and protected against low-pressure water jets from any direction, ensuring long-lasting performance and safety season after season. The unit is equipped with a transparent, lockable door, allowing for quick visual inspection of the system´s status while preventing unauthorized access and tampering, providing an essential layer of security for your investment.

Precision Automation and Flexible Control

Experience the ultimate convenience with the integrated 24-hour control clock. This high-precision timer allows for programming in precise quarter-hour increments, giving you complete control over your pump´s filtration cycles. Schedule run times to take advantage of off-peak energy rates or to ensure the pool is perfectly filtered and ready for your morning swim. For added flexibility, a three-position switch offers Auto, Manual, and Off settings. Let the automated schedule run on ´Auto´, override the system for immediate filtration on ´Manual´, or shut it down completely with ´0´—total control is always at your fingertips.

Seamless Integration and Future-Ready Design

The ASTRALPOOL 25717 is designed for expandability. It includes dedicated connections for remote control of the pump (run/stop functions), allowing for easy integration with advanced auxiliary equipment. Connect a cold detector to protect your system in cooler climates or link it to a level control for automated water top-ups, creating a smarter, more self-sufficient pool environment.

Detailed Product Information and Specifications

This control box is engineered for broad compatibility and complete installation support.

Control cabinets.IP-65 protection.

Transparent glass with lock and key.

All products are compatible with:
-220/240V 1-phase (P+N+T) 50Hz/60Hz.
-380/415V 3-phase (3P+N+T) 50Hz/60Hz.
-220/230V 3-phase (3P+T) 50Hz/60Hz

24H control clock with programming steps every ¼h.

Connection for remote control of the pump (run/stop,.) for auxiliary equipment (cold detector, level control.).

All products are delivered with:
-Wiring diagram.
-Connection diagram.
-Installation instructions.
-CE conformity certificate.
-Cable gland for each cable inlet and outlet.
-Screws and plugs (4) for wall mounting.

Depending on the nominal current of the filtration pump, the type of cabinet must be selected.

For 1 pump:
Protection by circuit breaker (4 gauges, 10A max.), contactor, 24h timer, 3-position switch (auto/0/manual).

Complies with EN 16582-1:2015
