Gre Sand Filter 10 m³h

The range of GRE sand filters is a range of compact filters, easy to install and use, do not require special attention and adapt to any removable pool.

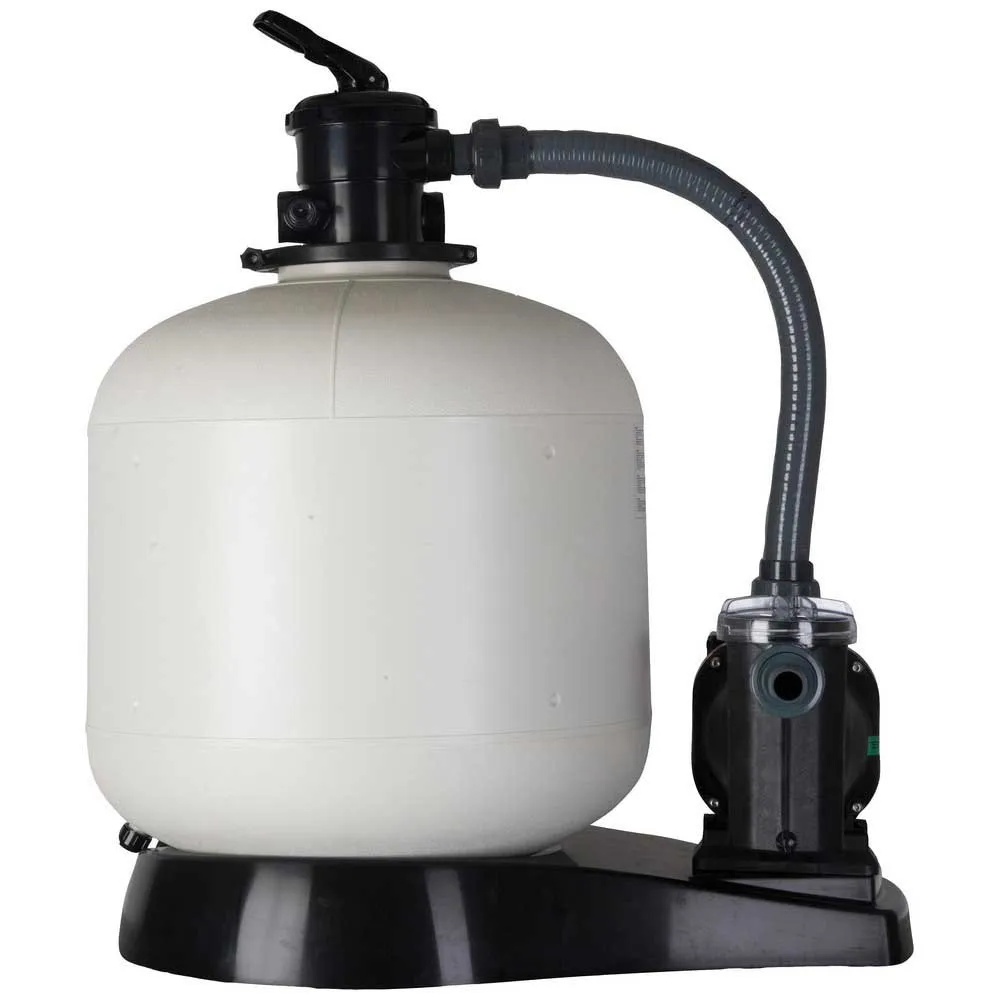

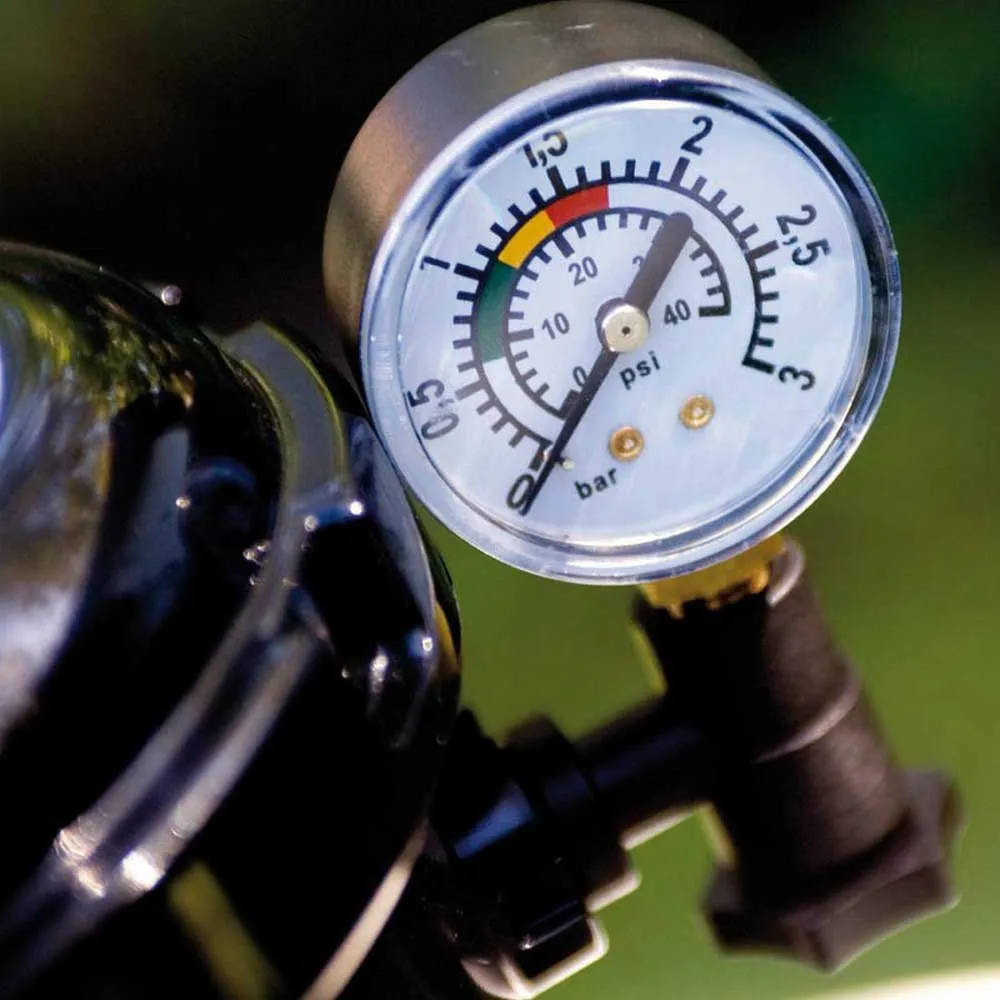

Sand filtration monoblocks have a complete filtration unit that includes a pump, filter, selector valve, pressure gauge.

all mounted on a plastic base with all the necessary pipeline accesories.

The sand filters of GRE are certified to the European standard, guaranteeing that they comply with the safety regulations in force.

Features:- Sand filter for above-ground swimming pools.

- Suitable for swimming pools up to 75 m³.

- Allows retaining the impurities in the filtering agent inside the pool.

- It is very compact.

- Easy to install and maintain.

- Incorporates pre-filter to retain the largest particles and void pump damage.

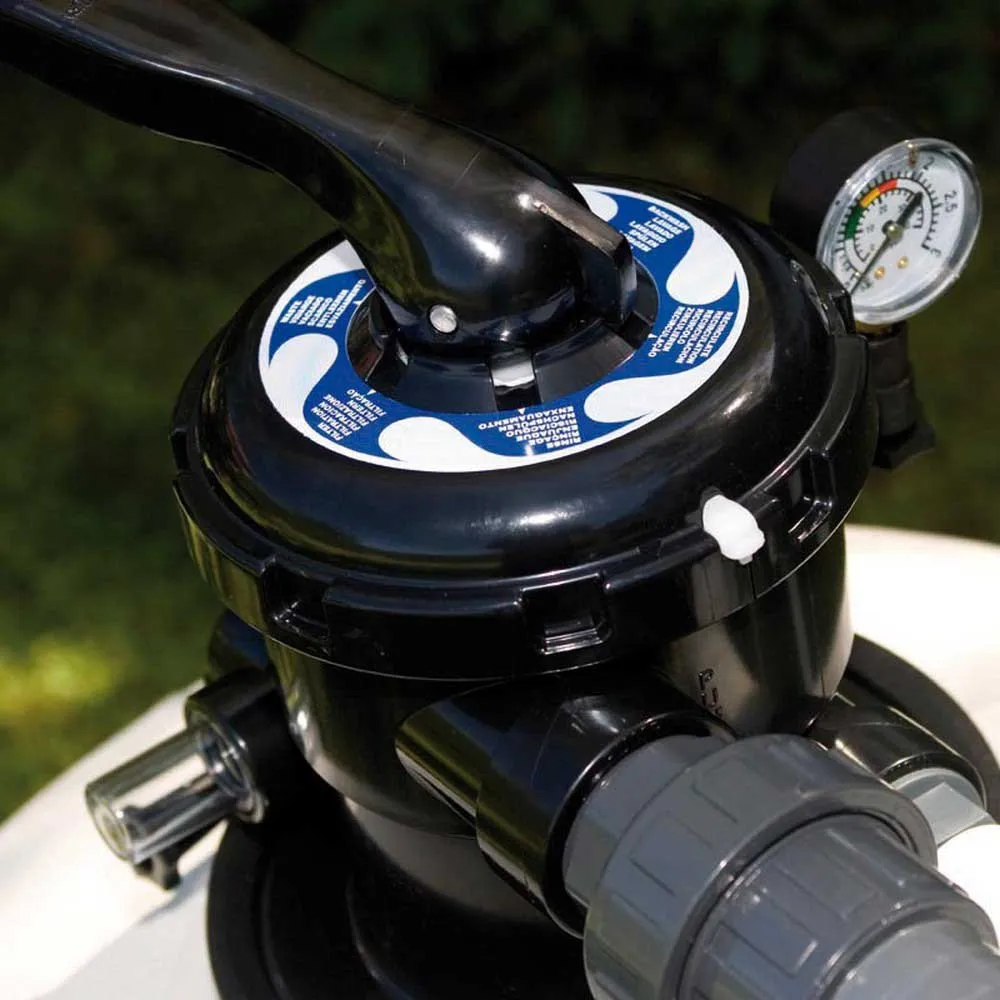

- Thanks to its 6-way selector valve, different functions can be performed:washing, rinsing, filtering, recirculating, emptying and closing.

- Filtration capacity 10,000 litres per hour at 485 W of power.

- Bucket diameter of 600 mm.

- Consists of a power of 0,66 HP.

- Incorporates pre-filter to retain the largest particles and void pump damage.

- Valid for filtering substances like:sand, glass and Aqualoon.

- Allows a sand load of ± 130 Kg (not included).

- Needs hoses with 50 mm diameter (not included).

- Impurities are held by the filter media inside the tank.

Compact sized, easy to install and use and special care is not required Specifications:- Size / Weight 54 x 30 x 60 cm / 24,6 Kg.

- Flow rate 10 m3/h.

- System flow rate 8,5 m3/h.

- Filtering speed 37 m3/m2/h.

- Ø Filter Ø 600 mm.

- Power / Voltage 485 W / 220/230 V 50 Hz.

- Ports 6.

- Sand filling ±130 Kg.

- Grain size 0,4.

- 0,8 mm.

- Max.working pressure 1,3 Bar.

- Ø Connexions Ø 38 mm.
