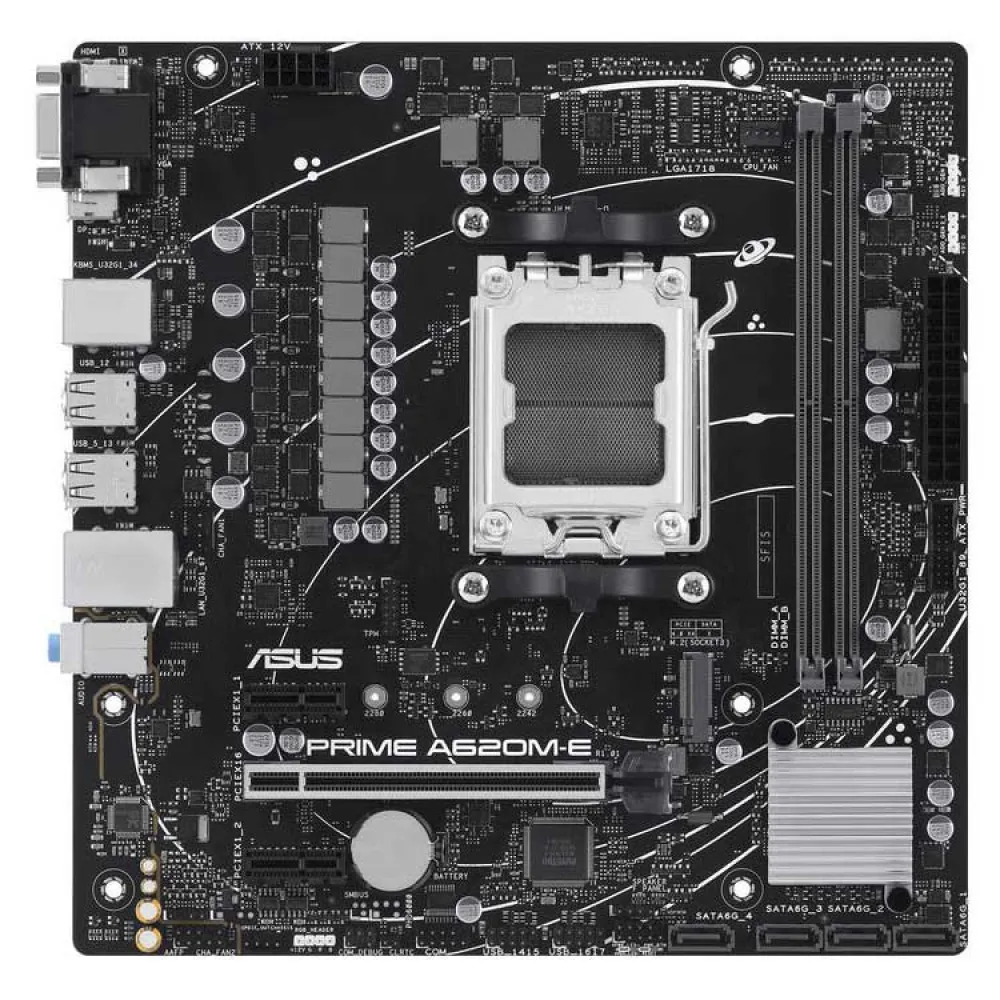

Asus PRIME A620M-E-CSM motherboard

The ASUS PRIME A620M-E-CSM motherboard is based on the AMD A620 chipset and supports AMD processors for socket AM5. It has two DDR5 DIMM slots in dual-channel mode for up to 96GB of RAM. The ASUS PRIME A620M-E-CSM is also equipped with one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. In addition, the PRIME A620M-E-CSM features 8-channel audio, a Gigabit LAN interface, four SATA3 ports, one M.2 port, and multiple USB ports.


Specifications:

- Max CPU Number: 1

OS:
- Medium: Windows 10 ready, Windows 11 ready

Processor:
- Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael)
- Chipset: AMD A620

Slots:
- PCIe x 16: 1x (of which: 1x PCIe x 16)
- PCIe x 1: 2
- BIOS: 256Mb Flash ROM, UEFI AMI BIOS
- Form factor: µATX
- Use: PC
- Power supply: EPS (24+8 pins)
- Memory: maximum: 96 GB
- Number of plinths: 2x DDR5
- Supported standards: DDR5(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
- Channels: 2
- Maximum memory slots: 4
- Memory controller in the CPU: Yes

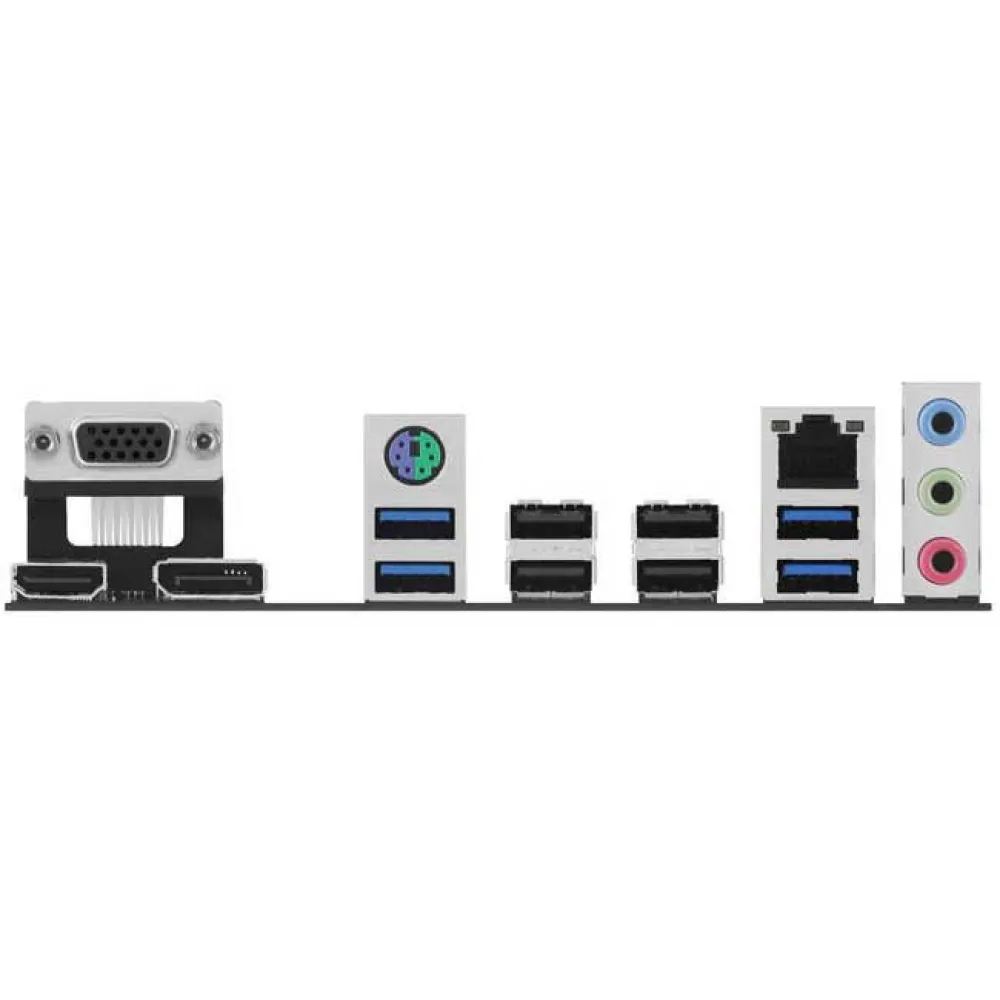

Connections (external):
- Mouse/Keyboard Combo (PS/2): 1
- USB 3.0: 4
- Note:: The name USB 3.2 Gen 1 corresponds to the previous names USB 3.1 Gen 1 or USB 3.0.
- USB-A 2.0: 2
- VGA: 1
- HDMI: 1
- DisplayPort: 1
- Microphone: 1
- Online entry: 1
- Online checkout: 1
- RJ-45: 1

Connections (internal):
- SATA: 4
- M.2: 1
- M.2 interface: PCIe
- RGB LED: 1
- Addressable RGB LED Header: 2
- 4-pin PWM fan: 3

Connections (optional):
- USB 3.0: 2
- USB 2.0: 4
- Serial: 1
- TPM: Yes
- RGB Standard: AURA Sync
- SATA Controller: AMD A620
- Directly usable RAID level: 0, 1, 10
- USB Driver: AMD A620
- Integrated graphics: The graphics connectors on the motherboard can only be used when using a CPU with an integrated graphics chip.
- Sound: Realtek 7.1 Surround Sound
- LAN: Realtek 1Gb Ethernet
- Dimensions: Width: 221 mm x Height: 226 mm
