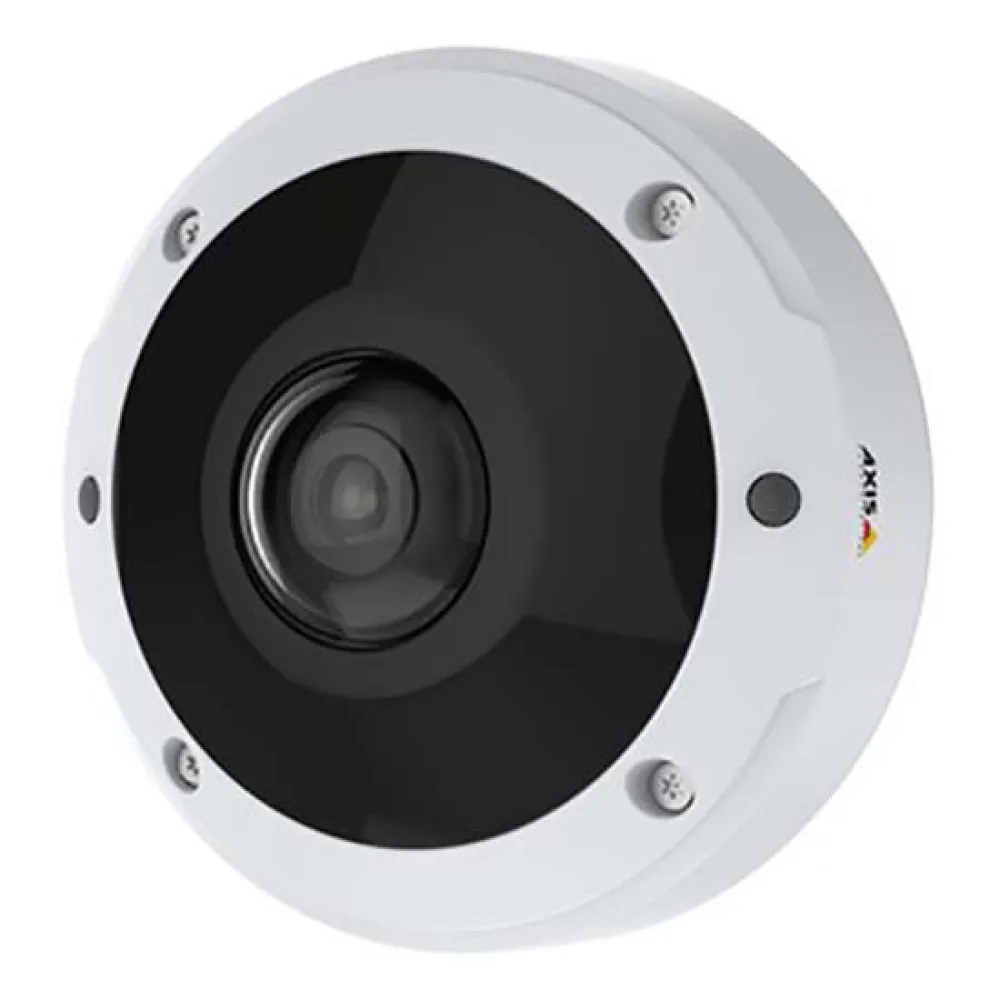

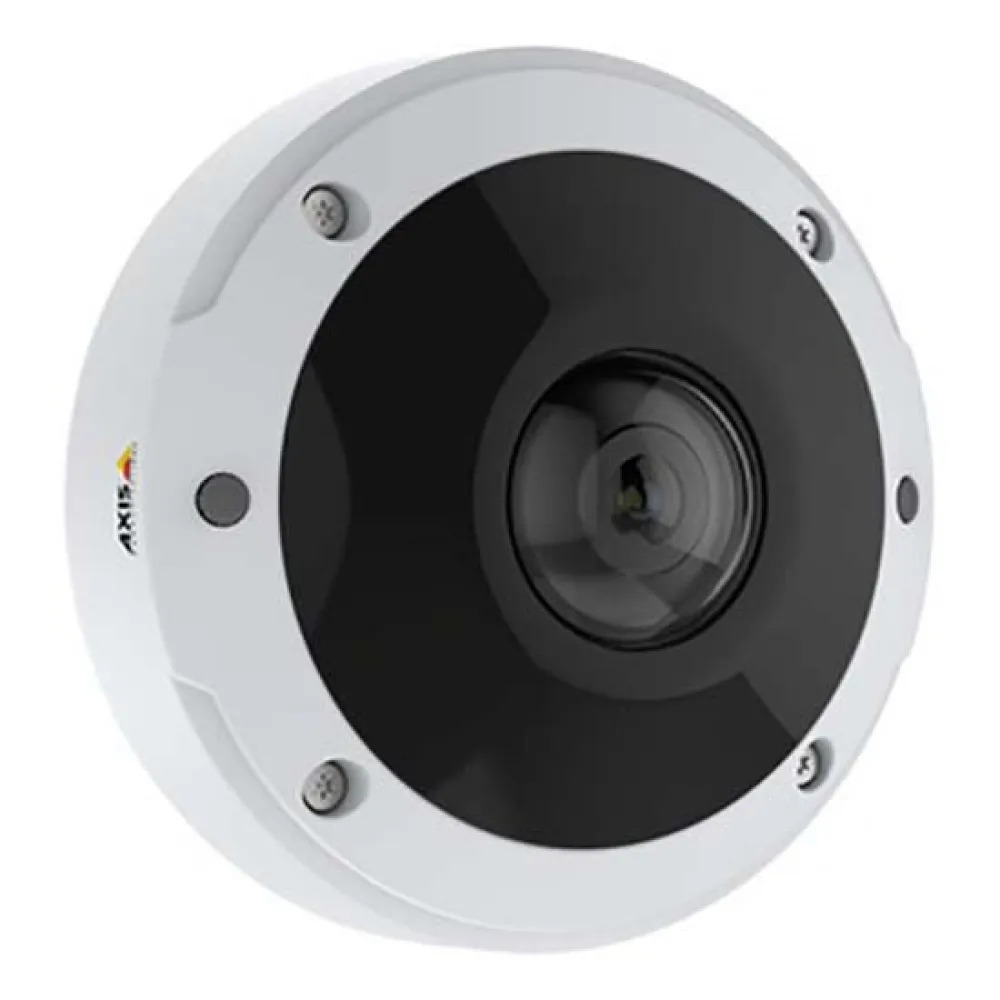

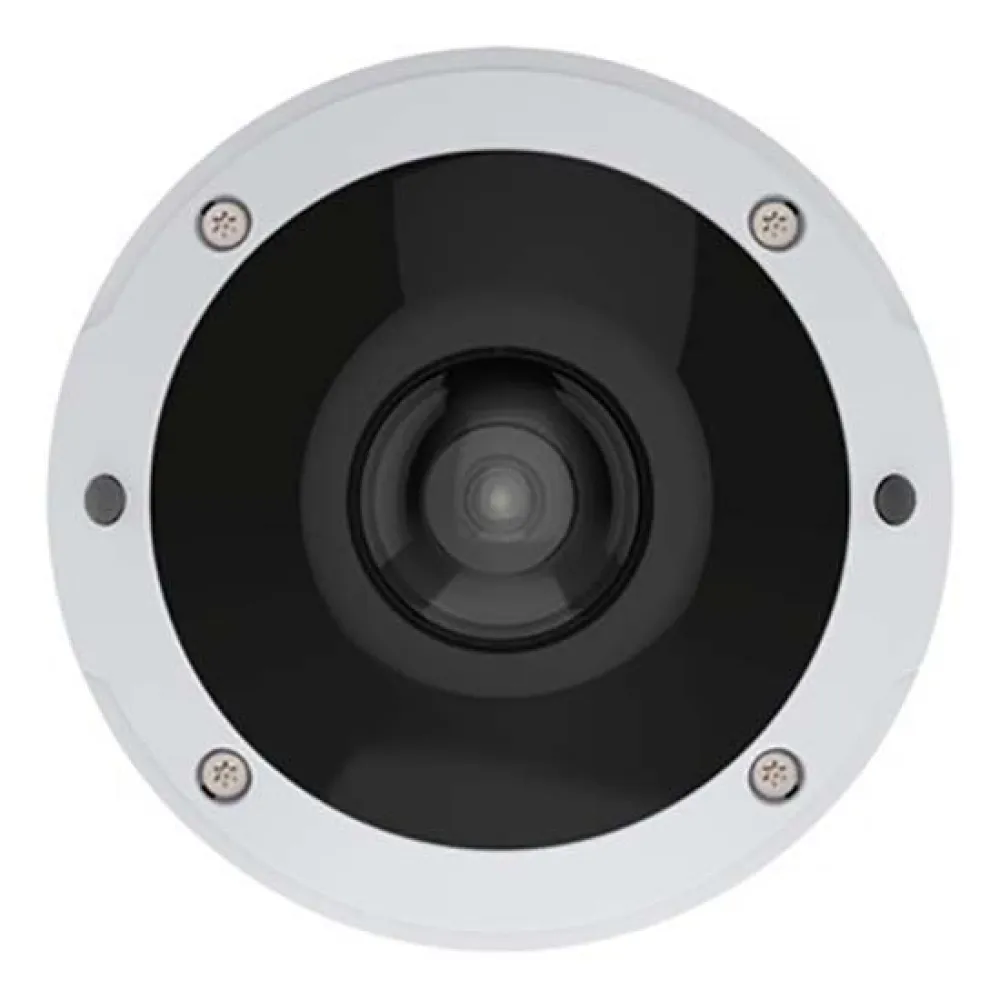

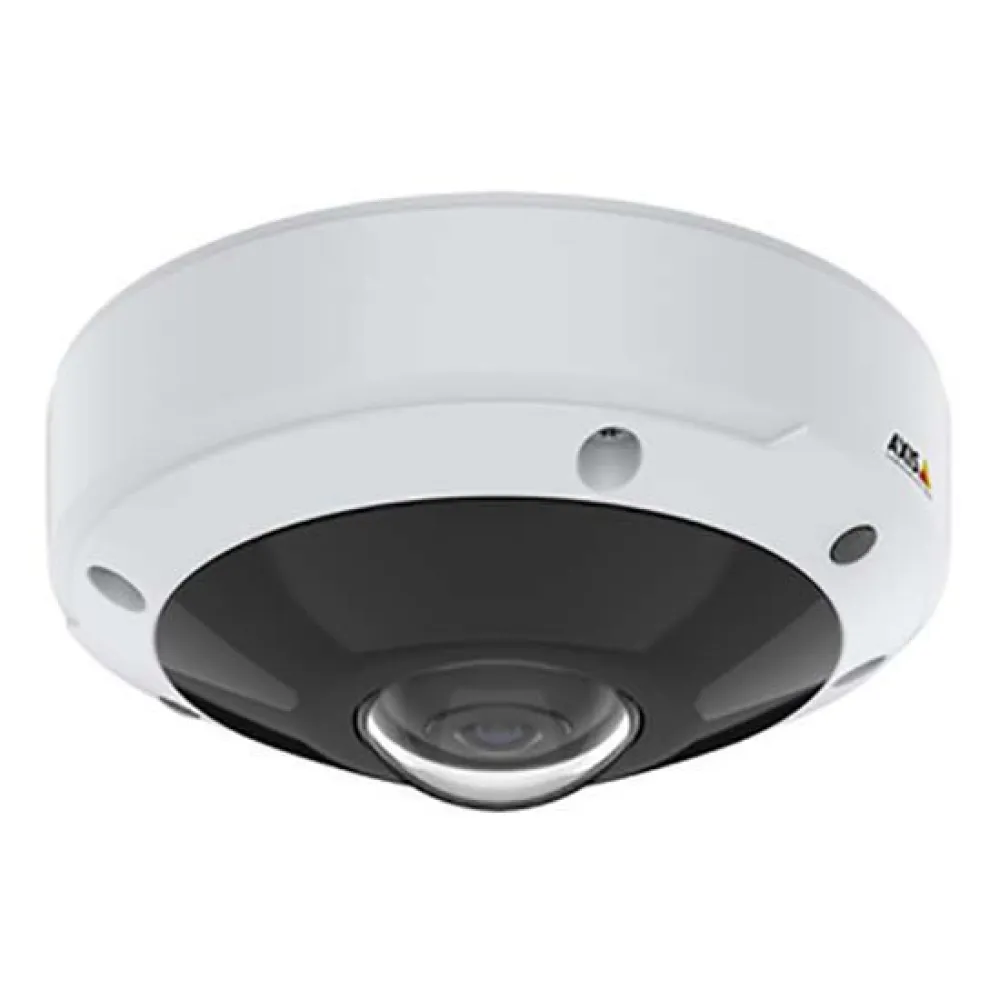

Axis M3077-PLVE security camera

Specifications:

Performance:

- Guy:

Ip Security Camera.

- Supported Placement:

Inside.

- Connectivity.

Technology:

Wired.

- Ptz Modes:

Digital Ptz.

- Wide Dynamic Range (Wdr):

Yes.

- Day / Night Mode:

Yes.

- Entry/Exit Alarm:

Yes.

- Number Of Languages:

12.

- Support Languages:

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian.

- Dynamic Range:

120db Design:

- Form Factor:

Pad.

- Mounting Type:

Roof-Wall.

- Shell Material:

Aluminium, Polycarbonate (Pc).

- Ip Code (International Protection):

Ip66.

- Ik Code:

Ik10 Photographic Camera:

- Rotation Angle:

180°.

- Lens Angle Of View, Horizontal:

183°.

- Lens Angle Of View, Vertical:

183°.

- Shutter Speed:

1/16000.

- 1 S Image Sensor:

- Optical Sensor Size:

25.4 / 1.8mm (1 / 1.8´´).

- Sensor Type:

Cmos Lens System:

- Zoom Capability:

Yes.

- Number Of Lenses:

1.

- Fixed Focus:

Yes.

- Focal Length Range:

1.56mm.

- Focus Settings:

2.0 Night Vision:

- Night Vision:

Yes.

- Led Type:

Go Video:

- Maximum Resolution:

2560 X 1920 Pixels.

- Video Compression Formats:

H.264, H.265, M-Jpeg, Mpeg4.

- Supported Graphic Formats:

256x144, 384x288, 1920x1440, 2560x1440, 2560x1920.

- Video Recording:

Yes.

- Frame Rate:

60 Ips.

- Intelligent Video Analysis:

Yes.

- Thermal Frame Rate (Ntsc):

50.

- 60hz.

- Video Broadcast:

Yes.

- Noise Reduction:

Yes.

- Overlay Text:

Yes Audio:

- Audio System:

1 Way.

- Audio Input Channels:

2.

- Supported Audio Formats:

G.711, G.726, Lc-Aac, Lpcm, Opus.

- Sample Rate:

48khz.

- Built-In Microphone:

Yes Connection:

- Ethernet:

Yes.

- Network Standards:

Ieee 802.3af, Ieee 802.3at.

- Supported Network Protocols:

Ipv6 Usgv6, Http, Httpsa, Http/2, Ssl/Tlsa, Qos Layer 3 Diffserv, Ftp, Sftp, Cifs/Smb, Smtp, Bonjour, Upnp®, Snmp V1/V2c/V3 (Mib-Ii), Dns, Dyndns, Ntp, Rtsp, Rtp, Srtp, Tcp, Udp, Igmp, Rtcp, Icmp, Dhcpv4/V6, Arp, Socks, Ssh, Sip, Lldp, Mqtt V3.1.1, Syslog Storage Media:

- Integrated Reading Card:

Yes.

- Compatible Memory Cards:

Microsd (Transflash), Microsdhc, Microsdxc.

- Flash Memory:

512mb.

- Internal Memory:

1024mb Ports And Interfaces:

- Ethernet Lan (Rj-45) Number Of Ports:

1 Security:

- Supported Security Algorithms:

Eap-Tls, Https.

- Https Encryption:

Yes.

- Alert Notification Type:

Email, Sms Alert Message.

- Pixel Counter:

Yes Energy Control:

- Feeding:

Poe.

- Energy Consumption:

8w.

- Power Consumption (Max):

11.9w.

- Power Consumption (Power Over Ethernet, Poe):

8w Environmental Conditions:

- Operating Temperature Range:

-40.

- 50°C.

- Storage Temperature Range:

-40.

- 65°C.

- Relative Humidity Range For Operation:

10.

- 100%.

- Relative Humidity Range During Storage:

5.

- 95% Weight And Measurements:

- Height:

66mm.

- Diameter:

14.9cm.

- Weight:

700g.
