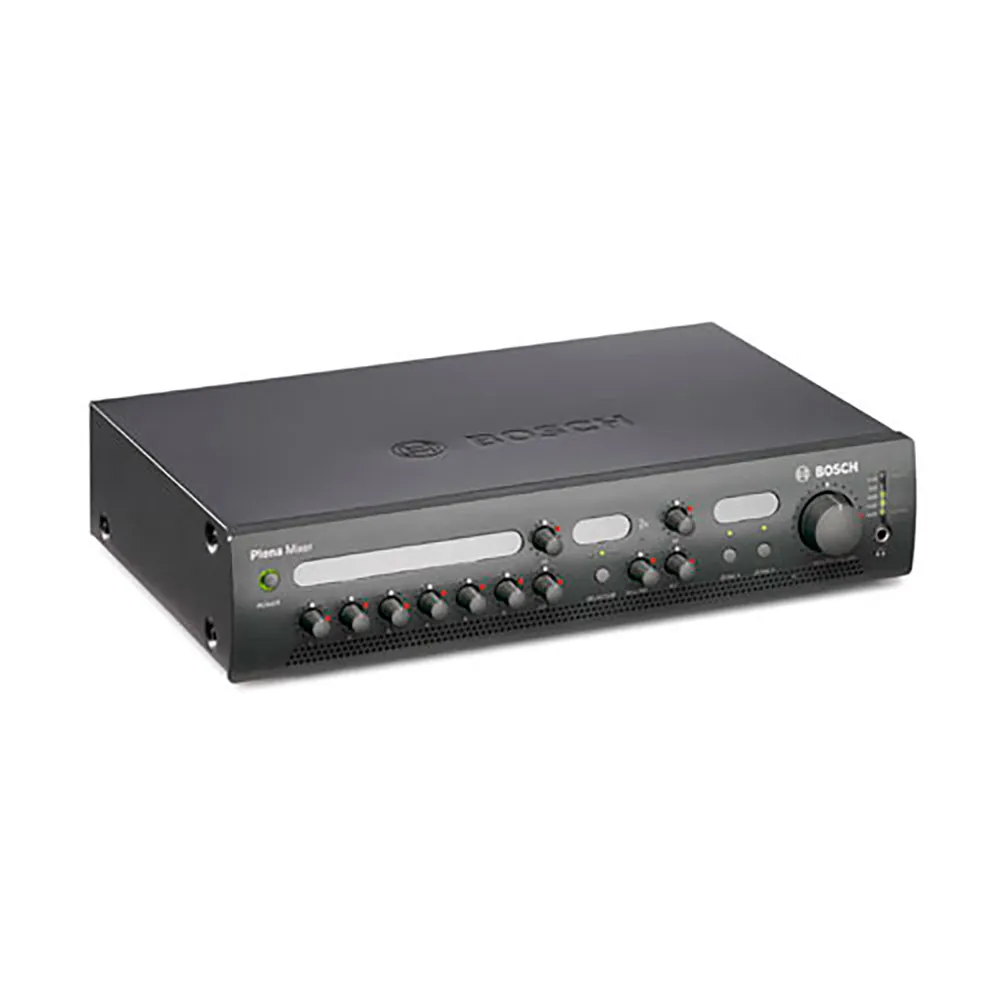

Bosch PLE-10M2-EU Audio Amplifier

BOSCH PLE-10M2-EU Plena Easy Line Mixer Amplifier | Professional Audio Control

Elevate the audio experience in your commercial space with the BOSCH PLE-10M2-EU Plena Easy Line Mixer Amplifier. Engineered for exceptional performance in public address and background music applications, this versatile unit serves as the central hub for all your audio needs. Whether you´re outfitting a retail store, restaurant, office, or any other small to mid-sized venue, the PLE-10M2-EU delivers crystal-clear sound, intuitive control, and the uncompromising reliability that Bosch is known for. It seamlessly integrates into your existing setup, providing a professional-grade solution that is both powerful and remarkably easy to use.

Key Benefits:

Experience the perfect blend of functionality and simplicity. The PLE-10M2-EU allows for effortless management of your audio environment with its two-zone output, enabling you to direct audio to two separate areas and control their volumes independently. This is ideal for creating different ambiances, such as softer music in a dining area and more upbeat audio in a bar. Its smart equalizing and phantom power capabilities ensure that both music and speech are reproduced with maximum clarity and intelligibility. Built for 24/7 operation, this amplifier guarantees consistent performance and peace of mind.

Main Features:

* Versatile 6-Input Mixer: Connect a wide array of audio sources with four microphone/line inputs and two background music (BGM) source inputs.
* Two-Zone Functionality: Independently control the audio output and volume for two distinct zones from a single, compact unit.
* Priority and VOX: Features a 100 V telephone/emergency input with VOX activation and priority, ensuring that critical announcements are always heard clearly by automatically overriding other audio.
* Flexible Connectivity: Includes multiple input options to accommodate various devices. Connect microphones via XLR and utilize the RCA and Jack 3.5 mm inputs for media players, laptops, and mobile devices. It is the perfect amplifier for audio from video playback systems in commercial AV installations.
* Enhanced Audio Shaping: On-board bass and treble controls allow you to fine-tune the sound to perfectly match the acoustics of your space and the desired audio character.
* Universal Speaker Output: Provides both 70V / 100V constant-voltage outputs for long-distance speaker runs and a low-impedance 4-ohm output for standard speaker connections.
* Intuitive Front Panel: All essential controls, including volume knobs for each input, master volume, zone selectors, and tone adjustments, are clearly laid out for straightforward operation by any staff member.

Technical Specifications:

* Power Output: 120 W
* Frequency Response: 50 Hz to 20 kHz (+1/-3 dB @ -10 dB ref. rated output)
* Inputs: 4x Mic/Line (XLR/Jack), 2x BGM (RCA Stereo), 1x Telephone/Emergency (100V VOX)
* Phantom Power: 16 V (switchable)
* Tone Control: Bass: ± 8 dB @ 100 Hz, Treble: ± 8 dB @ 10 kHz
* Power Consumption: 400 VA
* Mounting: 19" rack (with included brackets) or tabletop
* Dimensions (H x W x D): 100x430 x 270 mm

For a complete and aesthetically integrated public address solution, the PLE-10M2-EU amplifier pairs perfectly with a range of Bosch speakers, including wall-mounted cabinet models.

Bosch LBC3012/01.

Placement:Wall, Material:Acrylonitrile butadiene styrene (ABS), Product colour:White.

Height (max):16.5 cm, Width:284 mm, Depth:64 mm.

Quantity per pack:1 pc(s)
