Bresser 5914912 Micro Eyepiece Camera

EU Plug.

The modern Sony® CMOS sensors give brilliant colours with very low noise and is the perfect choice for any application where true natural colours are important.

The included imaging software has multiple adjustments for the capture of still images and videos.

The integrated measuring.

- routine allows for a measurement in the camera live image.

The software can be operated in the following languages:German, English, French, Polish, Russian, Turkish, Chinese.

The camera housing includes the c-mount adapter thread.

For use with 23.2 mm adaptations, we recommend the optional, variable 0.5x reducer (item no.

5914005).

For special applications, the camera can also be mounted using the 1/4´´ camera tripod thread.

The BRESSER MikroCamII are equipped with a USB 3.0 port, compared to the MikroCam SP.

This enables up to 8 times faster data transfers to the PC compared with the USB 2.0 standard.

The camera is able to deliver more than 25 frames per second .

This is especially important when observing live microorganisms.

In addition to this, the camera is exceptionally sensitive.

Even in low light conditions (high magnifications, contrast methods) the camera can be operated with short exposure times.

Specifications:

- High quality metal housing.

- Numerous software functions, e.g.

measurement, focus-stacking (combines several images for more depth of focus), mosaic (for larger image fields).

- Image and video capture, incl.

time-lapse function.

- Good compatibility with different microscopes.

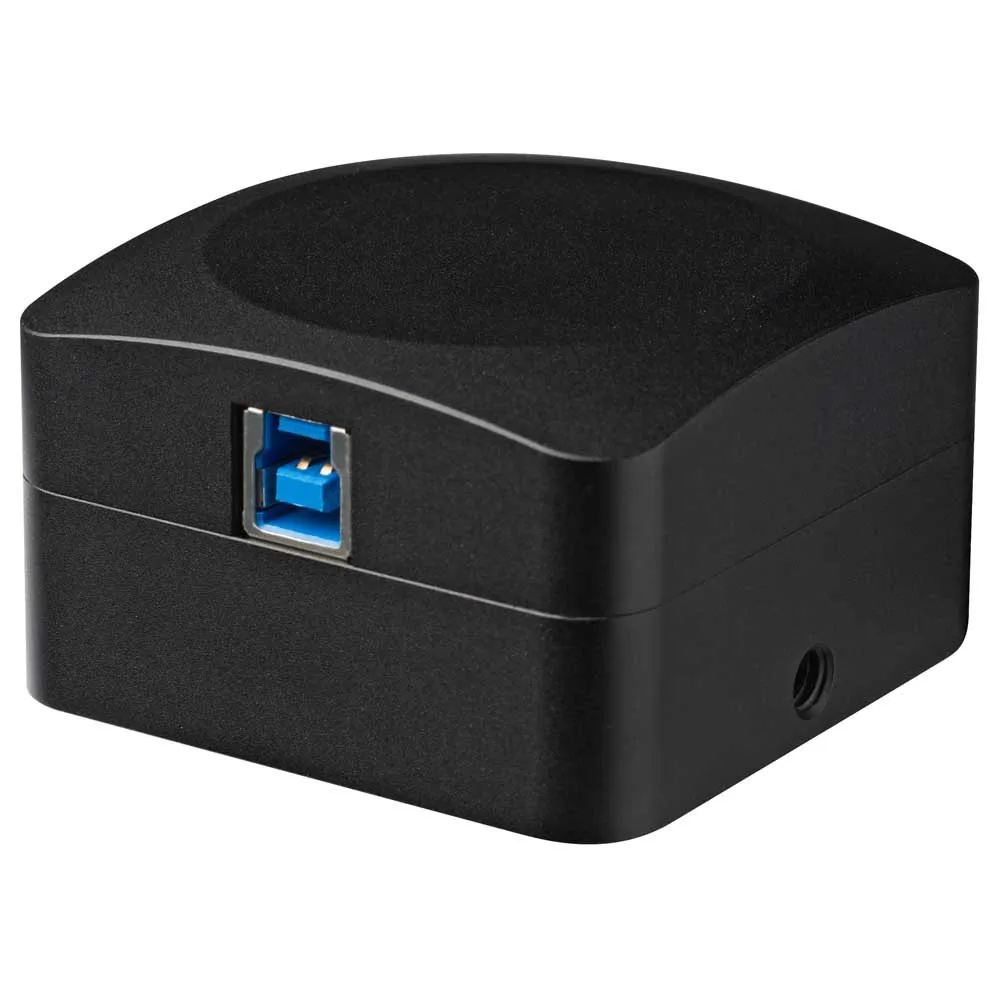

- Highspeed USB 3.0 connection.

- Modern Sony® IMX226 sensor 7.53 mm x 5.64 mm (1/1.7´´) System Requirements:- Windows 8.1, 10 or 11.

- Intel i3, i5, i7 or i9 CPU from the 6th generation or.

- AMD Ryzen CPU.

- Optical Disk Drive or internet connection for software download.

- USB 3.0, 3.1 Electronics, Hardware &.

Software:- Data transmission:USB 3.0.

- Resolution:4000x3000 pixel (12 MP) (image resolution).

- Sensor type:CMOS Color.

- Pixel size (µm):1.85x1.85.

- Active area:7.4x5.6.

- Image File Formats:jpg.

- Video Formats:AVI MP4 (Codec:H.264) General Technical Data:- Material:Aluminium Dimensions & Weights:- Total length:68 mm.

- Total width:68 mm.

- Total height:47 mm.
