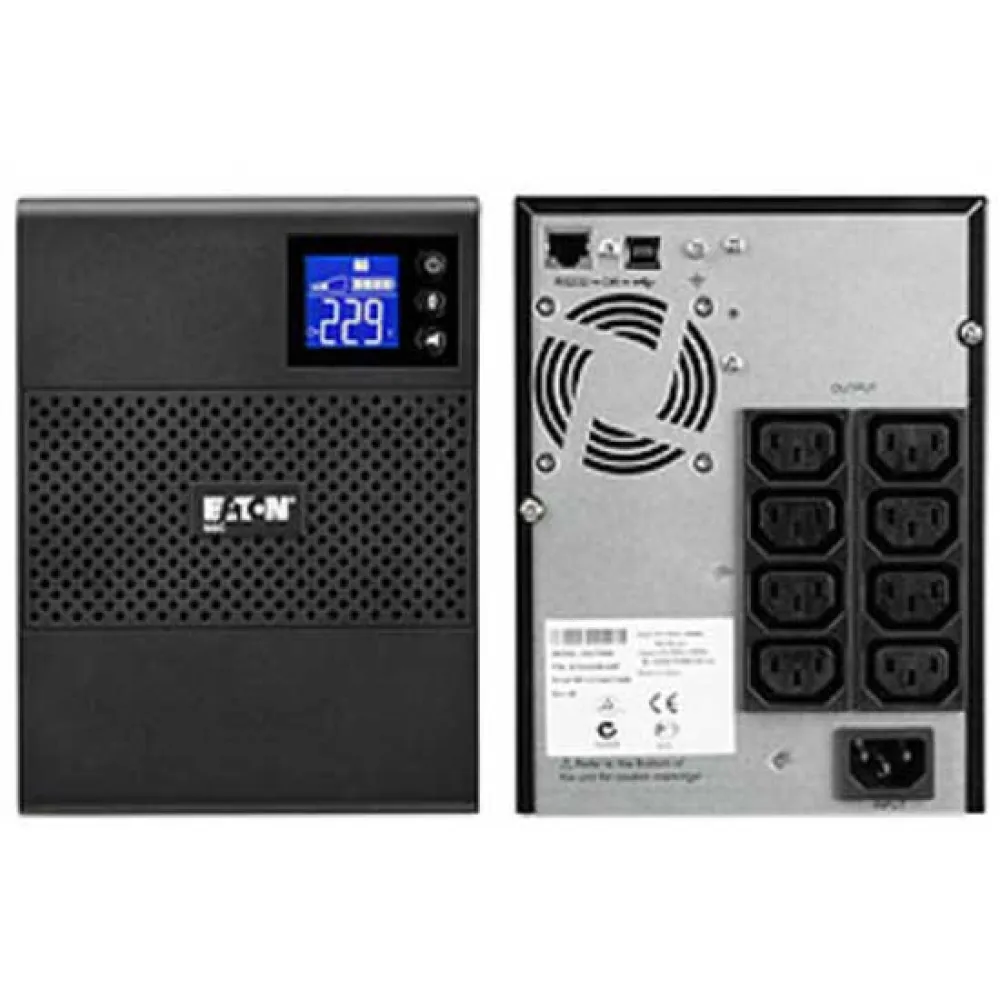

Eaton 5SC1500I Tower UPS

EU PLUG.

General specifications:

- product name:

Eaton 5SC UPS.

- upc:

743172045171.

- product length/depth:

150 MM.

- product height:

210 MM.

- product width:

410 MM.

- product weight:

15.2 KG compliances:

- ce marked.

- TUV certifications:

- ul 1778.

- iec/en 62040-1.

- iec/en 62040-2.

- ce.

- eac.

- ctuvus product specifications:

- OUTPUT WAVEFORM:

Sine wave.

- WATTAGE:

525 W.

- OUTPUT POWER FACTOR:

0.7.

- FORM FACTOR:

Tower.

- includes network card:

no.

- input connection:

c14.

- software compatibility:

eaton intelligent power manager, eaton intelligent power protector.

- batteries replacement:

user replaceable.

- battery type:

lead-acid maintenance-free (replaceable).

- efficiency:

97% special Features:

- energy efficient ups with energy metering.

- easy to operate:

next-generation multilingual lcd display.

- automatic voltage regulation and sinewave output.

- remote reboot and runtime optimization thanks to 2 manageable outlets.

- monitoring & shutdown software for vmware, hyper-v, windows, linux, ….

- 1 usb port & 1 serial + contact port for compatibility with existing or future hardware.

- 1 slot for optional com card (network, modbus or relay).

- advanced battery management (abm) technology to increase battery lifetime.

- hot swappable batteries from front panel.

- connector for remote power off or remote on/off function.

- construction type:

free standing model.

- output voltage range:

230v (+6%/-10%).

- extended battery capability:

no.

- topology:

line-interactive.

- btu rating:

online:

225.

- input nominal voltage:

230v default (200/208/220/230/240v).

- input frequency rang:

47-70 hz (50 hz system), 56.5-70 hz (60 hz system), 40 hz in low sensitivity mode.

- phase (output):

1.

- battery management:

abm or constant voltage charging method (user selectable), automatic battery test, deep -discharge protection.

- auto shutdown function:

yes.

- number of outputs c13:

8.

- va rating:

1150 va.

- potential free switch contact:

yes.

- receptacle:

(8) c13.

- phase (input):

1 package contents:

- usb cable.

- serial cable.

- (2) iec-iec cables.

- quickstart.

- safety instructions.

- noise level:

<40 db at 1 meter.

- feed type:

1.

- runtime graph:

view runtime graph view runtime graph.

- user interface:

multilingual graphical lcd display.

- battery quantity:

3.

- voltage:

230v.

- temperature range:

0-90% non-condensing.

- ethernet interface:

no.

- protocol.

snmp communication:

- 1 usb port + 1 rs232 serial port and relay contacts (usb and rs232 ports cannot be used simultaneously), 1 mini--terminal block for remote on/off and remote power off.

- relative humidity:

0-90% non-condensing.

- rack mounting kit:

no.

- output frequency:

50-60 hz.

- runtime at full load:

4 min.

- type of interface:

other.

- battery rating:

12v/7 ah.

- type:

ups.

- output nominal voltage.

230v default (200/208/220/230/240v).

- expansion slots:

one slot for optional communication card.

- input voltage range:

184-276V.

- nominal frequency:

50-60 hz.

- altitude:

2000 m.
