Ebotics Maker Control Kit

Maker Kits are sets of different electronic components that, controlled by the Buildandampde 4in1 electronic board, complement each other to bring hundreds of inventions to life.

By combining the components, it is possible to build and program the projects included in each kit and many more.

Maker Kits are ideal for those taking their first steps in programming and robotics.

The Maker Control Kit is the starting point for making any invention with the Maker Kits.

It is the set of electronic components necessary to program, power, and control all the Maker Kits.

That is to say, to put the projects included in Maker Kits 1, 2, and 3 into operation, it is necessary to have the Maker Control Kit.

Technical specifications: Buildandampde 4in1.

Microcontroller ATmega328P.

Operating voltage: 5V DC.

Input voltage : 7-12V DC.

Input voltage (limit): 6-20V DC 12.

Digital Input/Output (I/O) ports.

7 PWM Digital Input/Output (I/O) ports.

6 Analog input ports (Inputs).

I/O pin current: 20mA.

Clock speed: 16Mhz.

Wireless 2.0 connectivity.

Direct connection for DC motors.

Size: 68x53 mm.

Weight: 25gr.

Programmable with Arduino IDE and different graphic block programming software.

Compatible with MacOS, Windows, and Linux.

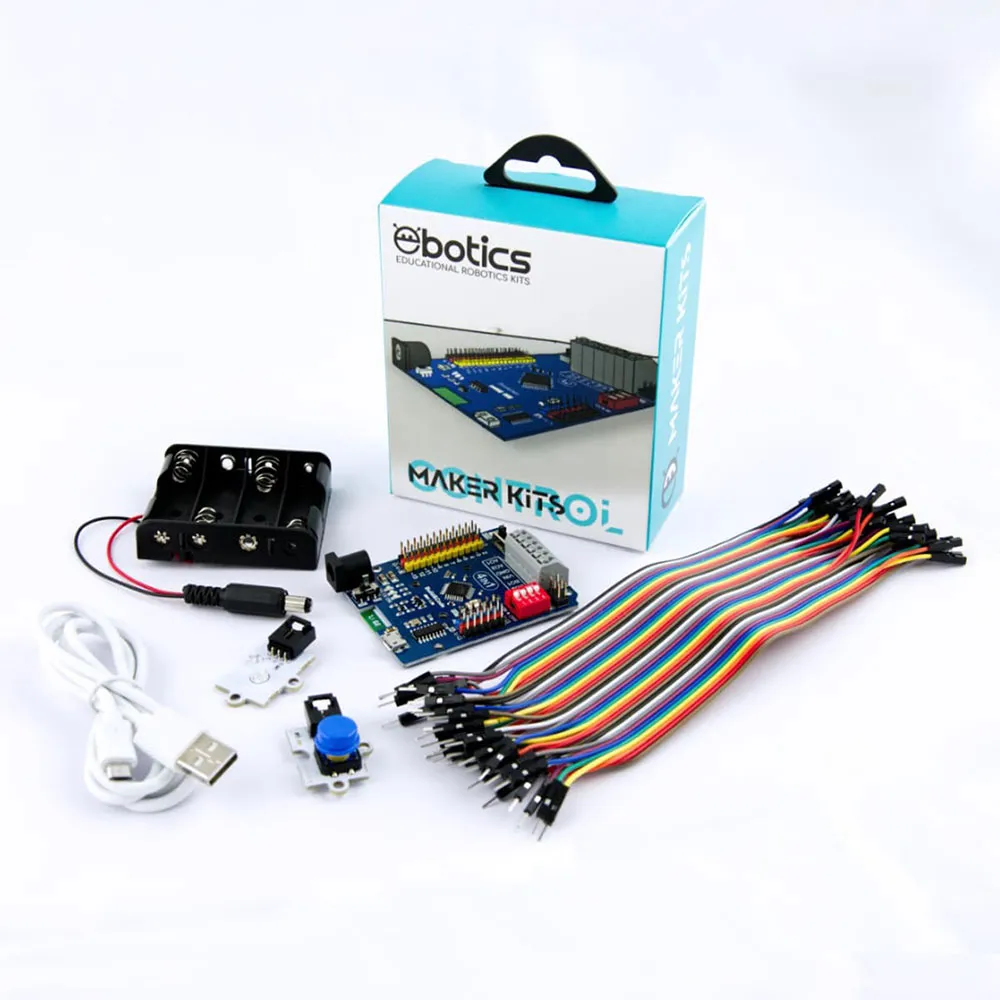

Included parts: 1 Buildandampde 4in1 controller board.

1 USB - Micro USB cable.

40 male - female jumper wires.

1 Battery holder or battery support (for 4 AA batteries not included).
