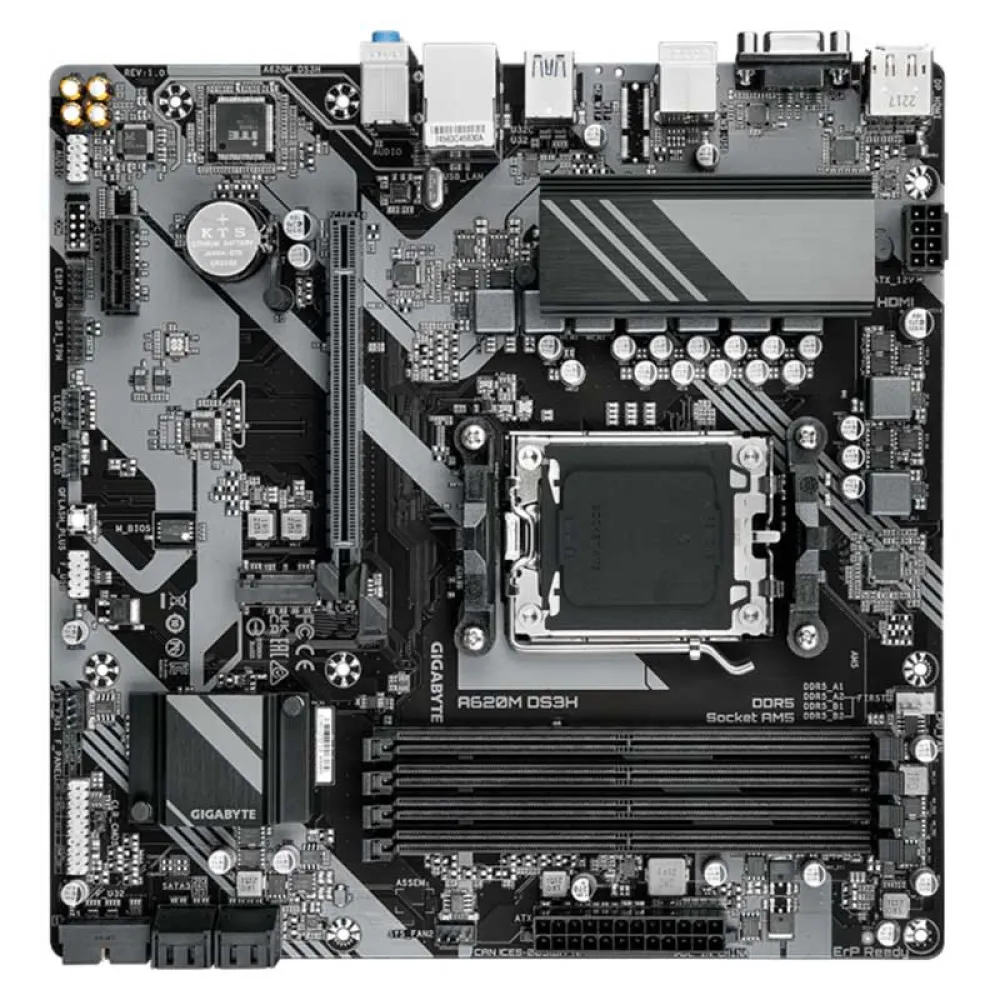

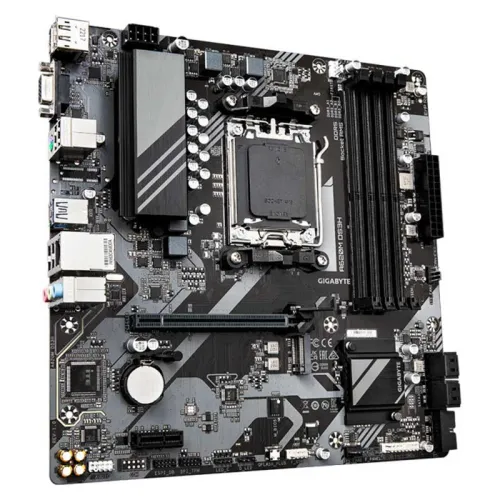

Gigabyte A620M DS3H motherboard

The GIGABYTE A620M DS3H is based on the AMD B620 chipset and supports AMD processors for the AM5 socket. It has four DDR5 slots for up to 192 GB of RAM. The GIGABYTE A620M DS3H also features a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. Additionally, the GIGABYTE A620M DS3H has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, one M.2 port and several USB interfaces.


Specifications:

- Max. CPU No.: 1
- Processor: Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael)
- Chipset: AMD A620
- Slots: PCIe x 16: 1x (of which: 1x PCIe x 16)
- PCIe x 1: 1
- BIOS: 256 AMI UEFI BIOS
- Form factor: µATX
- Use: PC
- Power supply: EPS (24 + 8 pin)

Memory:
- Maximum: 192GB
- No. of sockets: 4x DDR5
- Supported standards: DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800
- Channels: 2
- Maximum memory slots: 8
- Memory controller in CPU: Yes

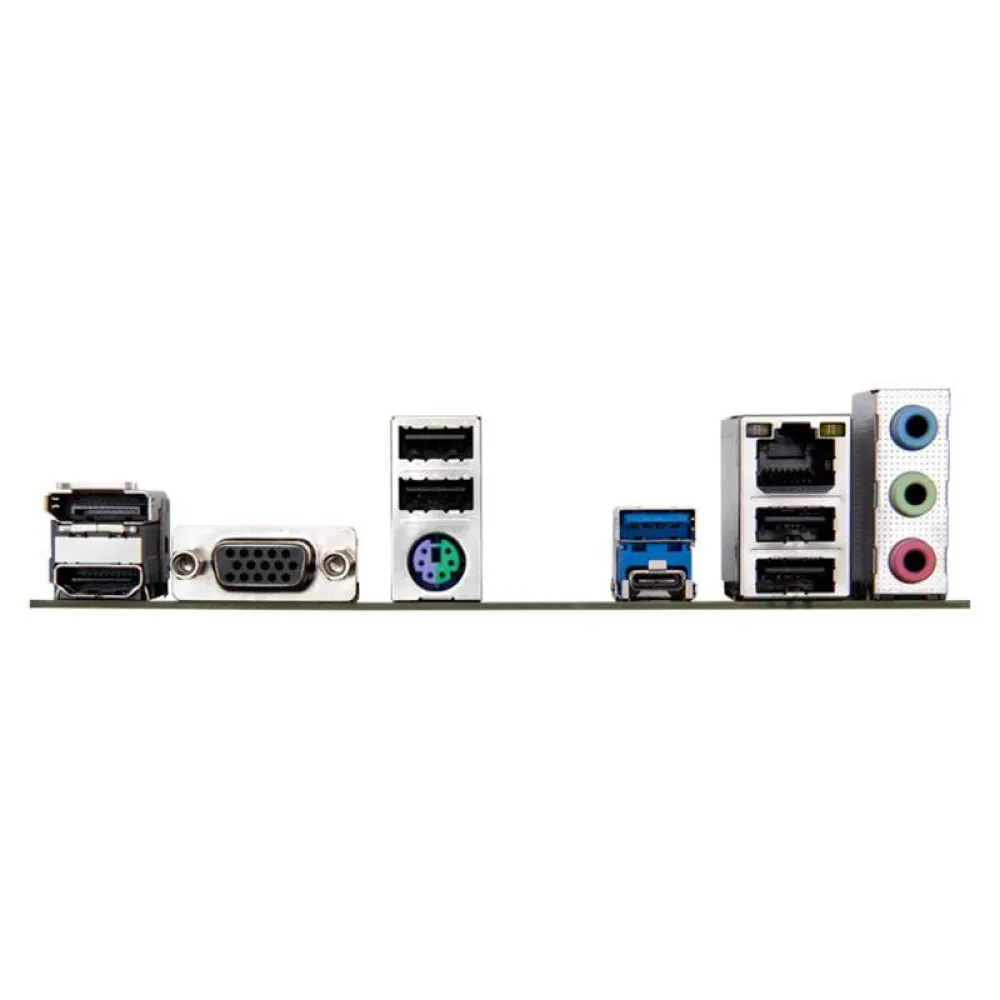

Connections (external):
- Mouse/Keyboard Combo (PS/2): 1
- USB-C 3.0: 1
- USB 3.0: 1
- USB-A 2.0: 4
- VGA: 1
- HDMI: 1
- DisplayPort: 1
- Microphone: 1
- Online entry: 1
- Online output: 1
- RJ-45: 1

Connections (internal):
- SATA: 4
- M.2: 1
- RGB LED: 1
- Addressable RGB LED header: 1
- 4-pin PWM fan: 3

Connections (optional):
- USB 3.0: 2
- USB 2.0: 2
- TPM: Yes
- SATA controller: AMD A620
- Directly usable RAID level: 0, 1, 10
- USB driver: AMD A620
- Integrated graphics: The graphics connectors on the motherboard can only be used when using a CPU with an integrated graphics chip.
- Sound: realtek
- LAN: Realtek GbE LAN chip
- Dimensions: Width: 244mm x Height: 244mm
