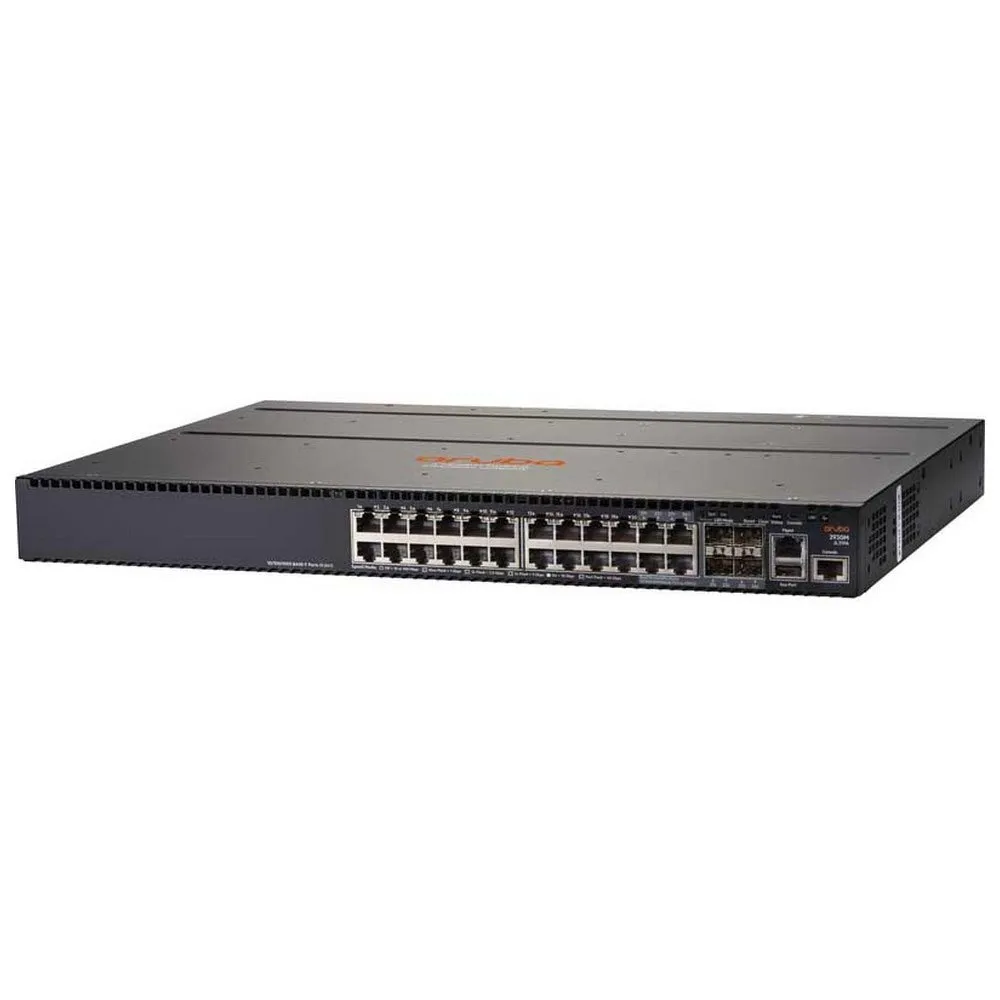

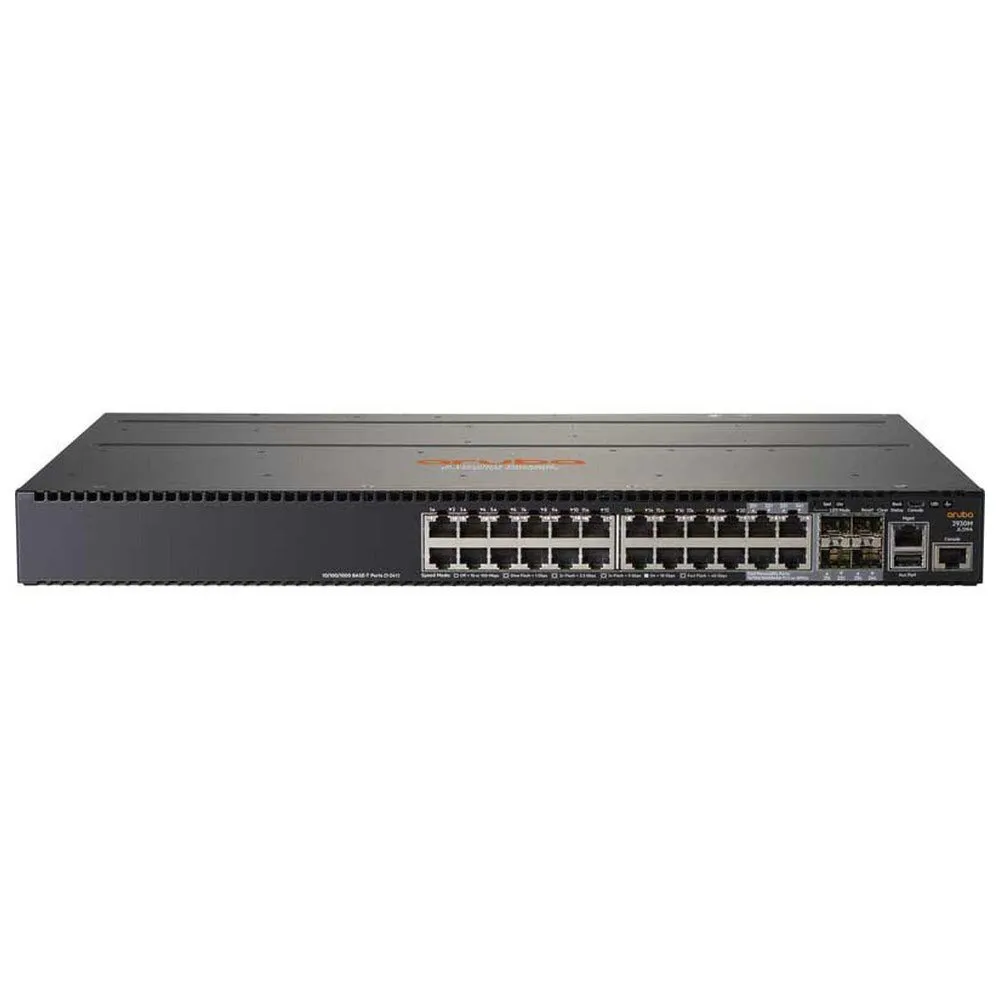

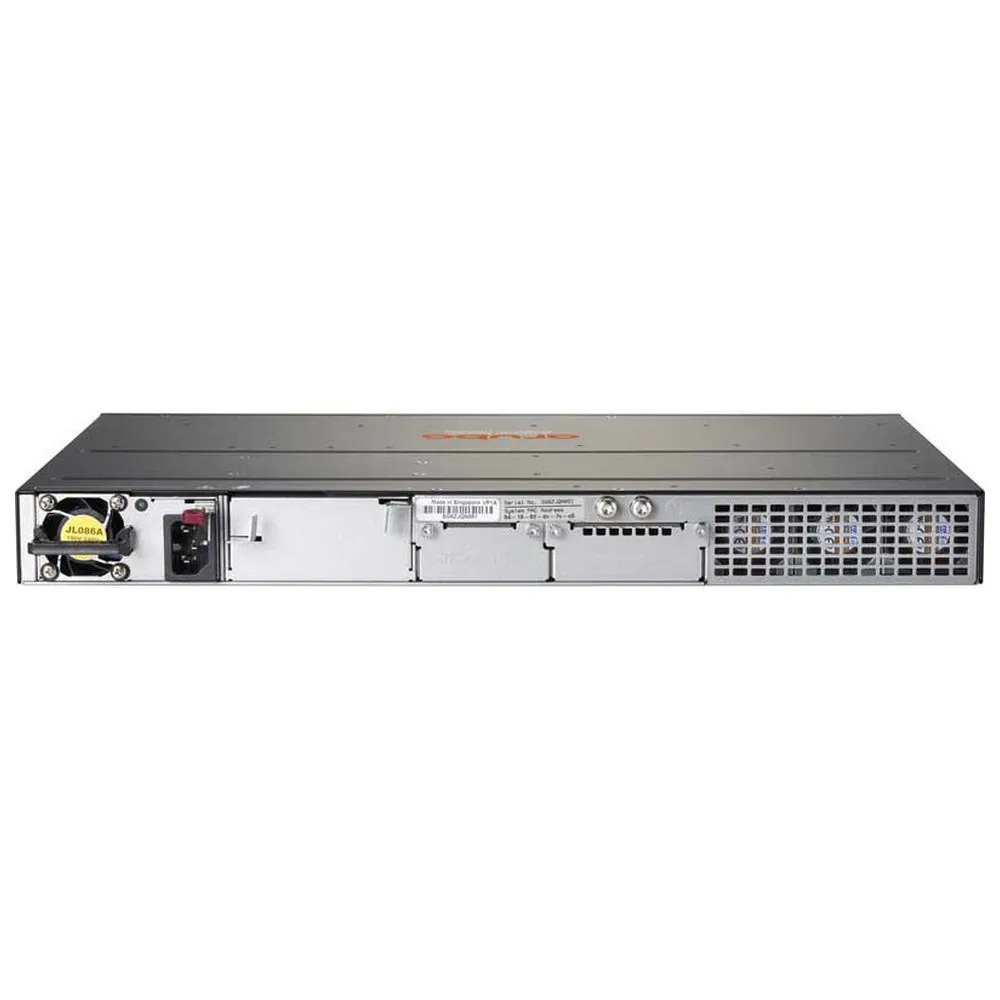

HP 2930M-24G switch 24 ports

EU Plug.

The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users.

These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks.

The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.

Key.

Features:

High-Performance Layer 3 Access Switches:- The Aruba 2930M Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.

- Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central.

Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

- Pay as you grow modular stacking (10 chassis) and modular 10GbE (SFP+) and 40GbE (QSFP+) uplinks.

HPE Smart Rate multi-gigabit Ethernet models support high speed APs over existing cabling and upgradeable power supplies allow your network to quickly scale when more PoE is needed.

- Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, Dynamic Segmentation, sFlow, IPv6 with no software licensing required.

- Designed with a power ProVision ASIC, the 2930M supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Performance and Power at the Edge:- The Aruba 2930M Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with low latency, increased packet buffering, and adaptive power consumption.

- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.

- Plug and play with up to 10 chassis stacking allowing automated failover enhances network resiliency and RPS support delivers power redundancy.

- Supports hot swappable and redundant PoE power for wireless access points, cameras and phones and can easily scale to 1440W with choice of power supplies.

High power PoE models deliver up to 60W of PoE per port.

Security and Quality of Service You Can Rely On:- The Aruba 2930M Switch Series includes security and quality of services (QoS) features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.

- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.

- Powerful multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, port security, and MAC address lockout.

- Dynamic Segmentation provides user and port-based traffic tunneling to an Aruba Mobility Controller or Branch Gateway so that policies can be applied, advanced services can be extended to users and IoT devices, and traffic can be encrypted to protect the network.

Simplify with Integrated Wired/Wireless Management:- The Aruba 2930M Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.

- Aruba Airwave Network Management software provides an on-premise network management platform for wired and wireless network devices.

Cloud-based management with Zero Touch Provisioning supported by Aruba Central.

- Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.

- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Specifications:

- Product Differentiator (long):Powerful and flexible high density 1U 24-port access switch.

This model has 24x 10/100/1000 ports including four that are combo dual purpose shared with SFP ports for fiber connectivity.

Can take up to two power supplies power supplies ordered separately.

- Power Consumption Description:49 W (maximum).

- Heat Dissipation:145 BTU/hr 150 kJ/hr.

- Input Voltage:100.

- 127 / 200.

- 240 VAC, rated.

- External I/O Ports:(20) RJ-45 autosensing 10/100/1000 ports (4) Dual Personality 10/100/1000 BASE-T or 100/1000 Mbps SFP Ports (1) Uplink module slot, (1) stacking module slot.

- Latency:1000 Mb Latency:- Switching Capacity:128 Gbps.

- Throughput:up to 95.2 Mpps.

- Memory and.

Processor:Dual Core ARM Coretex A9.
