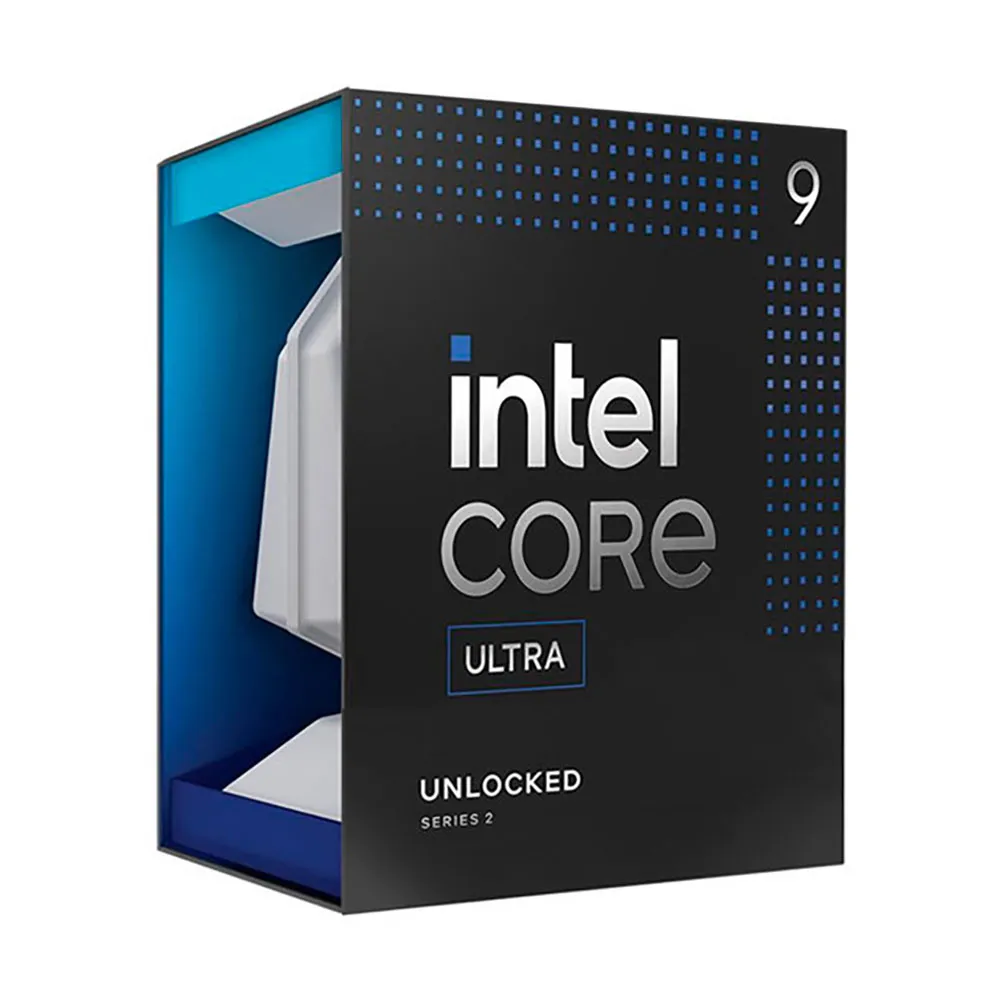

Intel Core Ultra 9 285K CPU

Specifications:

CPU Specifications:
- Total Cores: 24
- # of Performance-cores: 8
- # of Efficient-cores: 16
- Total Threads: 24
- Max Turbo Frequency: 5.7 GHz
- Intel® Thermal Velocity Boost Frequency: 5.7 GHz
- Intel® Turbo Boost Max Technology 3.0 Frequency: 5.6 GHz
- Performance-core Max Turbo Frequency: 5.5 GHz
- Efficient-core Max Turbo Frequency: 4.6 GHz
- Performance-core Base Frequency: 3.7 GHz
- Efficient-core Base Frequency: 3.2 GHz
- Cache: 36 MB Intel® Smart Cache
- Total L2 Cache: 40 MB
- Processor Base Power: 125 W
- Maximum Turbo Power: 250 W
- Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
- AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
- CPU Lithography: TSMC N3B

Supplemental Information:
- Marketing Status: Launched
- Launch Date: Q4´24
- Use Conditions: PC/Client/Tablet, Workstation

Memory Specifications:
- Max Memory Size (dependent on memory type): 192 GB
- Memory Types: Up to DDR5 6400 MT/s
- Maximum Memory Speed: 6400 MHz
- Max # of Memory Channels: 2
- ECC Memory Supported: Yes

GPU Specifications:
- GPU Name: Intel® Graphics
- Graphics Base Frequency: 300 MHz
- Graphics Max Dynamic Frequency: 2 GHz
- GPU Peak TOPS (Int8): 8
- Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
- Xe-cores: 4
- Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
- Max Resolution (DP): 8K @ 60Hz
- Max Resolution (eDP - Integrated Flat Panel): 4K @ 60Hz
- DirectX* Support: 12
- OpenGL* Support: 4.5
- OpenCL* Support: 3
- Intel® Quick Sync Video: Yes
- # of Displays Supported: 4
- Device ID: 0x7D67
- Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes

NPU Specifications:
- NPU Name: Intel® AI Boost
- NPU Peak TOPS (Int8): 13
- Sparsity Support: Yes
- Windows Studio Effects Support: Yes
- AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options:
- Direct Media Interface (DMI) Revision: 4
- Max # of DMI Lanes: 8
- Intel® Thunderbolt™ 4: Yes
- Scalability: 1S Only
- PCI Express Revision: 5.0 and 4.0
- PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
- Max # of PCI Express Lanes: 24

Package Specifications:
- Sockets Supported: FCLGA1851
- Thermal Solution Specification: PCG 2020A
- Max Operating Temperature: 105 °C

Advanced Technologies:
- Intel® Volume Management Device (VMD): Yes
- Intel® Gaussian & Neural Accelerator: 3.5
- Intel® Thread Director: Yes
- Intel® Speed Shift Technology: Yes
- Intel® Thermal Velocity Boost: Yes
- Intel® Turbo Boost Max Technology 3.0: Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® 64: Yes
- Instruction Set: 64-bit
- Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States: Yes
- Enhanced Intel SpeedStep® Technology: Yes
- Thermal Monitoring Technologies: Yes

Security & Reliability:
- Intel vPro® Eligibility: Intel vPro® Enterprise, Intel vPro® Platform
- Intel® Threat Detection Technology (TDT): Yes
- Intel® Active Management Technology (AMT): Yes
- Intel® Standard Manageability (ISM): Yes
- Intel® Remote Platform Erase (RPE): Yes
- Intel® One-Click Recovery: Yes
- Intel® Hardware Shield Eligibility: Yes
- Intel® Control-Flow Enforcement Technology: Yes
- Intel® Total Memory Encryption - Multi Key: Yes
- Intel® AES New Instructions: Yes
- Secure Key: Yes
- Intel® Trusted Execution Technology: Yes
- Execute Disable Bit: Yes
- Intel® OS Guard: Yes
- Intel® Boot Guard: Yes
- Mode-based Execute Control (MBEC): Yes
- Intel® Stable IT Platform Program (SIPP): Yes
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
