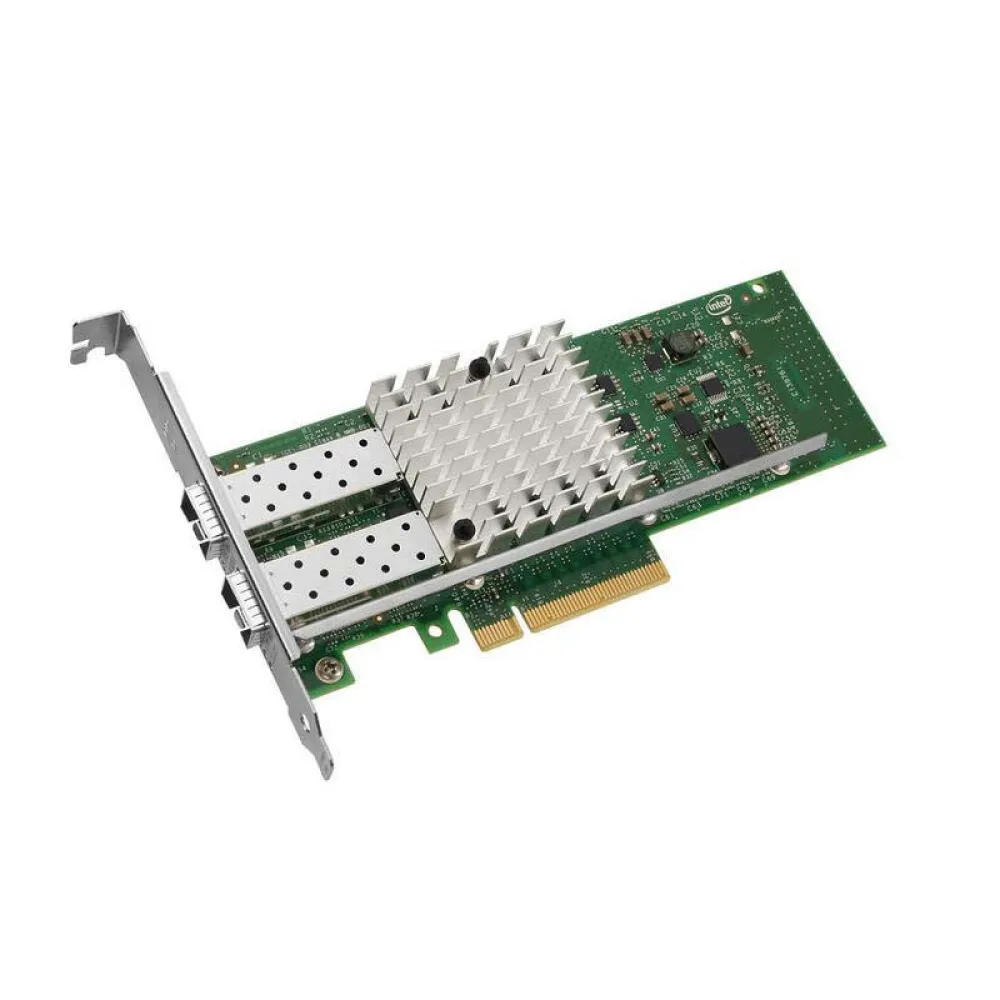

Intel E10G42BTDABLK PCI-E Expansion Card

Intel E10g42btdablk Network Card Internal Fiber 10000 Mbit/S:

- Intel´S New Family Of Intel® Ethernet X520 Server Adapters Are The Most Flexible And Scalable Ethernet Adapters For Today´S Demanding Data Center Environments.

- The Intel® Ethernet X520 Server Adapter Family Addresses The Demanding Needs Of The Next-Generation Data Center By Providing Unmatched Features For Virtualization, Flexibility For Lan And San Networking, And Proven, Reliable Performance.

Features:

- Wired.

- Pci Express 2.0 Fiber.

- 10000 Mbit/S.

- Internal Intel® 82599 10 Gigabit Ethernet Controller:

- Industry-Leading, Energy-Efficient Design For Next-Generation 10 Gigabit Performance And Multi-Core Processors.

Low-Profile:

- Enables Higher Bandwidth And Throughput From Standard And Low-Profile Pcie Slots And Servers.

Load Balancing On Multiple Cpus:

- Increases Performance On Multi-Processor Systems By Efficiently Balancing Network Loads Across.

- Cpu Cores When Used With Receive-Side Scaling (Rss) From Microsoft Or Scalable I/O On Linux Iscsi Remote Boot Support:

- Provides Centralized Storage Area Network (San) Management At A Lower Cost Than Other Iscsi Solutions.

Support For Most Network Operating Systems (Nos):

- Enables Widespread Deployment Rohs-Compliant2:

- Complies With The European Union Directive 2002/95/Ec To Reduce The Use Of Hazardous Materials Intel® Proset Utility For Microsoft Windows Device Manager:

- Provides Point-And-Click Management Of Individual Adapters, Advanced Adapter Features, Connection.

- Teaming, And Virtual Local Area Network (Vlan) Configuration Time Sync (Ieee 1588, 802.1as):

- Lets Networked Ethernet Equipment Synchronize Internal Clocks According To A Network Master Clock.

- Endpoint Can Then Acquire An Accurate Estimate Of The Master Time By Compensating For Link Latency.

Specifications:

- Ports & Interfaces:

- Connectivity.

Technology:

Wired.

- Host Interface:

Pci Express.

- Interface:

Fiber.

- Ethernet Lan (Rj-45) Ports:

2.

- Fiber Ports Quantity:

2.

- Fiber Optic Connector:

Sfp+.

- Pci Version:

2.0 Network:

- Maximum Data Transfer Rate:

10000 Mbit/S.

- Ethernet Lan Data Rates:

10, 1000 Mbit/S.

- Full Duplex:

Yes.

- Maximum Operating Distance:

10 M.

- Lan Controller:

Intel® 82599 Design:

- Internal:

Yes.

- Plug And Play:

Yes.

-.

Certification:

Fcc B, Ul, Ce, Vcci, Bsmi, Ctick, Kcc Operational Conditions:

- Operating Temperature (T-T):

0.

- 55 °C.

- Storage Temperature (T-T):

-40.

- 70 °C Weight & Dimensions:

- Width:

145.5 Mm Other.

Features:

- Compliance Industry Standards:

Ieee 802.3.

- Cable Type:

Sfp+ Direct Attached Twin Axial Cabling Up To 10m.

- Market Segment:

Server.

- Data Transfer Rate:

10 Gbit/S.

- Ports Quantity:

2.

- Link/Act Led:

Yes.

- Intel Virtual Machine Device Queues (Vmdq):

Yes.

- Pci-Sig Sr-Iov Capable:

Yes.

- On-Chip Qos And Traffic Management:

Yes.

- Intel Flexible Port Partitioning:

Yes.

- Storage-Over-Ethernet:

Yes.

- Speed & Slot Width:

5.0 Gt/S, X8 Lane.

- Message Signal Interrupt:

Yes.

- Intelligent Offloads:

Yes.

- Fiber Channel Over Ethernet:

Yes.

- Intel Ethernet Power Management:

Yes.

- Intel Data Direct I/O.

Technology:

Yes.

- Intel Virtualization Technology For Connectivity (Vt-C):

Yes.

- Interface Type:

Pcie V2.0 (5.0 Gt/S).

- Storage Over Ethernet:

Iscsi, Fcoe, Nfs.

- Launch Date:

Q3´09.

- Network Interface Card Cable Medium:

Copper.

- Network Interface Card Type:

Server.

- Product Type:

Network Interface Card.

- Status:

Launched.

- Thermal Design Power (Tdp):

8.6 W.

- Processor Family:

500 Network Adapters (Up To 10gbe)-500 Network Adapters (Up To 10gbe).

- Cabling Type:

Sfp+ Direct Attached Twin Axial Cabling Up To 10m.

- Bracket Height:

Low-Profile (Lp) / Full-Height (Fh).

- Product Family:

Intel 10 Gigabit Server Adapter.

- Product Series:

500 Series Network Adapters (Up To 10gbe).

- Product Codename:

Spring Fountain.
