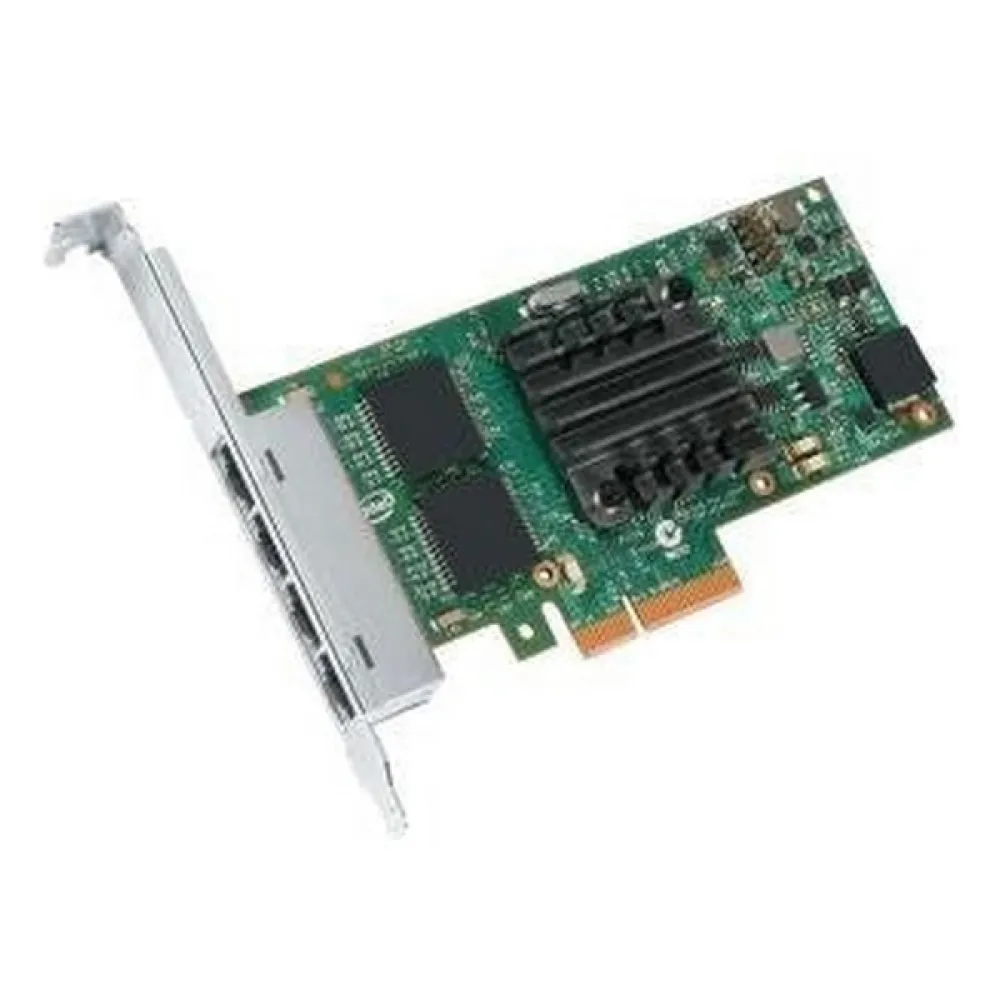

Intel I350-T4V2 PCI-E Expansion Card

Intel I350-T4V2 Quad-Port Gigabit Server Network Adapter

Elevate your server infrastructure and data center performance with the Intel I350-T4V2 PCI-E Expansion Card, the industry benchmark for multi-port Gigabit Ethernet connectivity. Designed for the rigorous demands of enterprise and virtualized environments, this adapter provides unparalleled reliability, advanced features, and optimized performance for multi-core processors. As a leading solution in server network expansion cards, the I350-T4V2 is engineered to increase I/O throughput, reduce CPU overhead, and future-proof your network for next-generation server platforms.

Experience a significant boost in network performance and efficiency. This quad-port adapter is built on the advanced Intel Ethernet Controller I350, delivering low-latency and high-throughput connections essential for mission-critical applications. It excels in virtualized settings by leveraging Intel Virtualization Technology for Connectivity (VT-c), which includes features like Virtual Machine Device Queues (VMDq) and PCI-SIG SR-IOV support. These technologies offload data sorting and traffic management from the hypervisor to the network controller, dramatically improving I/O performance, lowering CPU utilization, and increasing the number of virtual machines a single server can support. Furthermore, with intelligent offloads and support for link aggregation, this adapter ensures maximum bandwidth and network resiliency for your most demanding workloads.

Main Features
* Powered by the advanced Intel® Ethernet Controller I350
* Quad RJ45 copper ports for high-density connectivity
* Intel® Virtualization Technology for Connectivity (VT-c)
* Virtual Machine Device Queues (VMDq) for enhanced virtual machine performance
* PCI-SIG* SR-IOV Capabilities for direct VM device assignment
* Intelligent Offloads (TCP/IP/UDP checksum, TCP segmentation) to free up CPU resources
* Support for iSCSI remote boot and unified networking
* Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
* Flexible Port Partitioning (FPP) for advanced Quality of Service (QoS)
* Wake-on-LAN (WoL) and Preboot eXecution Environment (PXE) support
* IEEE 802.1q VLAN support for network segmentation
* IEEE 802.3ad link aggregation and load balancing for increased throughput and redundancy

Technical Specifications
* Product Code: I350T4V2BLK
* Controller: Intel I350
* Interface: PCI Express* 2.1 (5 GT/s)
* Bus Width: x4 Lane PCIe, operable in x4, x8, x16 slots
* Port Configuration: Quad Port (4)
* Connector Type: RJ-45
* Data Rate Per Port: 1 GbE/s (10/100/1000 Mbps)
* Cabling Type: Category 5 up to 100m
* Bracket Height: Low-Profile and Full-Height
* Thermal Design Power (TDP): 5 W
