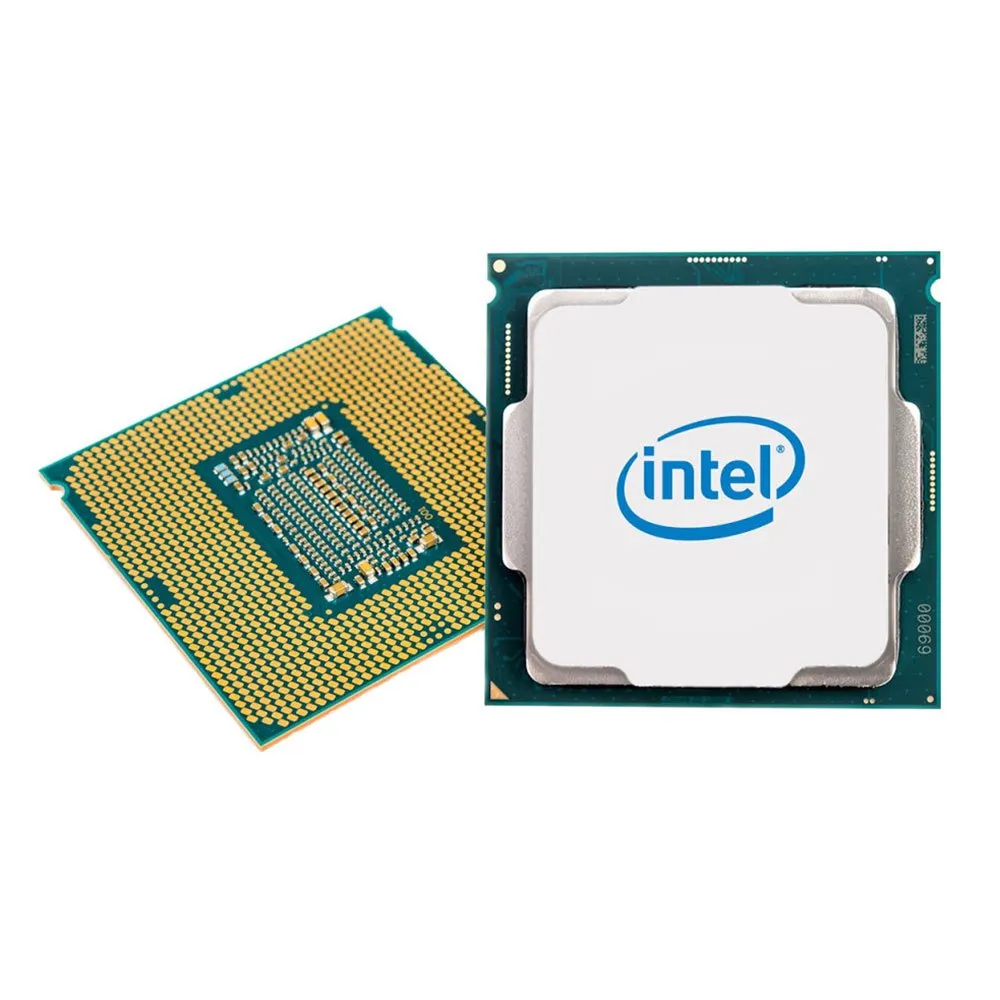

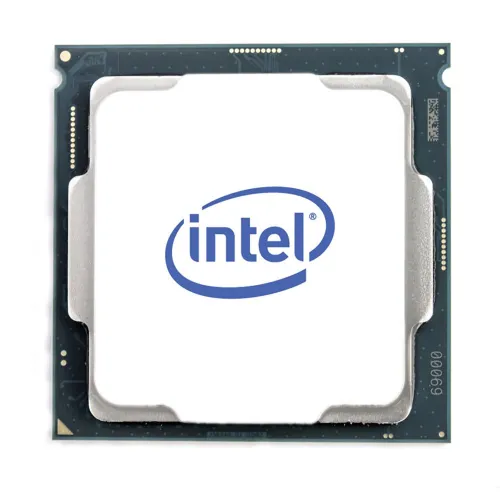

Intel i9-10900X CPU

Features:

Intel® Optane™ Memory Supported:
- Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Turbo Boost Technology:
- Intel® Turbo Boost Technology dynamically increases the processor´s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Hyper-Threading Technology:
- Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® Virtualization Technology (VT-x):
- Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d):
- Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® 64:
- Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Instruction Set:
- An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with.

Instruction Set Extensions:
- Instruction Set Extensions are additional instructions which can increase performance when the same operations are performed on multiple data objects. These can include SSE (Streaming SIMD Extensions) and AVX (Advanced Vector Extensions).

OF AVX-512 FMA Units:
- Intel® Advanced Vector Extensions 512 (AVX-512), new instruction set extensions, delivering ultra-wide (512-bit) vector operations capabilities, with up to 2 FMAs (Fused Multiply Add instructions), to accelerate performance for your most demanding computational tasks.

Enhanced Intel SpeedStep® Technology:
- Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Deep Learning Boost (Intel® DL Boost):
- A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.


Specifications:

Processor:
- Processor manufacturer: Intel
- Processor base frequency: 3.7 GHz
- Processor family: Intel® Core™ i9 X-series
- Processor cores: 10
- Processor socket: LGA 2066 (Socket R4)
- Component for: PC
- Processor lithography: 14 nm
- Processor model: i9-10900X
- Processor threads: 20
- System bus rate: 8 GT/s
- Processor operating modes: 64-bit
- Processor boost frequency: 4.5 GHz
- Processor cache: 19.25 MB
- Processor cache type: Smart Cache
- Thermal Design Power (TDP): 165 W
- Box: Yes
- Generation: 10th Generation
- Memory bandwidth supported by processor (max): 94 GB/s
- Processor codename: Cascade Lake

Memory:
- Maximum internal memory supported by processor: 256 GB
- Memory types supported by processor: DDR4-SDRAM
- Memory clock speeds supported by processor: 2933 MHz
- Memory channels: Quad-channel

Graphics:
- Execute Disable Bit: Yes
- Market segment: Desktop
- Maximum number of PCI Express lanes: 48
- PCI Express slots version: 3.0
- Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0,AVX-512
- Scalability: 1S
- CPU configuration (max): 1
- Thermal solution specification: PCG 2017X
- PCI Express CEM revision: 3.0

Processor special features:
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel® Turbo Boost Max Technology 3.0 frequency: 4.7 GHz
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel Turbo Boost Max Technology 3.0: Yes
- Intel® Optane™ Memory Ready: Yes
- AVX-512 Fused Multiply-Add (FMA) units: 2
- Intel® Deep Learning Boost (Intel® DL Boost): Yes

Operational conditions:
- Tjunction: 94 °C

Technical details:
- Target market: Gaming, Content Creation
- Launch date: Q4´19
- Product type: Processor
- Status: Launched
- Maximum memory: 256 GB
- Supported memory types: DDR4-SDRAM
- Bus speed: 8 GT/s DMI3

Packaging data:
- Package type: Retail box

Other features:
- Maximum internal memory: 256 GB
