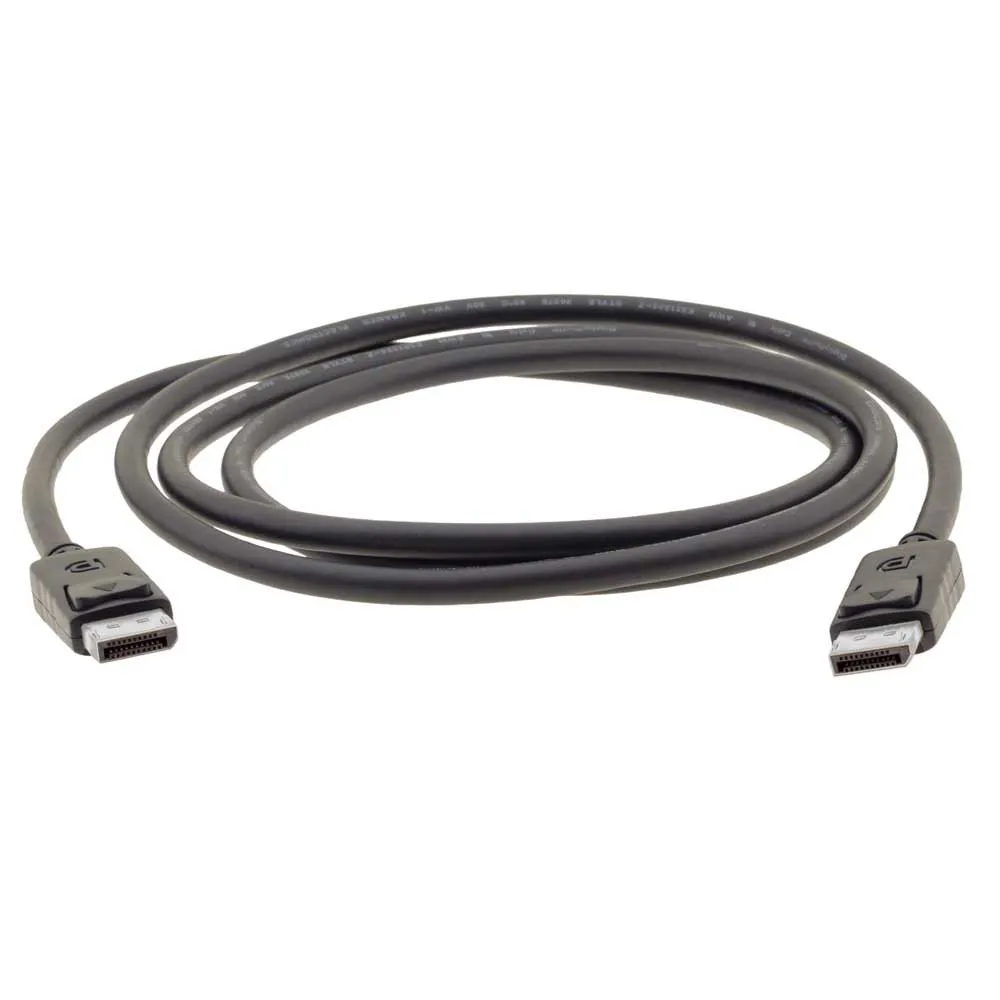

Kramer Electronics C-DP-15DisplayPort 4K 60 Hz 4.6 m cable

C−Dp Is A High−Resolution Displayport Cable For Video Signals Up To 4k@60hz (4:4:4) Resolution Supporting Displayport 1.2 Standard. C−Dp Supports An Hbr2 (High Bit Rate 2) Bandwidth Of Up To 21.6 Gbps. The Cable Is Triple Shielded For Superior Noise Immunity.


Features:

- Triple Shielded
- Varied Lengths Available
- High–Performance Professional Cable — Supports Resolutions Up To 4k@60hz (4:4:4) And An Hbr2 (High Bit Rate 2) Bandwidth Of Up To 21.6 Gbps.
- Content Protection Support — Dpcp (Displayport Content Protection) And Hdcp 2.2.
- Daisy Chain Multiple Monitors — With Mst (Multi–Stream) Support.
- Secure Connections — Includes Molded Displayport Connectors With Latches.
- Quality Construction — Triple Shielded For Superior Noise Immunity.


Specifications:

- Backward Compatibility — Compatible With Displayport 1.1.
- Varied Selection Of Lengths — Available In Versions Of 0.9 To 15.0m (3 To 50ft).
- Feet: 4.60m (15ft)
- Resolution: 4k 60 (4: 4: 4)
- Max. Resolution — 4k@60hz (4:4:4)
- Max. Data Rate — 21.6 Gpbs

Video:
- Resolutions: Supports All Vesa Resolutions Up To 4k@60hz (4:4:4)
- Max. Data Rate: 21.6gbps (5.4 Gbps Per Lane)

Physical:
- Male Displayport Connectors: Gold Plated Pins–15u, Nickel Plated Shell

Screening:
- Type: Triple Shielding (Eliminates Rf And Em Interference)

Conductors:
- 3-15ft Lengths: 28awg
- 25−50ft Lengths: 26awg

Electrical:
- Voltage Rating: 30v
- Temperature Rating: 80°C
- Dielectric Strength: Ac — 750v/1sec Min
- Insulation Resistance: Foam–Skin–Pe,Pe:Dc–500v 100 Mω/Km Min. At 20℃
- Conductor Resistance 28awg: 237ω/Kmmax. At 20℃
- Conductor Resistance 26awg: 148ω/Km Max. At 20℃
- Differential Impedance: 100±5ω
- Intra Pair Skew: 50ps/2m
- Inter Pair Skew: 4ns/2m
- Standards Compliance
- Rating: Vw–1
- Rohs: 2011/65 / Eu
