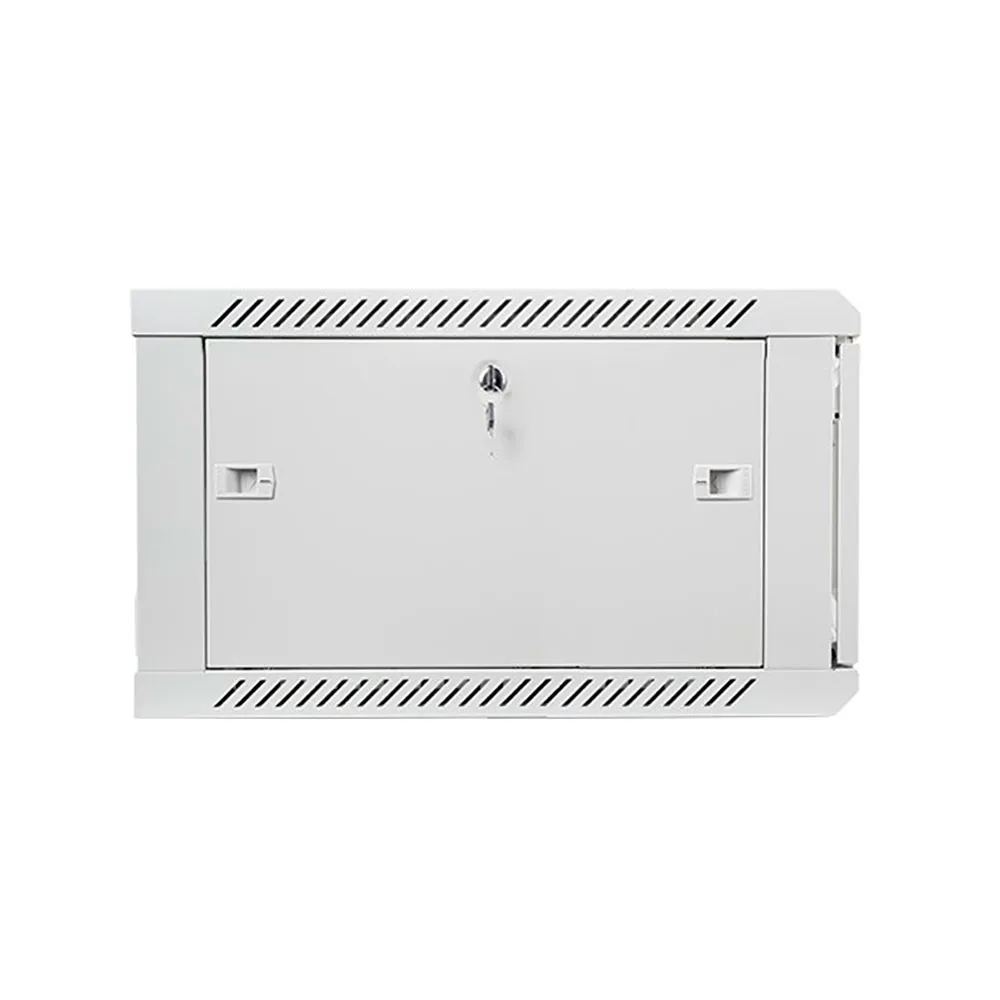

Lanberg WF01-6606-10S rack cabinet

EU Plug.

LANBERG WF01-6606-10S 6U Wall-Mount Rack Cabinet Professional Server & Network Housing Secure, organize, and protect your critical IT infrastructure with the LANBERG WF01-6606-10S, a professional-grade 6U wall-mount rack cabinet.

Designed for small to medium-sized businesses, home offices, and server rooms where space is at a premium, this cabinet provides a robust and efficient solution for housing 19´´ standard network devices, servers, patch panels, and surveillance equipment.

Its sleek black finish and compact design allow for a discreet yet highly functional installation in any professional environment.

The WF01-6606-10S is engineered for both security and accessibility.

The front door features tempered glass for easy visual monitoring of your equipment´s status indicators, secured with a durable lock to prevent unauthorized access.

Both side panels are also equipped with locks and are fully removable, offering convenient access to your devices from multiple angles for effortless installation, maintenance, and cable management.

Key Benefits:

* Optimal Space Utilization:

The wall-mount design with a 6U capacity and a 600mm depth is perfect for deploying network and server hardware without consuming valuable floor space.

* Enhanced Equipment Security:

With a lockable tempered glass front door and lockable, removable side panels, your valuable equipment is safeguarded against tampering and unauthorized access.

* Superior Durability & Protection:

Constructed from high-grade cold-rolled steel, this cabinet offers a static load capacity of up to 60 kg, ensuring a stable and secure housing for your devices.

The IP20 rating protects against solid object intrusion.

* Effective Thermal Management:

Designed with passive ventilation points in the top and bottom panels, the cabinet promotes natural airflow.

It also includes dedicated spaces for installing up to two 120mm fans (sold separately) for active cooling in high-density applications.

* Simplified Installation & Maintenance:

The cabinet is delivered in a flat-pack for easy transportation and on-site assembly.

Removable panels and adjustable mounting rails make initial setup and future upgrades a straightforward process.

Main Features:

* Tempered glass front door with included lock and key set.

* Solid steel side panels, fully removable and secured with locks.

* Adjustable front and rear 19-inch mounting rails for flexible equipment positioning.

* Convenient cable entry points on both the top and bottom panels.

* Prepared mounting holes for optional 120mm cooling fans.

* Robust cold-rolled steel construction for maximum stability.

* Flat-pack design for convenient transport and self-assembly.

Decks and Shelving:

The internal structure features two pairs of adjustable vertical mounting rails, creating versatile ´´decks´´ or levels for your 19´´ equipment.

The depth of these rails can be modified to accommodate devices of various sizes.

Furthermore, the cabinet is fully compatible with standard 19´´ rack shelves (sold separately), allowing you to create additional flat decks for non-rack-mountable hardware like modems, routers, or small desktop servers.

Technical Specifications:

* Product Code:

WF01-6606-10S * Cabinet Type:

Wall-mount, Single-section * Height:

6U * Dimensions (W x D x H):

600x600 x 368 mm * Mounting Standard:

19´´ * Maximum Static Load Capacity:

60 kg * IP Protection Class:

IP20 * Material:

High-quality cold-rolled steel * Steel Thickness:

Mounting rails - 1.5mm.

Door - 5.0mm glass.

Top/Bottom/Side Panels & Others - 1.2mm * Color:

Black (RAL9004) * Front Door:

Tempered Glass with lock * Side Panels:

Solid Steel, removable with locks * Standards Compliance:

ANSI/EIA RS-310-D, IEC297-2, DIN41494.

PART1 & PART7, ETSI * Included in Package:

Assembly kit, front door lock keys, side panel lock keys, M6 cage nuts
