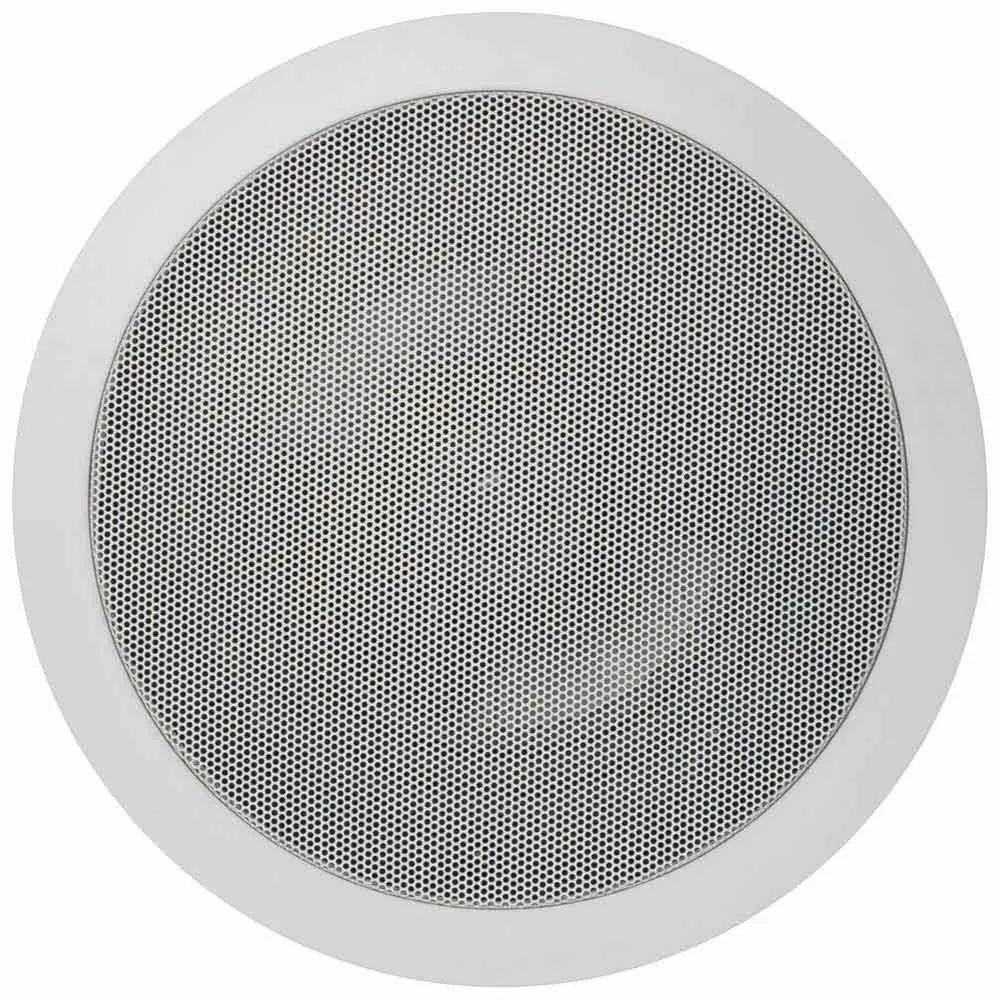

Magnat IC 62 Internal Speaker

EU Plug.

Features:

- Multi-directivity circuit for optimum adaptation to room acoustics.

- High-quality crossover with phase and amplitude correction.

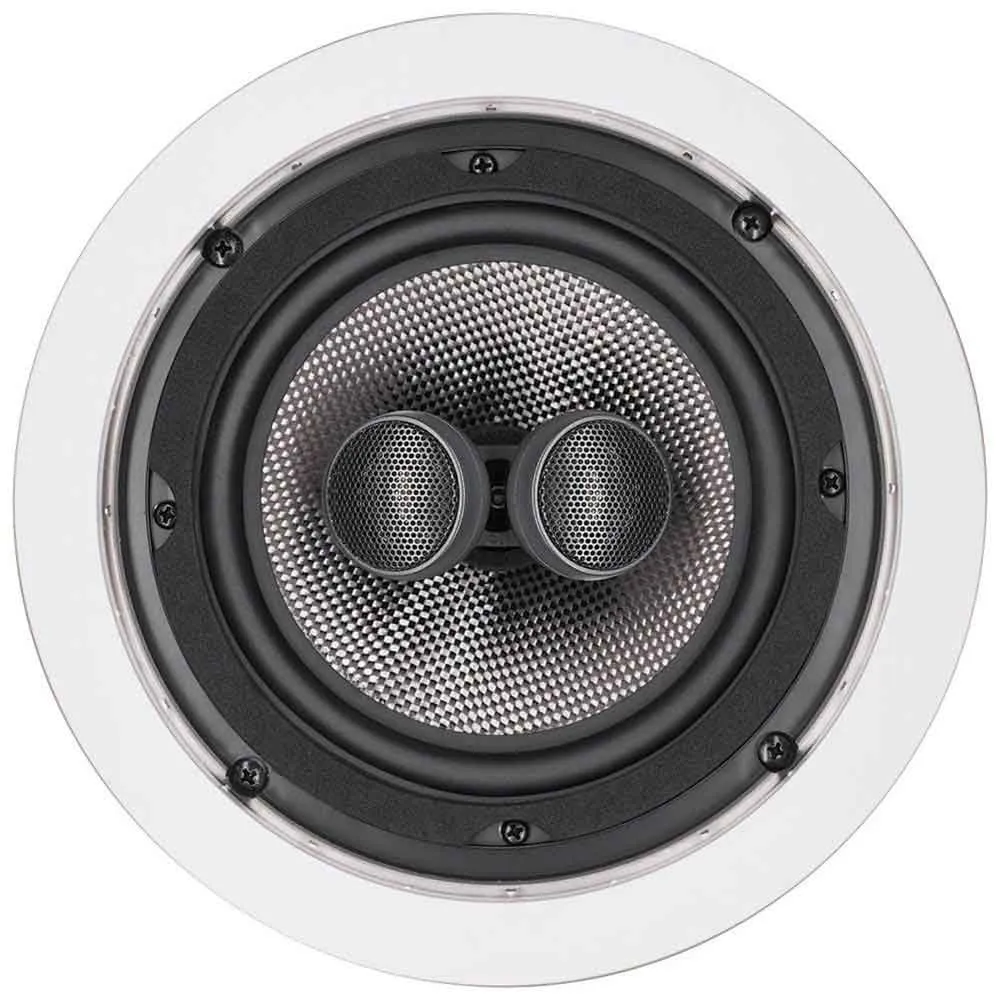

- Two 19 mm aluminium tweeters with neodymium drivers, specially arranged for optimum dispersion characteristics.

- Specially developed securing system with clamping mechanism for easy fitting.

- 160 mm carbon/fibreglass woofer for tight bass reproduction.

- The IC 62 is the smaller of two strong-sounding built-in ceiling loudspeakers in the Interior series.

- The two built-in coaxial tweeters make two circuit versions possible - sound directed over a wide area or at specific points.

A sophisticated fastening system allows the loudspeaker to be quickly installed with extreme ease.

- Powerful drive of the carbon-fibreglass membrane via a well-dimensioned ferrite magnet is a must, of course.

The crossover is located behind the plastic frame and is very cleanly designed.

Specifications:

- Principle:2-Way In-Wall/In-Ceiling Loudspeaker.

- Equipment:160 Mm Woofer 2 X 19 Mm Tweeter.

- Power Handling (Rms/Max.):75 / 140 Watts.

- Impedance:4 - 8 Ohms.

- Crossover Frequencies:3500 Hz.

- Recommended Amplifier Output:20.

- 140 Watts.

- Sensitivity (2.8v/1m):90 Db.

- Outer Dimensions Ø:228 Mm.

- Cutting Out:195 Mm.

- Mounting Depth:80 Mm Highlights:- Multi-Directivity circuit to optimize the speaker to the room.

- Simple mounting with special mechanism.

- High-End in-wall/in-ceiling loudspeaker Loudspeaker Drivers:- Twin tweeter with 19mm aluminium dome and high power Neodym magnet.

- Special tweeter alignement for best sound.

- Woofer and midrange with carbon fibre cone and phase plug.
