PNI S9 cb antenna

PNI-S9 - PNI S9 CB antenna with butterfly, spike length 120 cm, without cable, 600W, 26-28MHz.

High-performance CB antenna:
- The performance of the product is closely related to the technical characteristics that the antenna has in ideal mounting and use conditions: SWR <= 1.2:1, maximum applied power 600 W, impedance 50 Ohms, stainless steel, etc.

Communication distance:
- The communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the communication distance of 12-14 km is reached in ideal working conditions: calibrated antenna, open field without obstacles, station with maximum legally permissible power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to the reduction of this distance.

Antenna length:
- The length of the antenna is another very important factor that can influence the communication distance in traffic. So the longer the antenna, the longer the range. The PNI S9 has a length of 120 cm.

Adjustable angle:

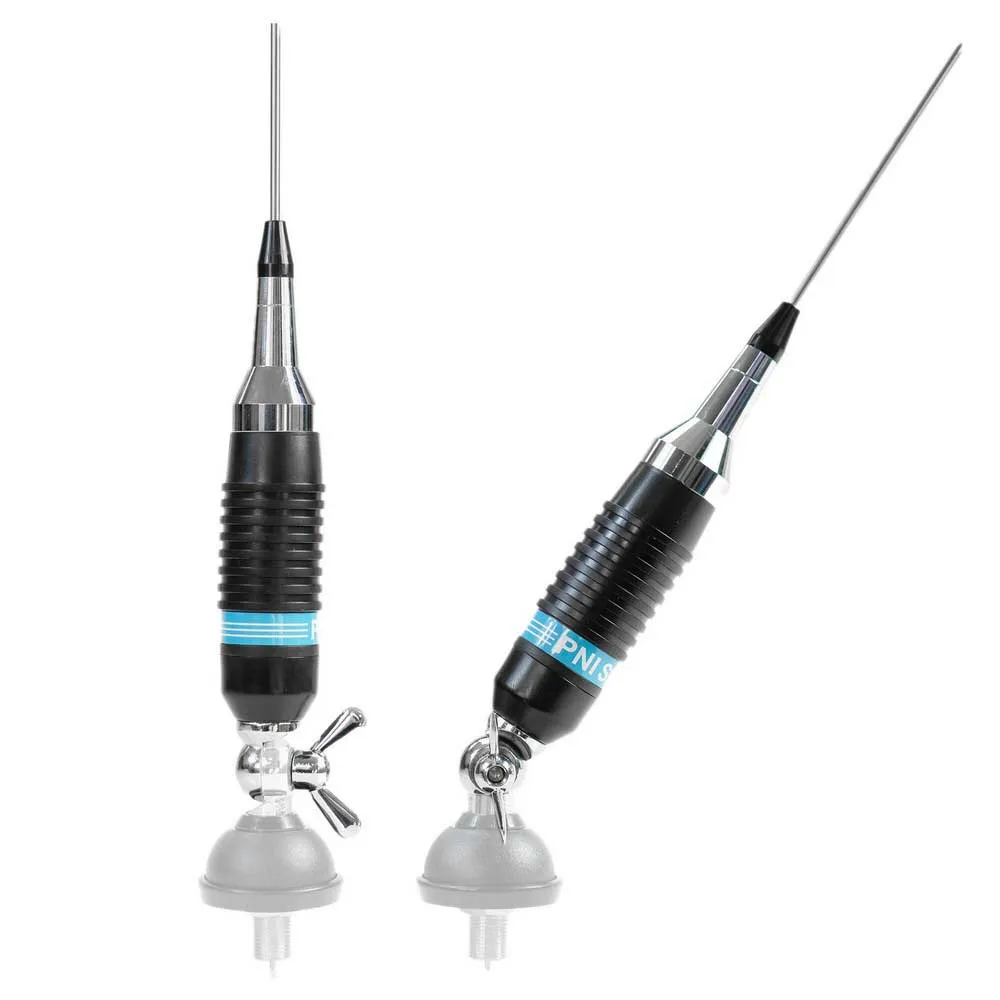

- This antenna can be tilted with the help of the butterfly screw with which it is provided, to enter passages, garages or parking lots with low heights. Apart from these situations, an inclination higher than 30 degrees is not recommended because it can affect the performance of the antenna.

Specifications:

- Working frequency: 26 - 30 MHz
- Number of channels: 90
- Maximum applied power: 600W
- Minimum SWR in the center of the band: less than 1.2:1

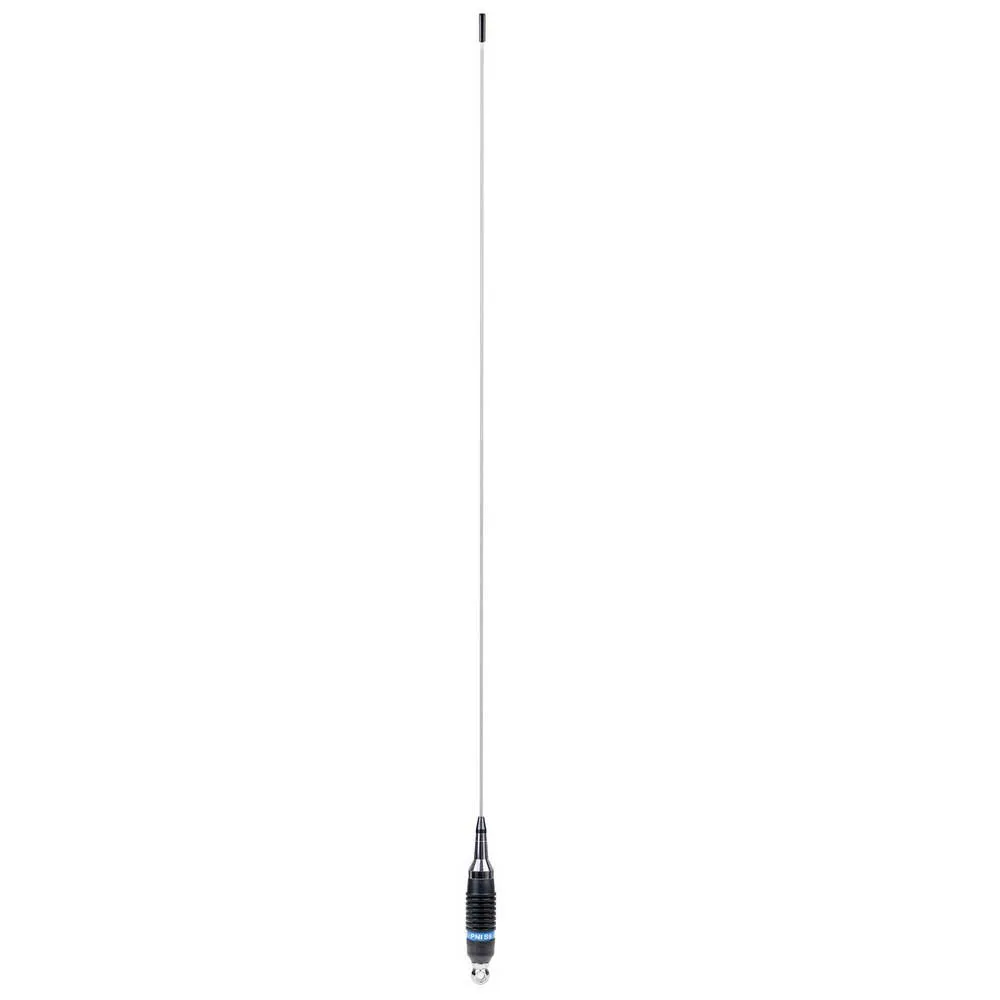

- Length: 120cm
- Impedance: 50 Ohms
- Material: Stainless steel
- Connector type: your
- Hole diameter: 12.5mm
- Weight: 280g
- size: 131 x 10 x 3 cm
- Operating temperature: -26°C ~ +80°C

In the box:
- Radio station antenna: Yes
- PL259 plug:
- Butterfly screw: Yes
- Magnetic base:
