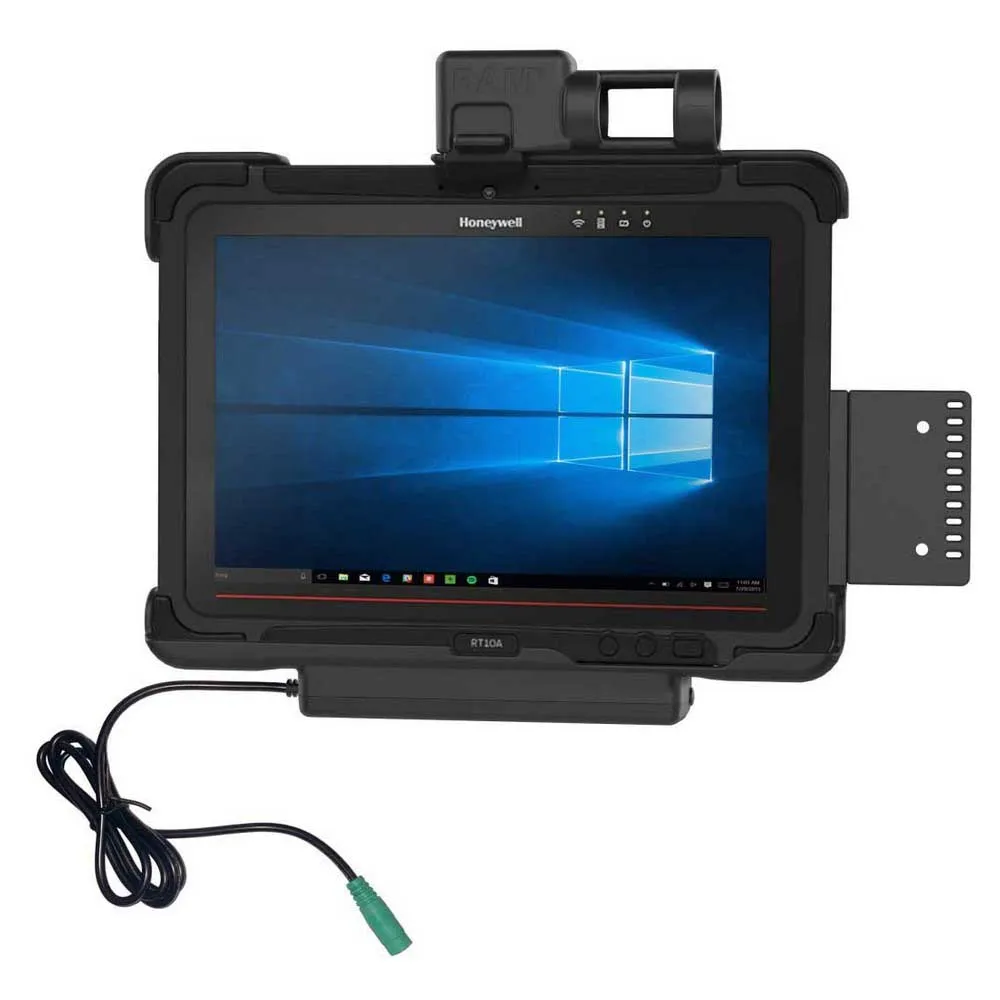

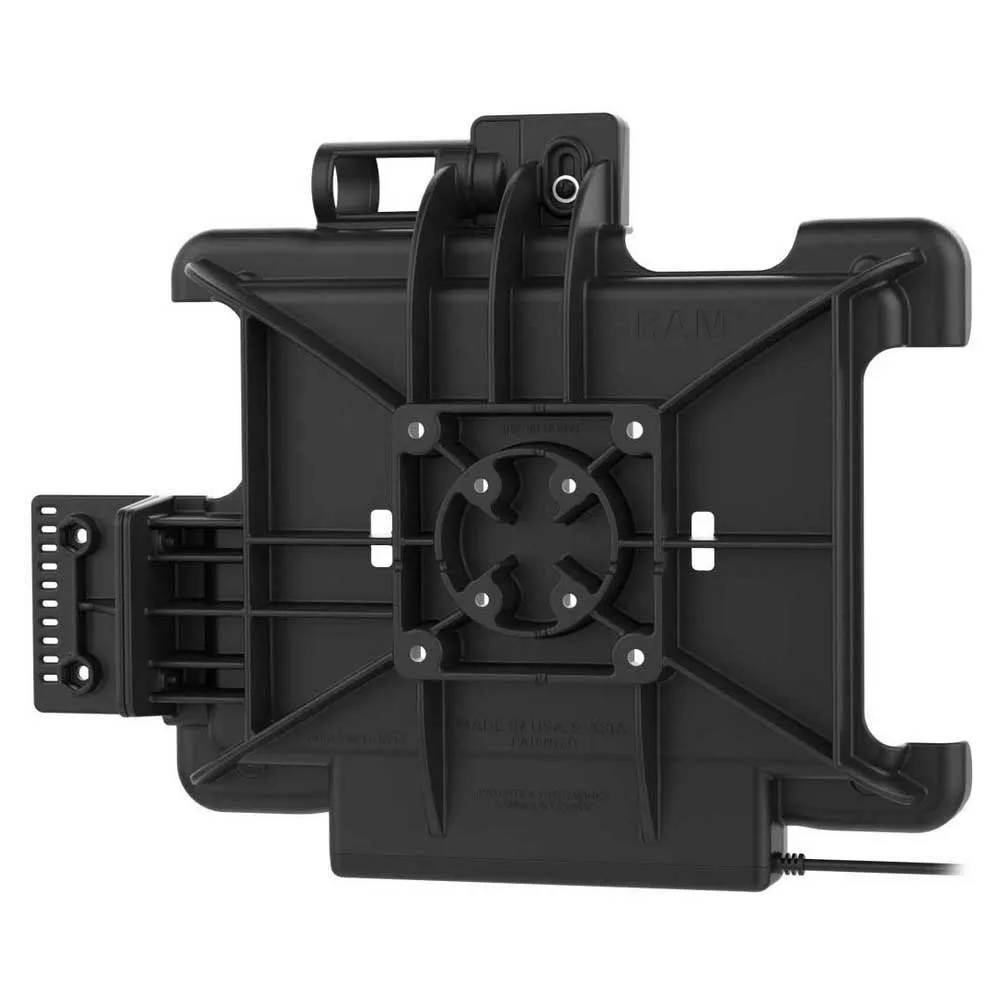

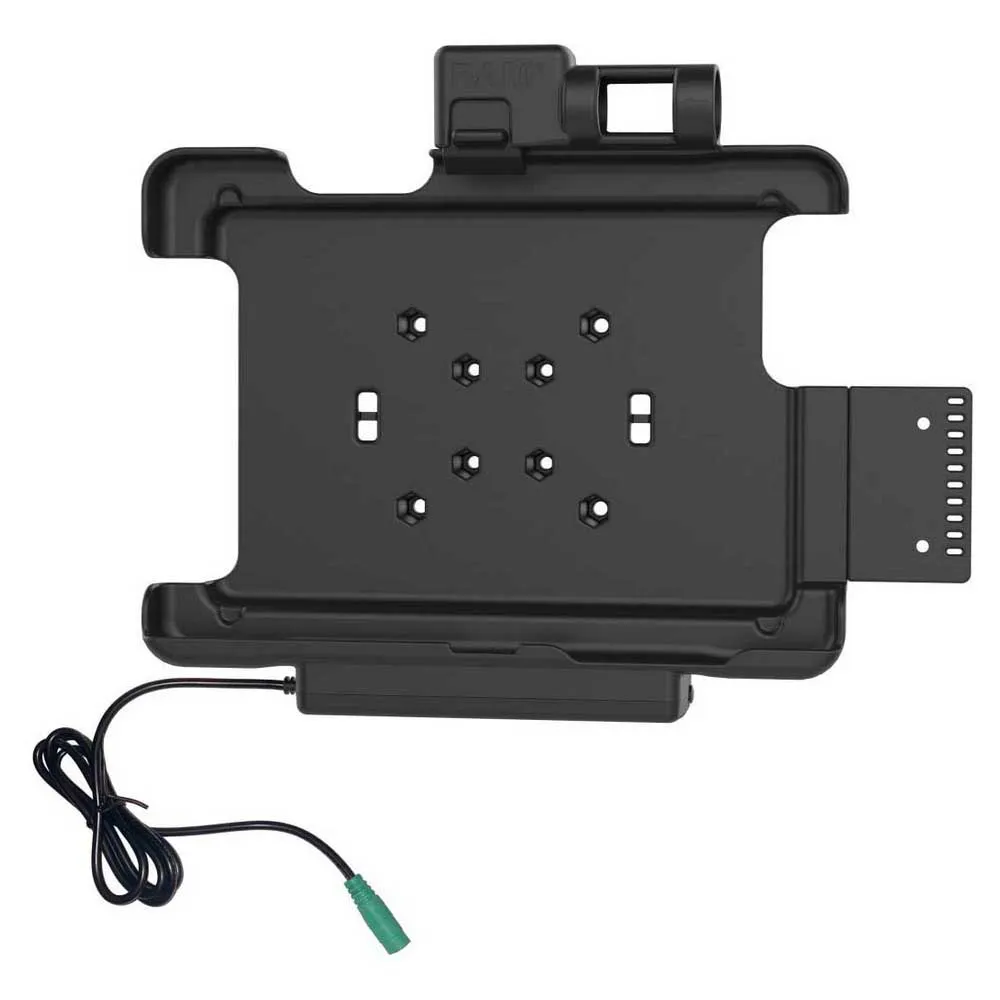

Ram Mounts Powered Dock For Honeywell RT10 Tablet

The RAM® Vehicle Dock for the Honeywell RT10 rugged tablet allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock´s 5.5mm DC power jack. The dock also allows the tablet´s scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and extended battery pack. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.

Features:

- Spring-loaded powered dock provides charging capabilities for the Honeywell RT10 rugged tablet via DC 5.5mm power jack
- When connected to a power source, integrated pogo pins provide power to the device while docked; Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery pack; tablet scanning works while tablet is docked
- Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket

Specifications:

- Materials: High strength composite
- Input connector: 5.5mm DC Connector
- Weight: 0.75 kg

Hole pattern
- 75 x 75mm VESA
- 4-Hole AMPS: 1.181´´ x 1.496´´

Compatibility:
Honeywell:
- RT10 Rugged Tablet

Hardware included:
- Side bracket for accessory mounting and strain relief
- 8-32 x 5/8” Machine Screws
- 8-32 x 1/2” Machine Screws
- 8-32 Nylock Nuts
- 10-24 x 5/8” Machine Screws
- 10-24 Nylock Nuts
- Small Cable Ties
