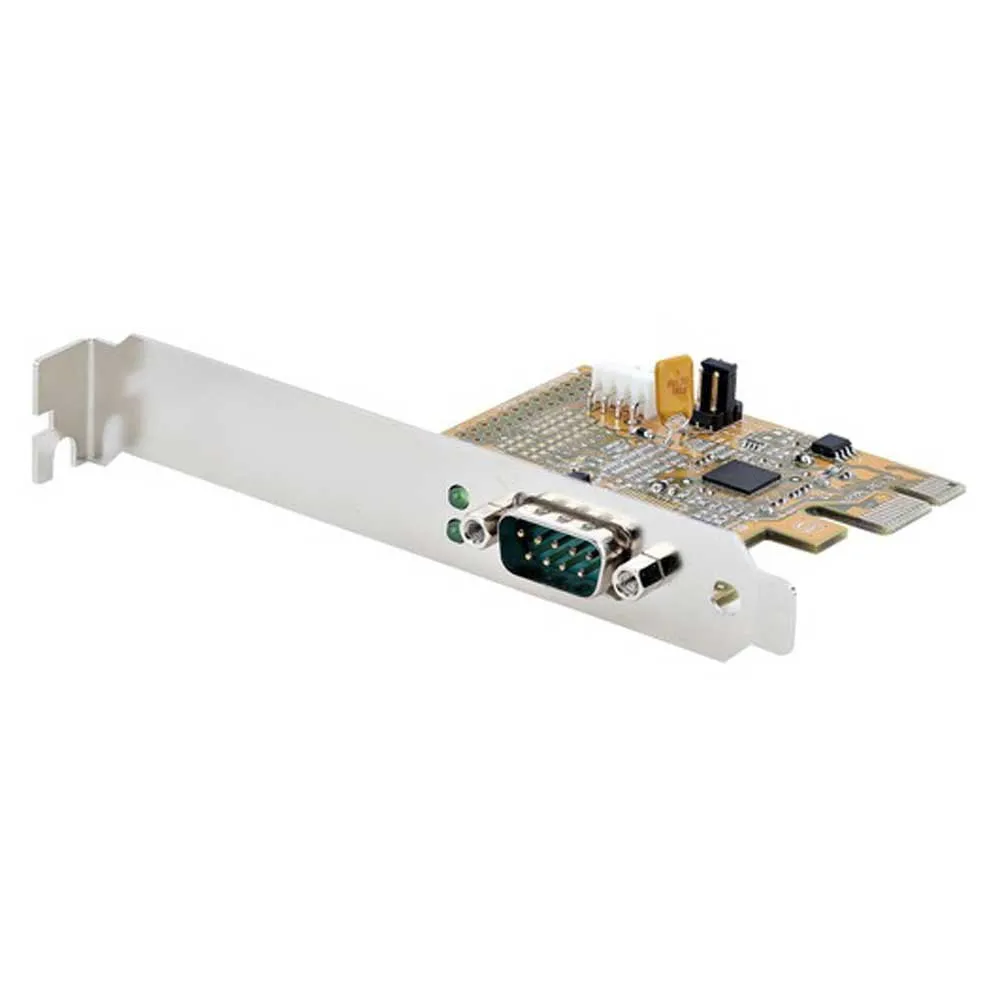

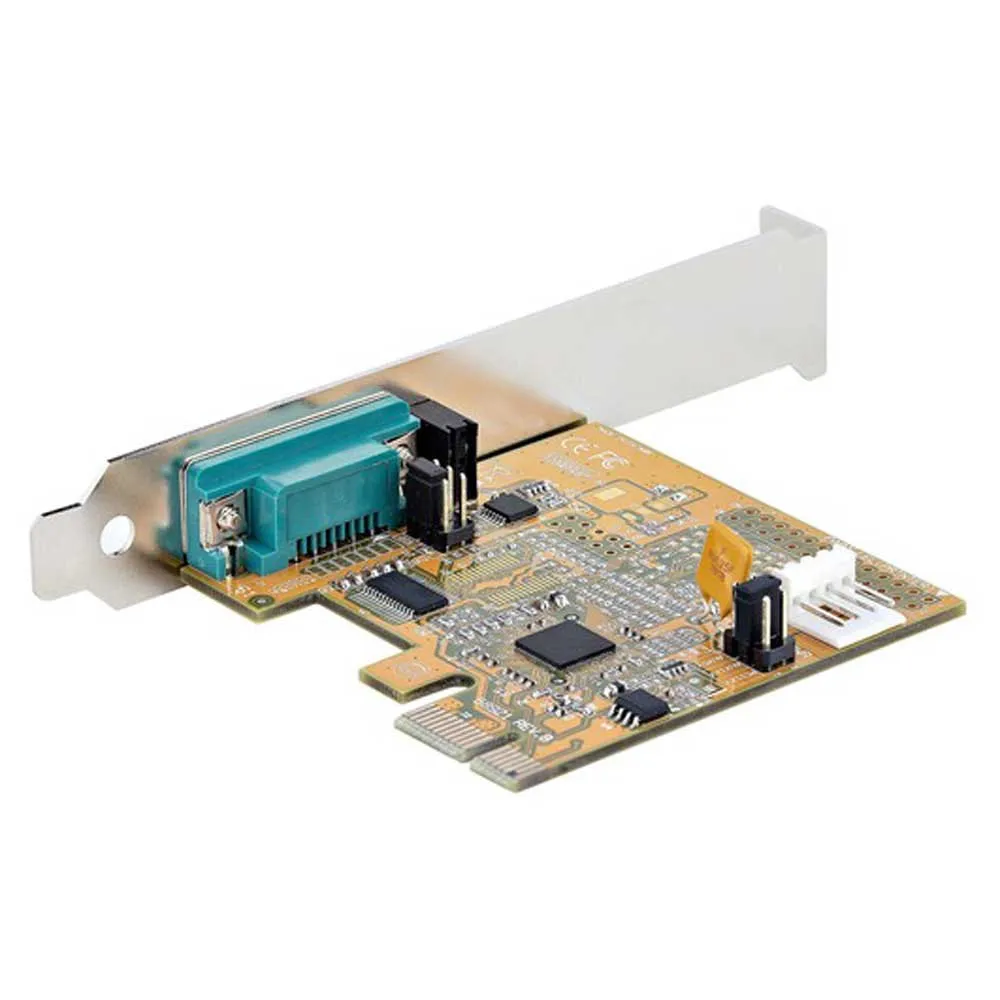

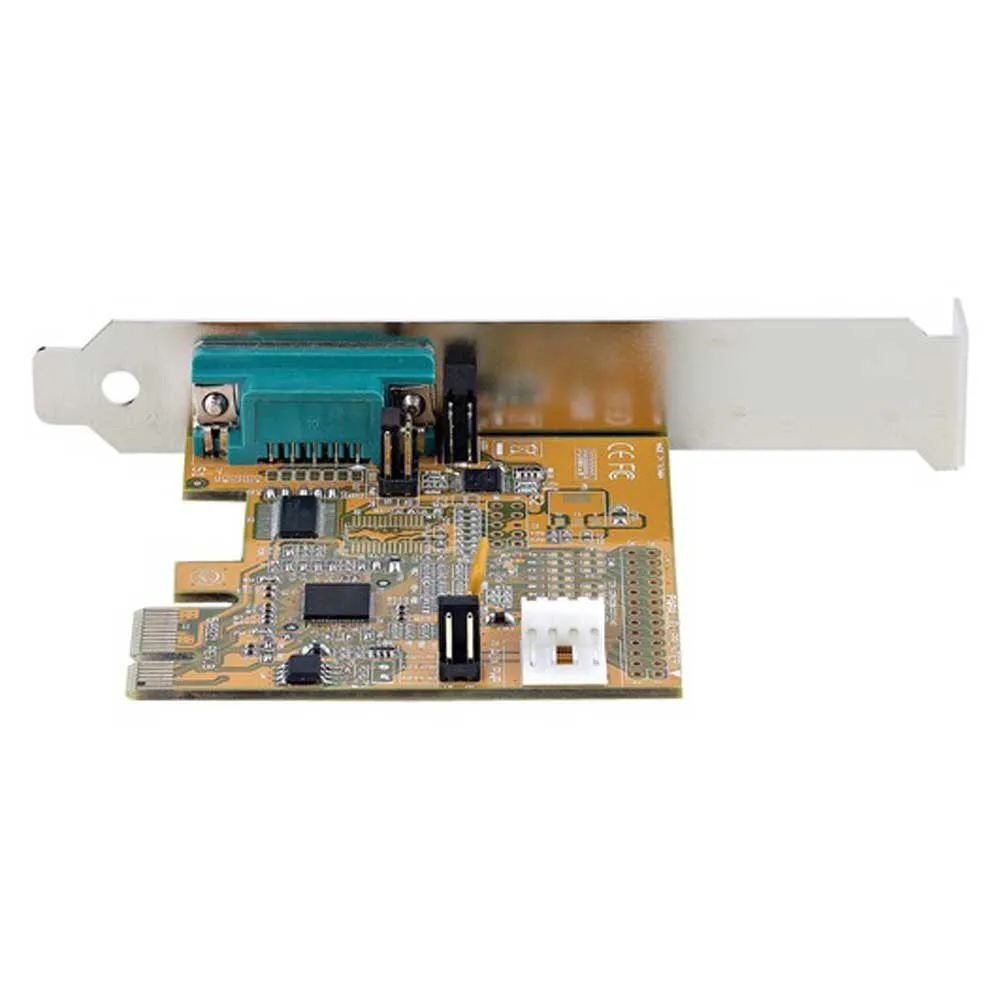

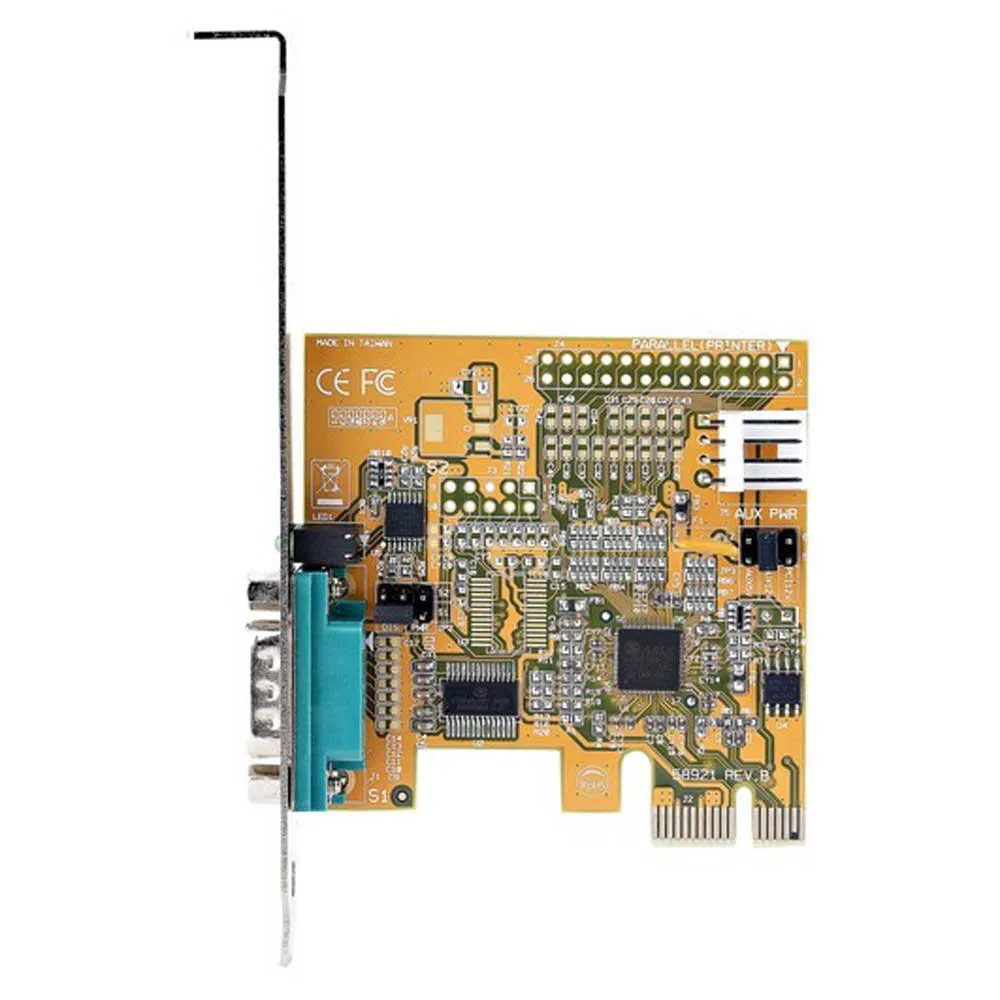

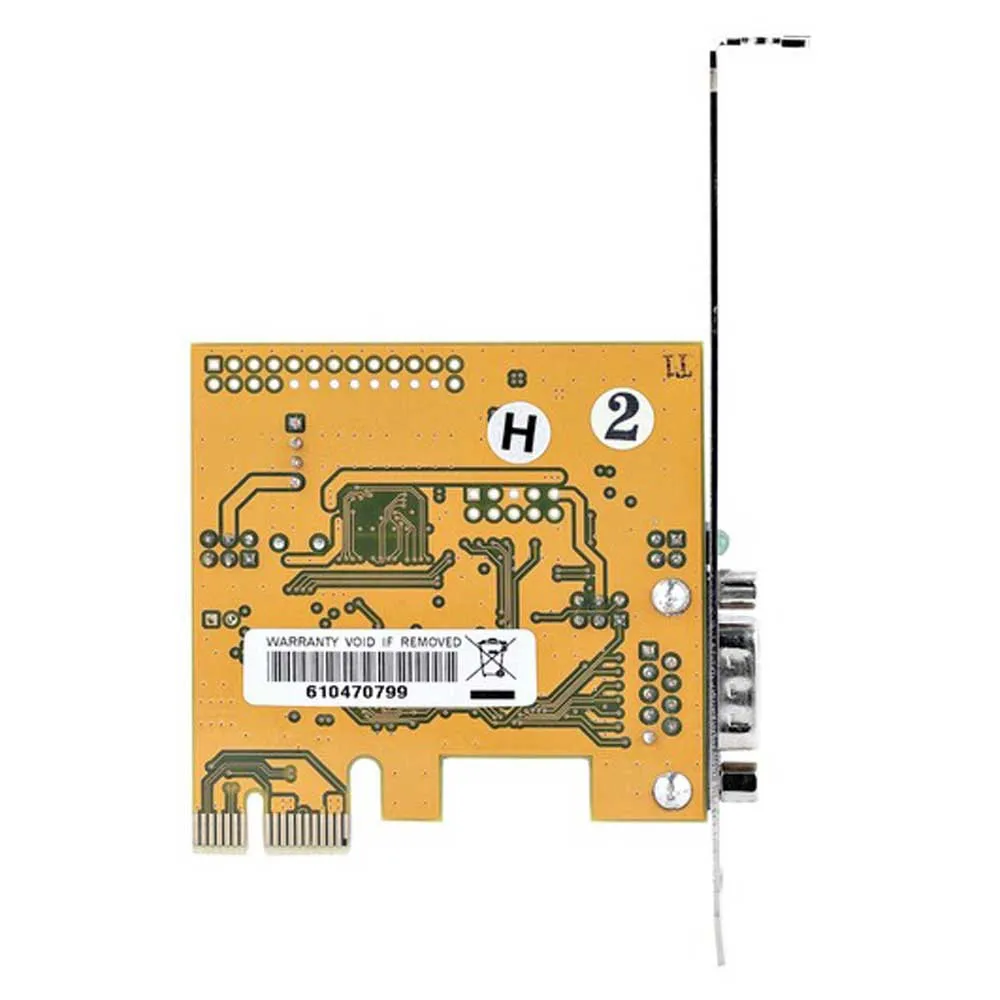

Startech DB9 PCI-E Expansion Card

Features:

- Pcie To Serial:

Connect A Serial Rs232 (Db9) Devices To A Computer With This Pc Serial Card.

Features Support For High Performance 16c1050 Uart.

Monitor Activity With The Built-In Led Status Lights On The Pci Express Db9 Card.

- Device Compatibility:

Use This Serial Interface Card To Connect Barcode Readers/Scanners, Receipt Printers, Scales, Plcs, Medical Devices, Etc.

The Uart Pcie Card Supplies 5v Or 12v Power Over Pin 9.

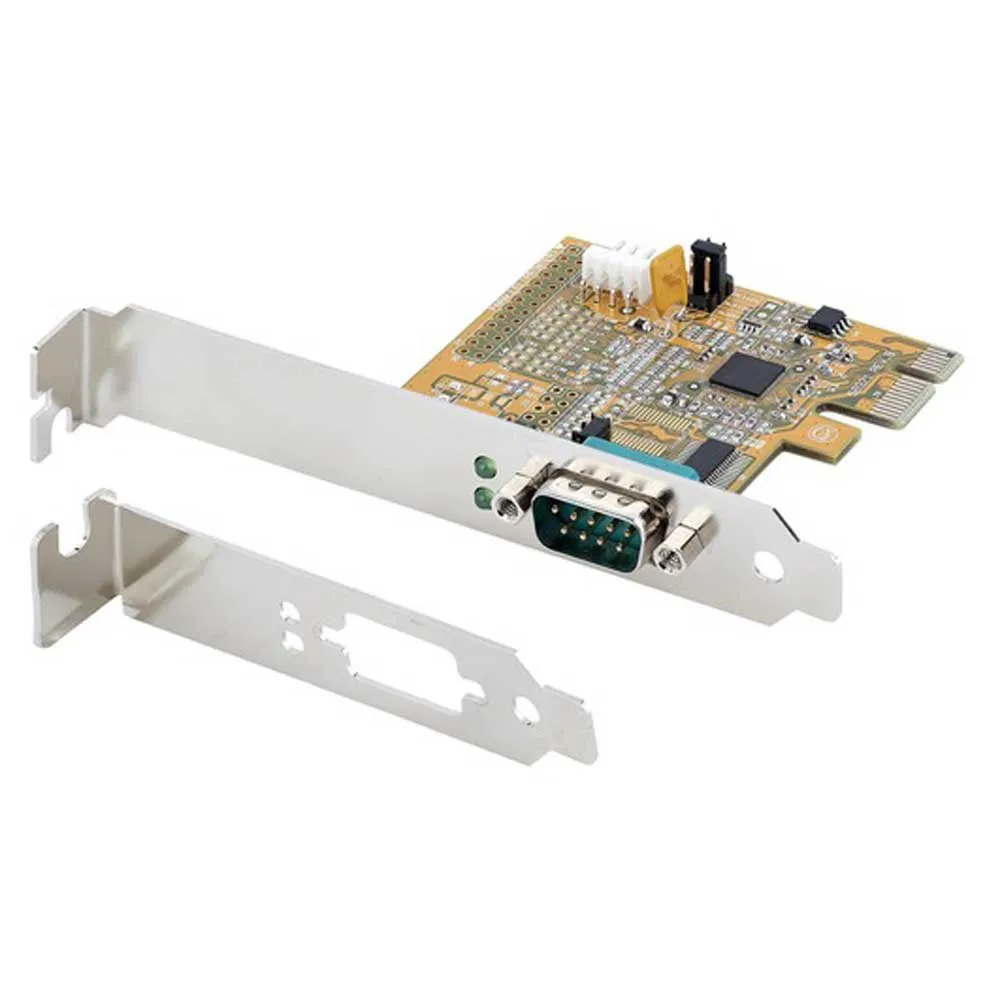

Low-Profile Bracket Is Included.

- Applications:

This Card Is Ideal For It Applications Such As Server Rooms, Industrial Control/Automation, Logistics, And Laboratories.

Continue Using Legacy Hardware With This Rs232 Pcie Card.

Db9 Port Accepts Screw Locking Serial Cables.

- Pc Serial Card Specs:

16c1050 Uart / Max Baud 921.6 Kbps / 256 Byte Fifo / Com Retention / Supports Windows And Linux / Asix Ax99100 Chipset / Odd/Even/Mark/Space/None Parity Modes / 5/6/7/8/9 Data Bits / Pcie 2.0 X1 / Low-Profile Bracket Included.

- The It Pro´s Choice:

Designed And Built For It Professionals.

Specifications:

Ports & Interfaces:

- Host Interface:

Pcie.

- Output Interface:

Serial.

- Expansion Card Form Factor:

Full-Height / Low-Profile.

- Expansion Card Standard:

Pcie 2.0.

- Serial Ports Quantity:

1.

- Serial Interface Type:

Rs-232 Design:

- Internal:

Yes.

- Led Indicators:

Activity.

- Chipset:

Asix.

- Ax99100, Asix.

- Zt3243lfey.

- Baud Rate:

921.6 Kbit/S.

- Fifo (First In, First Out):

256 B.

- Data Bits:

5, 6, 7, 8, 9.

- Flow Control Support:

Yes.

- Parity Bit:

Even, Mark, N, Odd, Space Operational Conditions:

- Operating Temperature (T-T):

0.

- 55 °C.

- Storage Temperature (T-T):

-40.

- 75 °C.

- Operating Relative Humidity (H-H):

5.

- 95% System Requirements:

- Windows Operating Systems Supportedwindows 10, Windows 10 Education, Windows 10 Education X64, Windows 10 Enterprise, Windows 10 Enterprise X64, Windows 10 Home, Windows 10 Home X64, Windows 10 Iot Core, Windows 10 Iot Enterprise, Windows 10 Pro, Windows 10 Pro X64, Windows 10 X64, Windows 11, Windows 11 X64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise X64, Windows 7 Home Basic, Windows 7 Home Basic X64, Windows 7 Home Premium, Windows 7 Home Premium X64, Windows 7 Professional, Windows 7 Professional X64, Windows 7 Starter, Windows 7 Starter X64, Windows 7 Ultimate, Windows 7 Ultimate X64, Windows 7 X64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise X64, Windows 8 Pro, Windows 8 Pro X64, Windows 8 X64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise X64, Windows 8.1 Pro, Windows 8.1 Pro X64, Windows 8.1 X64.

- Linux Operating Systems Supported:

Yes.

- Server Operating Systems Supported:

Windows Server 2016, Windows Server 2019 Weight & Dimensions:

- Width:

65 Mm.

- Depth:

67 Mm.

- Height:

18 Mm.
