Startech DK31C3HDPDUE docking station

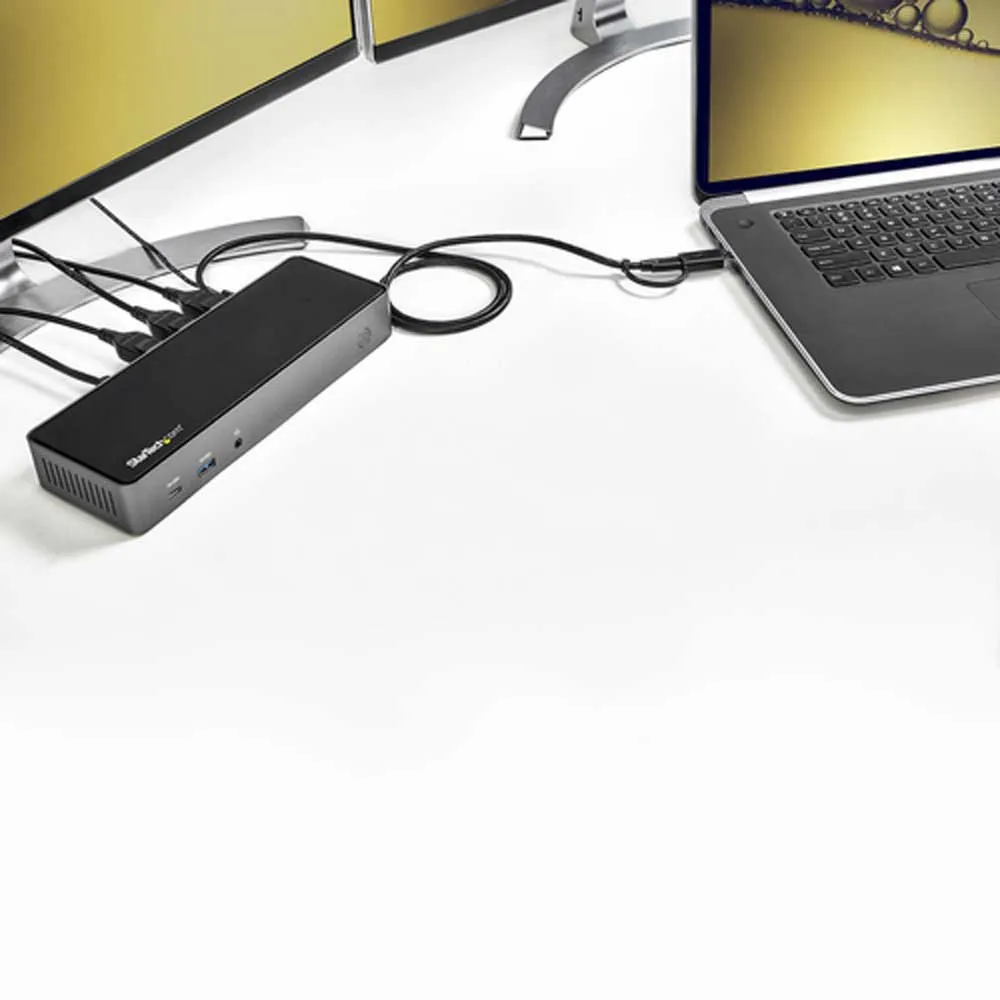

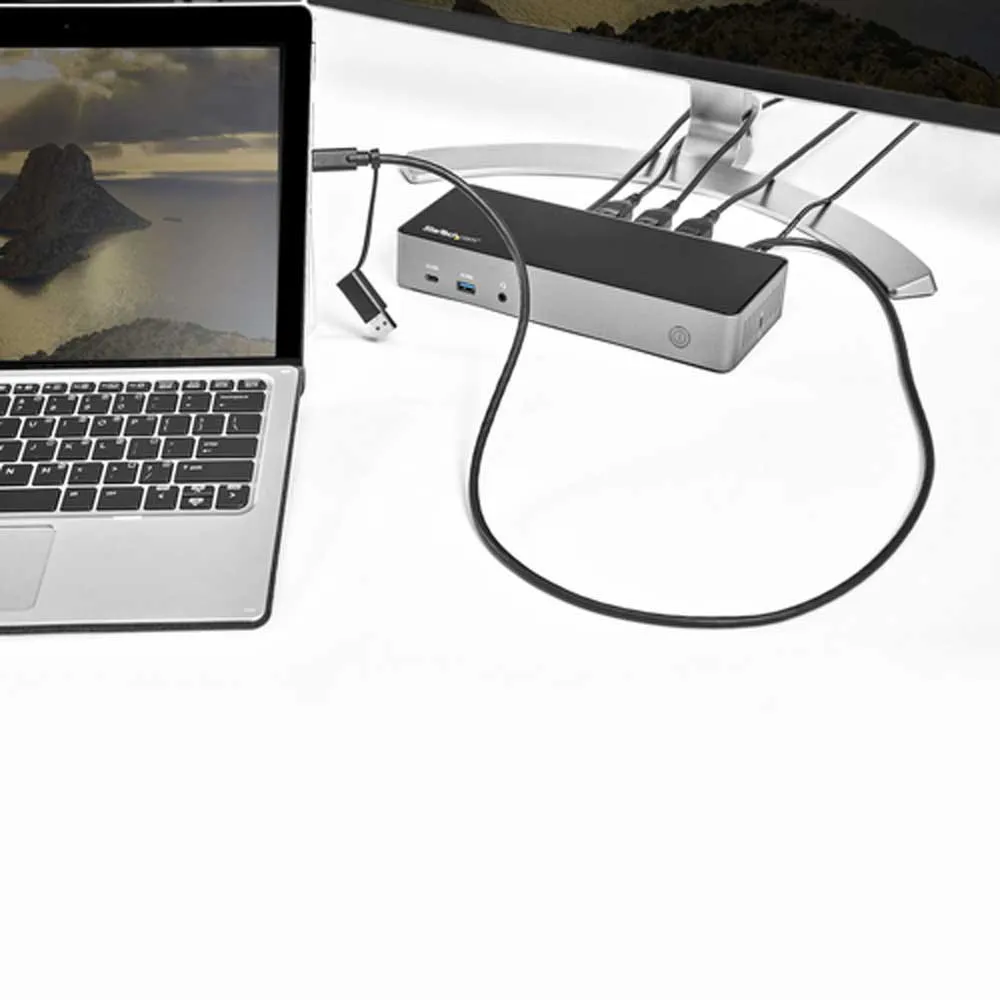

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery.  Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included.

HDMI & DisplayPort for Triple Monitor Outputs:
- This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HDR support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.

Power & Charge with 85W Power Delivery:
- Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD
- Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

Plenty of Downstream USB Ports:

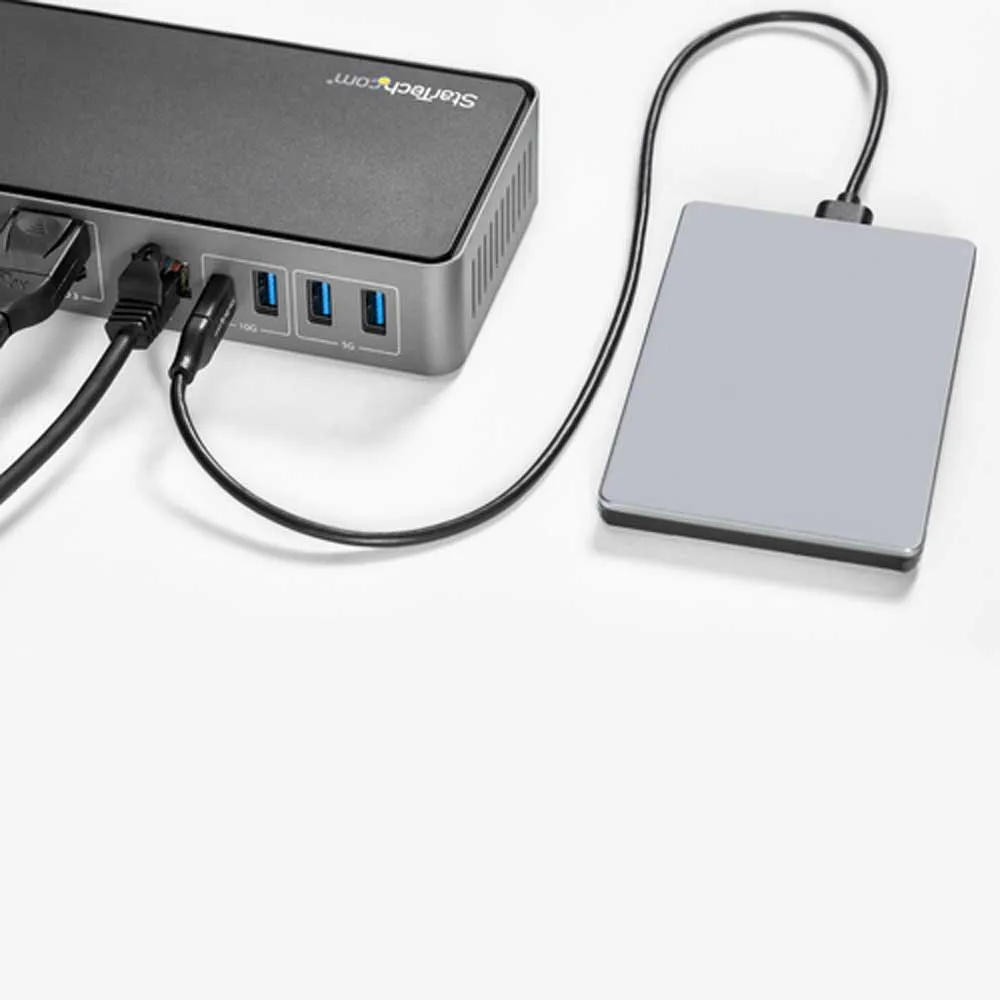

- This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.
- 1x USB-C 3.2 Gen 2 (10 Gbps)
- 1x USB-A 3.2 Gen 2 (10 Gbps)
- 1x USB-C 3.2 Gen 1 (5 Gbps)
- 3x USB-A 3.2 Gen 1 (5 Gbps)
- Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.

Additional Security Features:

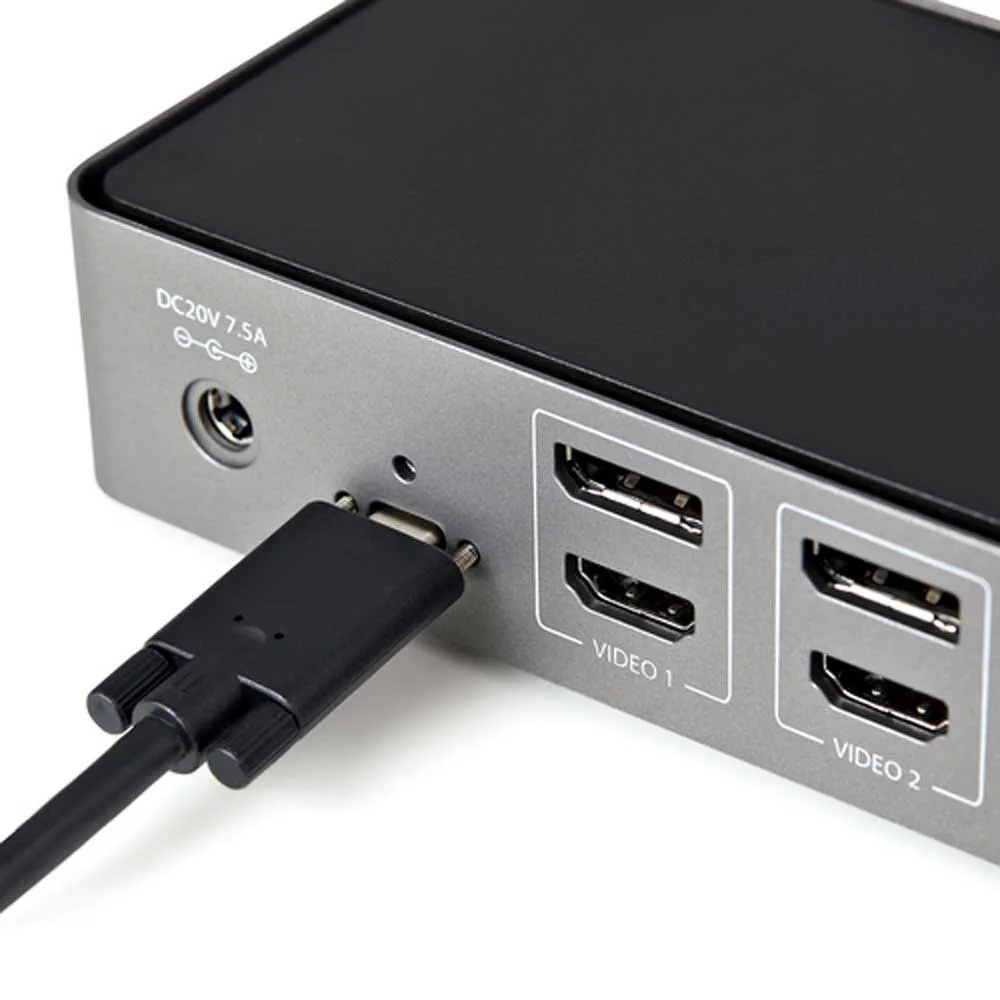

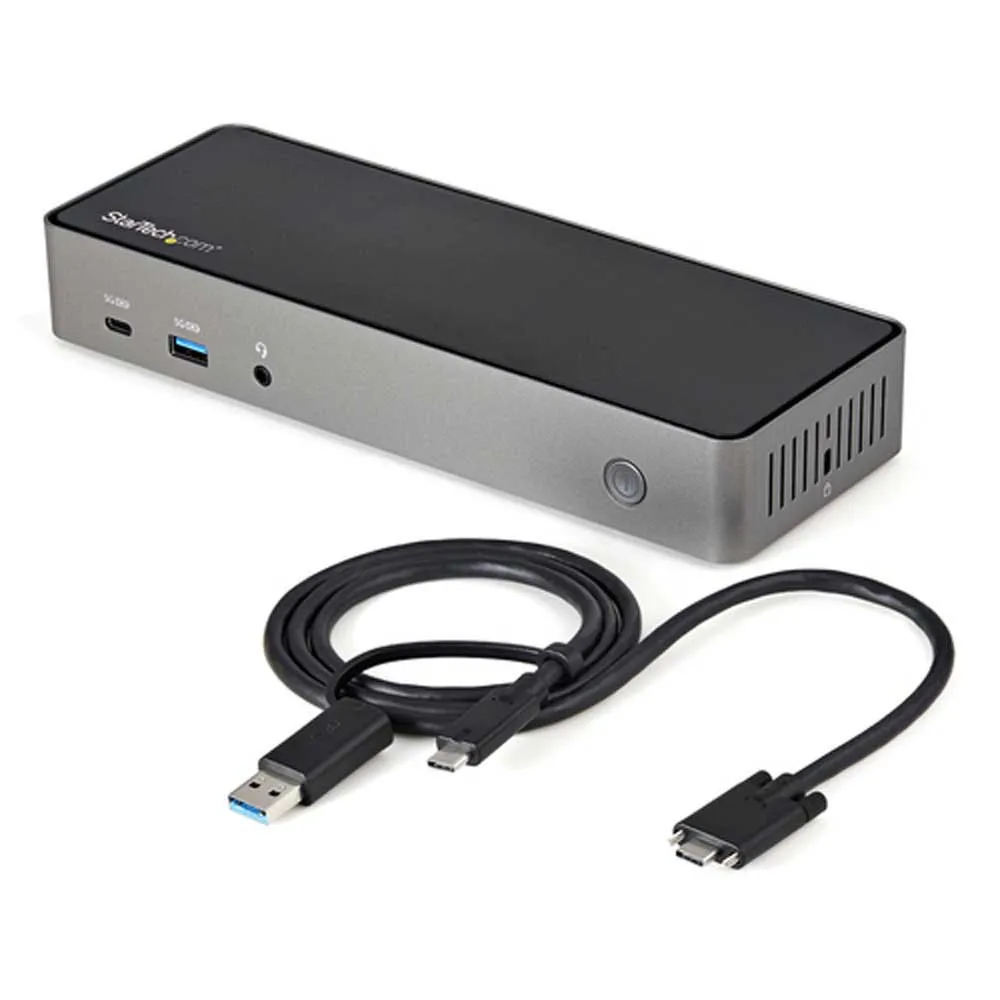

- This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable; a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility:
- The dk31c3hdpdue includes a free windows® application that enables you to better manage your enterprise network security. when you connect to your network through the ethernet port of the dock, the computer´s mac address is typically not broadcast to the network, as your network only sees the mac address of the docking station. however, the startech.com mac address changer or cloning software enables the usb-c dock to use mac address spoofing of the connected windows laptop rather than the mac address of the dock itself. this ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. to request access to our mac address changer utility, please contact our technical support department by phone, live chat, or e-mail.


Features:

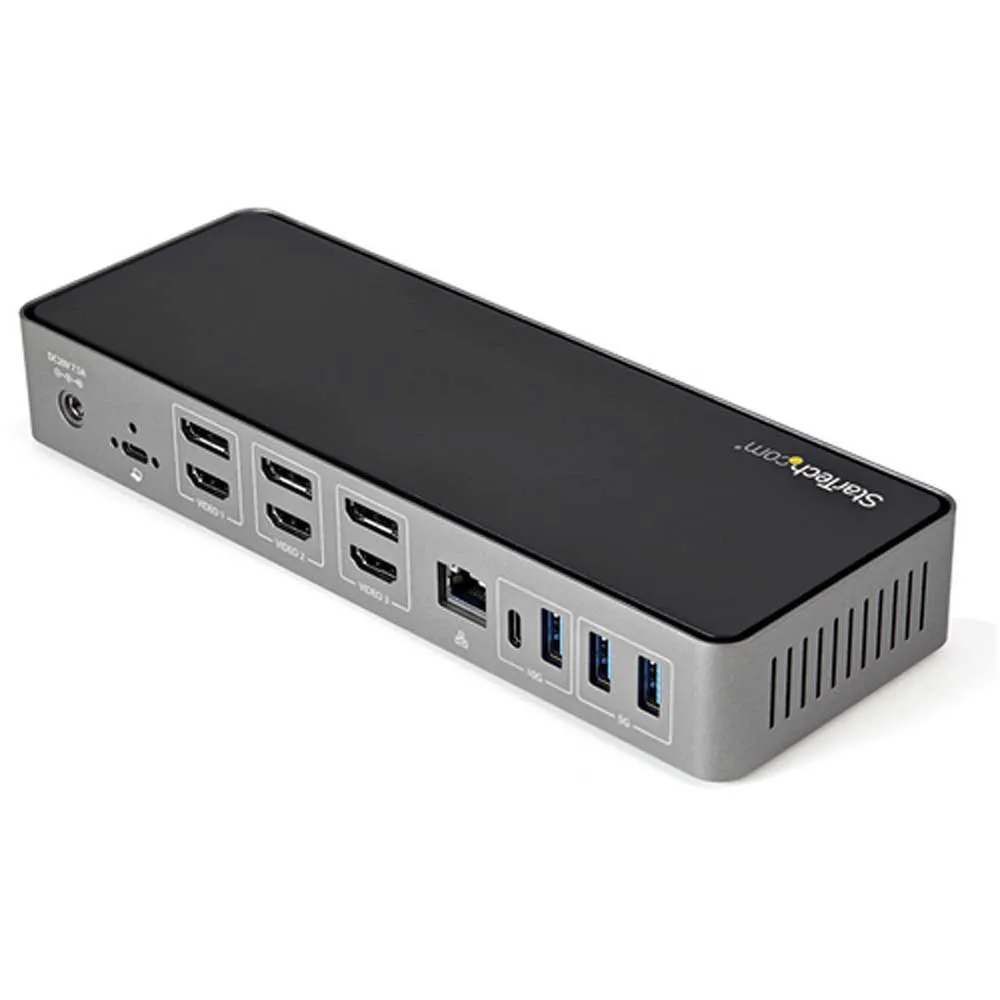

- Flexible multi display setup: usb 3.1 gen 2 10gbps type-c/a dock supports dual or triple monitor setup (up to 3x 4k 60hz), using any combination of the 3x displayport 1.4 & 3x hdmi 2.0 w/ hdr ports
- 85w power delivery: power & charge usb-c/thunderbolt 3 workstation laptops/ultrabooks incl lenovo x1 carbon, thinkpad p series, dell latitudes, precision, xps 15, hp spectre, zbook & macbook pro 16
- Universal docking station: hybrid dock includes combo 2-in-1 usb-c/usb-a usb-if certified host cable; displaylink dock supports up to 3 extended displays on macbook pro/air with intel processor or apple m1 chip; compatible w/ windows, macos and chrome os
- 6-port usb hub: 4x usb-a (1x 10gbps), 2x usb-c (1x 10gbps), incl. 2x bc 1.2 fast charge always-on front ports; usb-c gen 1 & usb-a laptops will only support downstream port speeds up to usb 5gbps
- Deployment ready: docking station features a k-slot, 1m combo host cable, mounting holes, & mac address changer for it management; gigabit ethernet & headset ports; windows, macos, chrome os


Specifications:

- Connector(s):
- 3 - Connector Type(s): HDMI
- DisplayPort
- 1 - Connector Type(s): Ethernet Gigabit
- USB Type-C (24pin, Gen 2, 10Gbps)
- USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)
- 2 - Connector Type(s): USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps)
- 1 - Host Connectors: USB Type-C (24 pin) USB 3.1 (10Gbps)
- 1 - Connector Type(s): USB Type-C (24 pin) USB 3.0 (5Gbps)
- USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
- 3.5mm Stereo Female 4 pos

Environmental
- Operating Temperature: 0℃ to 50 ℃
- Storage Temperature: -20℃ to 70℃
- Humidity: 0% to 95%

Hardware:
- Fast-Charge Port(s): Yes
- 4K Support: Yes
- Displays Supported: 3
- Ports: 16
- Audio: Yes
- Interface: USB 3.2 Gen 2 - 10 Gbit/s
- USB 3.2 Gen 2 - 10 Gbit/s
- Bus Type: USB-C
- USB-C
- USB-A
- USB-A
- Compatible Lock Slot: Kensington Standard Slot (K-Slot)
- Kensington Standard Slot (K-Slot)
- Chipset ID: Realtek RTS5423
- Realtek RTS5411
- Realtek RTS5412
- Realtek RTS5451
- Realtek RTD2142
- DisplayLink DL6950

Packaging Information:
- Package Height: 91.0 mm [3.6 in]
- Package Length: 25.3 cm [10.0 in]
- Shipping (Package) Weight: 1.7 kg [3.8 lb]
- Package Width: 17.2 cm [6.8 in]

Performance:
- Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
- USB 3.2 Gen 2 - 10 Gbit/s
- MTBF: 40 841 hrs

Physical Characteristics:
- Product Height: 37.0 mm [1.5 in]
- Product Length: 23.3 cm [9.2 in]
- Weight of Product: 402.0 g [14.2 oz]
- Product Width: 84.0 mm [3.3 in]
- Material: Aluminum and Plastic
- Cable Length: 100 cm [39.4 in]

Power:
- Power Source: AC Adapter Included
- Power Delivery: 85W
- Input Voltage: 100 - 240 AC
- Input Current: 2.5A
- Output Voltage: 20V DC
- Output Current: 7.5A
- Plug Type: M

Software:
- OS Compatibility: Windows 10
- Windows 8.1
- Windows 8
- macOS v10.6 to macOS v10.12, 10.14 to 11.0
- Ubuntu 18.04, 20.04
- Chrome OS

Special Notes / Requirements:
- Note: DisplayLink docking stations and video adapters support more than one external display on Apple´s M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.

What´s in the Box:
- 1 - Included in Package: Docking Station
- USB-C Screw Lock Cable with USB-A Adapter
- Universal Power Adapter (EU, UK)
- Quick-Start Guide
