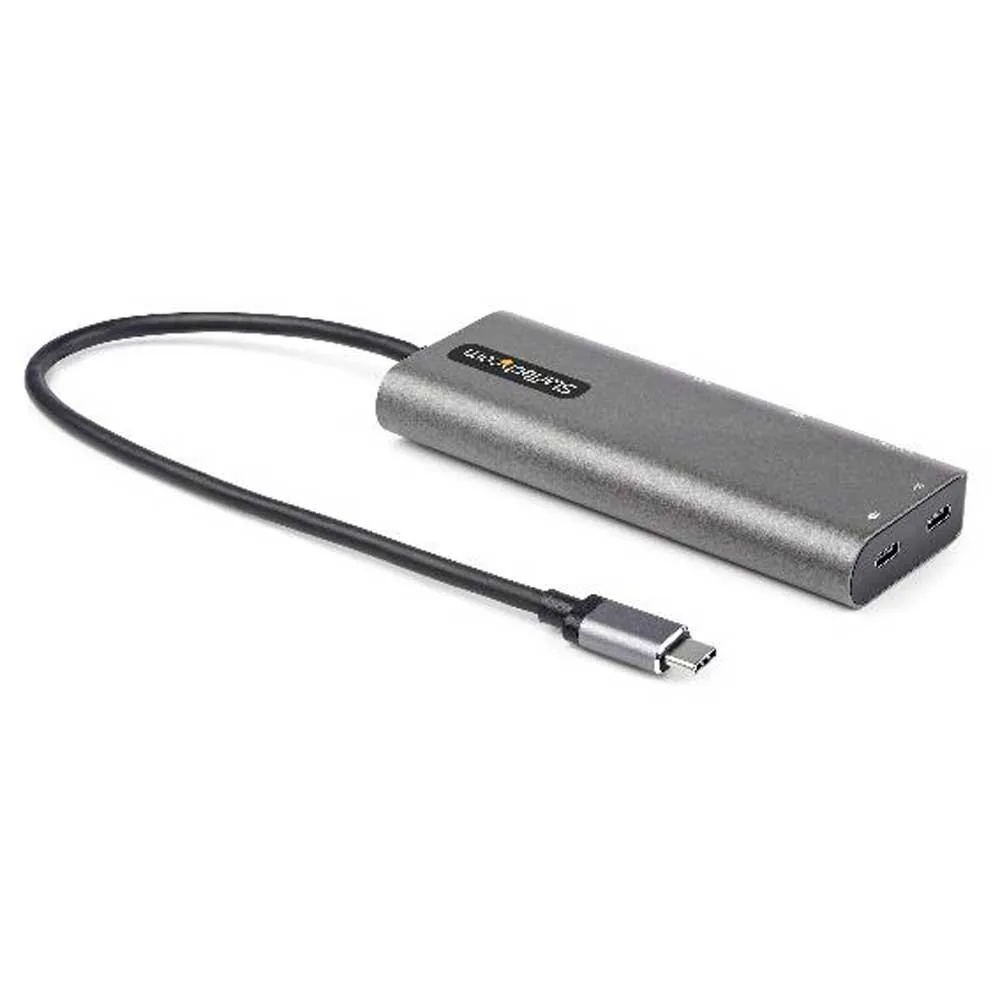

Startech DKT31 cmDPHPD USB C/HDMI/DisplayPort docking station

This Usb-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop´s USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.


Features:

- 6-IN-1 Usb-C Multiport Adapter: Compact USB-C adapter w/ DP 1.4 Alt-Mode up to 4K 60Hz (4K 30Hz w/DP 1.2) HDMI 2.0b or Mini DisplayPort video; 4-Port 10Gbps USB Hub (USB 3.2/3.1 Gen 2): 3x USB-A w/ 1x BC 1.2 charging, 2x USB-C (1x PD Passthrough, 1x data)
- Extra Long Cable: Portable USB Type-C multiport adapter dongle w/ 12´´ (30cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite & laptops on risers; Works with USB4, Thunderbolt 3 & 4
- Reliable Performance: USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 85W for laptop charging
- Wide Compatibility: USBC mini dock works w/ USB-C laptops, ultrabooks & Chromebooks, plus Tb3 laptops like HP, Dell XPS 13 9310, Lenovo X1 Carbon 9th Gen, MacBooks (Intel processor & M1 chip), Surface Laptop 4; Windows, macOS, iPadOS, Android & Chrome OS
- 4K 60HZ With DP 1.4 Alt-mode: Supports 4K 60Hz on host devices that support DP 1.4 Alt-Mode (min. Intel 11th Gen); on host devices that support DP 1.2 Alt-Mode, maximum video resolution is 4K 30Hz; works w/ DisplayPort monitors using a mDP to DP cable
- Portable & Compact: All-in-one USB-C multiport adapter dongle is made from durable aluminum & designed for transport in a laptop bag for easy on-the-go use between office, home office, shared office spaces, and business travel; works w/ 5Gbps USBC ports


Specifications:

- Compatibility:
- Windows® 8.1, 10, 11
- MacOS 10.13 to 10.15, 11, 12.0
- Chrome OS™
- Ubuntu 18.04, 20.04
- IPadOS
- Android

Connector(s):
- 1 - Connector Type(s)
- Hdmi (19 pin)
- Mini DisplayPort
- Usb Type-C (24 pin) USB Power

1 - Host Connectors:
- Usb 3.1 Gen 1 Type-C (24 pin, 5Gbps)
- Usb Type-C (24 pin, 5Gbps)

Hardware:
- Displays Supported: 1
- 4K Support: Yes
- Fast-Charge Port(s): Yes
- Ports: 7
- Interface: Usb 3.1 Gen 2 - 10 Gbit/s
- Bus Type: Usb 3.1 Gen 2
- Usb Pass-Through: Yes

Chipset Id:
- Realtek - RTD2142S
- Via Labs - VL103
- Via Labs - VL822
- Via Labs - VL160
- Terminus - Fe8.1

Packaging Information:
- Shipping (Package) Weight: 153.0 g [5.4 oz]
- Package Height: 3.0 cm [1.2 in]
- Package Length: 11.6 cm [4.6 in]
- Package Width: 14.0 cm [5.5 in]

Performance:
- Maximum Data Transfer Rate:
- 10Gbps on USB-C port
- 10Gbps on USB-A ports
- Maximum Cable Length: 30 cm [11.8 in]

Maximum Digital Resolutions:
- 4K 60Hz (on hosts that support DP 1.4)
- 4K 30Hz (on hosts that support DP 1.2)

Physical Features:
- Product Height: 16.0 cm [6.3 in]
- Weight of Product: 84.3 g [3.0 oz]
- Product Length: 4.7 cm [1.8 in]
- Product Width: 42.5 cm [16.7 in]
- Cable Length: 30 cm [11.8 in]

Power:
- Power Source: Bus Powered and Host USB-C Power Adapter
- Power Delivery: 100W
- Power Consumption (In Watts): 15W

Software:
- Os Compatibility:
- Windows® 8.1, 10, 11
- MacOS 10.13 to 10.15, 11, 12.0
- Chrome OS™
- Ubuntu 18.04, 20.04
- IPadOS
- Android

What´s in the Box:
- 1 - Included in Package
- Usb-C Multiport Adapter
- Quick-Start Guide
- Rubber Feet
