Startech HSB1SATSASBA HDD/SSD Bay Adapter

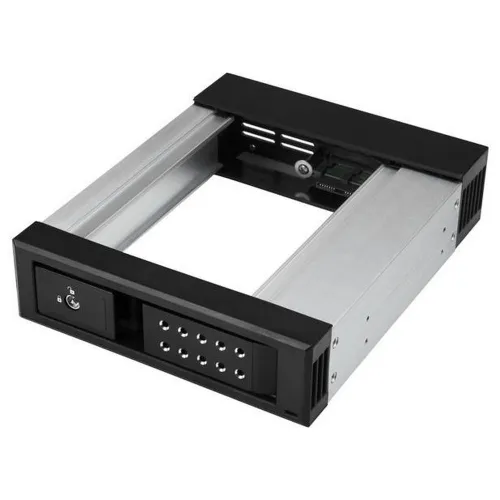

This removable hard drive hot-swap bay makes it easy to swap 3.5´´ SATA or SAS drives in and out of your server or desktop computer, using an available 5.25´´ front drive bay.

It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.

Features:

Hot-swap drives easily:

- This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations.

With support for both SATA and SAS 3.5´´ drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.

Valuable drive protection:

- The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation.

To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.

Fast data transfers:

- To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.

Applications:

- Provides easy hot-swapping of drives in environments where drives need to be replaced or removed regularly, such as server rooms and data centers.

- Ideal for use in industrial or enterprise storage applications such as data backup, recovery, and archiving.

- For building or upgrading computer systems for organizations such as government agencies, small-to-medium businesses, educational institutions, medical facilities, and military organizations.

Specifications:

Connector(s):

- 1.

- Drive Connectors:

29 pin SAS SFF-8482 Female.

- 1.

- Host Connectors:

SATA Data & Power Combo (7+15 pin) Environmental:

- Operating Temperature:

0°C to 50°C (32°F to 122°F).

- Storage Temperature:

-20°C to 60°C(-4°F to 140°F).

- Humidity:

Operating.

- 5~85% RH Non-condensing, Storage.

- 5~95% Hardware:

- Front Door Key Lock:

Yes.

- Fan(s):

No.

- Interface:

SATA.

- Number of Drives:

1.

- Drive Size:

3.5in.

- Compatible Drive Types:

SAS & SATA.

- Drive Installation:

Removable Indicators:

- 1.

- LED Indicators:

Drive Power/Activity Packaging Information:

- Shipping (Package) Weight:

412.0 g [14.5 oz].

- Package Length:

19.7 cm [7.8 in].

- Package Width:

15.0 cm [5.9 in].

- Package Height:

45.0 mm [1.8 in].

Performance:

- Maximum Data Transfer Rate:

6 Gbps.

- Type and Rate:

SATA/SAS 6 Gbps.

- Max Drive Capacity:

Currently tested with up to 10TB 7200 RPM hard drive.

- Hot Swap Capability:

Yes.

- Temperature Alarm:

No Physical Characteristics:

- Material:

Aluminum.

- Max Drive Height:

26.1 mm [1.0 in].

- Product Length:

17.9 cm [7.1 in].

- Product Width:

14.6 cm [5.7 in].

- Product Height:

3.9 cm [1.5 in].

- Weight of Product:

336.0 g [11.9 oz] Software:

- OS Compatibility:

OS independent.

No software or drivers required What´s in the Box:

1.

- Included in Package:

- backplane.

- SATA data cable.

- quick-start guide.

- 2.

- Included in Package:

keys.

- 4.

- Included in Package:

screws.
