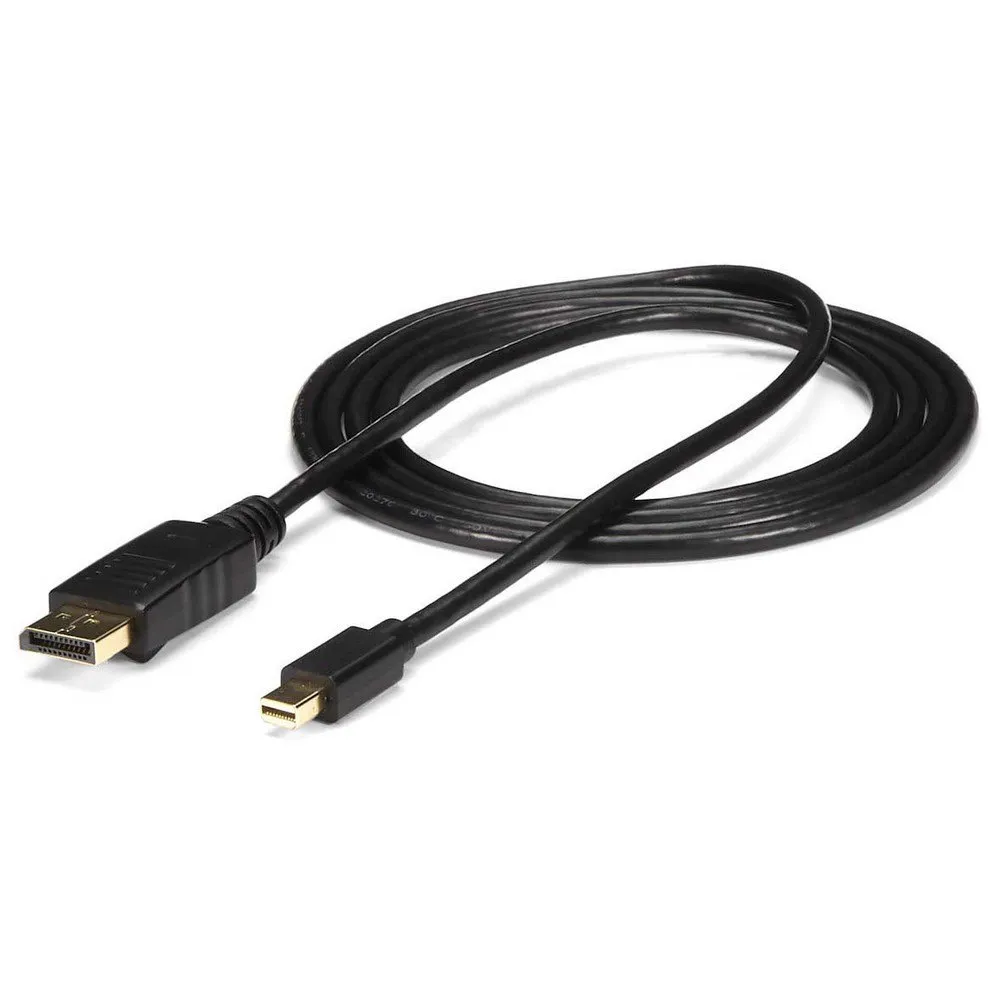

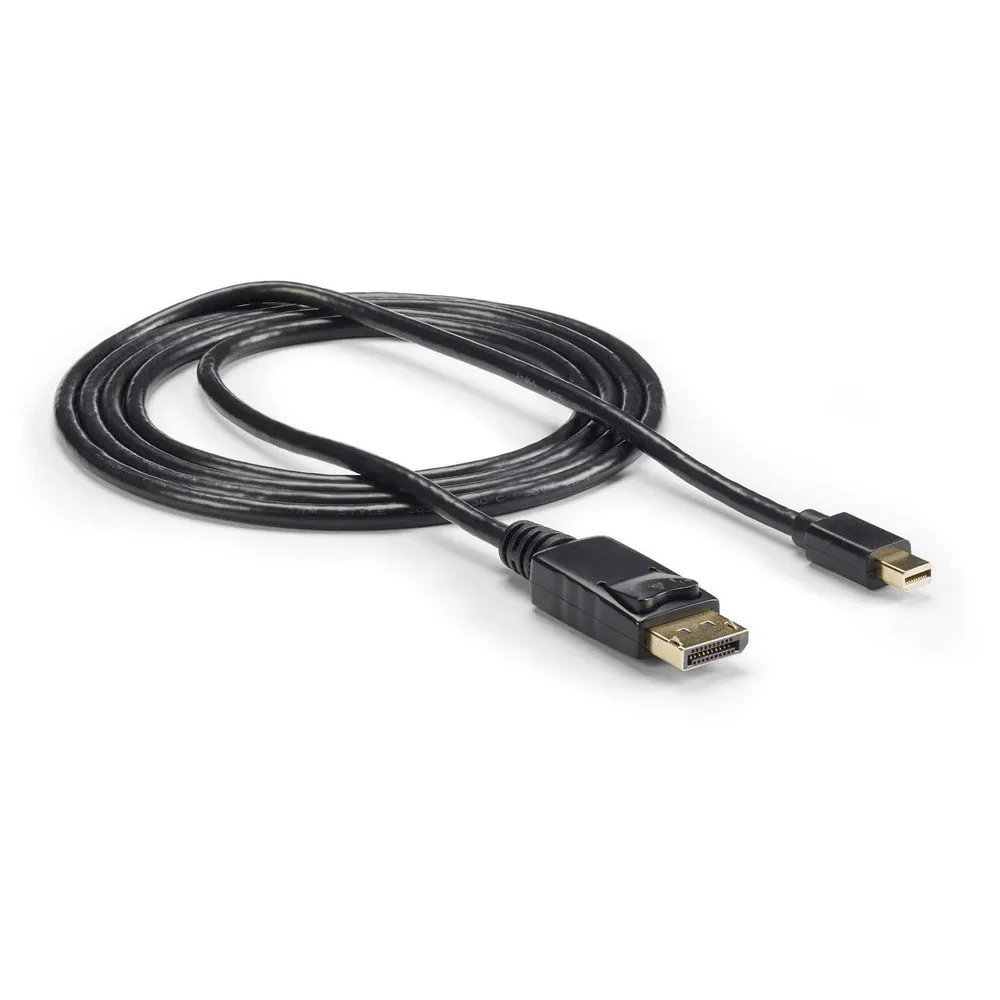

Startech Mini DisplayPort To Display Port 1.2 Adapter cable

The Mdp2dpmm10 10ft Mini Displayport™ To Displayport Adapter Cable, Features A Mini Dp Male Connector On One End, And A Dp Male Connector On The Other, Allowing You To Connect Any Mini Displayport-Equipped Laptop (Including The Mac® Family Of Products) To An Hdtv, Monitor Or Projector That Uses A Standard Displayport Connection.

- The Mdp To Dp Cable Supports High Resolutions Of Up To 4k X 2k (3840 X 2160) @ 60hz With A Maximum Hbr2 Bandwidth Of 21.6 Gbps. The Cable Also Supports Multi-Stream (Mst) For Daisy Chaining Multiple Monitors And Provides Optional Audio Support.

- The Mdp2dpmm10 Is Backed By Startech.Com’S Lifetime Warranty, For Guaranteed Reliability And Ensures That Digitally Protected Content Is Displayed Properly, With Both Hdcp And Dpcp Capability.


Features:

- High-Resolution Support Of Up To 4k X 2k
- Support For High Bit Rate 2 (Hbr2) Bandwidth Of Up To 21.6 Gbps
- Designed And Manufactured To Displayport 1.2 Standards
- Backward Compatible With Displayport 1.1
- Supports The Dpcp (Displayport Content Protection) Standard In Addition To Hdcp
- Gold-Plated Connectors

Applications:

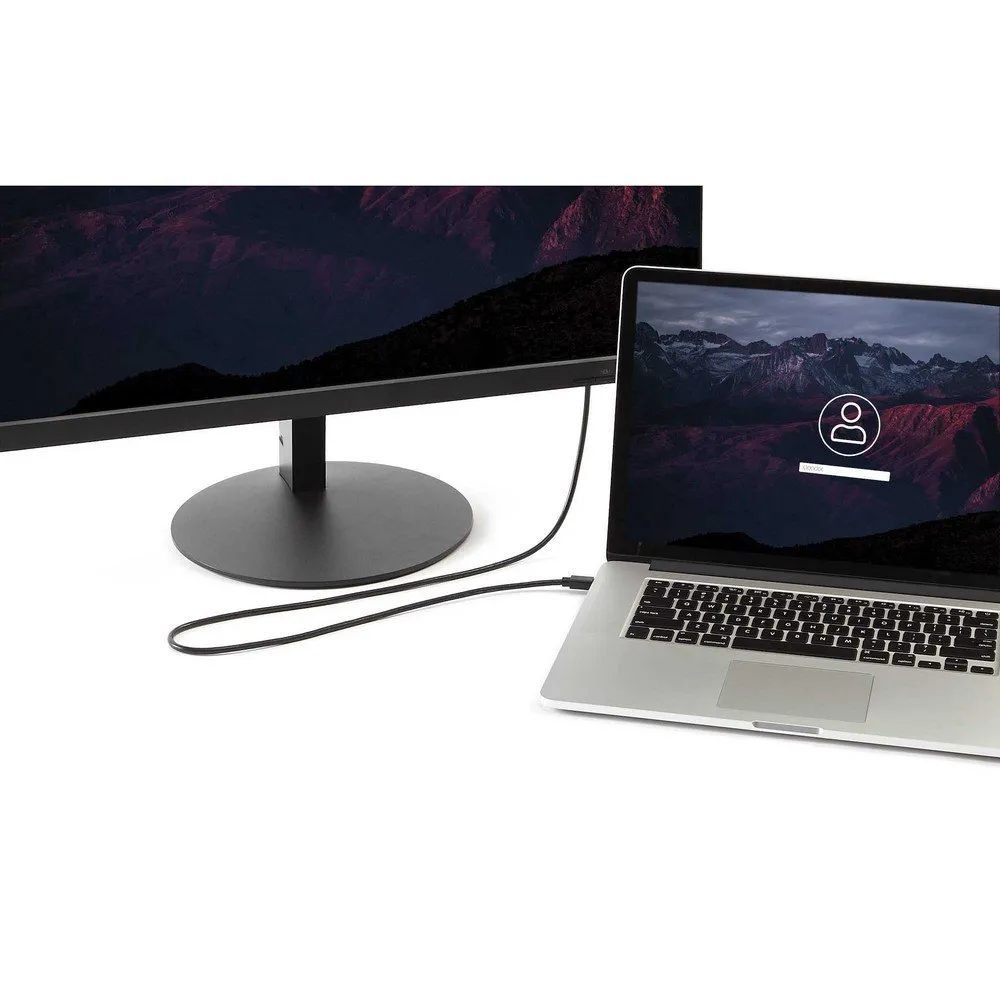

- Connect A Displayport Monitor Or Projector To Devices Equipped With A Mini Displayport Connection Port

Advantage:
- Latching Displayport Connector Prevents Accidental Disconnection
- Cost-Effective Solution For Adding A Standard Displayport Connection To Your Mini Displayport-Equipped Pc Or Mac®


Specifications:

Connector(S):
Connector A:
- Mini-Displayport (20 Pin)

Connector B:
- Displayport (20 Pin)

Environmental:
- Operating Temperature: 0°C To 45°C (32°F To 113°F)
- Storage Temperature: -10°C To 70°C (14°F To 158°F)
- Humidity: 10%-85% Rh

Hardware:
- Number Of Conductors: 19
- Connector Plating: Gold
- Cable Jacket Material
- Pvc - Polyvinyl Chloride
- Cable Shield Material
- Aluminum-Mylar Foil With Braid
- Fire Rating: Cmg Rated (General Purpose)

Packaging Information:
- Package Height: 0.9 In [22.000 Mm]
- Package Length: 8.7 In [2.2 Cm]
- Package Weight: 4.0 Oz [112.944 G]
- Package Width: 7.9 In [2.0 Cm]

Performance:
- Maximum Digital Resolutions: 4k X 2k (3840 X 2160) @ 60hz

Physical Characteristics:
- Product Height: 0.0 In [0.000 Mm]
- Weight Of Product: 3.7 Oz [103.944 G]
- Product Width: 0.0 In [0.000 Mm]
- Wire Gauge: 32 Awg
- Cable Length: 10.0 Ft [3.0 M]
- Cable Od: 0.2 In [4.8 Mm]
- Product Length: 10.0 Ft [3.0 M]

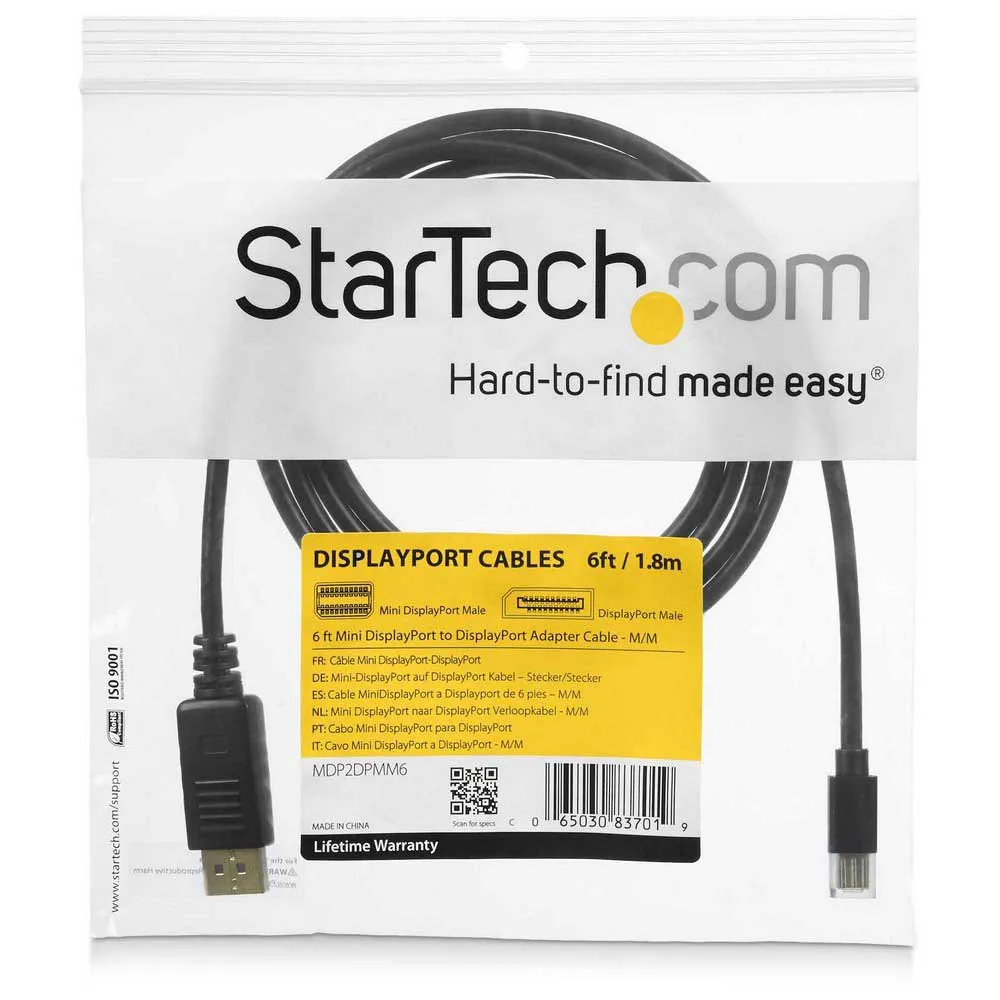

What´S In The Box:
- 10 Ft Mini Displayport™ To Displayport 1.2 Adapter Cable - M/M
