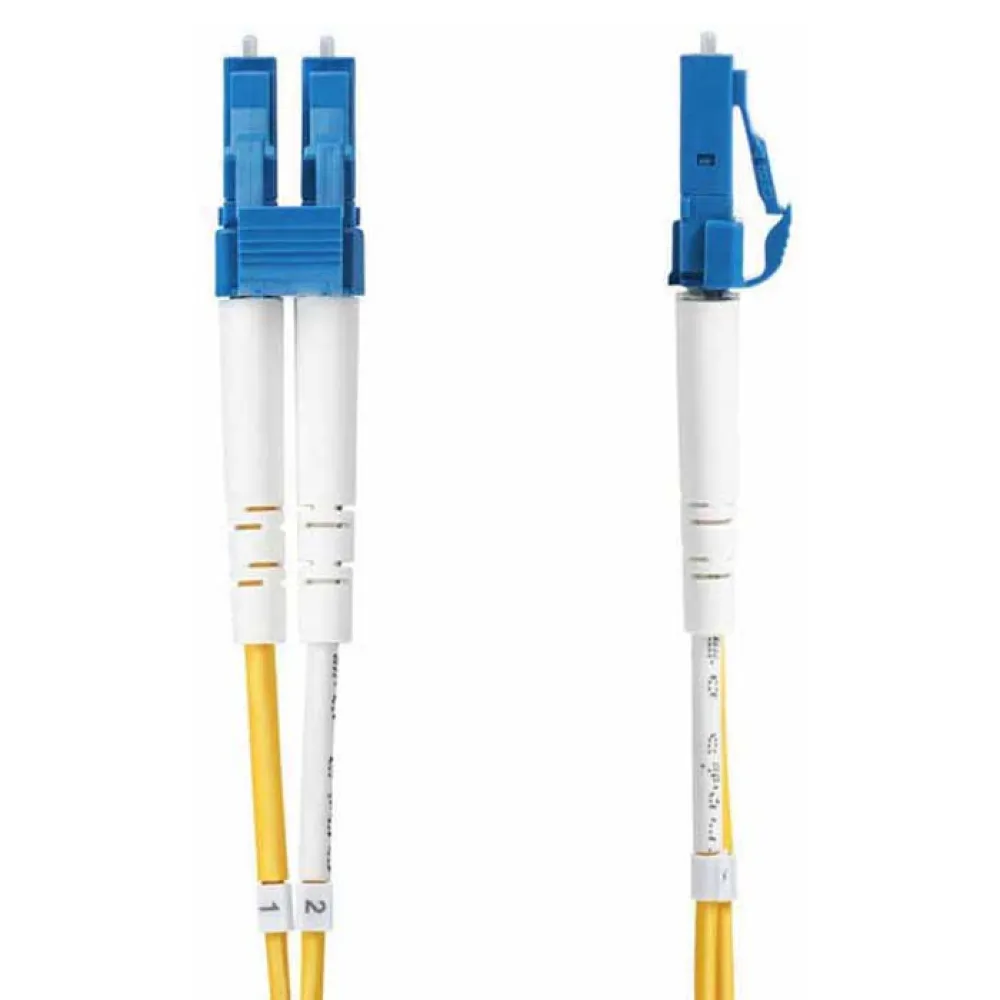

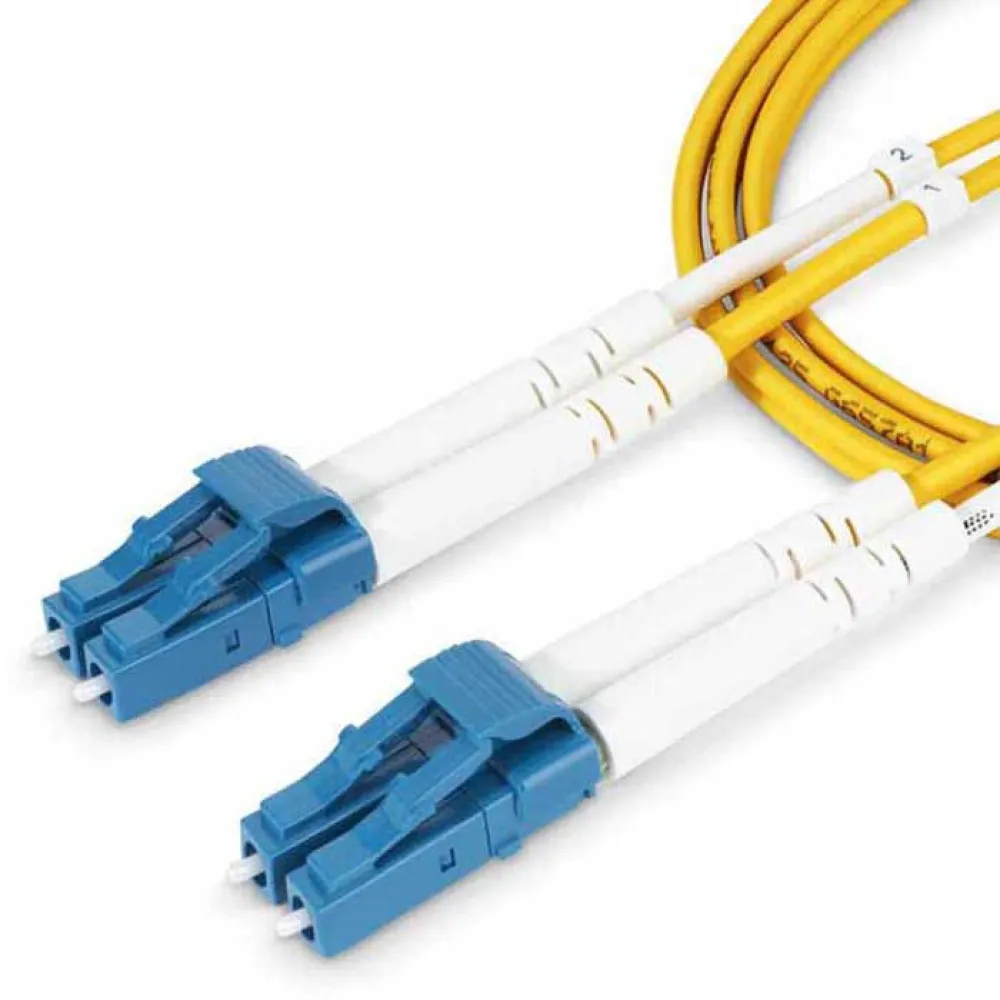

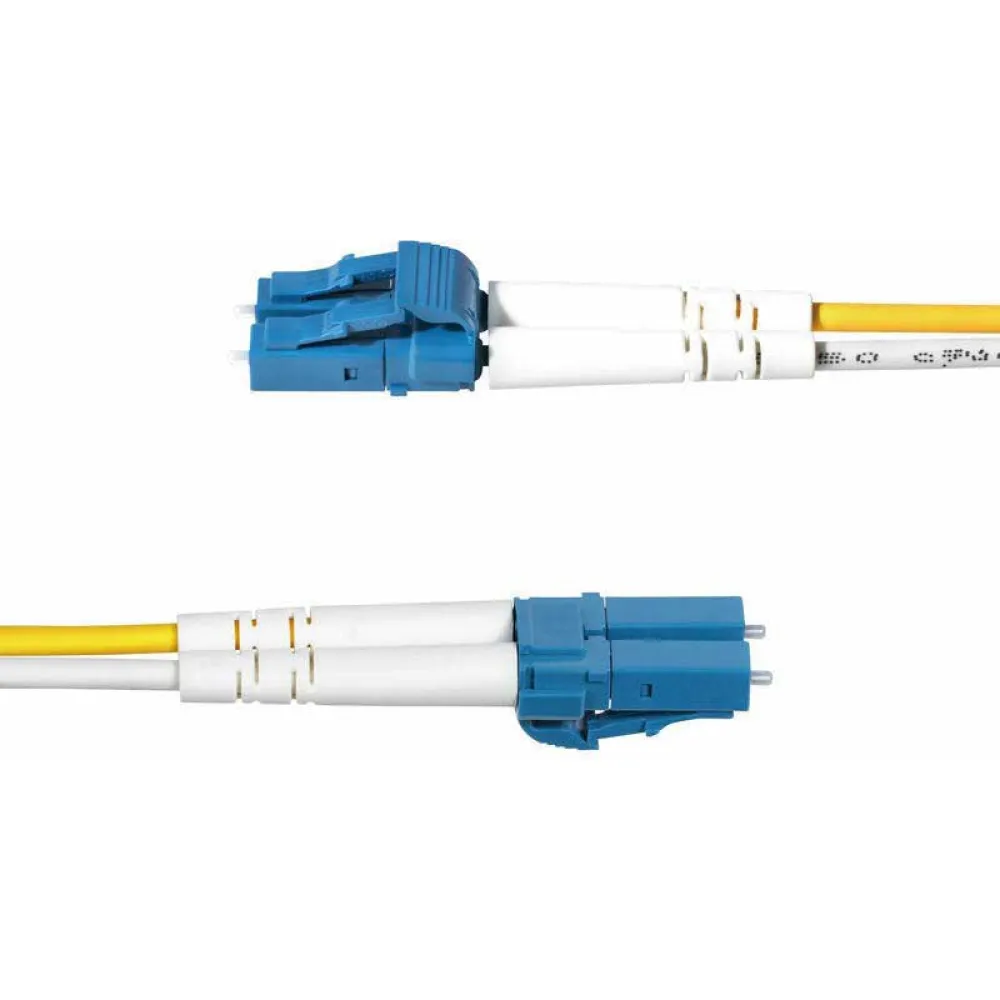

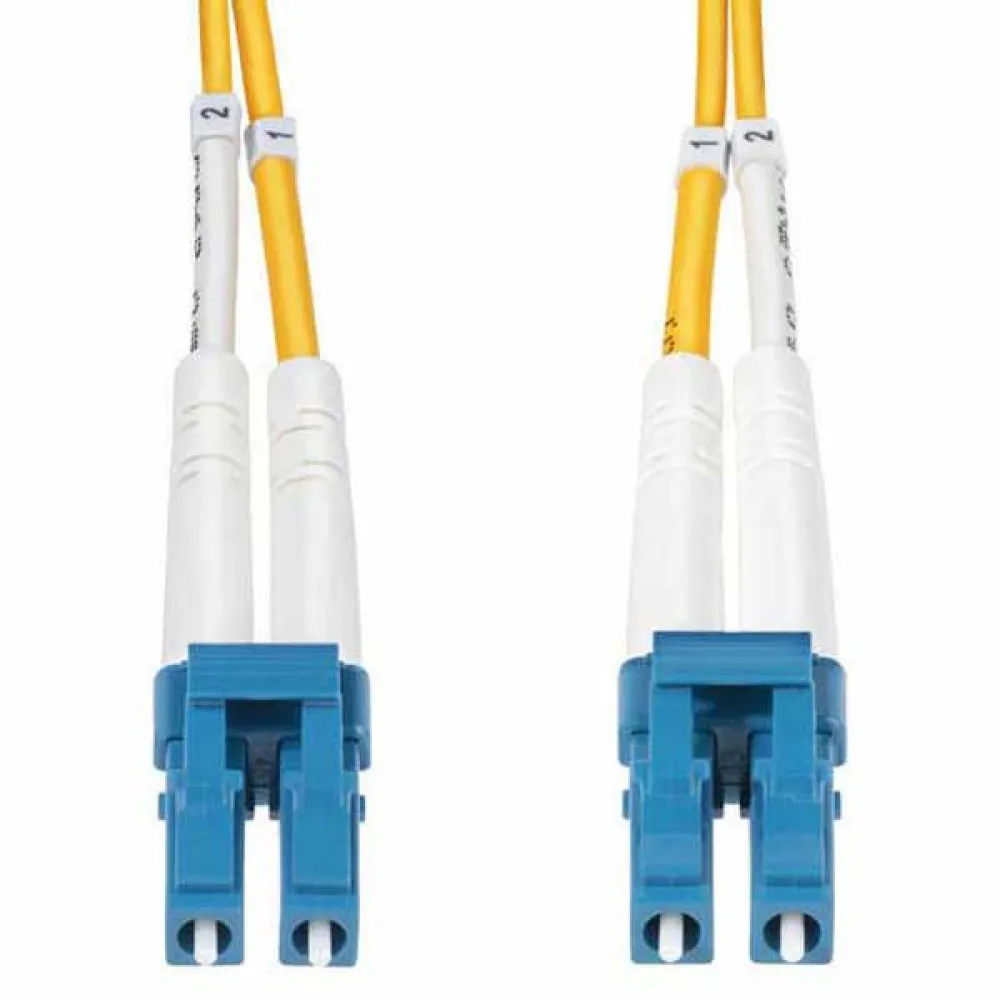

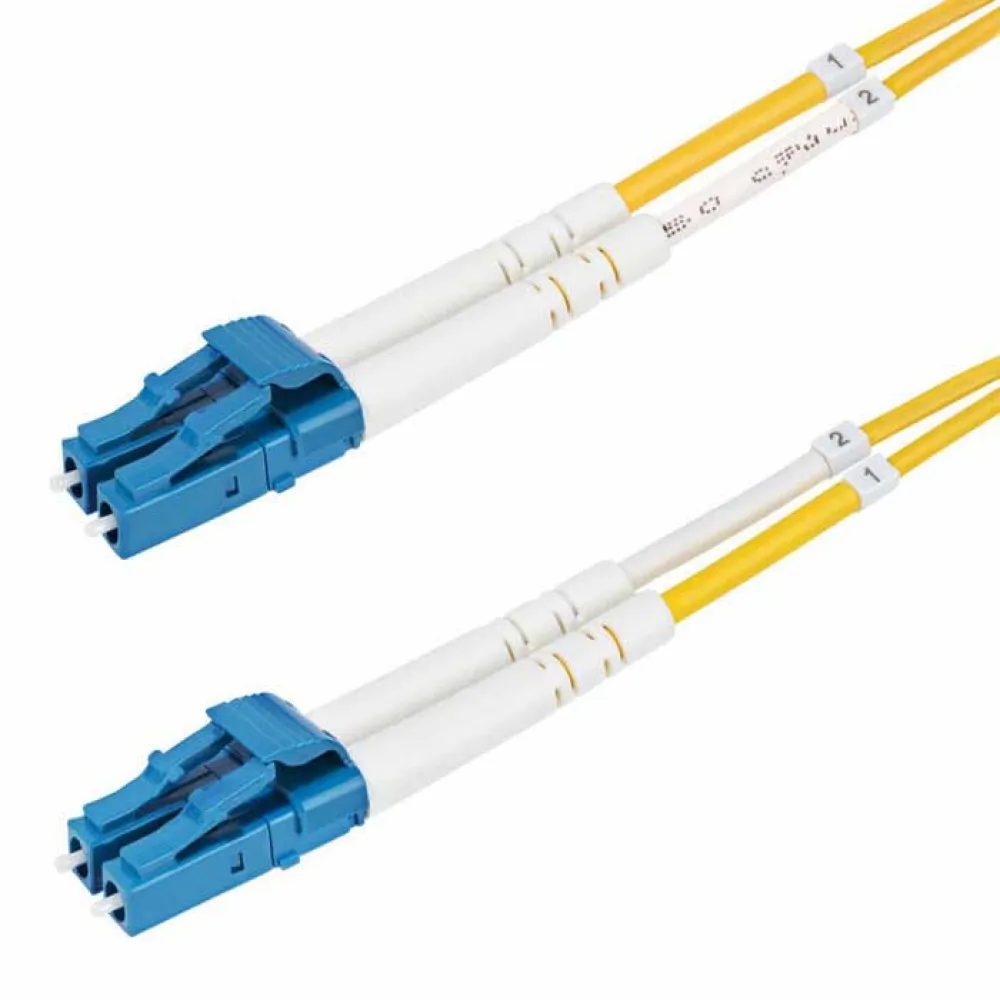

Startech SMDOS2LCLC2M fiber optic cable 2 m

Features:

- Os2 Fiber Cable: Immune to electromagnetic interference and optimized for 100Gbps networks - Coarse wavelength division multiplexing (CWDM) enables expanded support of 1260-1625nm wavelengths
- Quality Construction: Improved return loss over polished PC - Numbered and color-coded connectors indicating polarity - Flex-insensitive fiber core - Aramid-reinforced jacket - 10mm loaded bend radius
- Safety & Reliability: Individually tested - Test report included - LSZH jacket emits little toxic fumes if burned - Safe for enclosed spaces - Attenuation value below 0.35 dB/km exceeds industry standards
- Compatibility: Cable supports 100G networks - Backward compatible with OS1 - High micro-bend resistance facilitates tight bends in complex installations - Ideal for connecting between servers/switches and data center equipment


Specifications:

- Cable length: 2 m
- Type of optical fiber: OS2
- Connector 1: LC
- Connector 2: LC
- Gender of connector 1: Male
- Gender of connector 2: Male
- Connector polishing type: CPU
- Type of cable: LC/UPC
- Full duplex: Yes
- Core diameter: 9 µm
- Cover diameter: 125 µm
- Fiber mode structure: Single mode
- Supported wavelengths: 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm
- Data transfer speed: 10 Gbit/s
- Insertion loss: 0.3 dB
- Return loss: 55 dB
- Jacket material: Halogen-free (LSZH), Polypropylene

Technical details:
- Sustainability compliance: Yes
- Sustainability certificates: EC

Environmental conditions:
- Operating temperature range: -20 - 60 °C
- Storage temperature range: -20 - 60 °C

Weight and measurements:
- Cable diameter: 2 mm
- Radius of curvature: 1 cm
