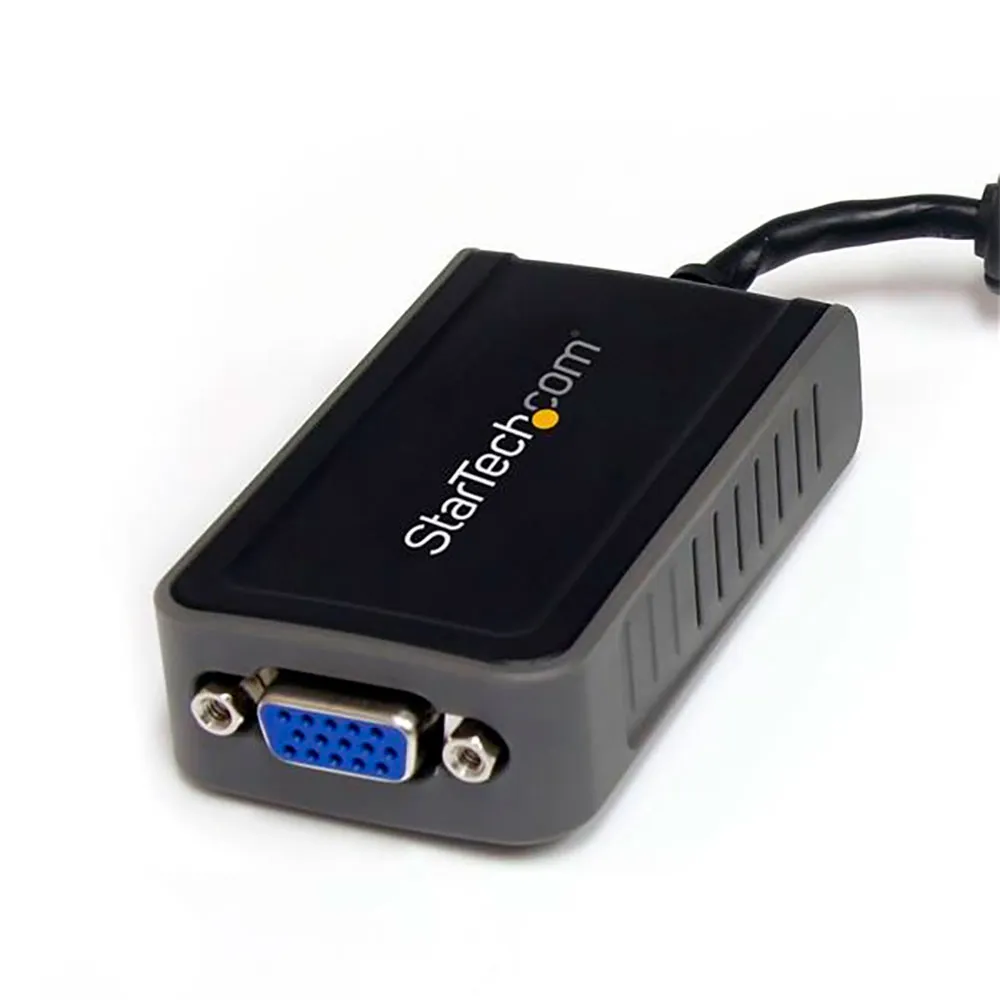

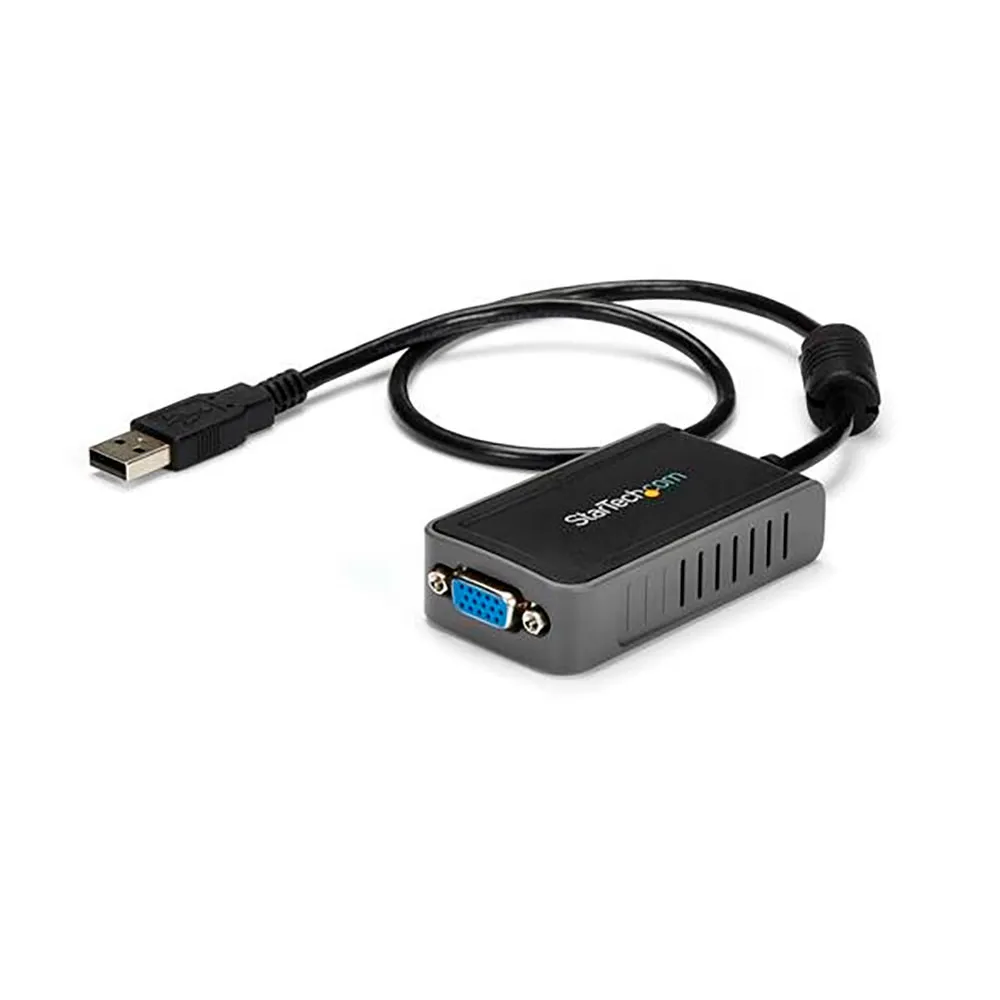

Startech USB to VGA adapter

StarTech USB to VGA Adapter - External Multi-Monitor Display Solution

Effortlessly expand your computer´s display capabilities with the StarTech.com USB to VGA Adapter. This versatile external video card allows you to connect a VGA monitor, projector, or display through a standard USB 2.0 port, providing a simple and effective way to enhance your productivity and create a multi-monitor workstation with minimal effort. It is the ideal solution for legacy and modern systems that need to add an additional VGA output.

The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.

The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port.

A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.

The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.

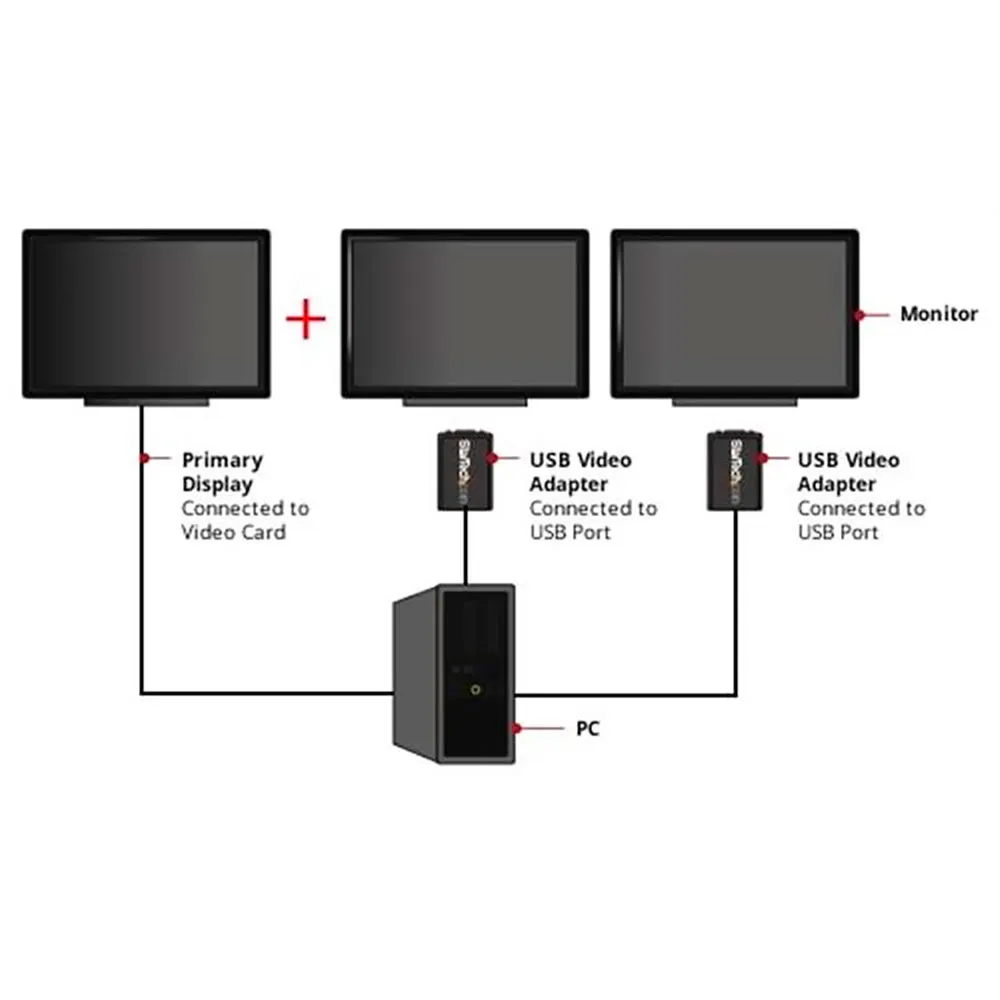

Application Diagram.

Key Benefits of the USB to VGA Adapter
* Cost-Effective Upgrade: Leverage your existing USB 2.0 ports to add another VGA display without the expense or complexity of installing a new internal graphics card. This is a perfect budget-friendly solution for both laptops and desktops.
* Ultimate Simplicity: The adapter is completely USB-powered, meaning no external power adapter is required. Installation is straightforward, providing a true plug-and-play experience for adding an additional monitor.
* Highly Portable and Compact: The small, lightweight design makes this adapter an ideal travel companion for business professionals who need to connect to various VGA projectors and displays on the go. Its small form factor ensures it won´t clutter your workspace.

Main Features
* Supports display resolutions up to 1680x1050 (32-bit)
* Offers versatile display modes including mirrored, extended, or primary display configurations
* Includes support for display rotation for portrait or landscape viewing
* Completely powered via the USB connection, eliminating the need for an external power source
* Ability to use up to five adapters on a single computer for a robust multi-monitor setup
* Small form factor for maximum portability and a clean workspace

Technical Specifications

Performance
* Maximum Analog Resolution: 1680x1050
* Widescreen (16/32 bit): 1680x1050, 1440x900, 1366x768
* Standard (16/32 bit): 1280x1024, 1024x768, 800x600

Hardware
* Chipset ID: DisplayLink - DL-165
* Memory: 16MB DDR SDRAM
* USB Pass-Through: No

Connectors

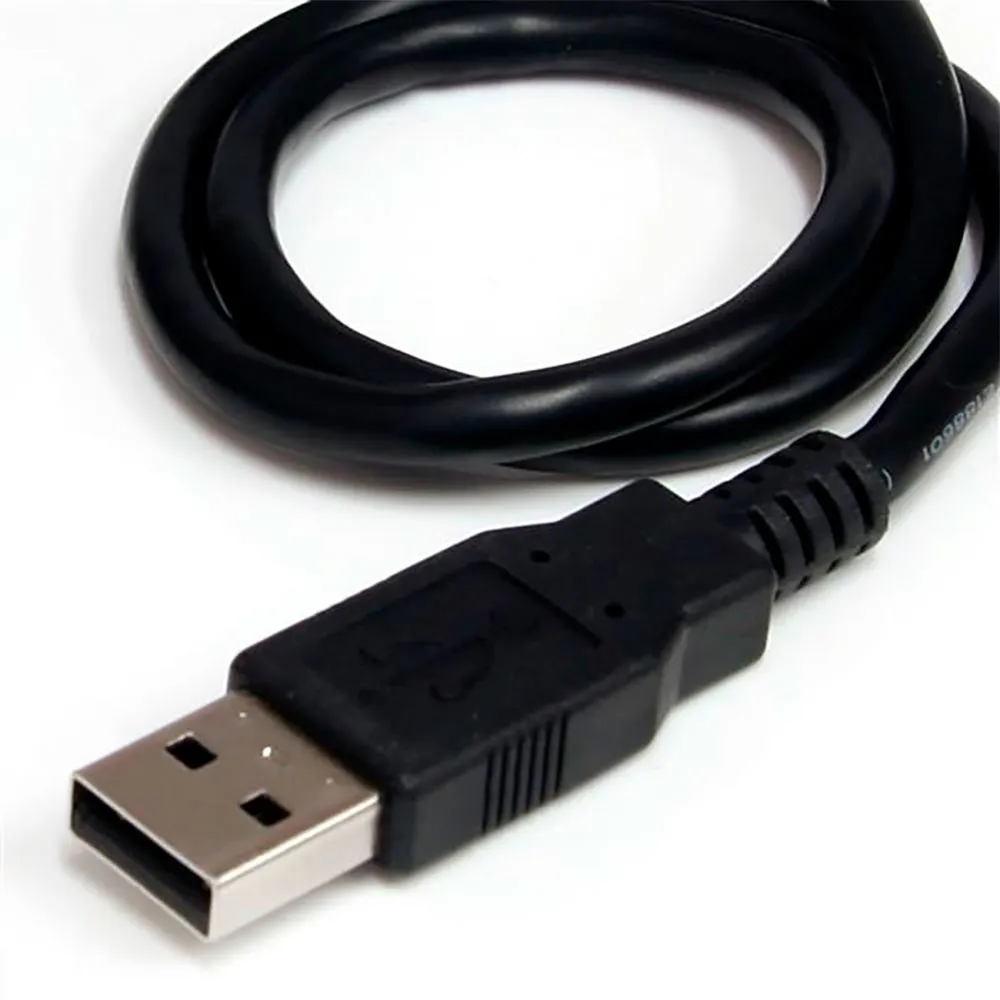

* Host Connector: 1 - USB Type-A (4 pin) USB 2.0 Male
* External Port: 1 - VGA (15 pin, High-Density D-Sub) Female

Software Compatibility
* Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
* macOS 10.6 to 10.12, 10.14 to 10.15, 11.0, 12.0, 13.0
* Ubuntu 14.04, 16.04, 18.04
* Chrome OS™ v55+
