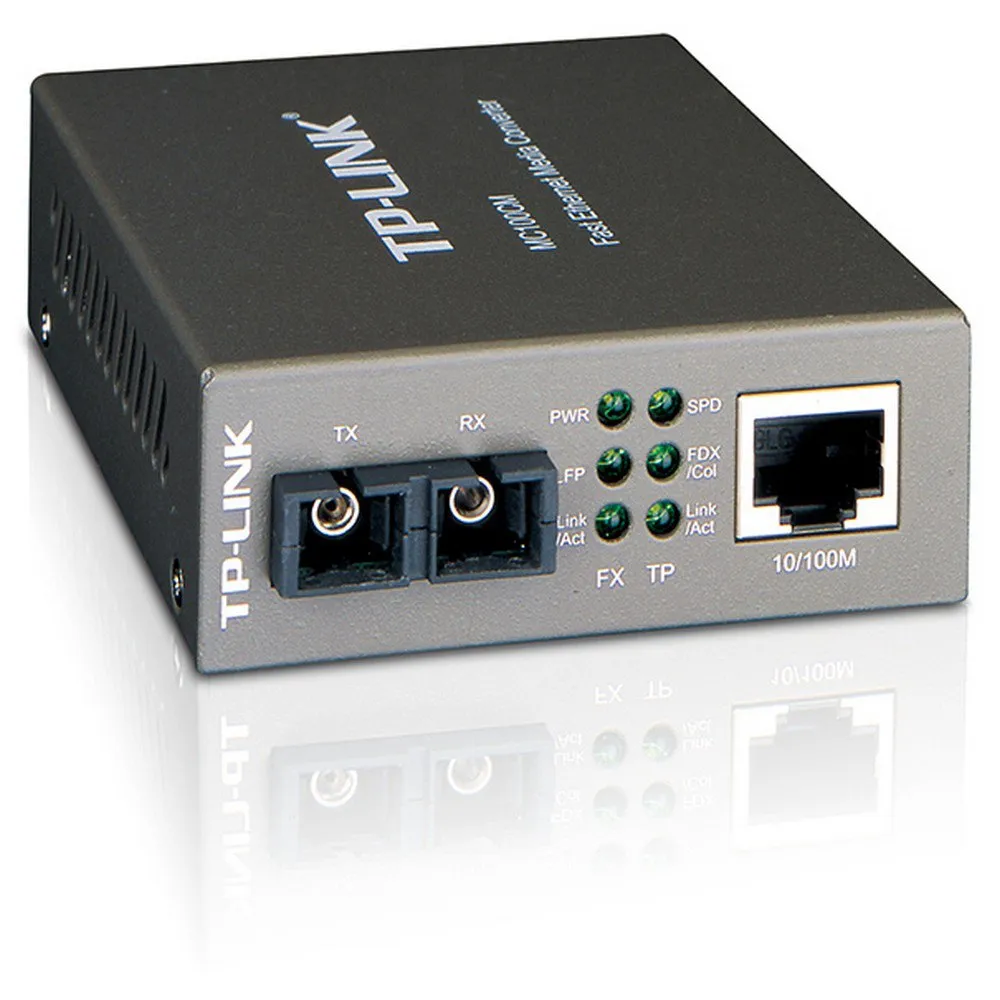

Tp-link 10/100 Multimedia Converter Fiber Module

Complies with 802.3u 10/100Base-TX, 100Base-FX standards.

-Ability to configure the switch for Half-Duplex / Full-Duplex transfer modes for the FX port.

-Increases the range of fiber optics up to 2km.

The MC100CM is a multimedia converter designed to convert 100BASE-FX fiber to 100Base-TX cable or vice versa.

Designed to IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is used with multimode fiber optics using the SC connector.

The MC100CM supports shortwave (SX) laser at full wire speed transfer rate.

It works at 1310nm transmitting and receiving data.

Other features of this module are the possibility of use as a stand-alone device (without the need for a rack or with TP-LINK´s 19´´ system rack, Auto MDI/MDI-X for the TX port, Duplex mode autonegotiation on the TX, and status LEDs on the front panel.

The MC100CM transmits through multimode optical fiber, increasing the fiber distance up to 2 kilometers.

Specifications:-Connectivity.

Technology:Cable.

-Fiber optic connector:SC.

-Ethernet LAN ports (RJ -45):1 -Fiber Channel ports:1 -Width:94.5 mm -Depth:73 mm -Height:27 mm -Power consumption (max):2.5 W -Humidity storage relative:5 -90% -Operating relative humidity:10 -90% -Operating temperature range:0 -40 °C -Storage temperature range:-40 -70 °C -Ethernet LAN, Data transfer speed:1000 Mbit/s.

- Network standards:IEEE 802.3, IEEE 802.3u, IEEE 802.3x.

- Maximum data transfer range:1000 Mbit/s.

- Ethernet interface type:Gigabit Ethernet.

-LED indicators:Yes.

-Product color:Black.

-.

Certification:FCC, CE.

-Internal:No.

-Maximum transfer distance:2000 m.

-Wavelength:1310 nm.
