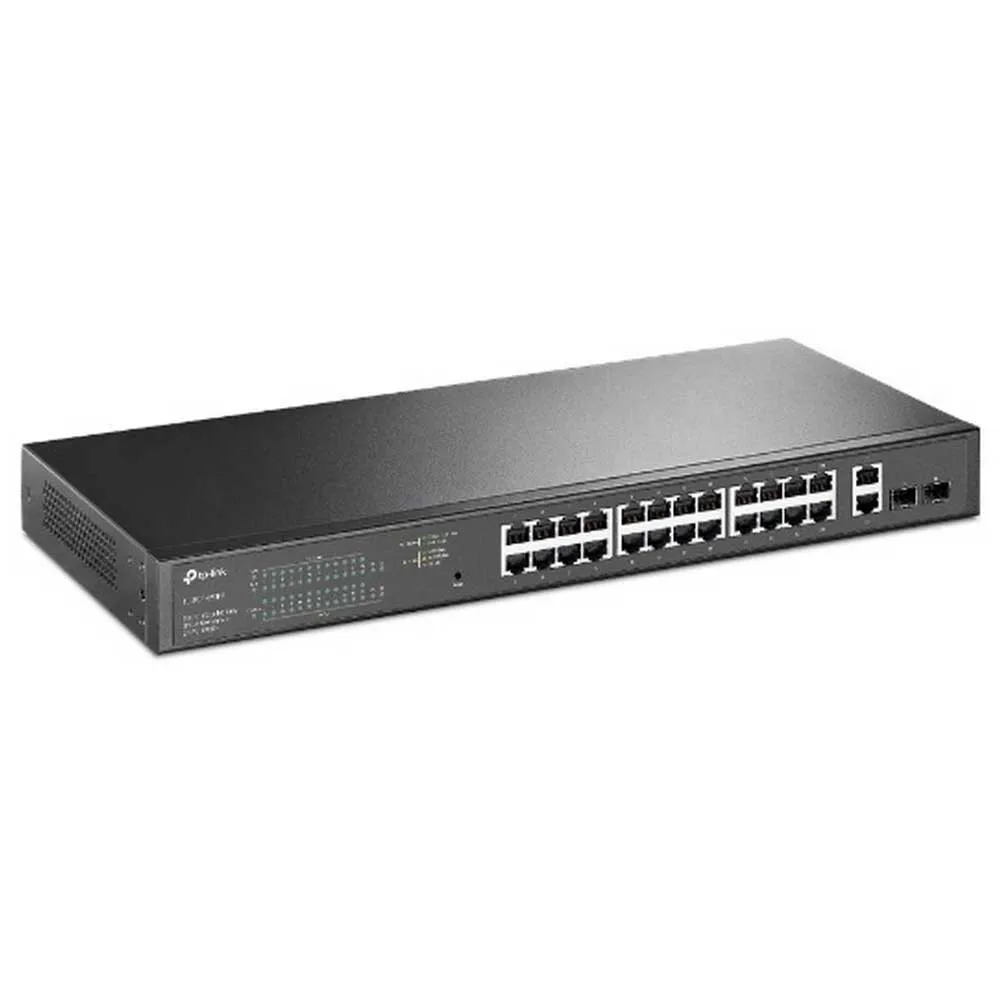

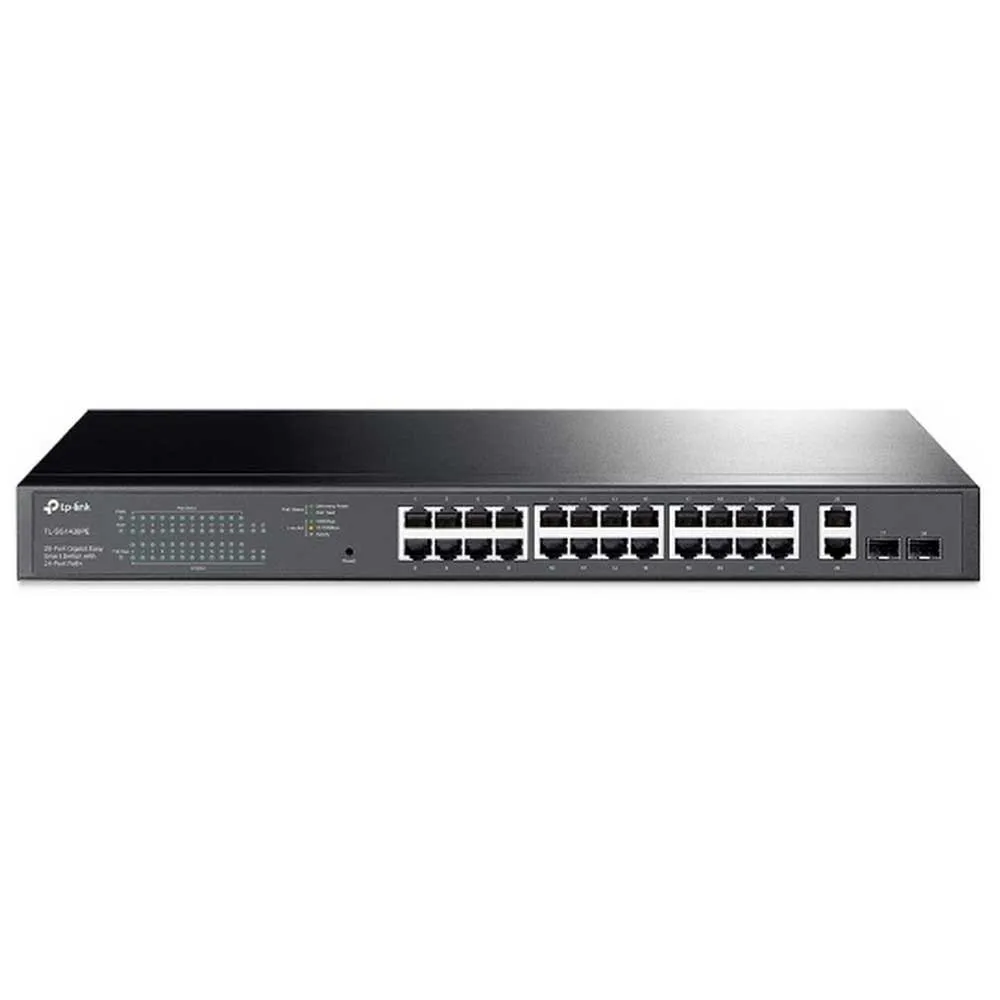

Tp-link TL-SG1428PE switch

EU Plug.

Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+.

Multi-purpose and easy-to-use PoE switch with powerful performance.

Multiple application scenarios.

The TL-SG1428PE is fully compatible with PoE devices such as IP cameras, access points and IP phones.

It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

24 dedicated PoE+ Ports (250 W Budget) for Numerous Applications.

Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port.

The total PoE power budget of 250W for the 24× gigabit PoE+ ports makes it have a wide range of applications, such as surveillance, offices, dormitories, and small businesses.

It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Easy Use.

Value-added features provide unexpected experiences.

QoS for a lag-free experience.

Ensures smooth traffic for latency-sensitive applications such as voice and video.

IGMP Snooping for Optimized Multicast.

Ensures a better network experience, especially for applications such as IPTV, by optimizing the delivery of multimedia traffic.

VLAN for Security.

It helps create a network with greater security and better overall performance by dividing the network into smaller groups.

Facilitating management.

TL-SG1428PE offers network monitoring for users to observe traffic behavior.

Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple factors guarantee stable operation.

Self-healing system with automatic Po recovery.

The switch automatically detects and reboots PD devices, such as cameras and APs, when they become disconnected or unresponsive, ensuring stable operation of PoE-connected devices, without the need for manual monitoring and reboot.

Intelligent power management to avoid power overload.

Automatically cuts off power to lower priority ports to ensure power supply to high priority ports when the total PoE power consumption exceeds 250W.

This protects the device from power surge operation.

Great compatibility with PoE Device detection.

Automatically detects the PoE power required for your device and protects your non-PoE equipment from damage.

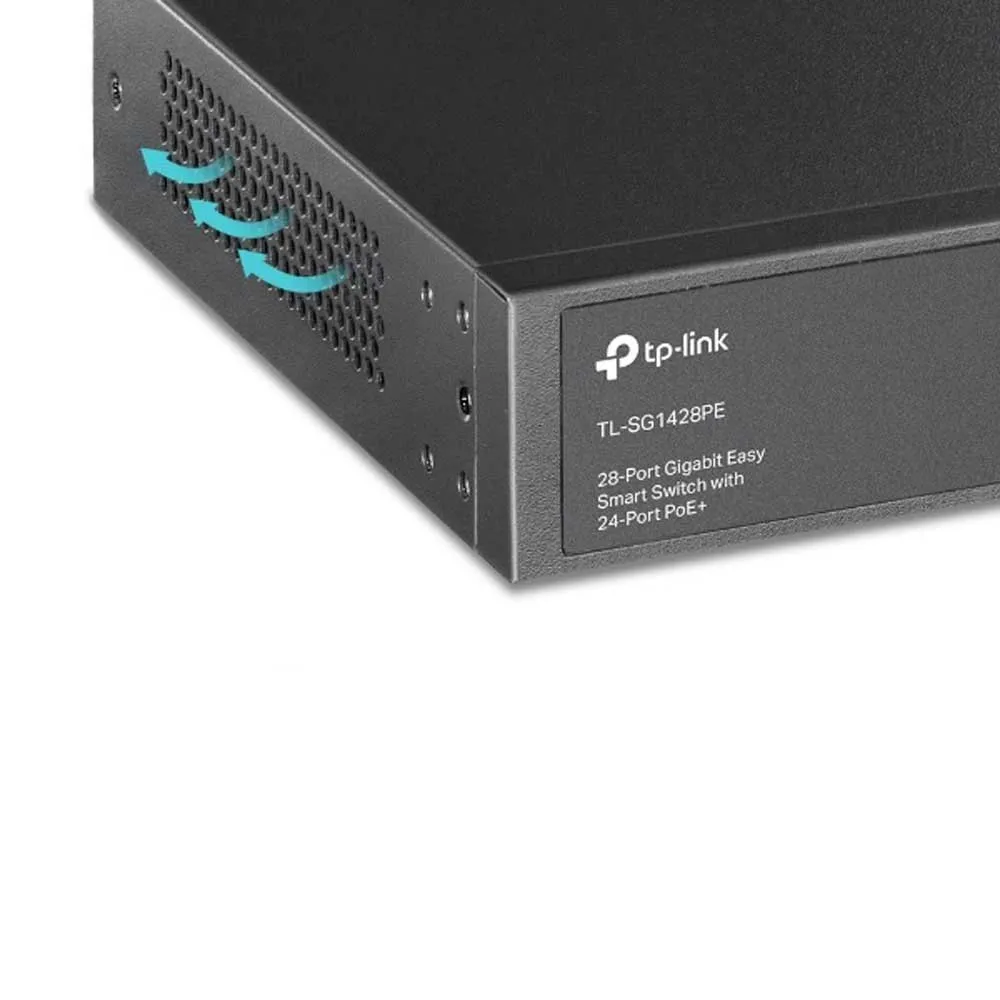

Wide operating temperature with good heat dissipation.

Durable metal casing and professional heat dissipation design ensure wide operating temperature (0-50℃) with reliability.

Specifications:

-Quantity of basic RJ-45 Ethernet switching ports:26.

-Basic RJ-45 Ethernet switching type ports:Gigabit Ethernet (10/100/1000).

-Quantity of SFP module slots:2.

-Width:440 mm.

-Depth:220 mm.

-Height:44 mm.

-Power supply included:Yes.

-AC input voltage:100 -240 V.

-AC input frequency:50 -60 Hz.

-Power consumption (max):304.7 W.

-Operating temperature range:0 -50 °C.

-Relative operating humidity:10 -90%.

-Storage temperature range:-40 -70 °C.

-Storage relative humidity:5 -90%.

-Network standards:IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x.

-Support 10G:No.

-Auto MDI / MDI-X:Yes.

-Auto-negotiation:Yes.

-Copper Ethernet cabling.

Technology:10BASE-T,100BASE-TX,1000BASE-T.

-Port mirroring:Yes.

-Adding links:Yes.

-Limit rate:Yes.

-VLAN Support:Yes.

-Virtual LAN functions:Port-based VLAN,Tagged VLAN.

-Supported cable types:Cat3,Cat4,Cat5,Cat5e,Cat6.

-Storm transmission control:Yes.

-Number of VLANs:32.

-MAC address table:8 entries.

-Jumbo Frames, support:Yes.

-Switching capacity:56 Gbit/s.

-Jumbo frames:9000.

-Forwarding rate:41.7 Mpps.

-Save and forward:Yes.

-Number of queues:4.

-Cables included:Alternating current.

-Mounting shelf:Yes.

-User manual:Yes.

-IGMP:Yes.

-Switch type:Managed.

-Quality of service (QoS) support:Yes.

-Web-based administration:Yes.

-Ethernet cabling fiber.

Technology:1000Base-X.

-Rack mounting:Yes.

-Product color:Black.

-Number of fans:2 Fan(s).

Certification:CE, FCC, RoHS.

-Form factor:1U.

-PoE:Yes.

-Power over Ethernet (PoE) Budget:250 W.

-Power over Ethernet Plus (PoE +) Number of ports:24.
