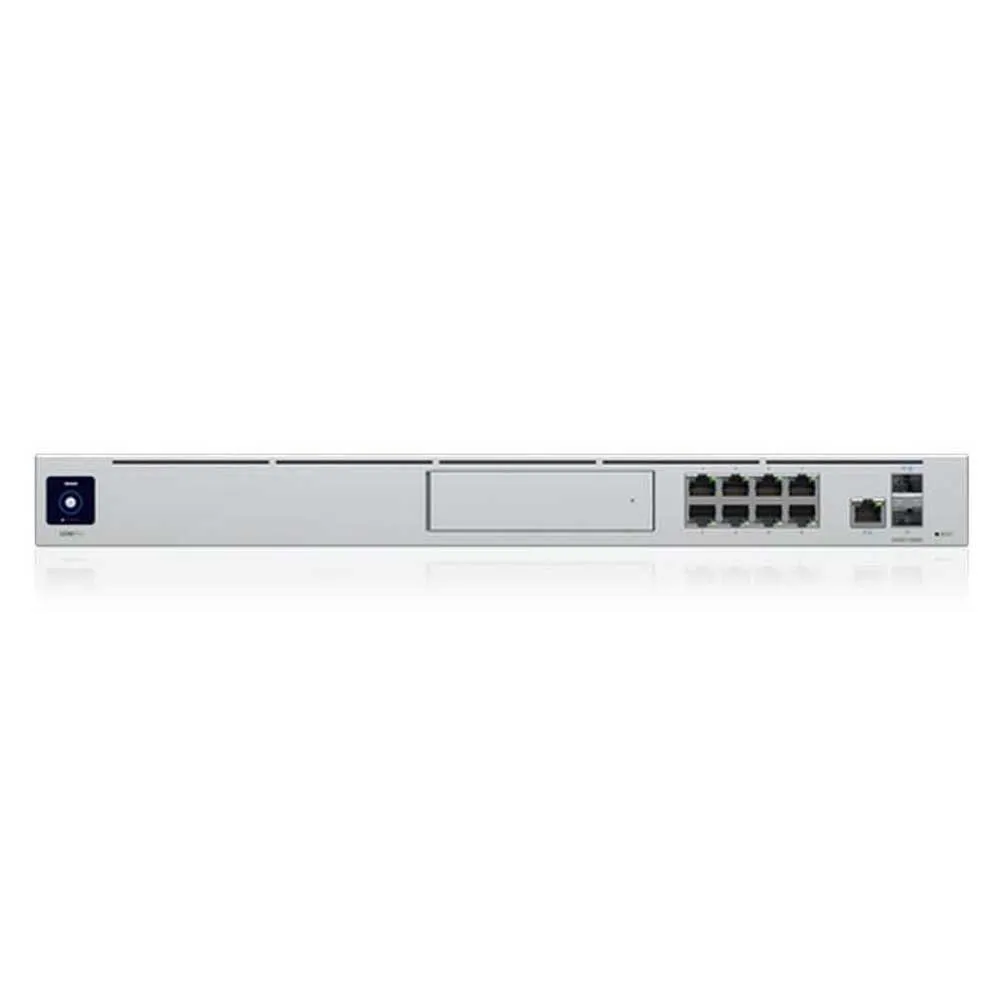

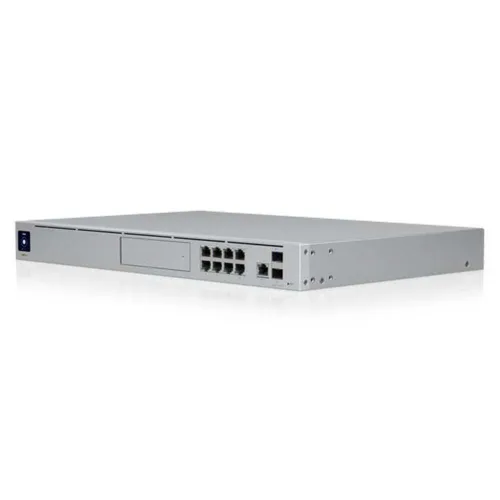

Ubiquiti UDM-PRO Security Gateway Pro Firewall Router

EU Plug.

All-in-one, enterprise-grade UniFi OS Console and security gateway designed to host the full UniFi application suite.

Connect the Dream Machine Pro with a USP RPS to create an uninterruptible network.

Features:

- Pre-installed UniFi Network application.

- LAN ports:(8) GbE RJ45, (1) 10G SFP+.

- WAN ports:(1) GbE RJ45, (1) 10G SFP+.

- Threat management and traffic/client identification.

- (1) 3.5´´ HDD bay for storing UniFi Protect recordings The Best Experience for Large Networks:- All-in-one 1U rack appliance for small to medium size businesses Security Gateway:- The enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN, application visibility, VPN services, and 3.5 Gbps full threat management throughput into a single device.

Managed Switch:- Fully managed switch with 10 Gbps SFP+ downlink and eight RJ45 GbE ports for scaling up.

UniFi.

Network:- Integrated network management system for all network elements with an easy-to-use and modern user interface.

Wi-Fi AI automatically optimizes the Wi-Fi network.

UniFi Protect:- Professional-grade video surveillance system and NVR with integrated 3.5´´/2.5´´ HDD bay for scalable storage.

Advanced Redundancy:- The UDM Pro features dual WAN ports with failover and U-LTE1, 2 backup connectivity to ensure reliable access to the internet.

UniFi SmartPower USP-RPS2 provides redundant power in the event of AC power loss.

UniFi Enterprise Architecture Evolves with UniFi OS:- The new UniFi OS portal provides streamlined access to all of your UniFi OS consoles and applications.

UniFi Cloud Portal:- Launch all current and upcoming applications from a single view with simple access.

Safe Access with SSO:- Single Sign-On (SSO) authentication streamlines safe access to UniFi applications.

Centralized User and Access Management:- Admins easily manage users in one central location.

Installation of New Applications:- Install new UniFi apps and maintain them with a single click through the settings page.

Seamless Network Integration:- Use the UniFi Dream Machine Pro to build, centralize, and manage your network.

Specifications:

Mechanical:- Dimensions:442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2´´).

- Weight:3.9 kg (8.6 lb).

- Enclosure materials:Aluminium CNC, SGCC steel.

- Mount material:SGCC steel Hardware:-.

Processor:Quad-core ARM® Cortex®-A57 at 1.7 GHz.

- System.

Memory:4 GB DDR4.

- On-board.

Storage:16 GB eMMC Management interface:- Ethernet.

- Bluetooth Networking interface:- (8) LAN:GbE RJ45 ports.

- (1) WAN:GbE RJ45 port SFP+ interface:- (1) LAN:10G SFP+.

- (1) WAN:10G SFP+.

- IDS/IPS throughput:3.5 Gbps.

- Power method:- (1) Universal AC Input, 100 - 240V AC, 50/60 Hz.

- (1) USP-RPS DC input.

- Power supply:AC/DC, internal, 50W.

- Supported voltage range:100 - 240V AC.

- Max.

power consumption:33W.

- ESD/EMP protection:Air:± 15kV, contact:± 8kV.

- LCM.

Display:(1) 1.3´´ touchscreen.

- Button:Factory reset.

- Operating temperature:-10° to 40° C (14° to 104° F).

- Operating humidity:5 to 95% noncondensing.

- Certifications:CE, FCC, IC LEDs:- Ethernet:Link/activity.

- Green:1G.

- Amber:10/100M.

- SFP+:Link/activity.

- White:10G.

- Green:1G.

- HDD:White:disk activity.

- Amber:disk error.
