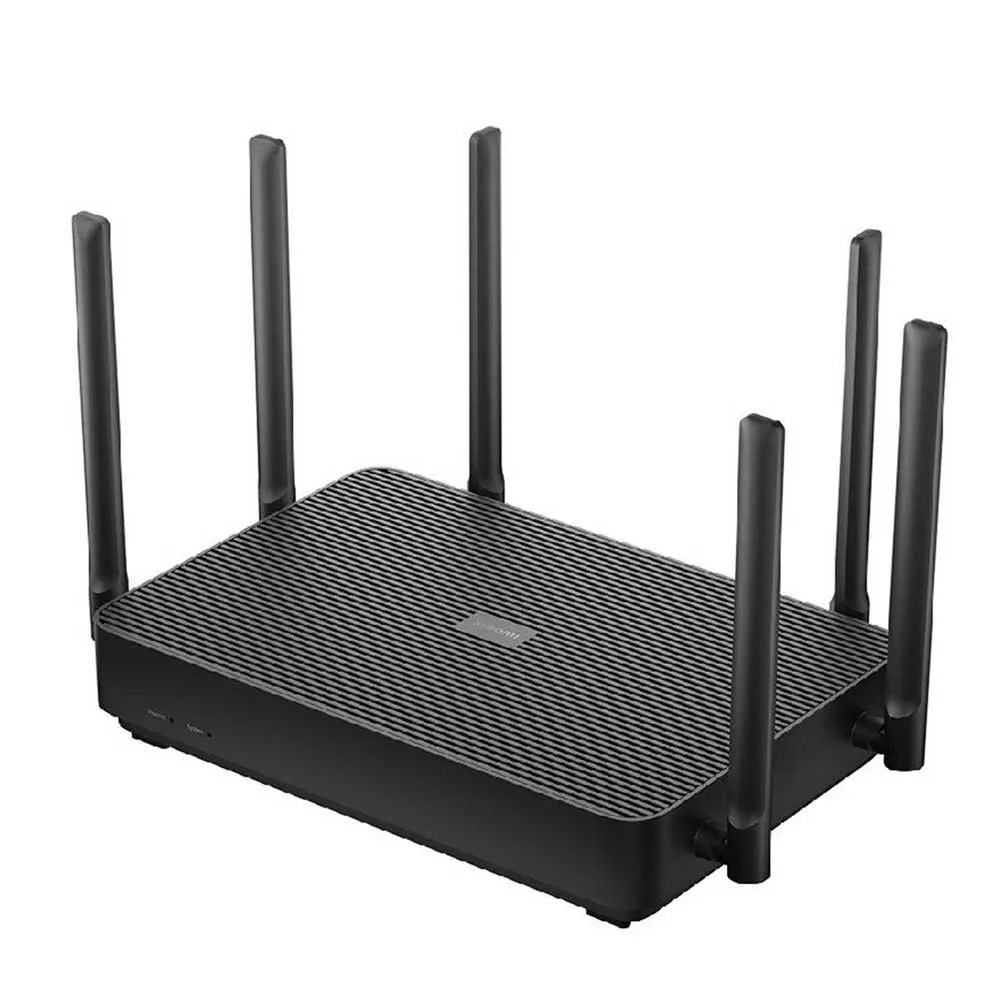

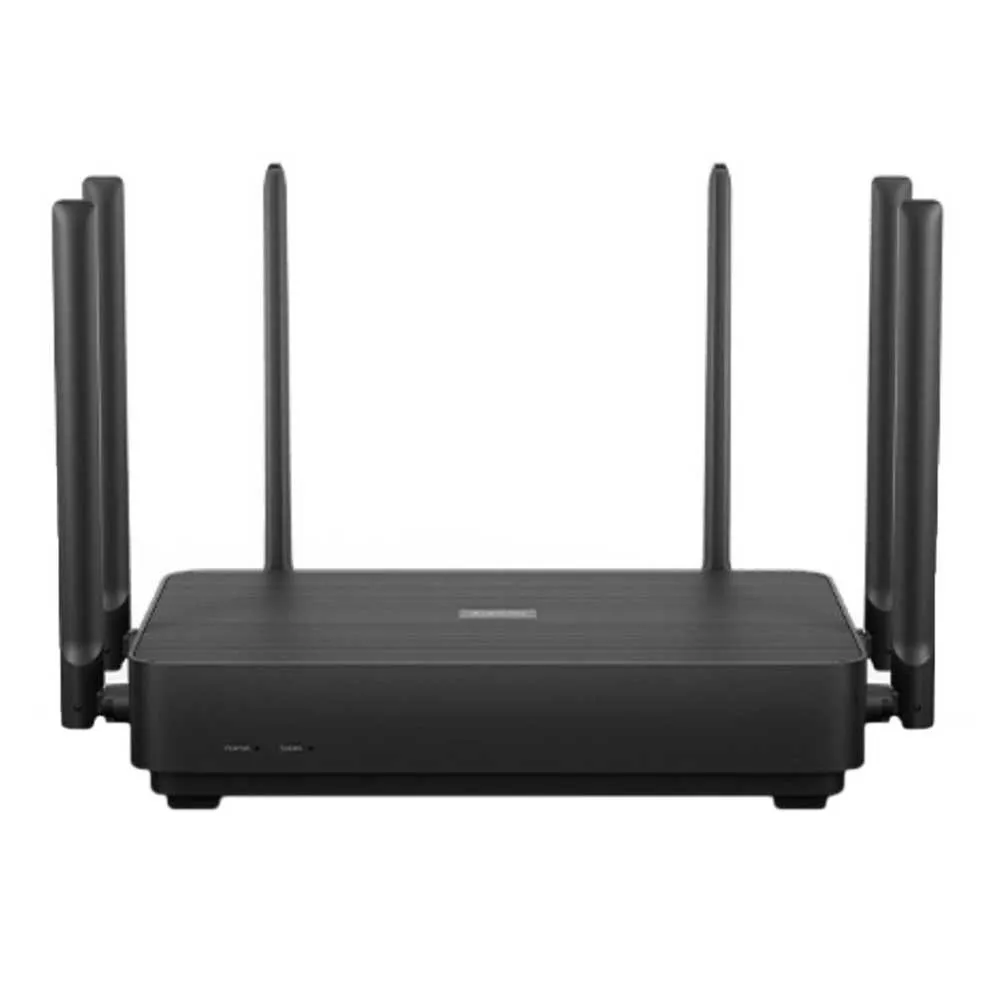

Xiaomi AX3200 router

EU Plug.

Wi fi Foil 6 A completely new network experience Wi Fi 6 (802.11ax) is the latest generation in Wi Fi standards.

Thanks to its highest transfer rates Xiaomi Router AX3200 allows you to easily enjoy almost twice the speed of a typical AC1200 Router.

The Wi Fi 6 router significantly reduces latency and lack of response on final devices even when several users use several devices at the same time.

Slow through the new digital era with a true ultra-fast network response capacity.

Dual Band releases all the performance potential of the Xiaomi Router AX3200 network offers 2 -4 GHz and 5 GHz.

The two bands do not interfere with each other and have a combined theoretical wireless speed of 3202 mbps.

Enjoy an ultra-fast Internet access A stable signal coverage A high-speed HD videos without interruptions and large-scale online games.

Technology MO MIMO.

- Fluid Internet access for several users MUMO technology allows the multiple antennas of their Xiaomi Router AX3200 to provide network connection to multiple devices simultaneously.

If a router is a highway this comes with additional rails that increase the transfer rates and avoid the lack of response on their devices.

OFDMA Technology.

- Take control with an efficient transmission The OFDMA technology allows your router to send data to multiple final devices with a single transmission where a traditional router would need to send multiple transmitters.

OFDMA Allows more efficient transmission and reduced latency so you can use several devices at the same time and enjoy an instant response capacity when playing online either on a large scale or through your smartphone.

Xiaomi Mesh Network.

- Total coverage for home with Wi Fi 6 Configure mesh networks composed by several routers with compatible Xiaomi Mesh Router products.

There is no need to worry about the design of your home this system is designed to function in all types of complex designs and proportion of full home signal coverage.

The wireless signal moves between each router without problems which allows you to use your network as you wish.

MediaTek FILGIC800 Optimum network status at all times has four-core four-core processors with a single-core clock speed up to 1 -35 GHz.

With general performance improvements your Internet connection is more enjoyable and diverse.

Intelligent life with 256 MB memory A large memory means that you can connect up to 128 devices.

Enjoy the benefits of your router enabled by technology with fluid and stable network connections through multiple devices.

Beamforming technology signal Address signal for greater coverage.

Beamforming technology concentrates the Wi Fi signal towards its connected devices proporting a better range of Wi Fi and network performance.

The router can strengthen the Wi Fi signal for the corresponding direction by improving quality and stability and expanding the effective range.

Specification L × W × H (per unit) 284 mm × 186 mm × 186 mm Black Product Color Hardware Configuration CPU Processor MediaTek Filogic800 Dual-core A53 1 -35 GHz Memory 256 MB Wi Fi 2 -4 GHz 4 × 4 (Supports up to the IEEE 802.11n protocol The theoretical maximum speed is 800 Mbps) Wi Fi of 5 GHz 4 × 4 (it supports up to the Protocol IEEE 802.11ax The theoretical maximum rate is 2402 Mbps) Antennas omnidirectoral antennas EXTERNAL PORTAL PORTS Customizable port WAN 10 100 1000 Mbps (Auto MDI MDIX) × 1 adaptive LAN ports of 10 100 1000 Mbps (Auto MDI MDIX) × 3 LED indicator light 2 Lights incl.

System Indicator × 1 Internet Indicator × 1 System Restart Button X 1 Mesh Network Button X 1 Energy Input Port X 1 Protocol Standards IEEE 802.11BGN AC AX IEEE 802.3 3U 3AB Specification Dual Band 2 -4 GHz 5 GHz Modulation 11b:DSSS:DBPSK (1Mbps) Dqpsk (2Mbps) CCK (5.5 11Mbps) 11A G:OFDM:BPSK (6 9Mbps) QPSK (12 18Mbps) 16QAM (24 36Mbps) 64qam (48 54Mbps) 11N:MIMO OFDM:BPSK QPSK 16QAM 64QAM.256QAM.

11AC:MIMO OFDM:BPSK QPSK 16QAM 64QAM 256QAM.

11ax:MIMO OFDM:BPSK QPSK 16QAM 64QAM 256QAM 1024QAM.

Software Specification MIWIFI ROM Operating System An OpenWRT Intelligent Router Operating System Based WPA Encryption WPA PSK WPA2 PSK WPA3 SAE Management Applications Android IOS Work Environment Working Temperature 04 Work Humidity 10% 90% RH (without condensation) Storage temperature 40 70 Storage humidity 5% 90% RH (without condensation).
