Absima 1/10 V2 ESC 80A Waterproof Brushed Standard & Crawler electronic speed controller

Brushed Standard .

Crawler 1:10 V2 ESC 80A Waterproof 2100004V2.

-MORE POWER, MORE FEATURES, MORE FUN! .

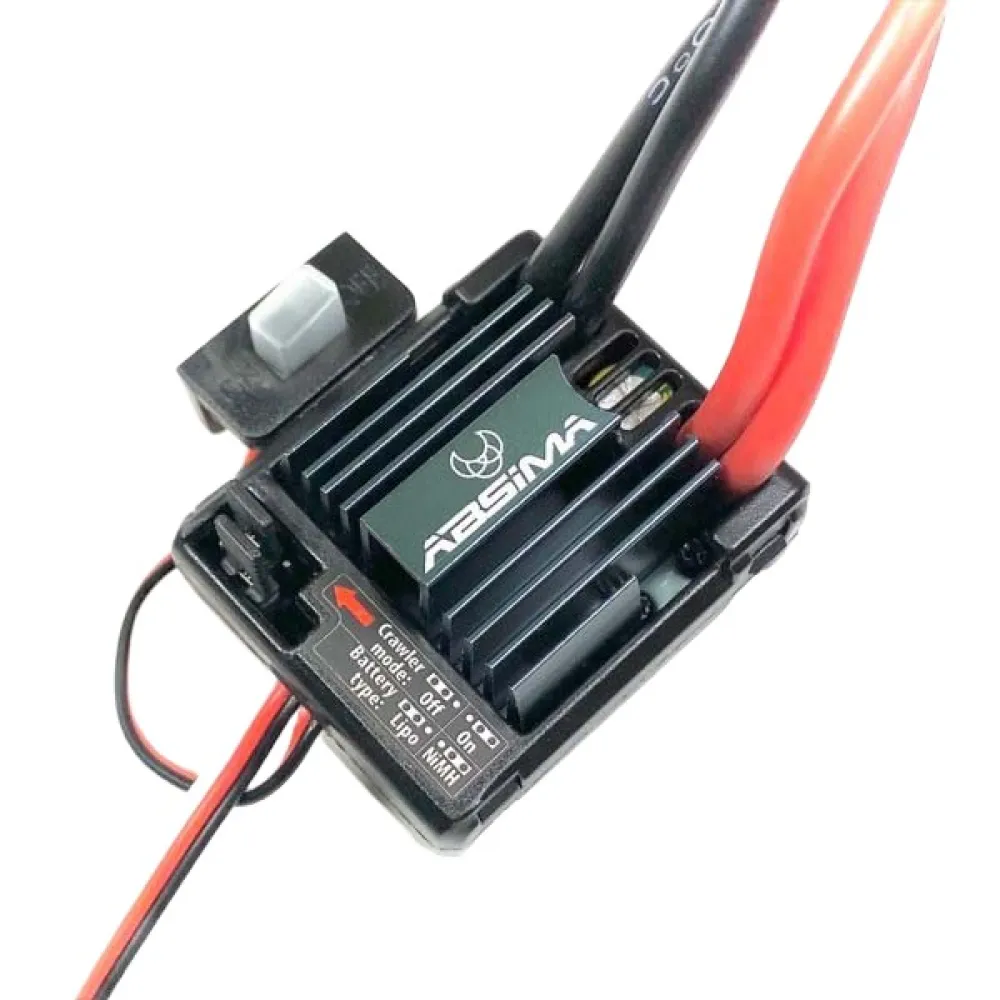

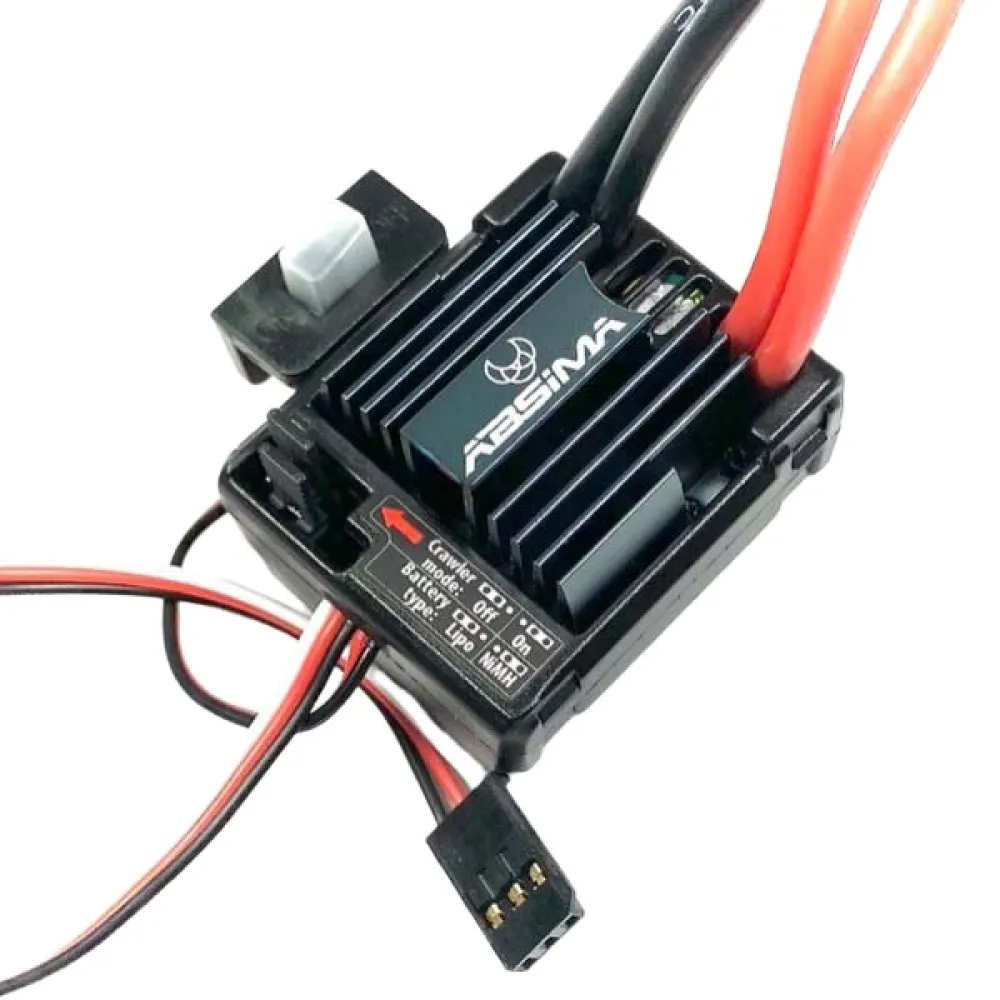

We proudly present our new programmable ´´ALL-IN-ONE´´ BRUSHED SPEED CONTROLLER which can be used for 1:10 RC Crawlers and also Race Cars .

The basic setting for the vehicle and battery type is done via ´´jumpers´´ on the ESC.

In addition, a programming card is available, which can be used for even more settings.

-HIGHLIGHTS:

-One ESC for all vehicle types (Crawler, Off-road, On-road, Boat).

Programmable via jumper and separately available programming card (Item:

2110061).

2-3S LiPo capable .

Continuous load:

80A.

BEC:

5A / 7.4V.

Programmable Features (via programming card):

-Initial Start Force:

5%* / 13% / 21% / 29% .

Low V cut-off:

3.1V* / 3.4V / Off.

Crawler Setup - Initial Drag Brake:

100%* / 90% / 80% / 70%.

Standard Setup - Max Brake Force:

50%* / 100% / 75% / 25%.

Max Reverse Force:

50%* / 75% / 100%.

Start Mode (Punch):

Medium* / Strong / Soft .

-Standard Features:

-Waterproof and dustproof - suitable for all weather conditions (Clean and dry the ESC after each use to avoid corrosion).

-Specially designed for BRUSHED RC Cars and Crawlers for excellent acceleration and sensitive driving feel.

Low internal resistance and excellent heat dissipation.

Multiple protection functions such as low voltage cutoff for LiPo and NiMH batteries, ESC overheat protection and signal loss protection.

Easy to program using jumper and pocket-sized programming card (available separately - Item 2110061).

Specification:

-Continuous/short time load:

80A/320A.

Resistance:

0.0014ohm.

Motor type:

Brushed standard motors .

Battery:

2-3S LiPo / 5-9 cells NiMH.

BEC 7.4V/5A.

-Motor Limit 2S LiPo/5-6 cells NiMH:

≥ 11T or <.

25,000rpm.

-Motor Limit 3S LiPo/7-9 cells NiMH:

≥ 18T or <.

17,000U/min.

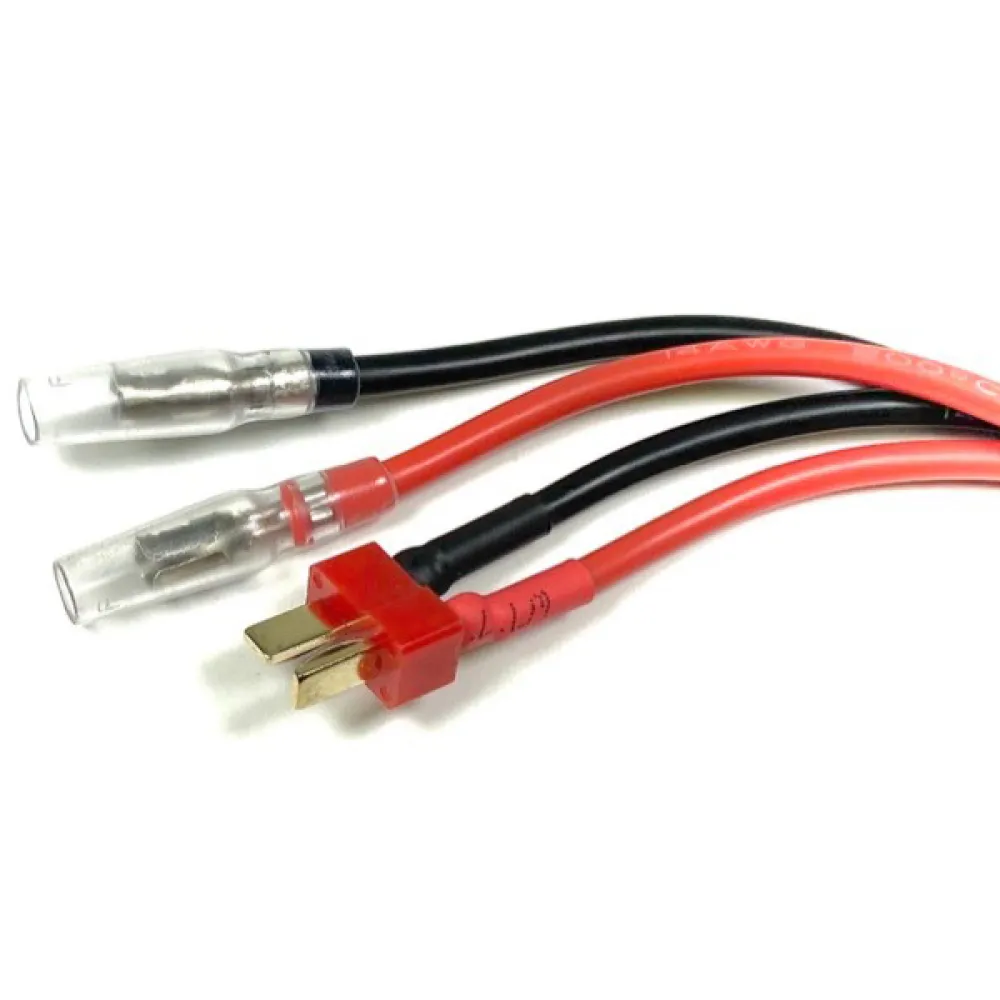

-Cable lengths:

BEC:

180mm / Motor:

200mm / Power:

200mm.

-Dimensions:

41.5*35*29.5mm.

Weight:

63.4g.

Scope of delivery:

-1:10 Brushed Speed Controller V2.

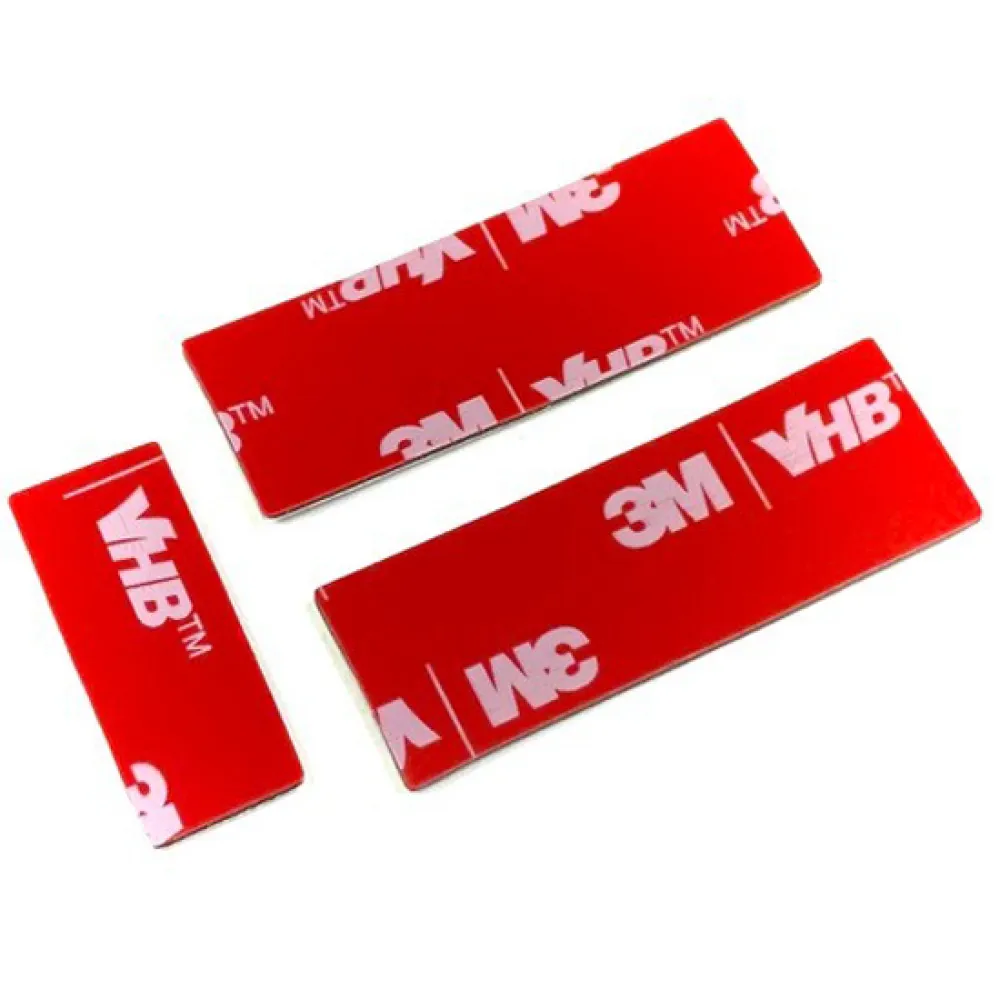

Adhesive Tape.

Manual .
