Act AC4451 Fiber Optic Converter

This device only works in the EU.

EU Plug.

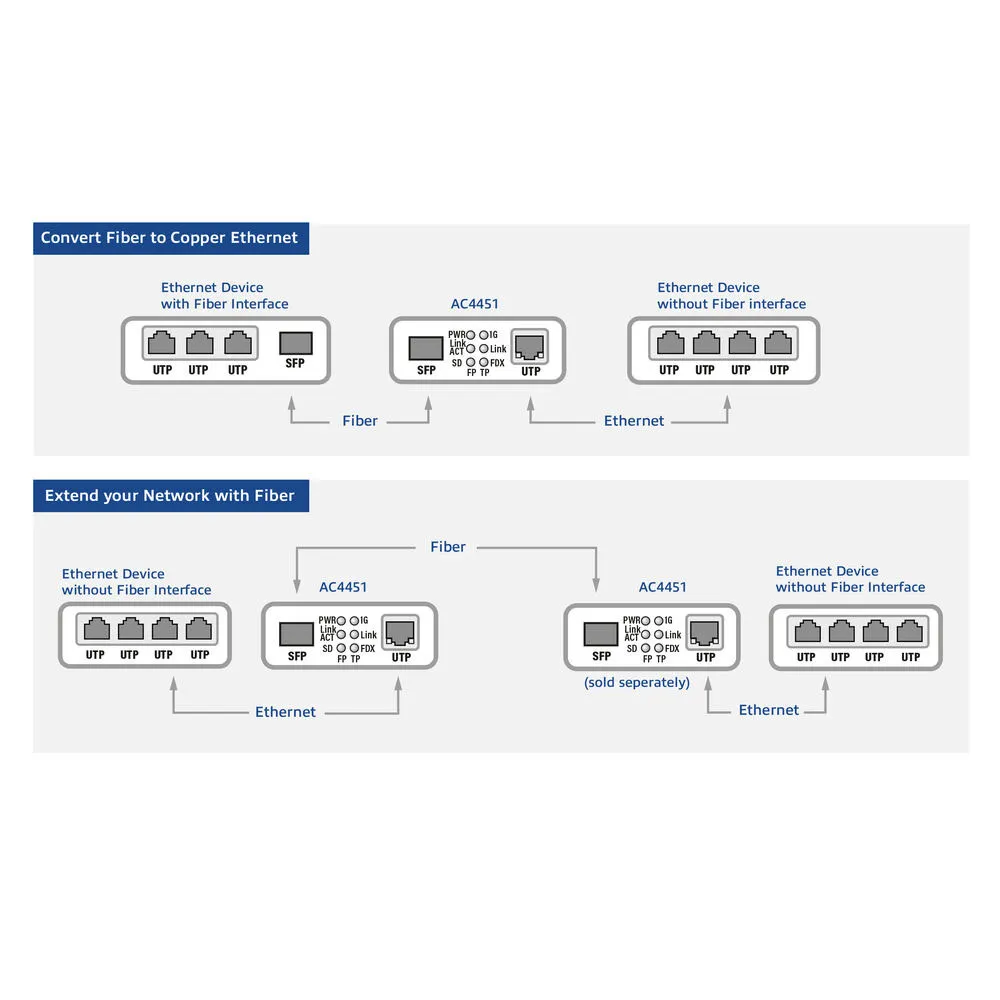

The AC4451 Gigabit Ethernet Media Converter provides a flexible high-performance solution for a fast and easy transition from Gigabit Ethernet over fiber to Gigabit Ethernet over copper (RJ45) and vice versa.

The unmanaged media converter has an open SFP slot for accommodating one singlemode or multimode uncoded SFP transceiver.

Additionally, the Ethernet media converter features Link Fault Passthrough (LFP) for detecting link failures.

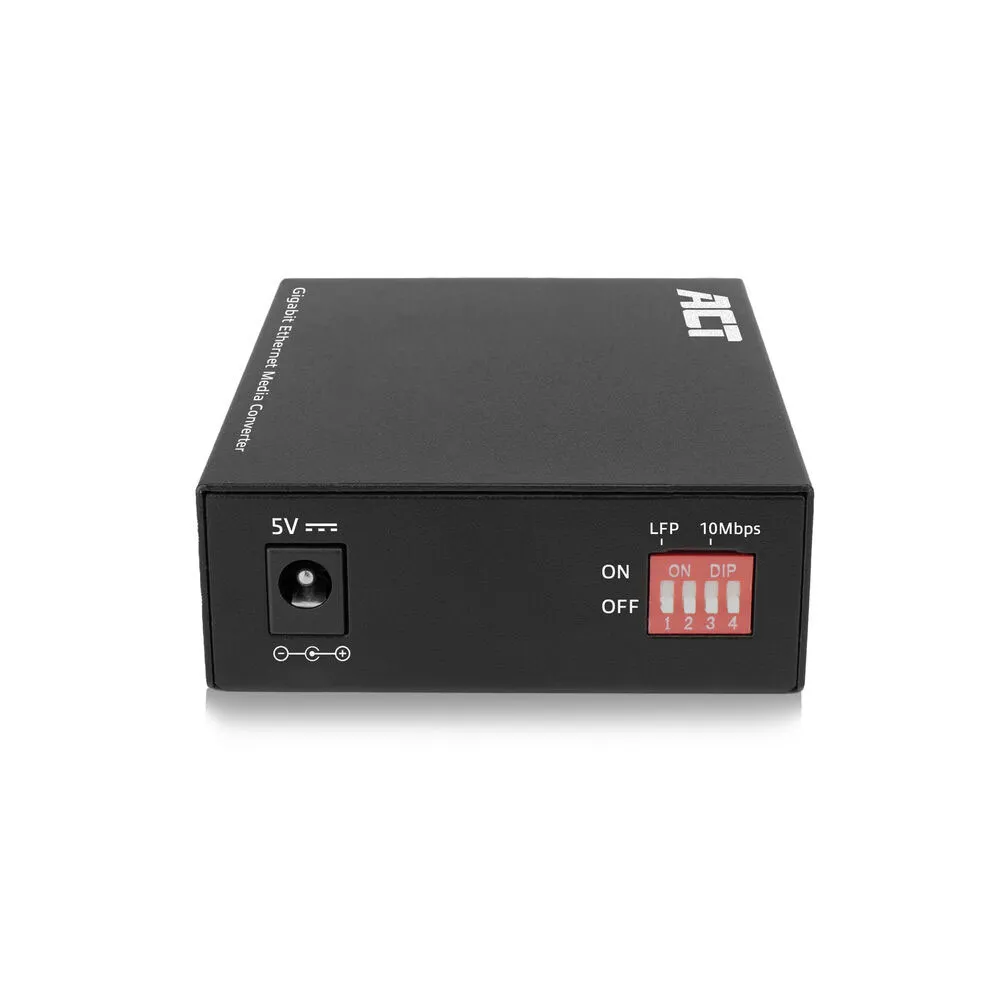

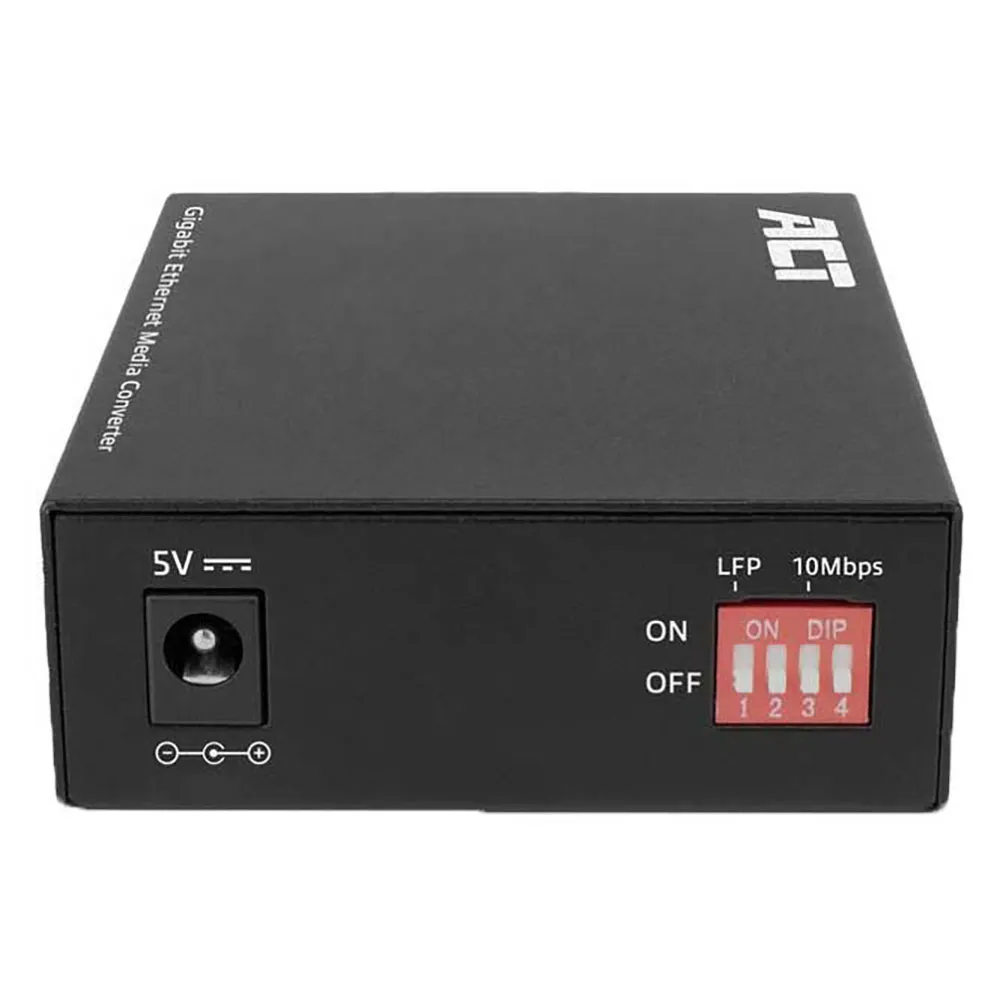

Different work modes can be set by the on-board dip switches.

Features:

- Gigabit Media Converter for converting Gigabit Ethernet over fiber to Gigabit Ethernet over copper (RJ45) - Converts Gigabit Ethernet over copper (RJ45) to Gigabit Ethernet over fiber - Suited for one singlemode or multimode Uncoded SFP transceiver - Link Fault Passthrough (LFP) support - Auto-negotiation support - Compact metal housing Specifications:

- Coding:

Uncoded - Fiber type:

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX - Weight:

171 g - Material:

Metal - Chipset:

Realtek RTL8213B - Power supply:

External power supply - Power supply specification:

5.0V-1.0A - Included:

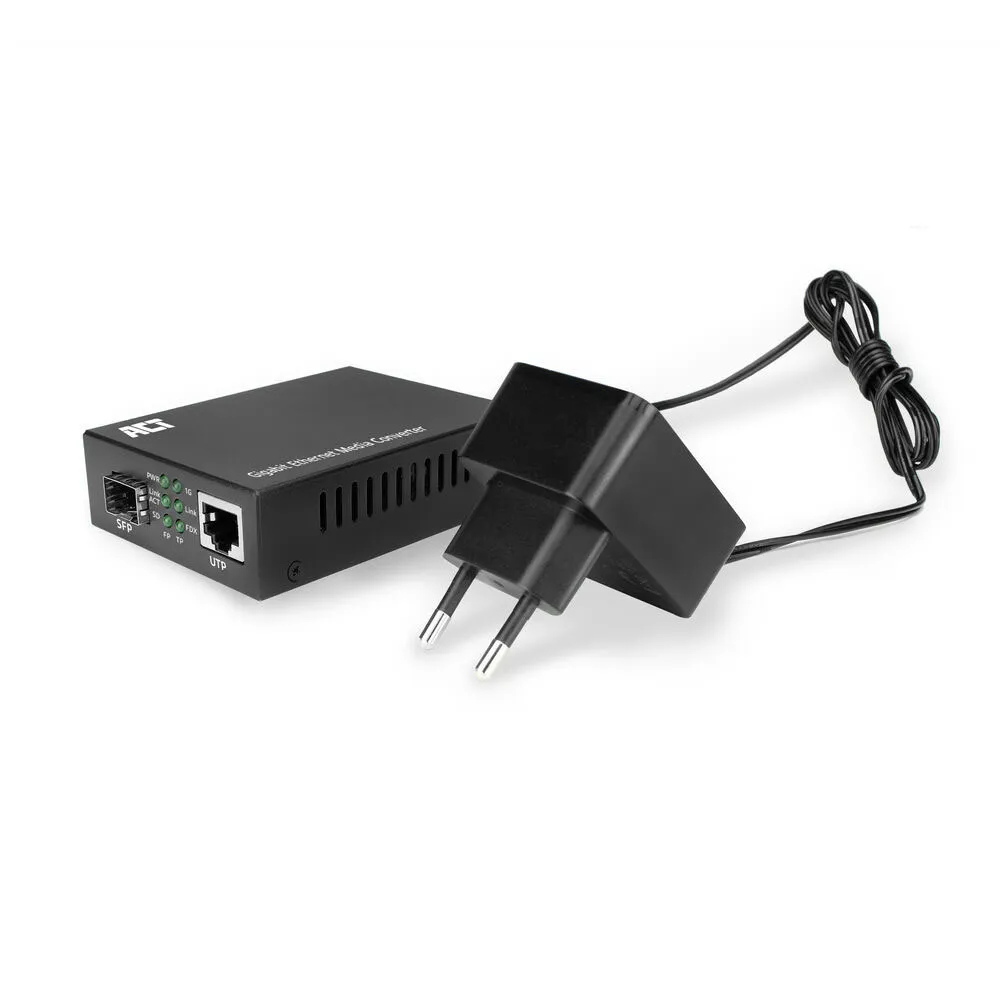

Power adapter - Operating temperature:

0 to 60 °C - Dimerisions:

70 x 26 x 97 - Standard:

Complies with 802.3ab 1000Base-T, 802.3z 1000Base SX/LX - Function:

Convert Gigabit Ethernet to Fiber via SFP - Ethernet type:

1000Base-T, Auto-negotiation, Auto-crossing - Ports:

1x Gigabit ethernet, 1x SFP (uncoded) - Storage temperature:

-20 to 70 °C - LED:

FDX, Power, Speed, Activity, Link - Switching method:

Dip switches:

LFP, 10Mbps.
