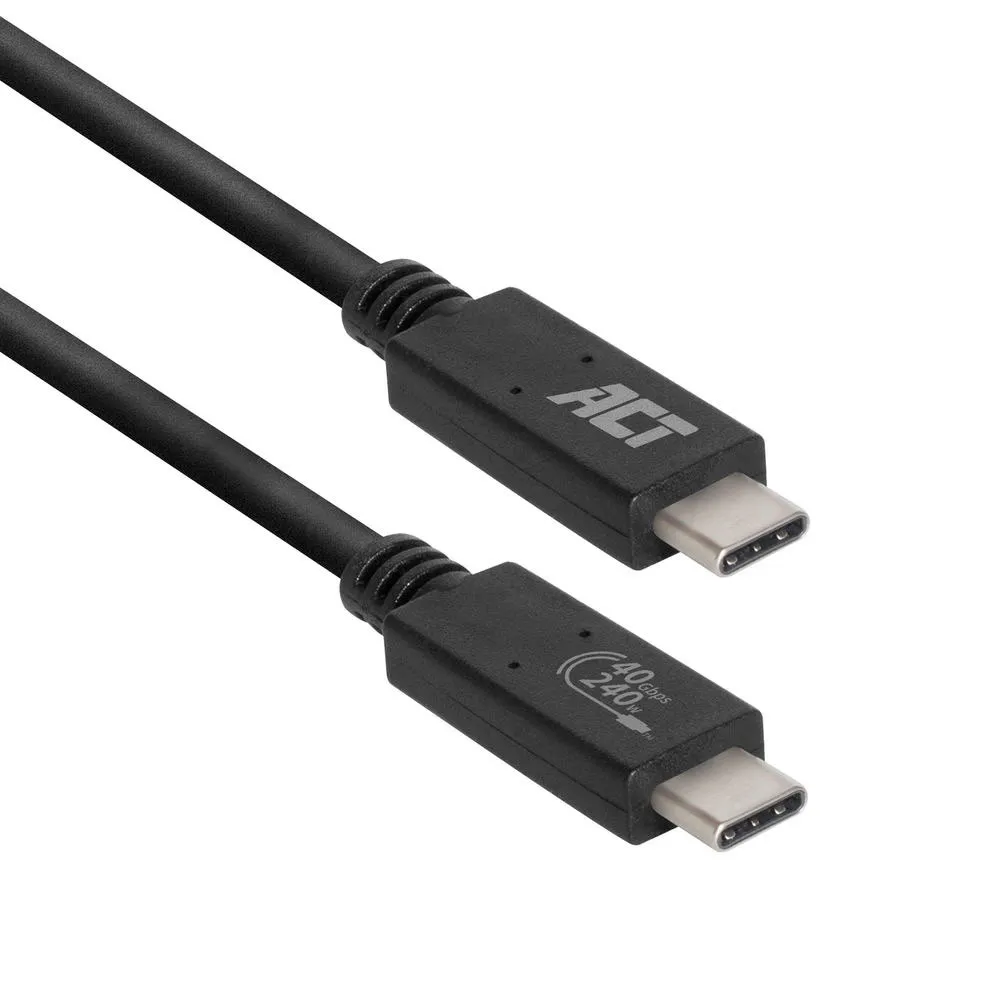

Act AC7451 USB-C cable 0.8 m

USB4® 40Gbps.

Thunderbolt™3/4.

EPR 240W.

USB-IF certified.

Officially USB-IF certified USB4® connection cable with Thunderbolt™4 support.

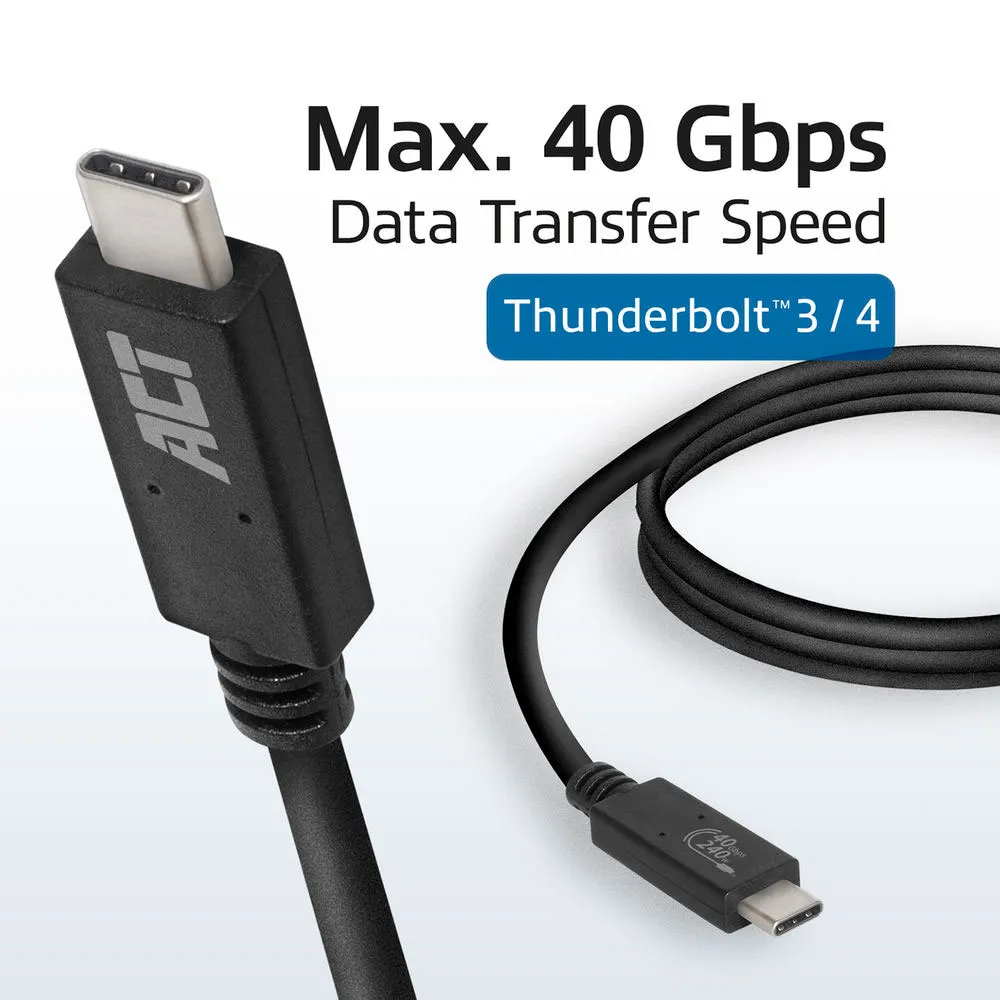

Data transfer speed up to 40Gbps.

Extended Power Range (EPR) up to 48V @ 5A = 240W.

Maximum video resolution:1x 8K @ 60Hz or 2x 4K @60Hz.

Connectors:C male.

-C male.

Cable length:0.8 meters.

Backwards compatible with Thunderbolt™3, USB 3.2 and USB 2.0.

The AC7451 is an official USB-IF certified USB-C cable that supports the USB4® protocol and Thunderbolt™4.

The USB4® cable can reach a maximum data transfer speed up to 40Gbps and can handle 240W power because of the Extended Power Range.

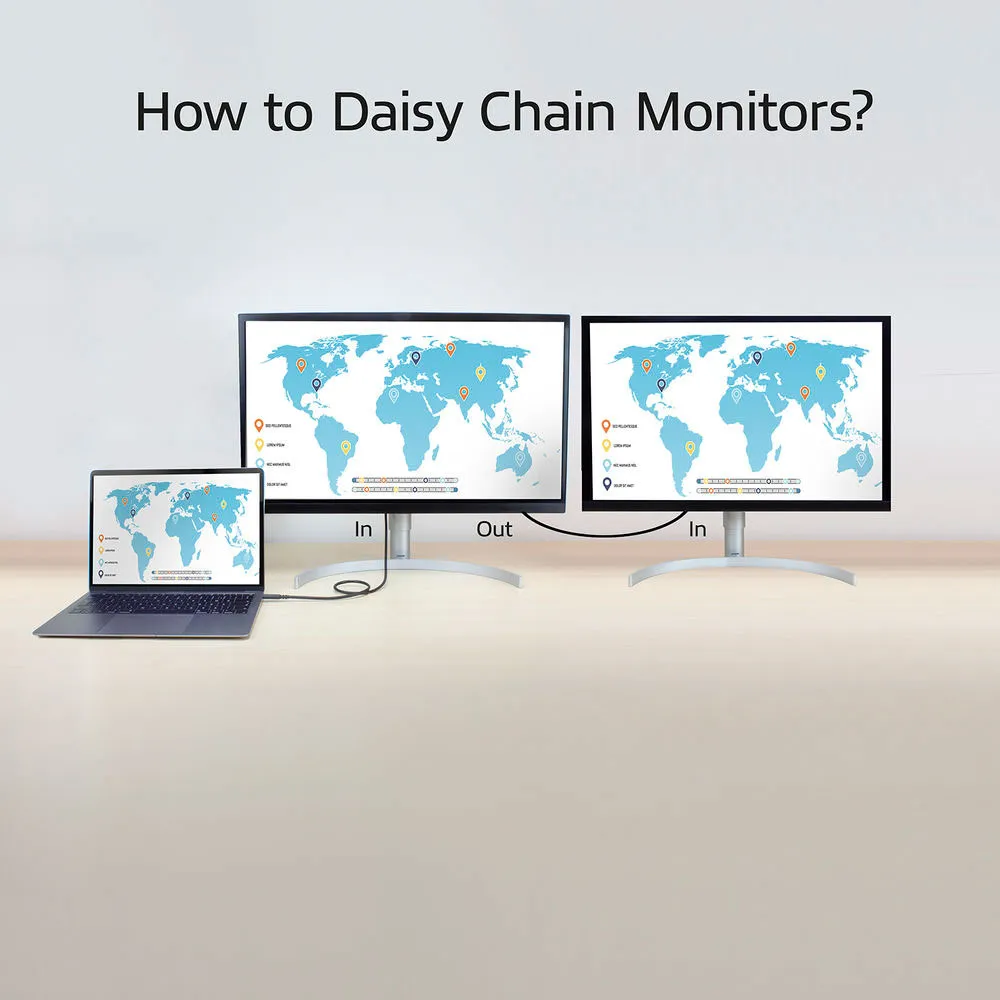

The AC7451 supports a maximum resolution of one 8K monitor or two 4K monitors in daisy chain mode.

Backwards compatible with Thunderbolt™3, USB 3.2 and USB 2.0.

Fast data, high power and video via ONE USB4® cable.

The AC7451 includes an intelligent e-marker chip.

This chip communicates with the connected devices, e.g.

laptop or charger, which features are supported by the cable.

The AC7451 can handle data, power and video.

USB4® 40Gbps and Thunderbolt™4 support.

The AC7451 USB-C cable includes the USB4® technology with Thunderbolt™4.

The cable supports a maximum data transfer speed up to 40Gbps.

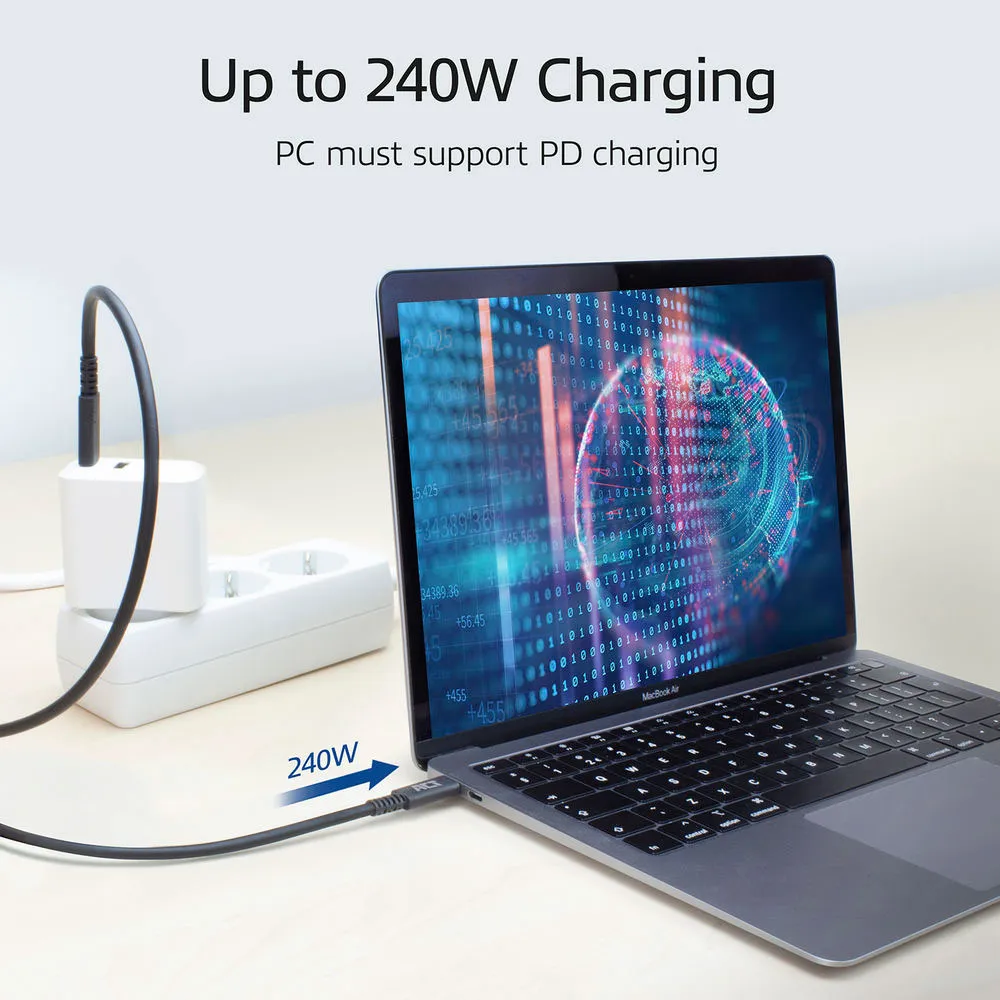

Power Delivery:Extended Power Range 240W.

The EPR adds additional Power Delivery profiles, 28V, 36V and 48V, to the USB4® cable.

The AC7451 includes the 48V profile that enables the cable to transfer a maximum power of 240W.

As cables with SPR (Standard Power Range) only can deliver 60W.

DisplayPort Alternate Mode protocol.

The USB4® cable supports the DisplayPort Alternate Mode (DP Alt Mode) protocol to distribute video over USB-C.

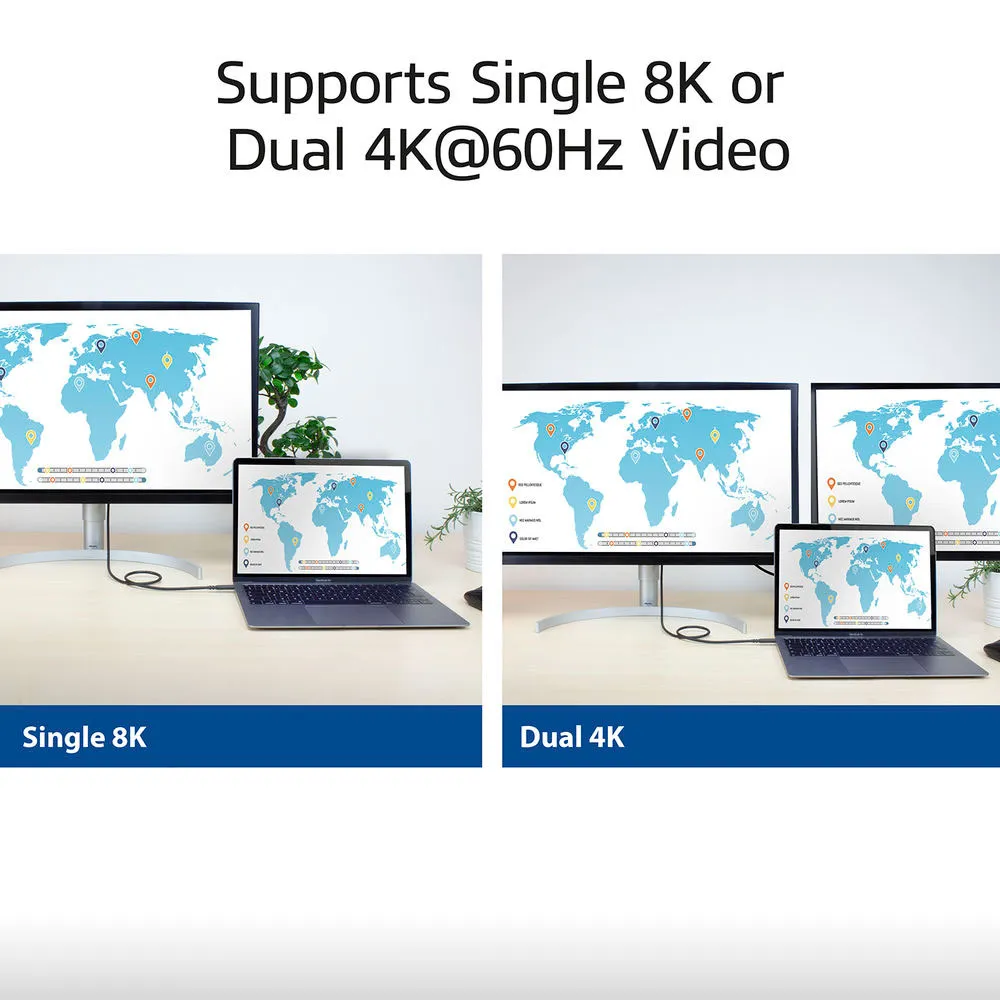

The AC7451 has a maximum resolution of one 8K @ 60Hz monitor or two 4K @ 60Hz monitors in the daisy chaining setup.

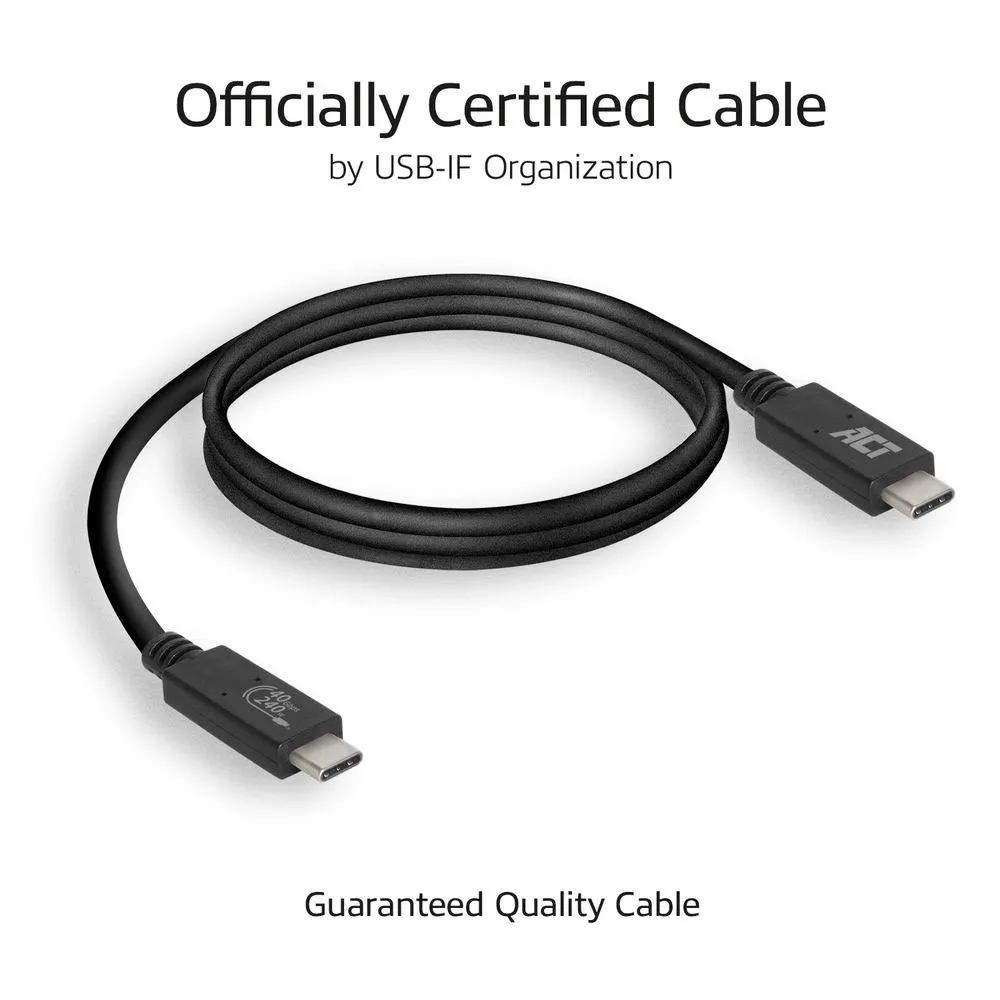

Officially USB-IF certified.

The AC7451 is officially certified by the USB-IF corporation.

The cable is tested to the highest standards by USB-IF.

The official USB-IF logo can be found on the connector.

ACT is member of the USB Implementers Forum, Inc.

Brand:ACT.

Product category:Cables / USB.

Cable length:0.8 m.

USB Type-C:Yes.

Connector type:USB.

Connector A:USB C male (x1).

Connector B:USB C male (x1).

Shielding type:Aluminum Mylar, Braid.

Conductor material:Tinned copper.

Wire gauge:23, 30, 34 AWG.

Outer jacket:PVC.

Outer diameter:4.95 mm.

Cable colour:Black.

Max.

Power Delivery power:240 W.

Supported Power Delivery profiles:12.0V up to 5.0A, 15.0V up to 5.0A, 20.0V up to 5.0A, 28.0V up to 5.0A, 36.0V up to 5.0A, 48.0V up to 5.0A, 5.0V up to 5.0A, 9.0V up to 5.0A.

DP Alt mode version:DP2.1.

Supported USB-C protocols:DisplayPort Alternate mode, Power Delivery (EPR), Power Delivery (SPR), Thunderbolt™ 3, Thunderbolt™ 4, USB Data.

Thunderbolt support:Thunderbolt™ 3, Thunderbolt™ 4.

Max.

resolution @ 30Hz:7680 x 4320.

Max.

resolution @ 60Hz:7680 x 4320.

Max.

resolution @ 120Hz:4096 x 2160.

USB version:USB 4.0.

-SuperSpeed 40 Gbit/s.

Speed:40 Gbps.

Active:No.

Brand item no.:AC7451.

EAN code:8716065501988
