Act DC1902 U/UTP LSZH CAT6a network cable 2 m

CAT6A.

RJ45 straight connector.

RJ45 90° angled left connector.

LSZH.

Cable length:2 meters.

Connectors:RJ45 90° angled left.

-RJ45 straight.

Ideal for situations where space is limited without stressing the bend radius.

Full copper 28AWG wires, 50µ gold-plated RJ45 contacts.

Outer diameter jacket of only 3.6mm to improve airflow in cabinets.

Low Smoke Zero Halogen (LSZH) cable jacket reduces the risk of high concentrations of toxic gases in case of cable damage due to fire or short circuit.

Conforms to international standard ANSI/TIA-568.2-D.

Cables are 100% tested.

5 year warranty.

Colour:Black.

CAT6A U/UTP slimline datacenter patch cables are smaller in diameter (3.6mm vs 5.9mm) than regular CAT6A patch cords.

The bend radius is smaller compared to standard patch cords.

This results in better airflow in the server rack or network cabinet.

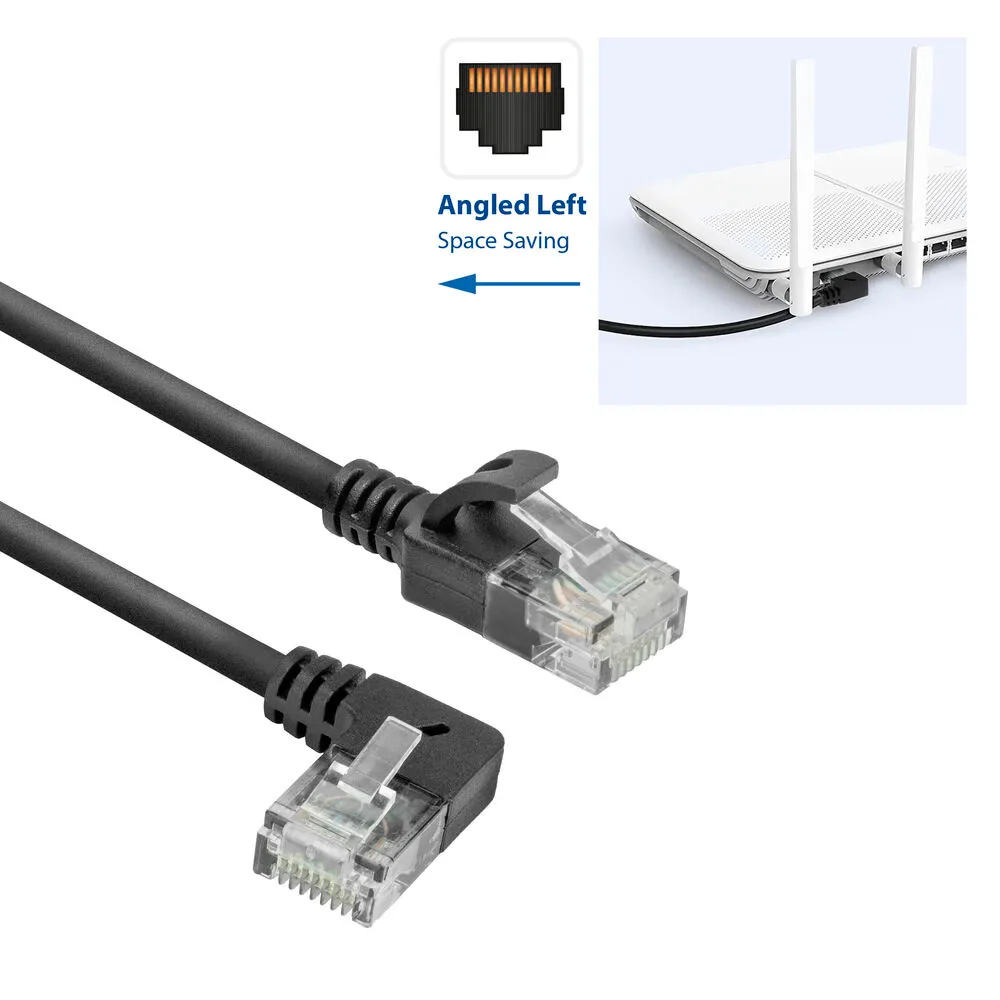

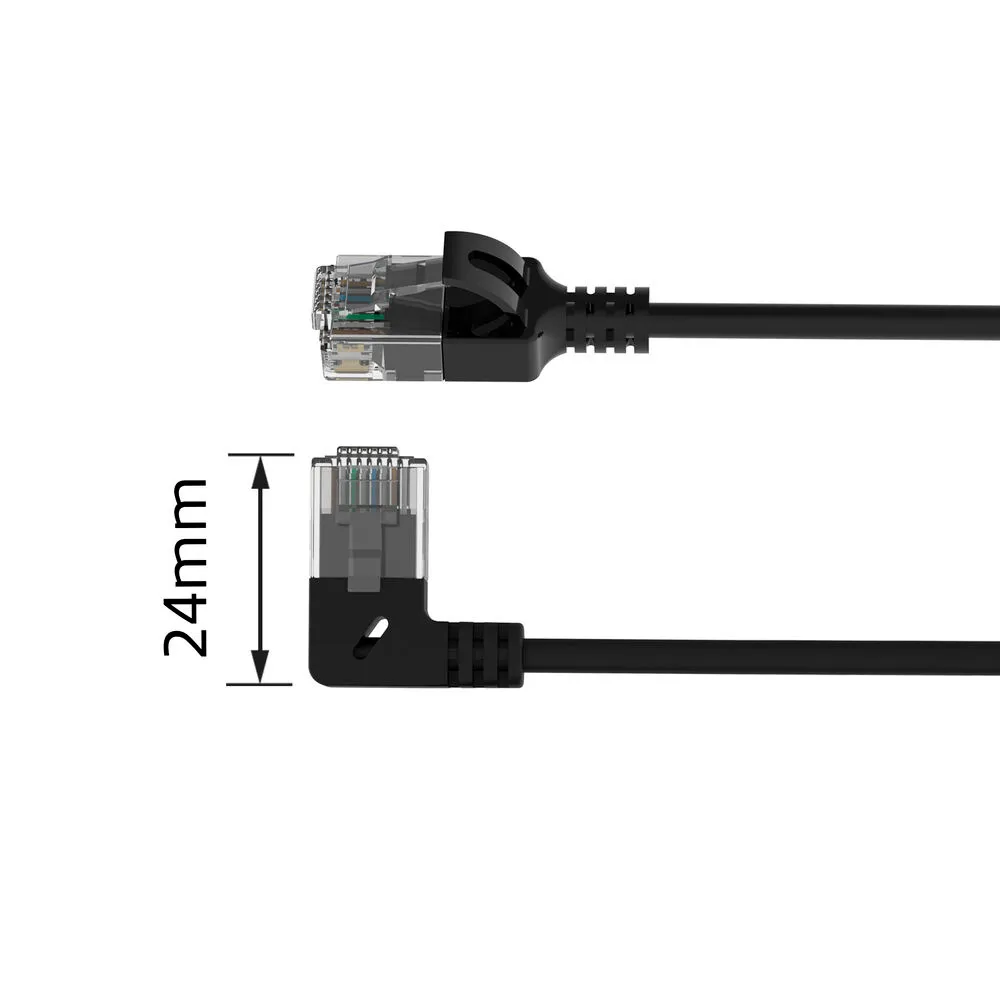

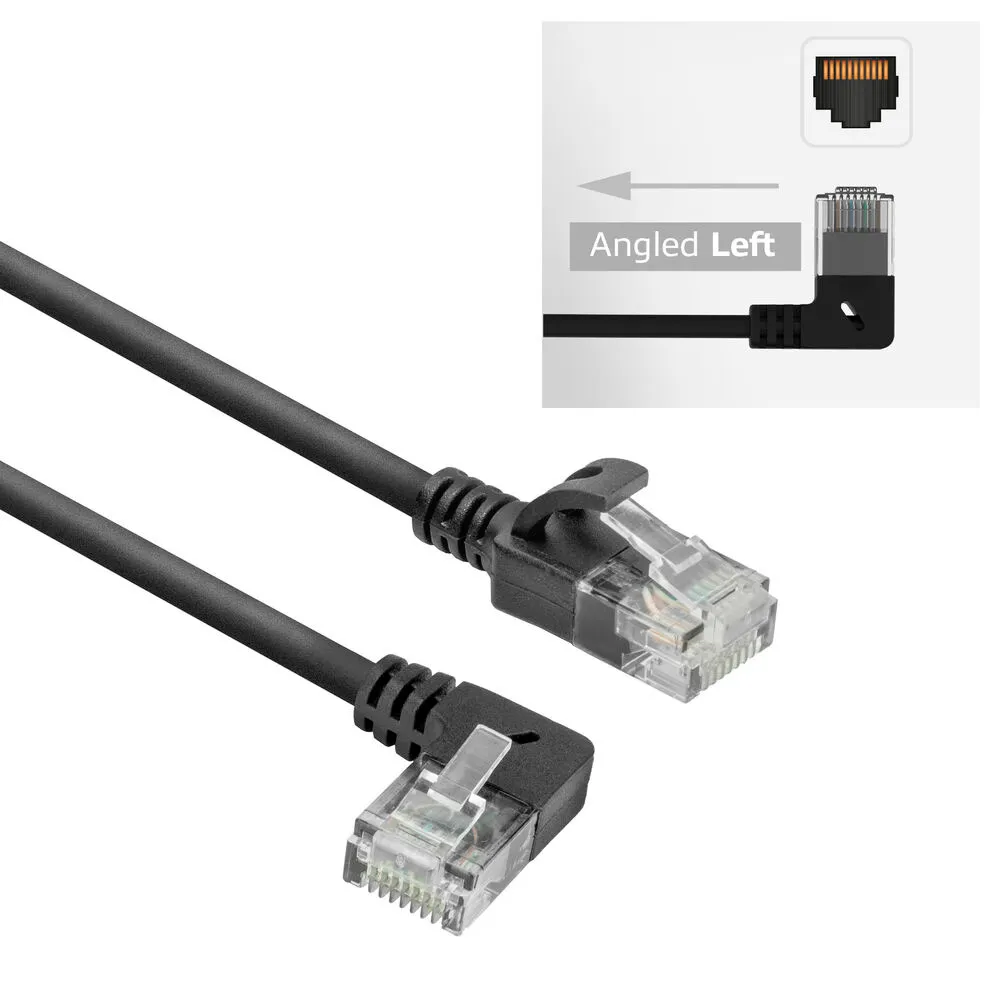

The patch cable has a straight RJ45 connector and a 90° angled left RJ45 connector.

Ideal for situations where space is limited without compromising the bend radius.

For example in network cabinets and behind equipment.

Also available with a 90° angled up, down or right RJ45 connector.

The use of a LSZH (Low Smoke Zero Halogen) cable jacket reduces the risk of high concentrations of toxic gases if the cable is damaged by fire or short circuit.

The ACT U/UTP patch cable has full copper 28AWG wires and 50µ gold-plated RJ45 contacts and complies with the international standard ANSI/TIA-568.2-D.

Brand:ACT.

Product category:Cables / Twisted pair patch / CAT6A U/UTP.

Cable length:2 m.

Connector type:RJ45.

Connector A:RJ45 male (x1).

Connector B:RJ45 male (x1).

Connector contact plating:Gold plated.

Shielding type:U/UTP.

Category:CAT6A.

Conductor material:Copper.

Wire gauge:28 AWG.

Outer jacket:LSZH.

Impedance:100 ?.

Bandwidth:500 MHz.

Cable colour:Black.

Min.

working temperature:-20 °C.

Max.working temperature:60 °C.

Approval:CE.

Brand item no.:DC1902.

EAN code:8716065547115
