Act RL3210 fiber optic cable 10 m

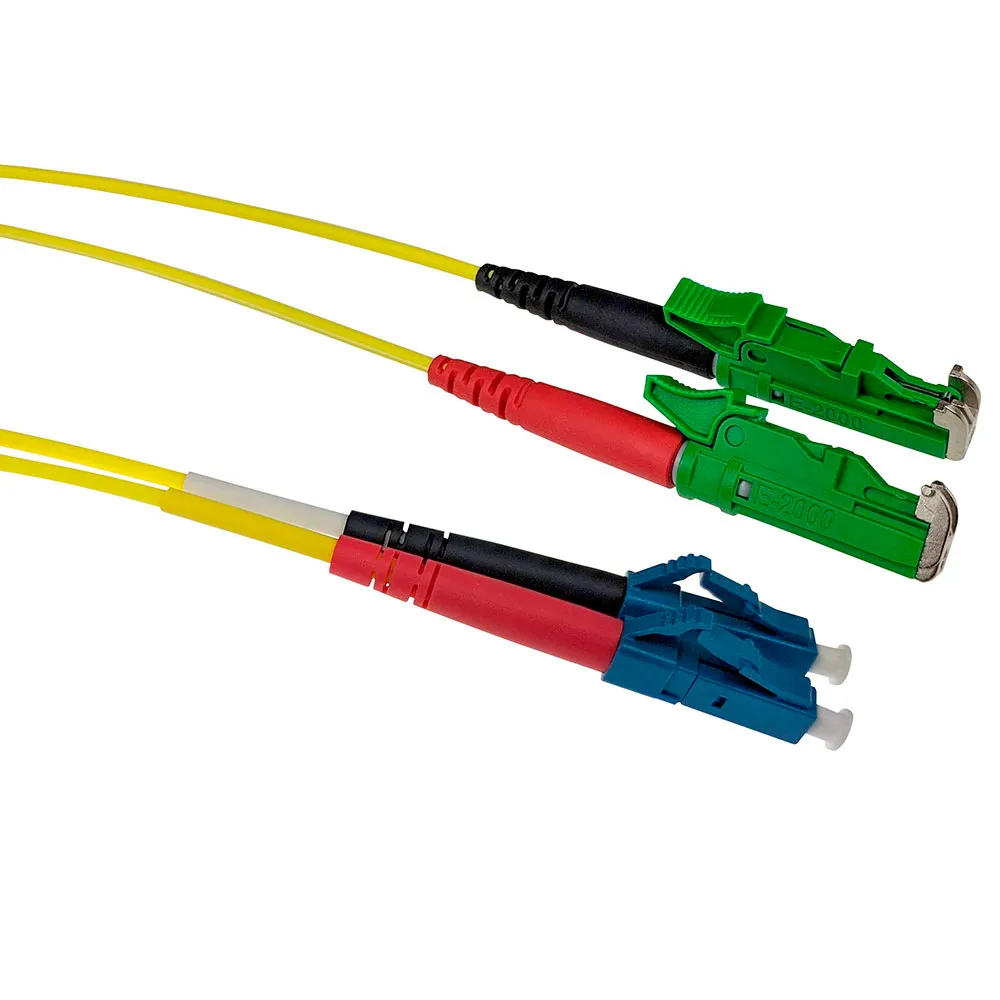

ACT RL3210 10m Singlemode OS2 Fiber Optic Cable | E2000/APC to LC/UPC

Experience superior network performance and unmatched reliability with the ACT RL3210 10-meter Singlemode Optical Fiber Cable. Engineered for high-speed, long-distance data transmission, this duplex patch cable is the definitive solution for demanding network environments, including data centers, enterprise backbones, and telecommunication infrastructures. It provides a robust and future-proof foundation for your critical network connections, ensuring maximum uptime and data integrity.

The core of this cable´s exceptional performance lies in its Singlemode OS2 fiber specification. Designed to carry a single ray of light, it virtually eliminates modal dispersion, allowing for significantly higher bandwidth and greater transmission distances compared to multimode alternatives. This makes it the ideal choice for 10G, 40G, and 100G Ethernet applications, ensuring your network is ready for the data demands of today and tomorrow.

One of the standout features of the RL3210 is its advanced connector configuration. The E2000/APC (Angled Physical Contact) connector is renowned for its premium performance and protective design. It features an integrated, spring-loaded shutter that automatically closes when disconnected, shielding the ferrule from dust, dirt, and accidental damage. This innovative feature helps maintain a pristine connection surface, ensuring consistently low insertion loss and excellent return loss for a stable, high-quality signal. The angled polish further minimizes back reflection, which is critical for sensitive applications like analog video and carrier-grade wavelength-division multiplexing (WDM) systems.

On the opposing end, the industry-standard LC/UPC (Lucent Connector/Ultra Physical Contact) connector offers high-density, reliable connectivity, making it perfect for patching into high-port-count switches, transceivers, and patch panels. Its compact form factor allows for more connections in a smaller space without sacrificing performance.

Safety is paramount in any installation, and this cable addresses it with a Low Smoke Zero Halogen (LSZH) jacket. In the event of a fire, this material emits very low levels of smoke and no toxic halogen compounds, making it a mandatory requirement for enclosed or poorly ventilated areas such as data centers, central offices, and public buildings, safeguarding both personnel and sensitive equipment.

Every ACT RL3210 cable is a testament to uncompromising quality. Each cable is individually tested and ships with its own test report detailing its specific Insertion Loss (IL) and Return Loss (RL) values. Furthermore, every connector end-face is 100% inspected to guarantee it is free from defects, providing you with absolute confidence in its performance right out of the package.

Optical fiber

ACT 10 meter LSZH Singlemode 9/125 OS2 fiber patch cable duplex with E2000/APC and LC/UPC connectors.

Cable length:10 m, Fibre optic type:OS2, Connector 1:2x E-2000 (LSH), Connector 2:LC, Core diameter:9 µm, Full duplex.

E2000 connector (R304406) with shutter for protection of the ferrule from dust and damaging Individual test report each cable on IL and RL End-face 100% inspected.

Technical Specifications
