Act RL3252 E2000/APC-LC/UPC fiber optic cable 2.5 m

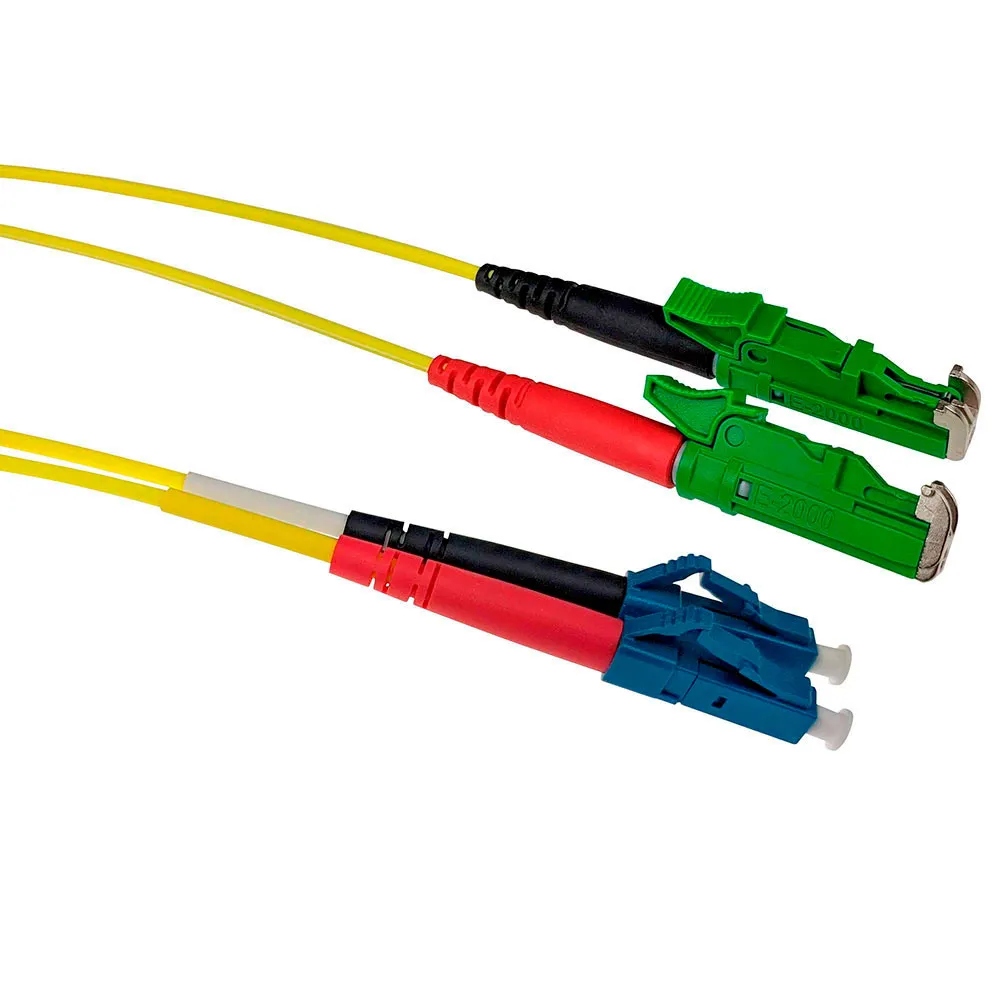

ACT RL3252 E2000/APC to LC/UPC Singlemode Duplex Fiber Optic Cable - 2.5m

Experience unparalleled connectivity and steadfast reliability with the ACT RL3252 E2000/APC to LC/UPC Fiber Optic Cable. Engineered for high-performance network environments, this 2.5-meter duplex patchcord provides a robust and stable link for your critical data transmission needs. Designed for professionals who demand maximum uptime and pristine signal integrity, this cable is the ideal choice for connecting high-speed networking equipment within data centers, enterprise networks, and telecommunication infrastructures.

Key Benefits
* Superior Protection and Durability: The state-of-the-art E2000 connector features an integrated, spring-loaded shutter that automatically covers the ferrule when disconnected. This innovative design offers unparalleled protection against dust, dirt, and accidental scratches, ensuring a clean and perfect connection every time and significantly extending the lifespan of the cable.
* Guaranteed Performance and Reliability: Peace of mind comes standard. Each individual cable undergoes rigorous, 100% end-face inspection and is supplied with its own unique test report. This report validates the Insertion Loss (IL) and Return Loss (RL) values, guaranteeing that the cable you receive meets and exceeds stringent quality standards for immediate, out-of-the-box performance.
* Exceptional Signal Integrity: With an exceptionally low average Insertion Loss (IL) of just 0.12 dB and a high minimum Return Loss (RL) of 55 dB, this cable ensures minimal signal degradation and back reflection. This translates to a stronger, more stable signal over the length of the cable, reducing data errors and maximizing network throughput for even the most demanding applications.
* Optimized for High-Speed Networks: Built with Singlemode OS2 optical fiber, this patchcord is perfectly suited for long-reach, high-bandwidth applications. It is the gold standard for 10G, 40G, and 100G Ethernet, providing the performance needed to support today´s and tomorrow´s networking requirements.
* Enhanced Safety Standards: The cable is constructed with a Low Smoke Zero Halogen (LSZH) outer jacket. In the event of a fire, this material emits very low levels of smoke and no toxic halogen compounds, making it a safer and compliant choice for installation in densely populated or poorly ventilated areas like data centers and office buildings.

Main Features
* High-performance Duplex Singlemode OS2 Optical Fiber
* E2000/APC to LC/UPC connector configuration for versatile connectivity
* Integrated protective shutter on the E2000 connector to safeguard the ferrule
* Every cable is 100% end-face inspected for quality assurance
* Includes an individual test report verifying Insertion Loss and Return Loss
* Durable and flexible 2 mm outer diameter with a safety-rated LSZH jacket

Technical Specifications

E2000 connector (R304406) with shutter for protection of the ferrule from dust and damaging.

Individual test report each cable on IL and RL.

End-face 100% inspected.

Brand: ACT.

Product category: Cables / Fiber optic patch / Duplex.

Cable length: 2.5 m.

Connector type: E2000, LC.

Connector A: E2000 male (x2).

Polishing A: APC8.

Connector B: LC male (x2).

Polishing B: UPC.

Clipped: None.

Fiber cable: Patchcord.

Fiber type: Singlemode.

Category: OS2.

Number of fibers: 2.

Core diameter: 9/125 µm.

IL (max.): 0.25 dB.

IL (avg.): 0.12 dB.

RL (min.): 55 dB.

Outer jacket: LSZH.

Outer diameter: 2 mm.

Cable colour: Yellow.

Min. working temperature: -20 °C.

Max. working temperature: 60 °C.

Brand item no.: RL3252.

EAN code: 8716065436471
