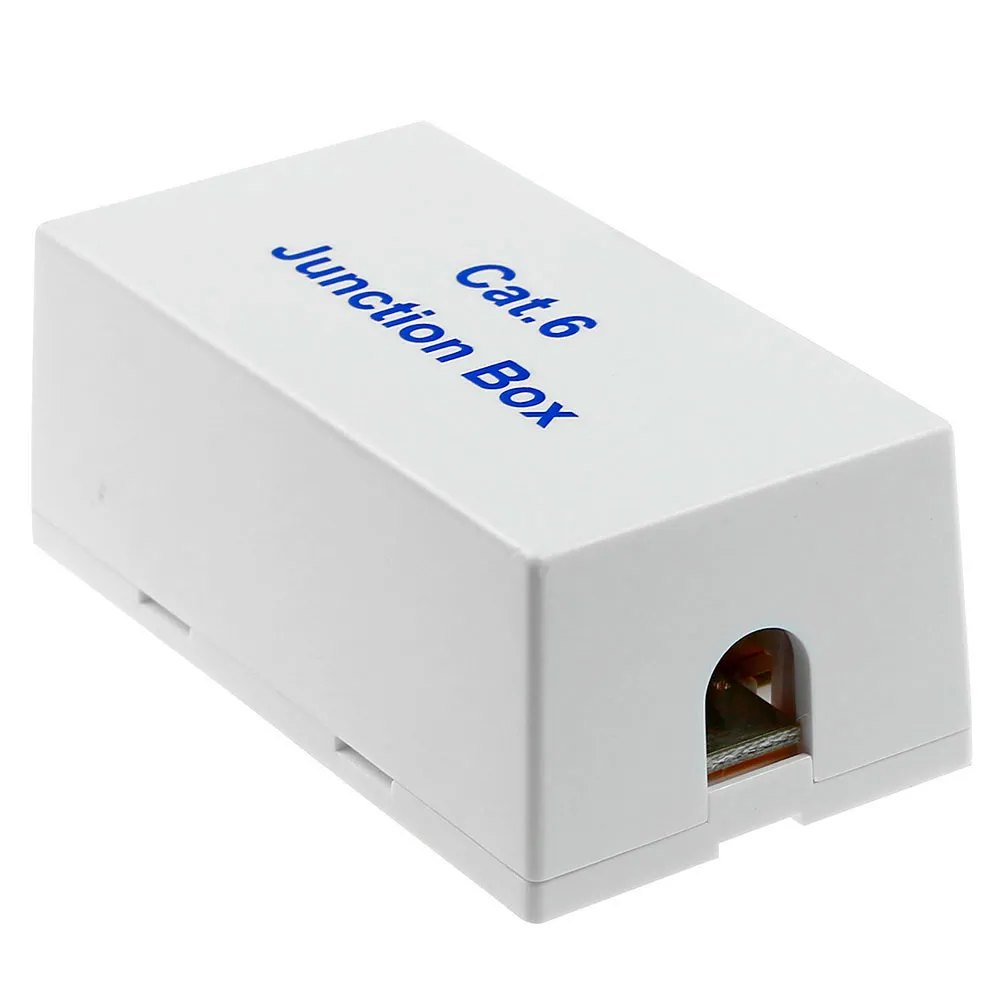

Act SD6021 CAT6 coupler RJ45

ACT SD6021 CAT6 RJ45 IDC Coupler | Extend & Repair Network Cables

Effortlessly extend, repair, or create a reliable connection point in your CAT6 network infrastructure with the ACT SD6021 CAT6 RJ45 IDC Coupler. This high-performance modular coupler is the professional´s choice for creating a permanent, robust link between two CAT6 network cables without compromising signal integrity or speed. Ideal for situations where a cable run is too short or a segment has been damaged, the SD6021 saves you the significant time, effort, and cost associated with pulling an entirely new cable.

Designed for superior durability and long-term performance, this coupler features a sturdy metal housing that provides excellent physical protection and EMI/RFI shielding for the connection point, making it suitable for demanding environments. Unlike simple plug-in couplers that can introduce signal loss and become points of failure, the SD6021 utilizes Insulation-Displacement Connection (IDC) termination. This method ensures a secure, gas-tight connection by pressing the solid or stranded conductors directly into the terminals, creating a stable, low-resistance link that maintains the high standards required for Gigabit Ethernet and beyond.

Key Benefits:

* Cost-Effective Cable Management: Provides a simple and effective solution to extend existing CAT6 cable runs or repair damaged sections, eliminating the need for complete cable replacement.
* Superior Connection Reliability: Utilizes IDC termination for a permanent and mechanically stable connection that far surpasses standard female-to-female couplers, minimizing signal degradation and ensuring peak network performance.
* Durable and Robust Construction: The full metal housing offers enhanced durability and protection against physical impact and electromagnetic interference, ensuring a long service life even in challenging installation environments.
* Versatile and Installer-Friendly: Engineered for maximum compatibility, it supports a wide range of wire gauges and types and is compatible with the most common termination tools, streamlining the installation process for any professional or DIY enthusiast.

Main Features:

* CAT6 Performance: Fully compliant with CAT6 standards, supporting data transfer speeds up to 1 Gigabit per second and a bandwidth of 250 MHz, ensuring your network runs at its full potential.
* Broad Wire Compatibility: Designed to accept both solid and stranded core network cables, offering flexibility for various cabling types and applications. It accommodates wire gauges from 26 AWG to 22 AWG.
* Unshielded (UTP) Design: Specifically designed for use with unshielded twisted pair (UTP) CAT6 cables, the most common type used in office and home networks.

Tools

This coupler is designed for termination using a standard punch-down tool.
* IDC compatible with 110 & Krone tool.

Technical Specifications
* Brand: ACT
* Brand item no.: SD6021
* EAN code: 8716065261707
* Product category: Connectors / Modular couplers
* Category: CAT6
* Termination type: IDC
* Housing material: Metal
* Shielded: No
* Min. wire gauge: 26 AWG
* Max. wire gauge: 22 AWG
* Compatible wire type: Solid, Stranded (litze)
