Act TD09F8 Adapter

ACT TD09F8 D-sub to RJ12/RJ45 Adapter: Customizable Tool-less Serial Connectivity

Elevate your connectivity solutions with the ACT TD09F8 Adapter, an ingeniously designed device engineered for maximum flexibility and reliability in professional environments. This adapter is the ultimate tool for network engineers, IT technicians, and industrial system integrators who require custom-wired serial or console connections without the complexity of soldering or carrying multiple single-purpose adapters. It masterfully bridges the gap between legacy D-sub serial interfaces and modern modular RJ-style connectors, offering a streamlined, field-configurable solution for a vast array of applications.

The core of its innovative design is a unique D-sub Connector to RJ-12 / RJ-45 female Connector adapter in one housing. This dual-purpose functionality allows you to connect to a wide range of devices using either standard six-position (RJ-12) or eight-position (RJ-45) modular plugs, significantly reducing the number of different adapters needed in your toolkit and simplifying inventory management.

Unlock Unprecedented Flexibility and Control

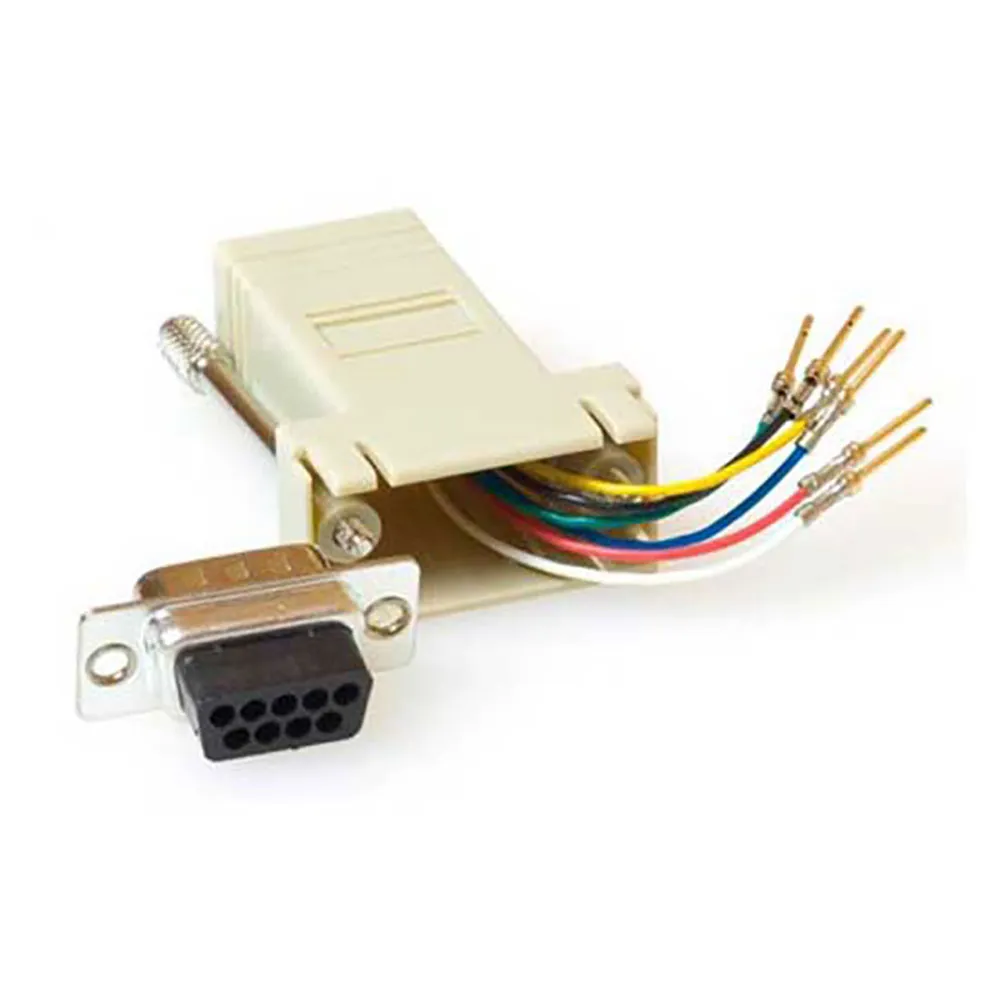

The standout benefit of the TD09F8 is its revolutionary approach to pinout configuration. While the wiring at the RJ-12 / RJ-45 female side is fixed for stability and consistency, the true power lies at the D-sub end. The individual wire-ends have pre-attached crimp contacts, which could be placed in the desired position of the D-sub connector without any tools. This means you can create any custom straight-through, crossover, or null modem pinout on the fly, perfectly matching the requirements of your specific console port, modem, sensor, or other serial equipment. This tool-less system saves invaluable time during installation, troubleshooting, and prototyping.

Engineered for Secure and Reliable Performance

Connection integrity is paramount in any critical system. To ensure a stable, uninterrupted data link, the robust housing has locking screws for firmly attaching the D-sub end. These thumbscrews provide a secure mechanical connection to the target device, preventing accidental disconnections caused by vibration, tension, or movement. This feature makes the TD09F8 ideal for use in industrial settings, server racks, and any environment where a rock-solid connection is non-negotiable.

Main Features
* Dual-Port Versatility: Features a single housing that accommodates both RJ-12 and RJ-45 female connectors, providing broad compatibility with various modular cables.
* Tool-less D-sub Pin Configuration: Allows for rapid and effortless custom pinout creation by simply inserting the pre-crimped wire contacts into the desired D-sub pin positions.
* Secure Locking Mechanism: Equipped with integrated locking thumbscrews on the D-sub connector to ensure a firm, stable, and vibration-resistant physical connection.
* Streamlined Field Service: Empowers technicians to create custom serial adapters on-site, eliminating the need for pre-made cables and reducing downtime.
* Compact and Durable Design: Built within a sturdy, compact housing that is easy to handle and durable enough for repeated use in demanding professional scenarios.
---
Technical Specifications
* Product Category: Devices
* Product Subcategory: Connectivities
* Product Type: Adapters
* Model: ACT TD09F8
* Connector Side A: D-sub 9-pin (DB9) with user-configurable pins
* Connector Side B: Combo RJ-12 / RJ-45 Female Port
* Pin Assignment: User-definable via repositionable, tool-less crimp contacts
* Locking Mechanism: Dual locking thumbscrews for D-sub connector
