Act TD106 RJ12 head

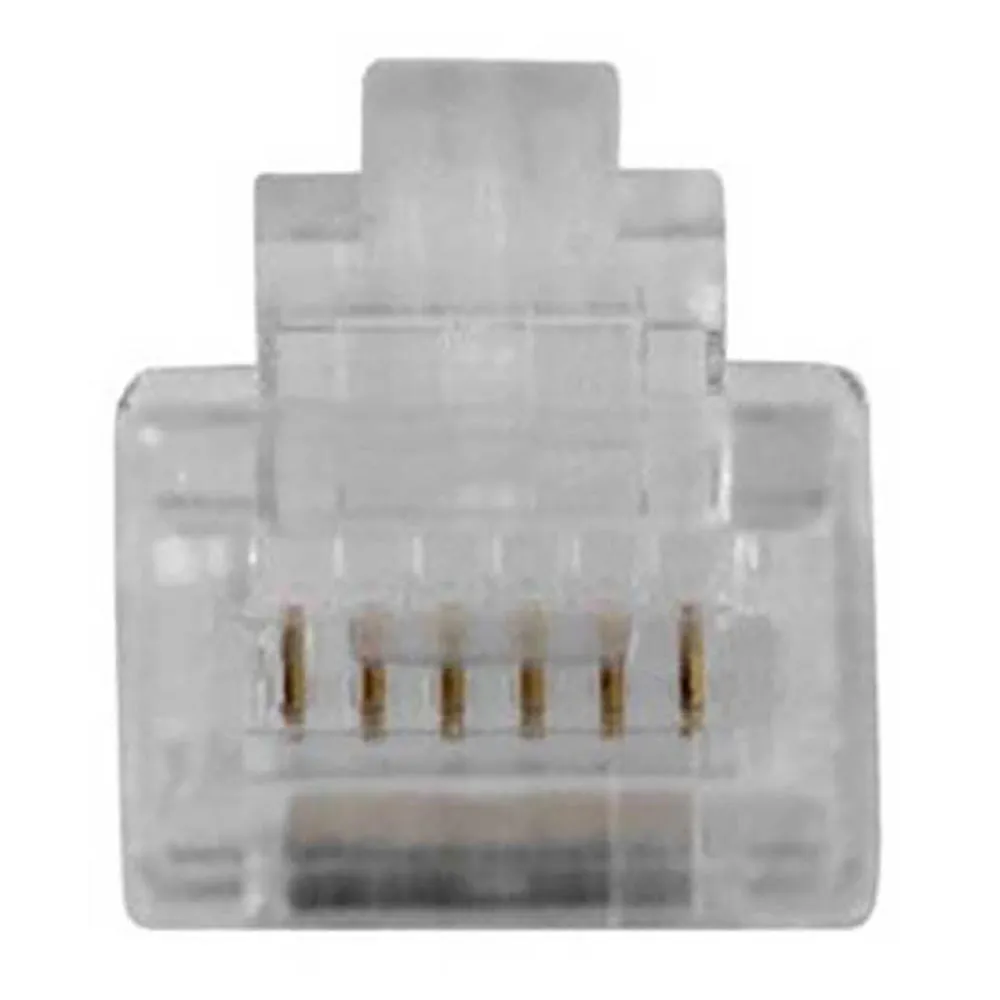

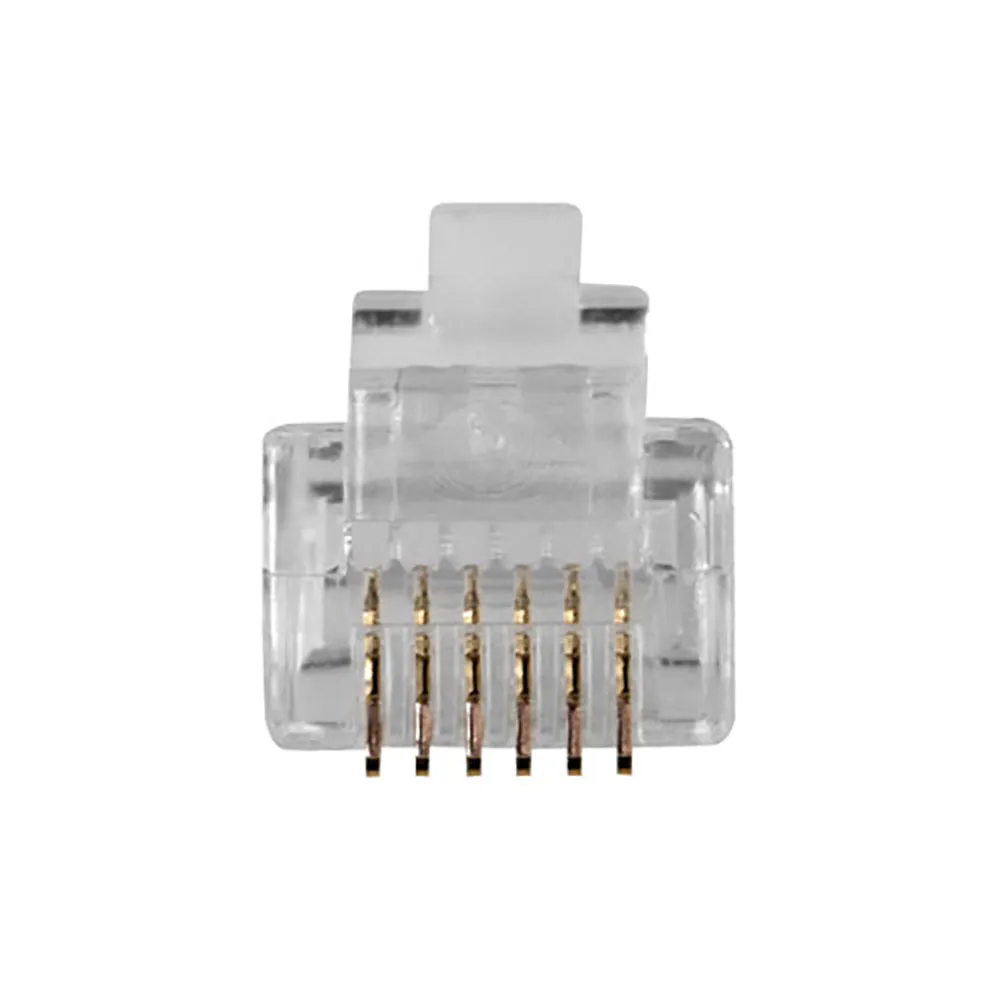

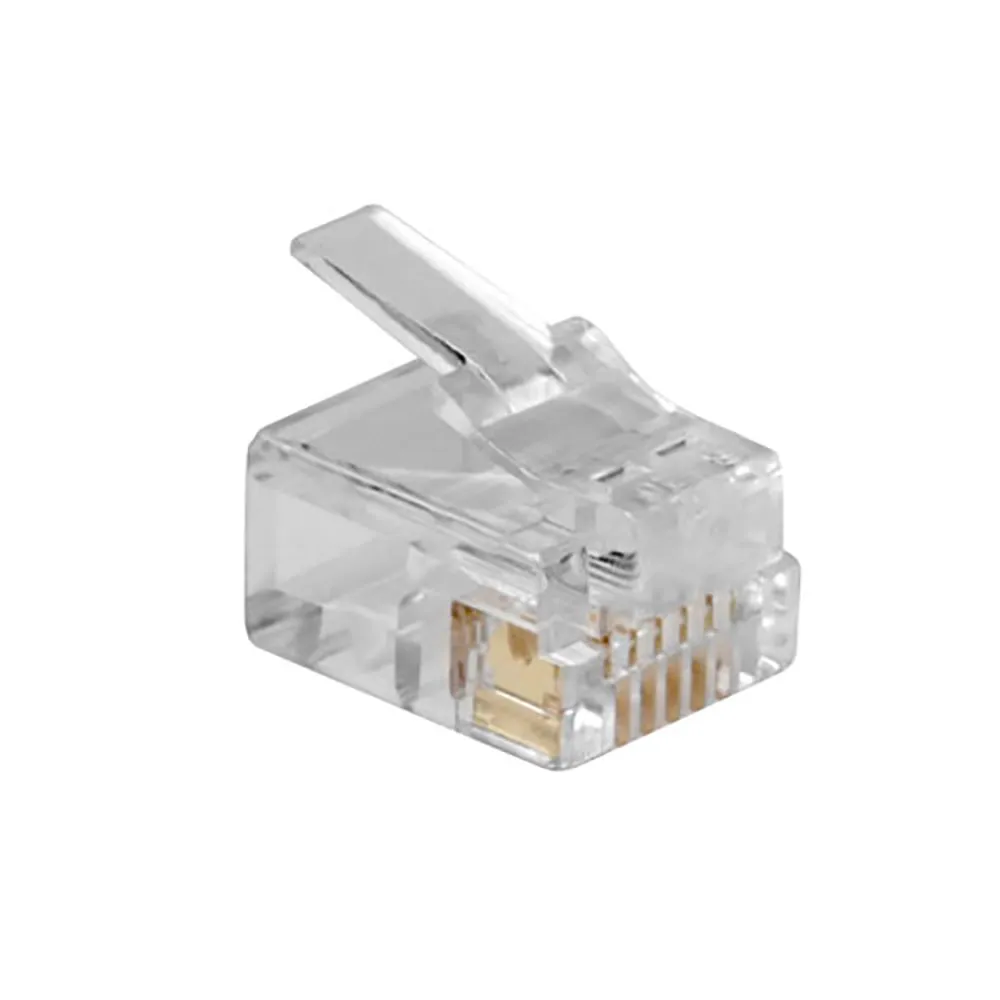

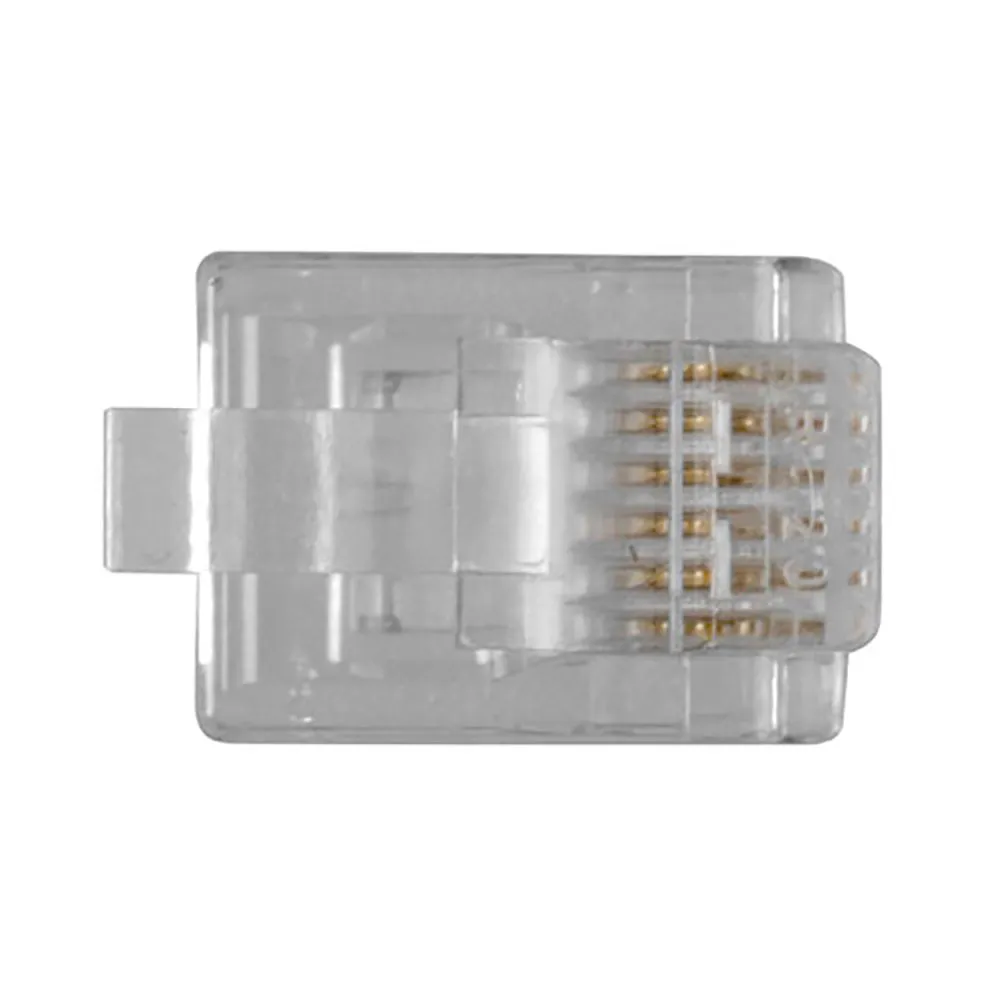

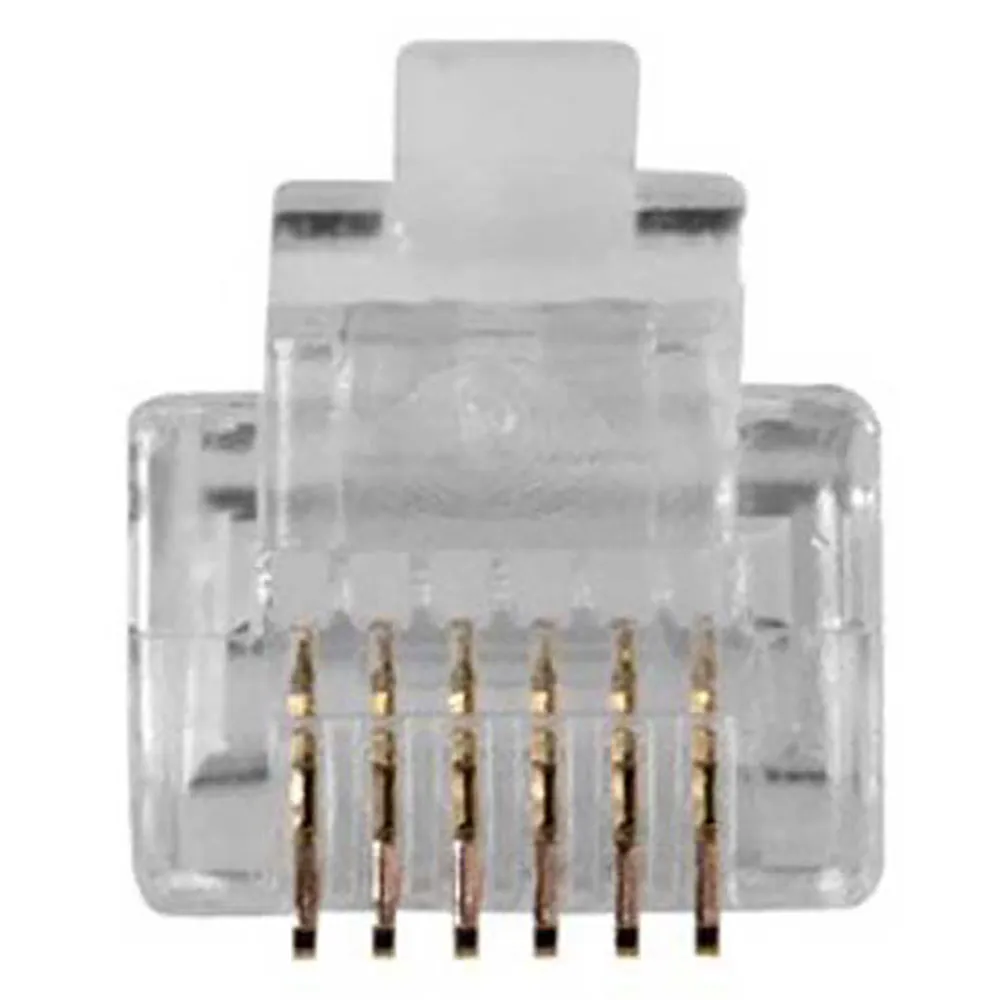

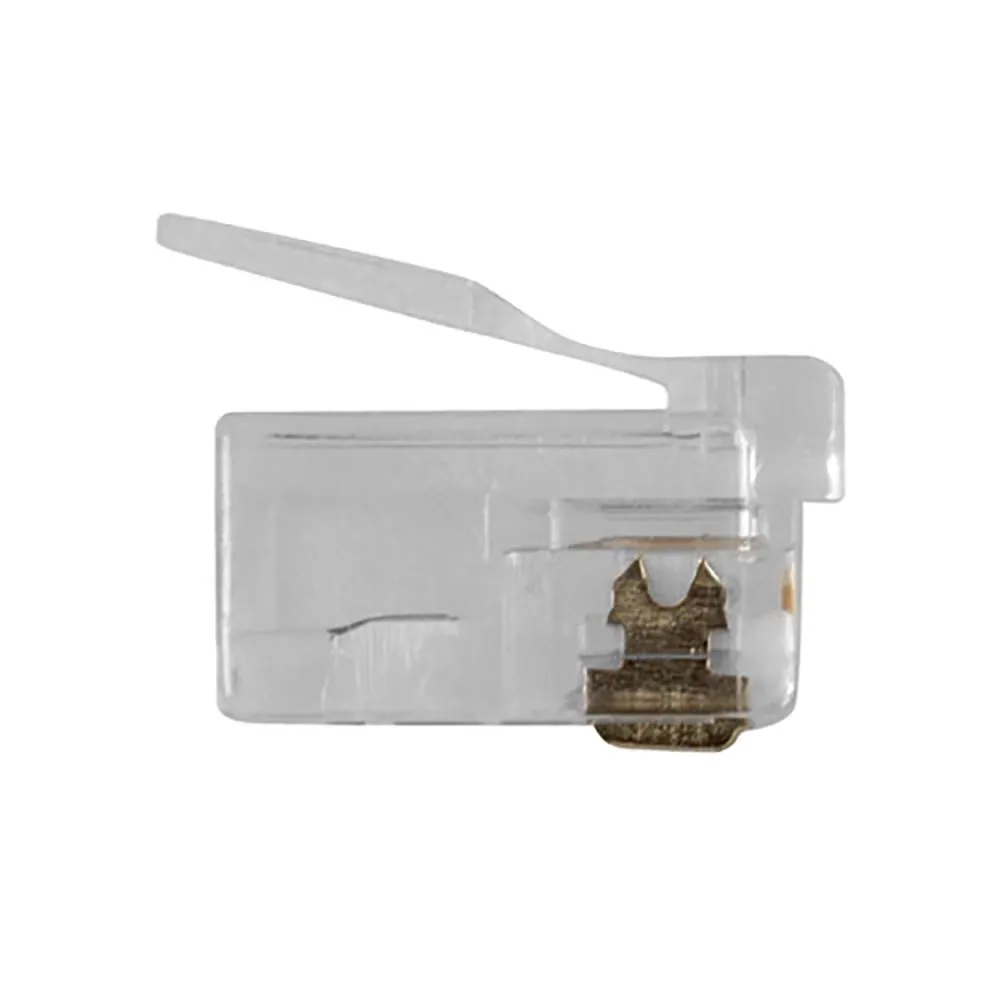

ACT TD106 RJ12 Modular Connector Head (6P/6C) for Network and Telephony

Craft high-performance, custom-length cables with the ACT TD106 RJ12 modular connector head, the professional choice for creating reliable connections in network and telephony systems. Engineered for superior performance and long-term durability, this 6P/6C connector is the essential component for terminating modular flat cables, ensuring your installations meet the highest standards of quality and signal integrity. Whether you are setting up an office phone system, a point-of-sale terminal, or a custom data link, the TD106 provides a secure and stable connection you can depend on.

Experience unparalleled signal integrity and protection against environmental factors. The core of the ACT TD106´s performance lies in its premium contact design. These contacts are meticulously plated with a thick 50µ layer of gold, offering exceptional conductivity and outstanding resistance to corrosion and oxidation. This ensures a clean, low-resistance signal path that minimizes data loss and maintains connection quality over thousands of mating cycles, making it ideal for critical applications where downtime is not an option.

Built for durability and ease of use, the connector features a robust, transparent polycarbonate housing. This high-impact material protects the internal wiring from physical stress, while its clarity allows installers to visually verify the correct wire order before crimping, significantly reducing errors and saving valuable time on the job. The contact material itself, phosphor bronze, is renowned for its excellent spring properties, ensuring a consistently tight and secure fit every time you plug in the cable. This combination of high-grade materials guarantees a connector that can withstand the demands of professional installations and everyday use.

The versatility of the ACT TD106 makes it a go-to solution for a wide range of wiring needs. It is fully compatible with both solid and stranded (litze) wire types, accommodating wire gauges from 26 AWG to 24 AWG. This flexibility allows you to use the same high-quality connector across various projects and cable types, simplifying your inventory and ensuring consistent results.

Features:
- For modulair flatcable
- Provide with 50µ gold plated contacts

Tools

To ensure a secure and reliable termination, the ACT TD106 RJ12 head is designed for use with a standard modular crimping tool compatible with 6P/6C (RJ12) connectors. Proper crimping is essential to pierce the wire insulation and establish a solid electrical connection with the internal contacts, resulting in a professional-grade, long-lasting cable assembly.

Technical Specifications:
- Product category: Connectors / Telephony
- Connector type: RJ12
- Contact material: Phosphor bronze
- Contact plating: Gold plated
- Housing material: Polycarbonate
- Category: CAT3
- Min. wire gauge: 26 AWG
- Max. wire gauge: 24 AWG
- Compatible wire type: Solid, Stranded (litze)
- Rated current: 1.5 A
- Rated voltage: 1000 V
- Connector: RJ-12 (6P/6C)
