Act TD168A RJ45 head

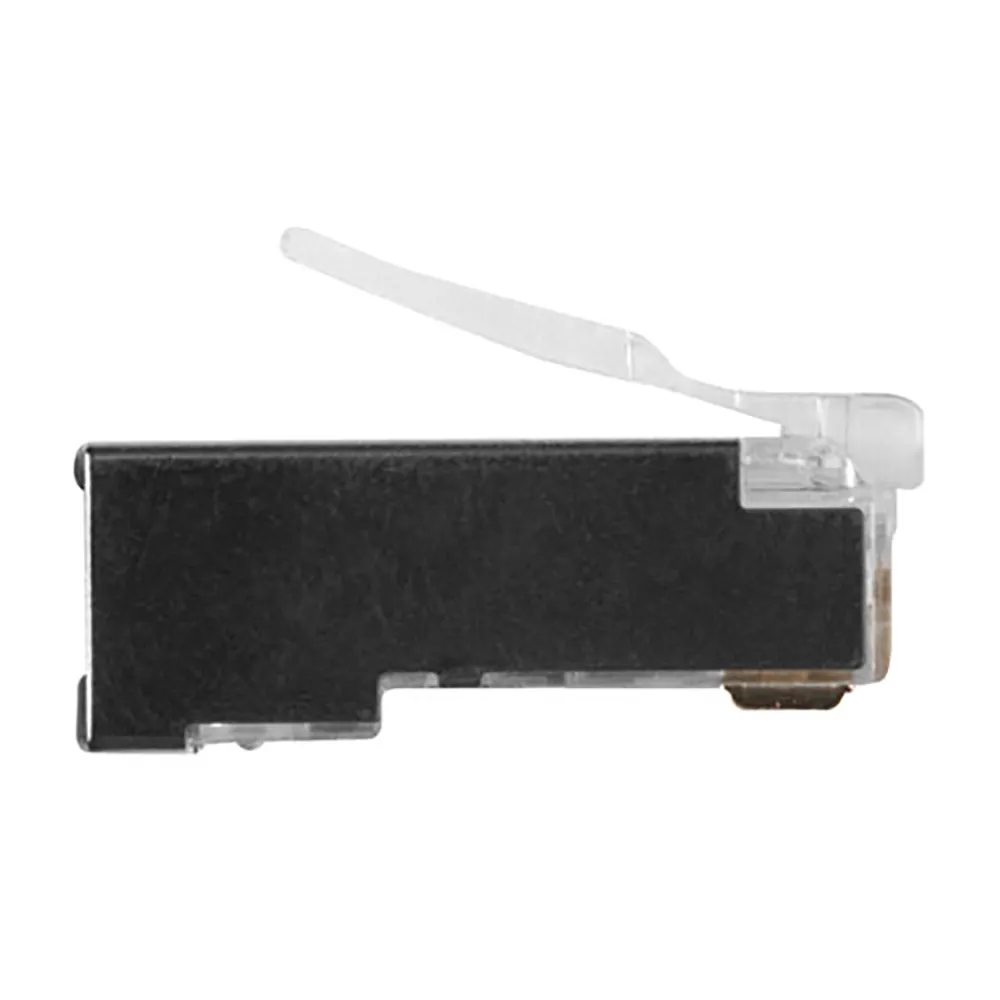

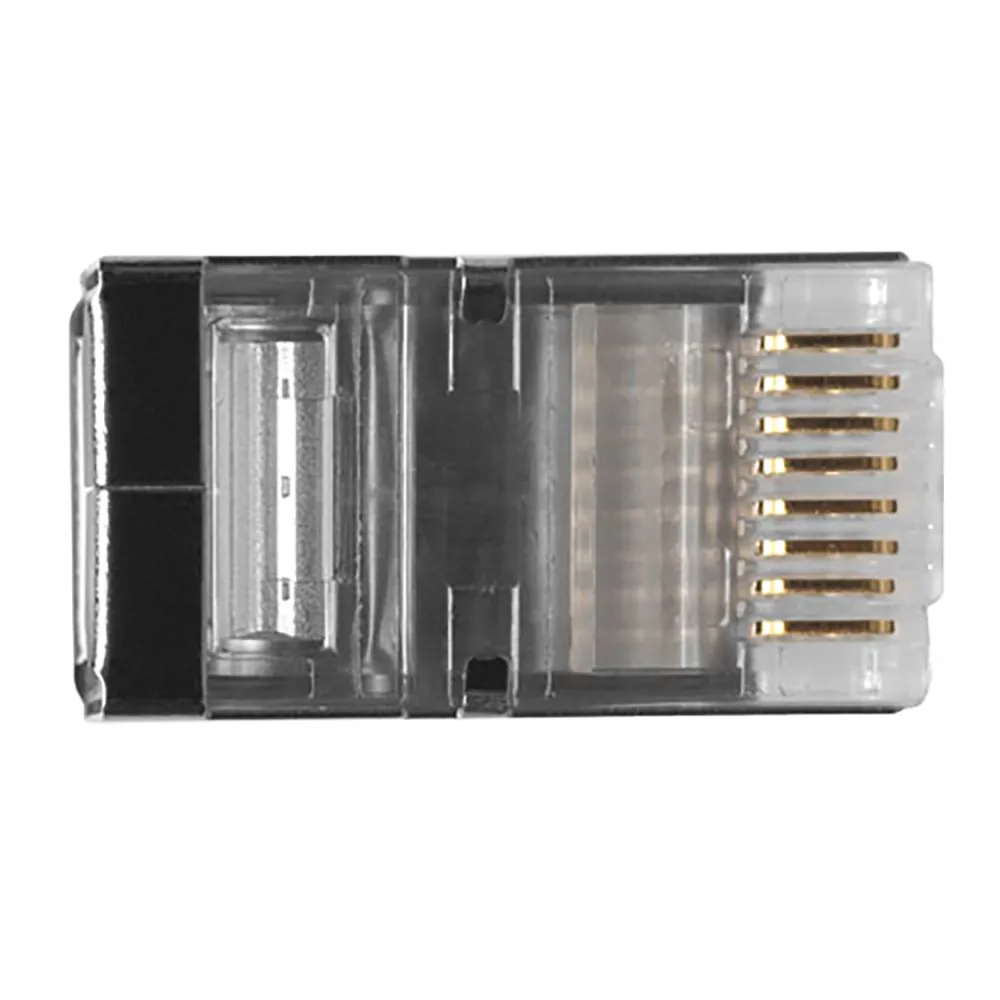

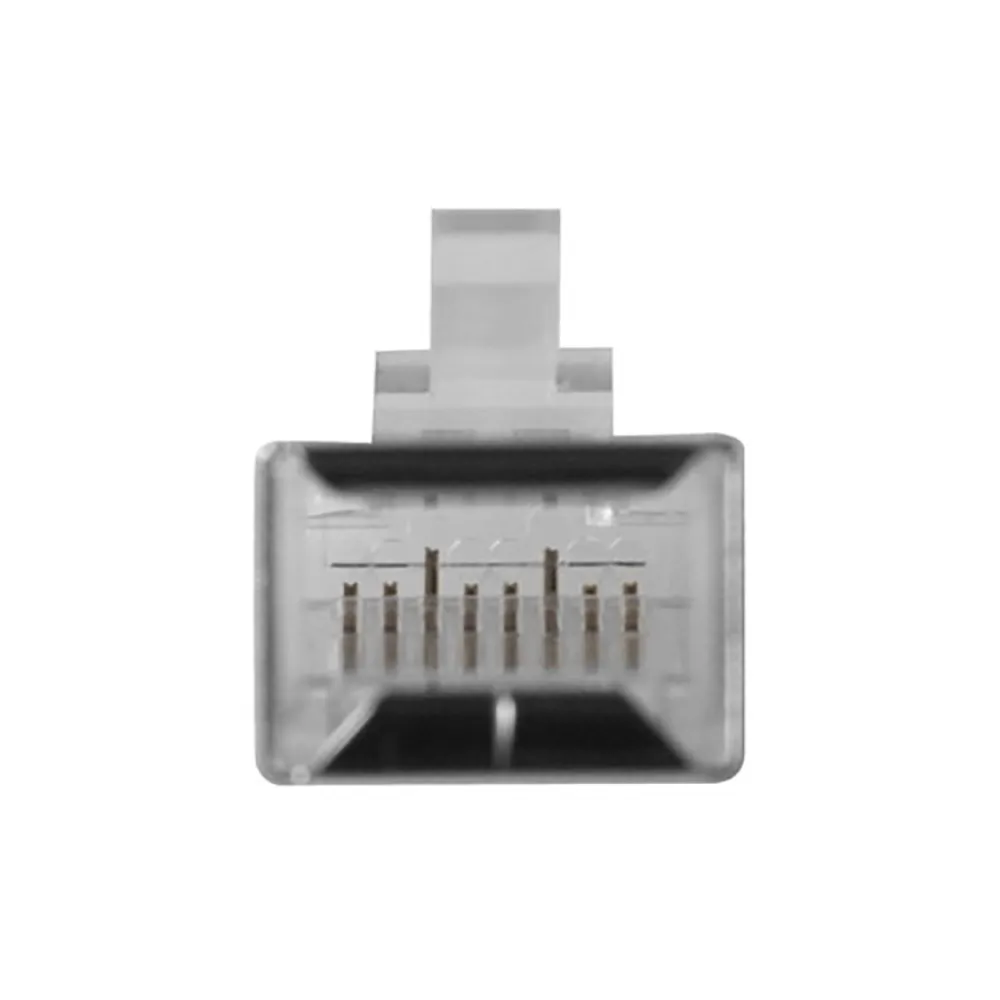

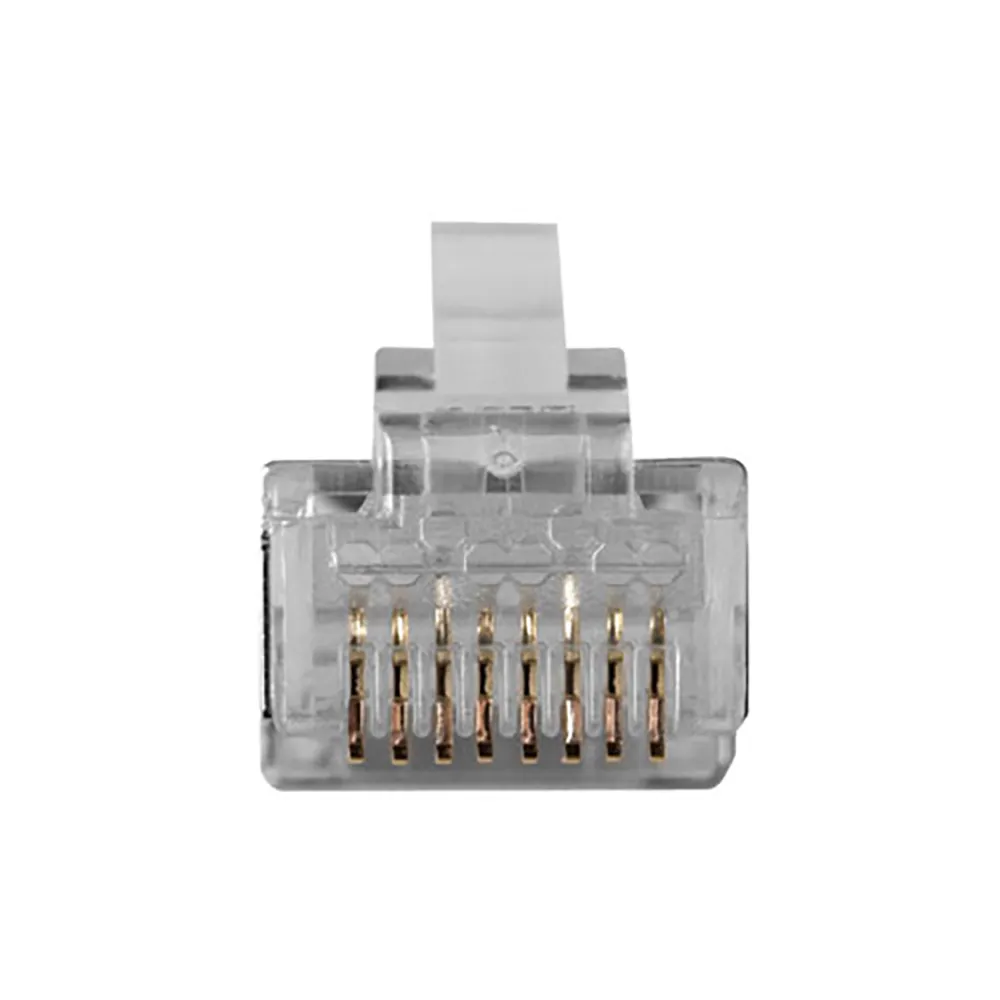

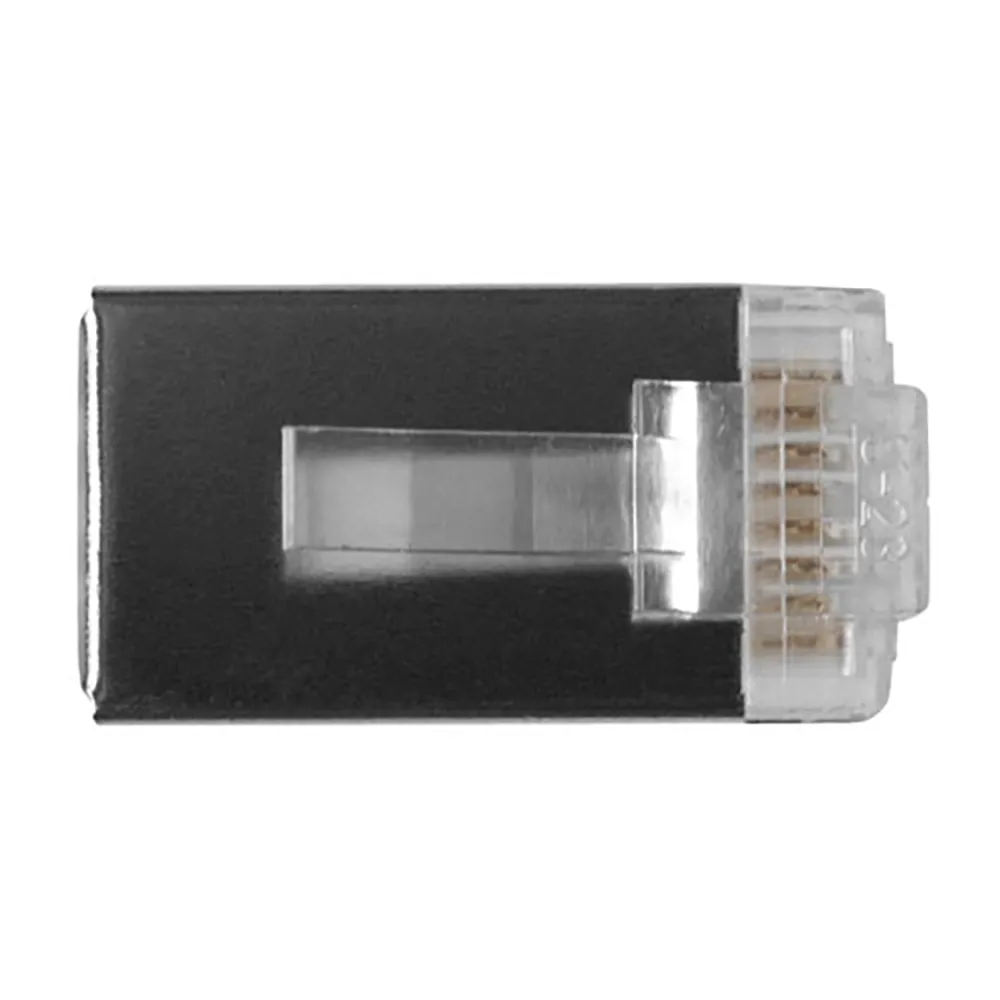

ACT TD168A RJ45 CAT6 Shielded Modular Connector

Elevate your network infrastructure with the ACT TD168A RJ45 Modular Connector, a premium solution engineered for creating robust, high-performance CAT6 network cables. In the world of high-speed data transmission, the quality of your connection is only as strong as its weakest link. This connector ensures that the termination point is a bastion of strength and reliability, eliminating it as a potential performance bottleneck. Designed for professionals and discerning users who demand uncompromised signal integrity and durability, the TD168A is the definitive choice for building custom-length patch cables or repairing existing network lines in demanding environments.

Experience the tangible benefits of superior engineering. The fully shielded design provides an essential layer of protection against electromagnetic interference (EMI) and radio frequency interference (RFI), making these connectors ideal for deployment in data-dense environments such as offices, data centers, and industrial settings where electronic noise can degrade network performance. This shielding ensures a stable, clean, and consistent signal for your mission-critical applications. Furthermore, the exceptional versatility of the TD168A allows for termination on both solid and stranded core conductors, streamlining inventory for installers and providing maximum flexibility for any project. You no longer need to carry separate connectors for different cable types; this single, high-quality component handles it all with professional grace.

Main Features
* CAT6 High-Speed Performance: Engineered to meet and exceed CAT6 standards, supporting bandwidth for Gigabit Ethernet and other high-speed protocols, ensuring your network is ready for today´s and tomorrow´s data demands.
* Superior Shielding for Signal Purity: Features a comprehensive shielded construction (STP/FTP) that effectively guards against external noise and crosstalk, preserving data integrity and maximizing network uptime.
* Premium 50µ Gold-Plated Contacts: Equipped with thick 50-micron gold plating on all 8 contacts to resist corrosion, reduce signal loss, and provide a superior, reliable connection over the long term.
* Universal Conductor Compatibility: Uniquely designed to provide a secure and effective termination for both solid core and stranded core round network cables, offering unmatched versatility for various installation scenarios.

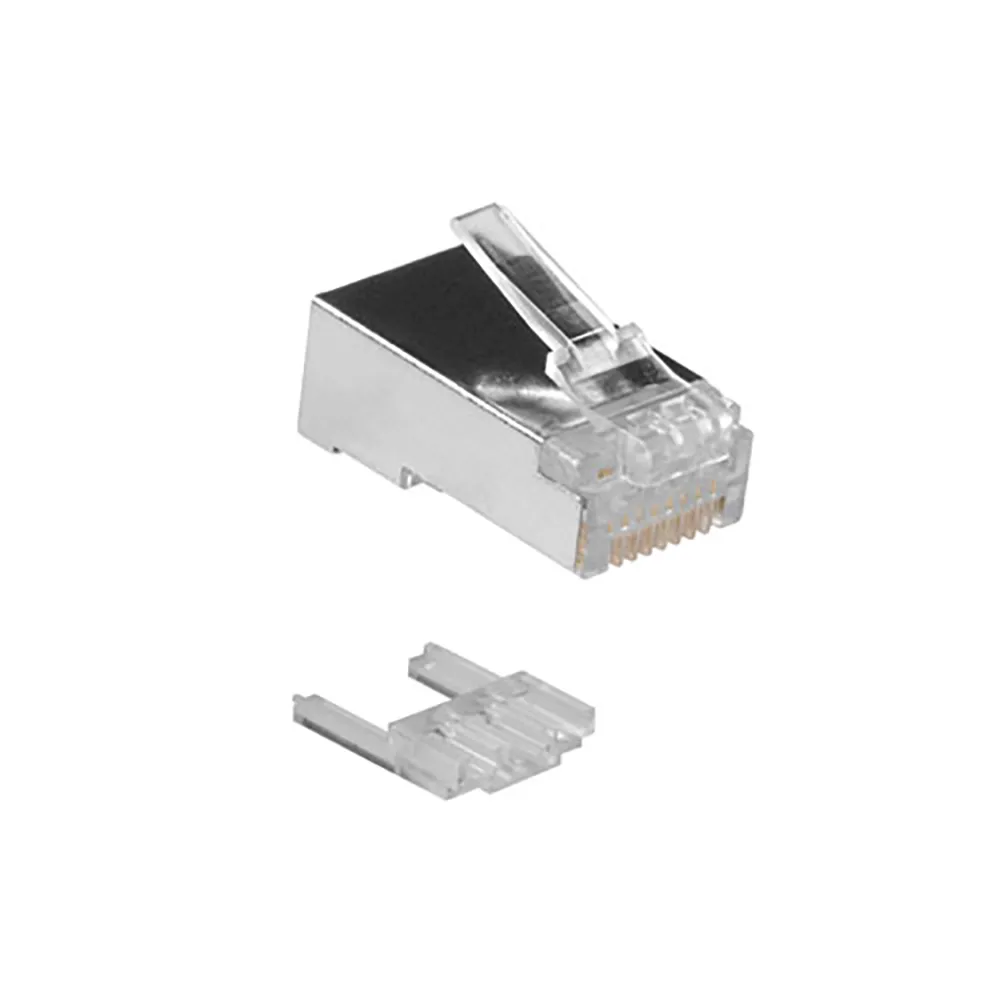

* Error-Proof Installation: An integrated positioning key guides the wires into their correct channels, simplifying the termination process and significantly reducing the risk of wiring errors, leading to faster, more reliable installations.
* Durable and Robust Build: Constructed for longevity and repeated use, ensuring a physically secure connection that withstands the rigors of installation and daily operation.

Tools

To achieve a professional and reliable termination with the ACT TD168A connector, the use of appropriate tools is highly recommended. For best results, use a quality RJ45 crimping tool designed for shielded connectors. A cable stripper will ensure a clean cut of the outer jacket without damaging the inner conductors, and a network cable tester is essential for verifying pinout and connection integrity after termination.

Technical Specifications

ACT RJ45 (8P/8C) CAT6 shielded modulaire connector for round cable with solid or stranded conductors.

Connector(s):RJ-45 M Cat 6For solid and stranded wire.

With positioning key.

Provide with 50µ gold plated contacts
